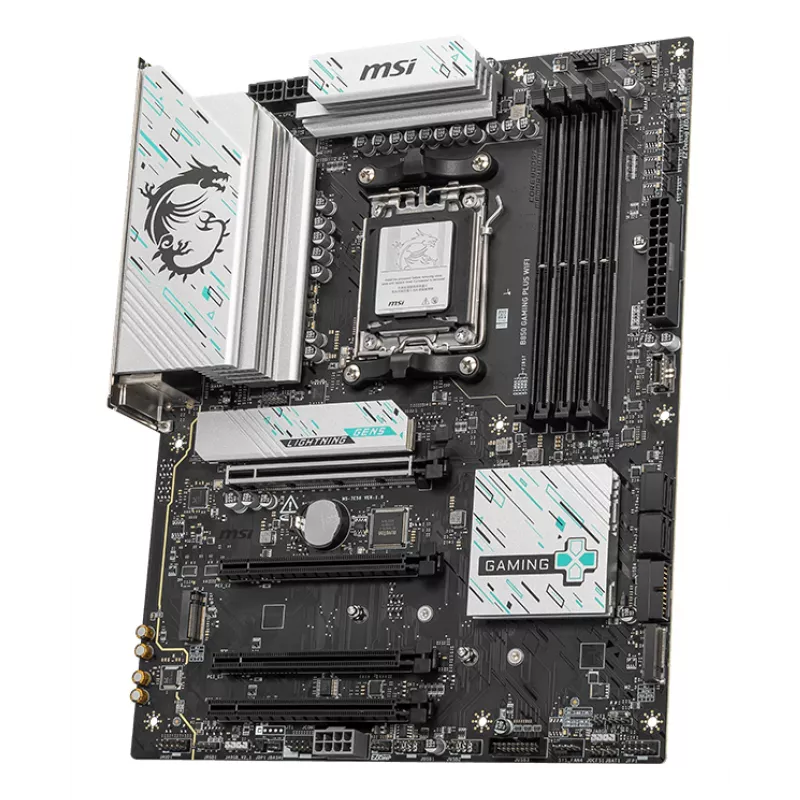

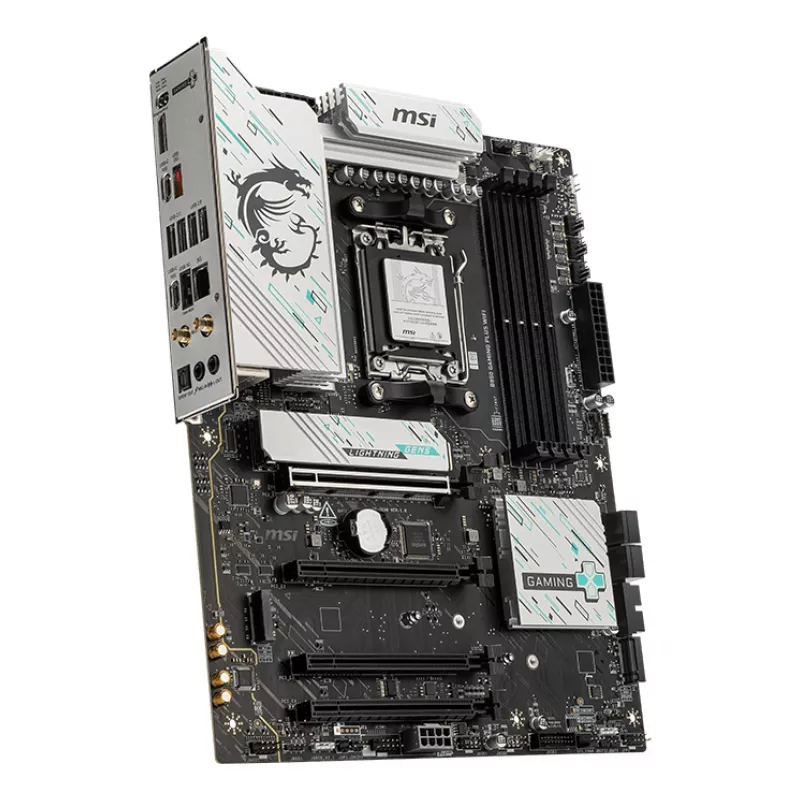

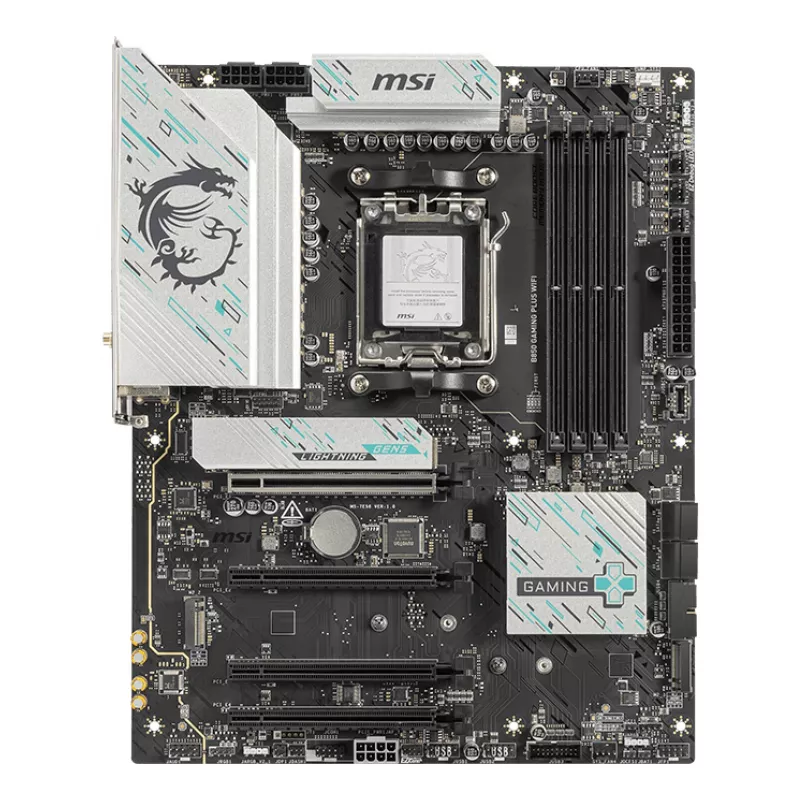

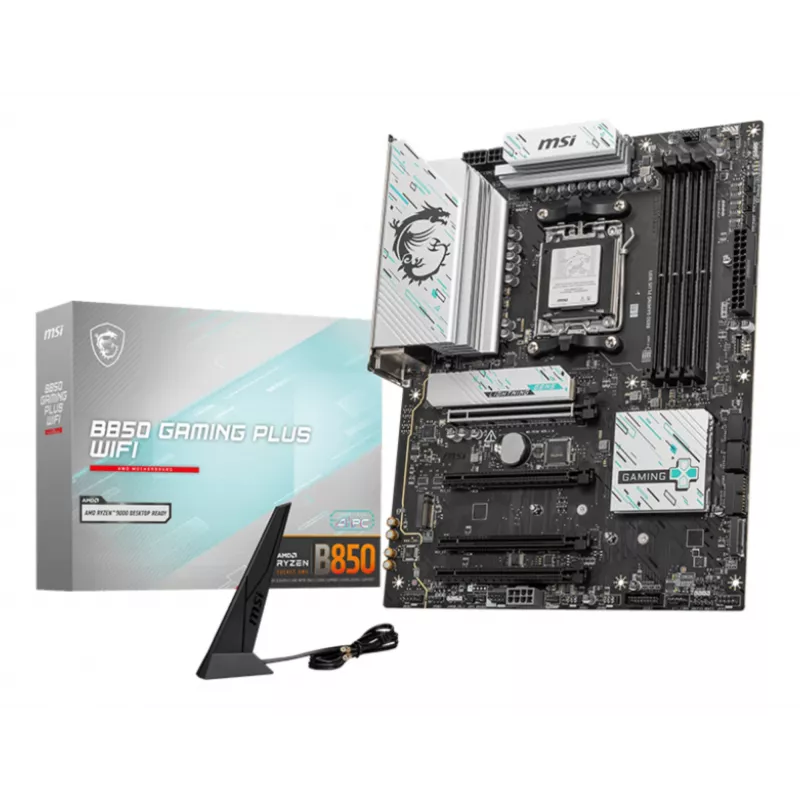

Placa base MSI B850 GAMING PLUS WIFI ATX — AMD B850, socket AM5, DDR5, 4x DIMM, Wi-Fi 7, 5Gb LAN, 3x M.2, HDMI 2.1

The B850 GAMING PLUS WIFI is a motherboard engineered for gamers using AMD Ryzen™ 9000 series processors, offering extensive connectivity and an integrated Wi‑Fi 7 solution. It combines PCIe 5.0 support, 5G LAN, supplemental PCIe power and MSI's EZ DIY features to enable continuous 24/7 operation while meeting the needs of demanding gaming and AI workloads.

Advantages

The board uses a 12+2+1 Duet Rail Power System with digital VRM and 8 + 8‑pin CPU power connectors to provide stable delivery under heavy loads. Enhanced cooling elements such as an extended heatsink, heavy plated VRM heatsink, enlarged chipset heatsink and M.2 Shield Frozr improve heat dissipation for sustained performance. High‑quality 7W/mK thermal pads and additional choke pads further support thermal stability. Integrated high‑bandwidth, low‑latency networking with full‑speed Wi‑Fi 7 and 5G LAN ensures fast data transfer for competitive play.

Key specifications

• CPU compatibility: AMD Ryzen™ 9000 series
• Power design: 12+2+1 Duet Rail Power System, digital VRM
• CPU power connectors: 8 + 8‑pin
• PCIe: PCIe 5.0 support
• Storage cooling: M.2 Shield Frozr for M.2 SSDs
• Thermals: Extended heatsink, heavy plated VRM heatsink, enlarged chipset heatsink
• Thermal materials: 7W/mK MOSFET thermal pads and additional choke pads
• Networking: Full‑speed Wi‑Fi 7 and 5G LAN

How to use

Install an AMD Ryzen™ 9000 series CPU and connect the 8 + 8‑pin CPU power cables before boot. Mount M.2 SSDs with the M.2 Shield Frozr to maintain thermal performance and attach required cooling and case airflow to the extended heatsinks and chipset area. Enable network settings in BIOS or MSI Center to configure Wi‑Fi 7 or 5G LAN. Use MSI EZ DIY features in BIOS or the MSI Center software for guided setup, firmware updates and performance tuning.

Recommendations

For continuous high‑load gaming or AI tasks, use a high‑quality power supply with adequate headroom, ensure sufficient case airflow to benefit from the extended and VRM heatsinks, and keep firmware and MSI Center utilities updated to maintain compatibility and performance.
