Placa base MSI MPG X870E CARBON WIFI — AMD X870E, Socket AM5, ATX, DDR5 hasta 256 GB, Wi‑Fi 7

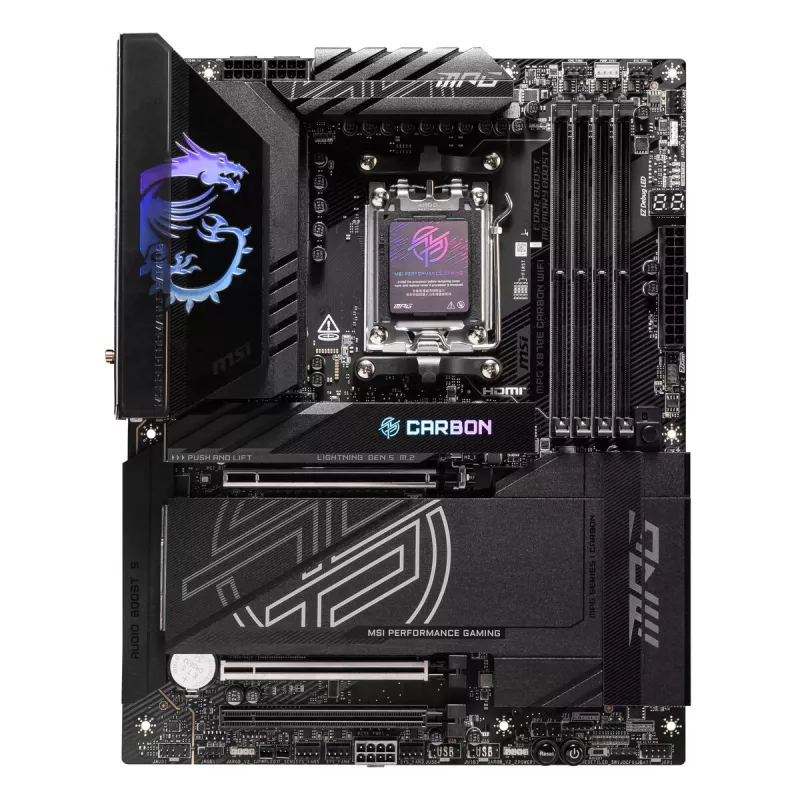

The MSI MPG X870E CARBON WIFI is an ATX motherboard for AMD Socket AM5 processors, compatible with AMD Ryzen™ 7 CPUs. It supports DDR5-SDRAM across four DIMM slots for a maximum memory capacity of 256 GB. Storage options include M.2 and SATA III interfaces. The board provides multiple USB Type-A and Type-C ports, a 2.5 Gigabit Ethernet LAN port, HDMI output, integrated Wi‑Fi and Bluetooth, and 7.1 channel audio.

Advantages

This motherboard combines the AMD X870E chipset with an ATX layout to offer a balance of expansion, cooling space and connectivity. Native support for DDR5 memory and multiple M.2 slots enable high-performance memory and fast NVMe storage. Built-in Wi‑Fi and Bluetooth plus a 2.5 GbE LAN port provide flexible high-speed network options. A broad set of USB Type-A and Type-C ports and HDMI output simplify peripheral and display connections.

Suitable for

• High-performance desktop builds with AMD Ryzen™ 7 processors
• Gaming systems requiring fast memory and NVMe storage
• Workstations needing multiple expansion slots and high-speed networking
• Home or office PCs with integrated Wi‑Fi and Bluetooth connectivity

Key specifications

• Form factor: ATX
• Chipset: AMD X870E
• Processor socket: Socket AM5 (for AMD Ryzen™ 7 and compatible CPUs)
• Memory type: DDR5-SDRAM, 4 × DIMM slots, up to 256 GB
• Storage interfaces: M.2 and SATA III
• Audio: 7.1 channel onboard audio

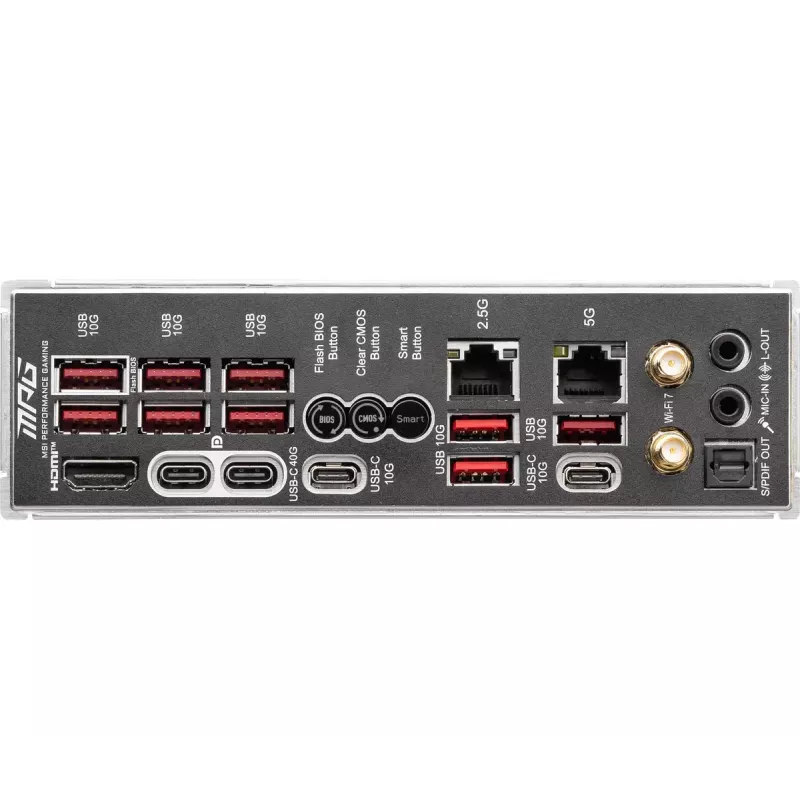

• Networking: 2.5 Gigabit Ethernet LAN and integrated Wi‑Fi (Wi‑Fi 7/802.11be) and Bluetooth
• Video output: HDMI port
• USB: multiple USB 3.2 Gen 1 Type-A and Type-C ports, plus USB 3.2 Gen 2 Type-A ports

How to use

Install the motherboard into an ATX-compatible chassis and secure it to standoffs. Fit a compatible AM5 CPU and apply thermal solution according to the CPU cooler manufacturer’s instructions. Populate DDR5 DIMM modules in matched pairs or as recommended by the motherboard manual to achieve optimal memory configuration. Connect M.2 NVMe drives and SATA storage devices to the corresponding sockets and ports, and attach power supply connectors and front-panel cables. Install required chipset and device drivers from MSI to enable full functionality of networking, audio and other onboard controllers.

Recommendations

For stable high-performance operation, use high-quality DDR5 memory modules rated for the motherboard’s supported speeds, ensure proper CPU cooling, and keep chipset and BIOS firmware up to date. Follow the motherboard manual for recommended DIMM slot population and M.2 thermal installation to maintain optimal temperatures.
