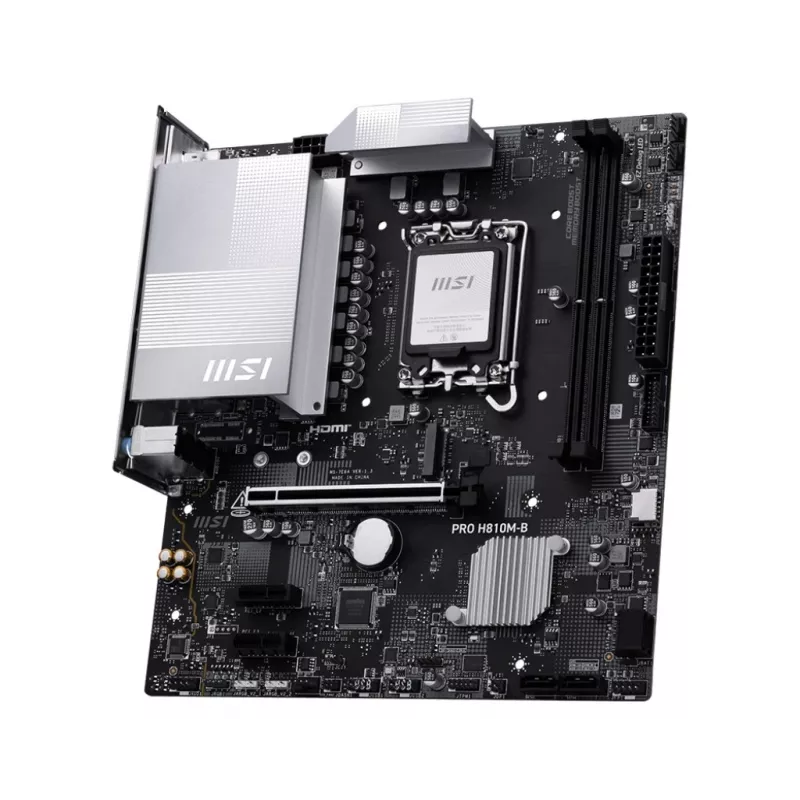

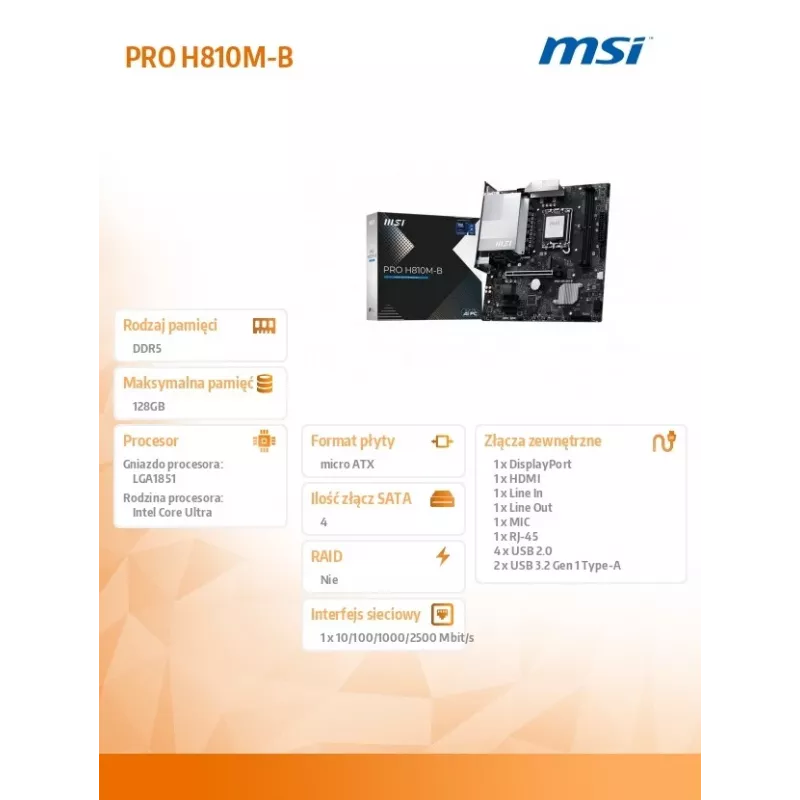

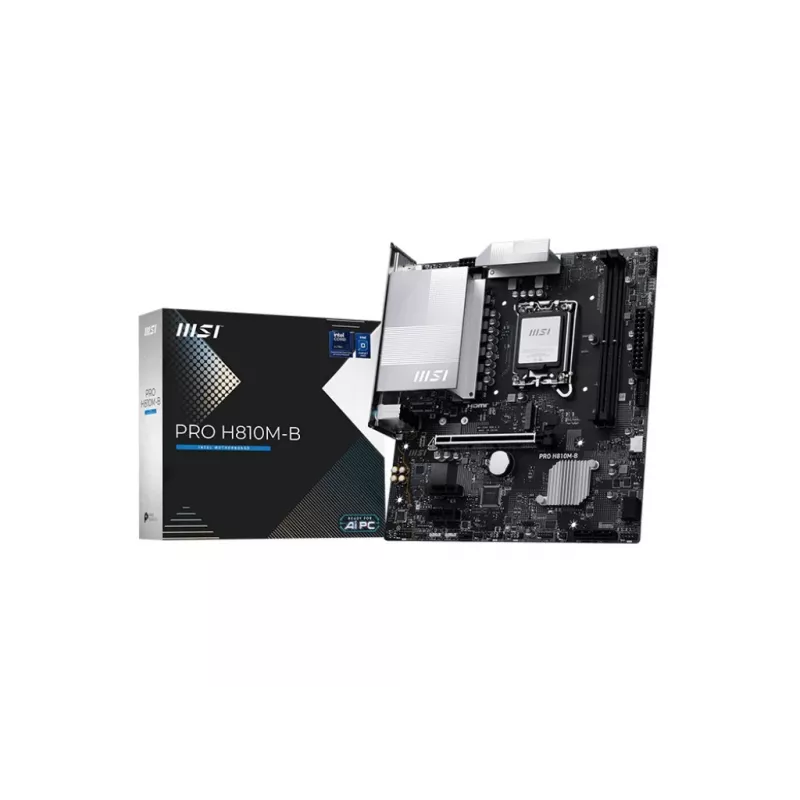

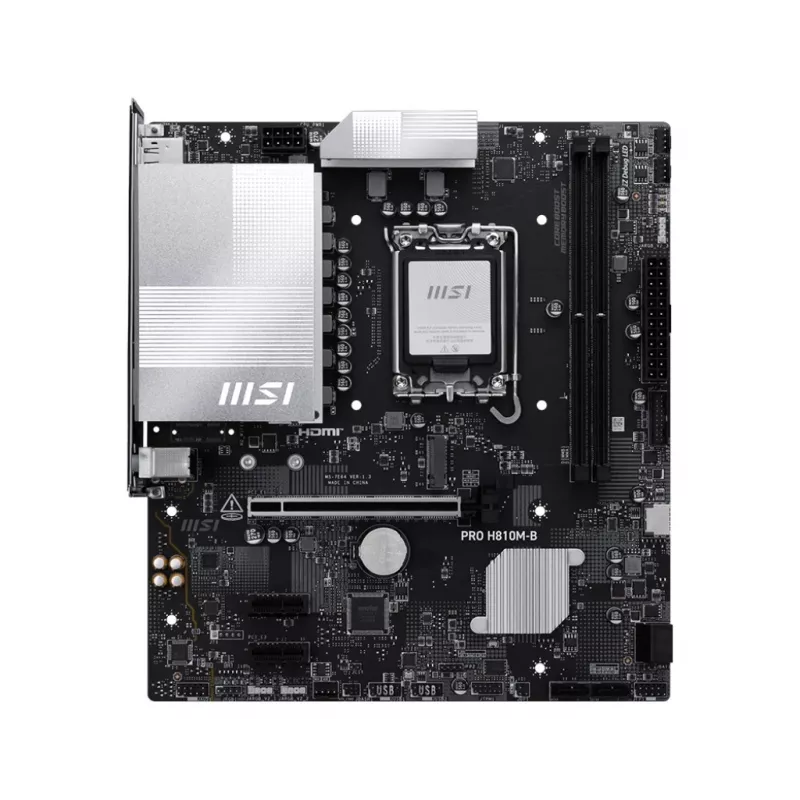

Placa base MSI PRO H810M-B Intel H810 LGA 1851 (Socket V1) micro ATX

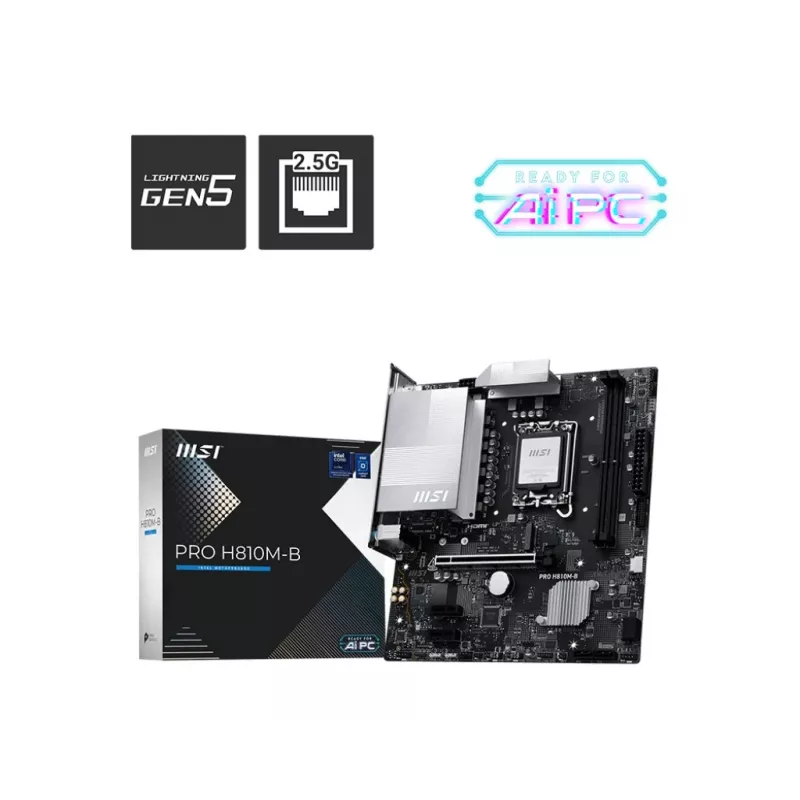

PRO H810M-B offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with 2.5G LAN and PCIe 5.0, ready for the Intel® Core™ Ultra processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

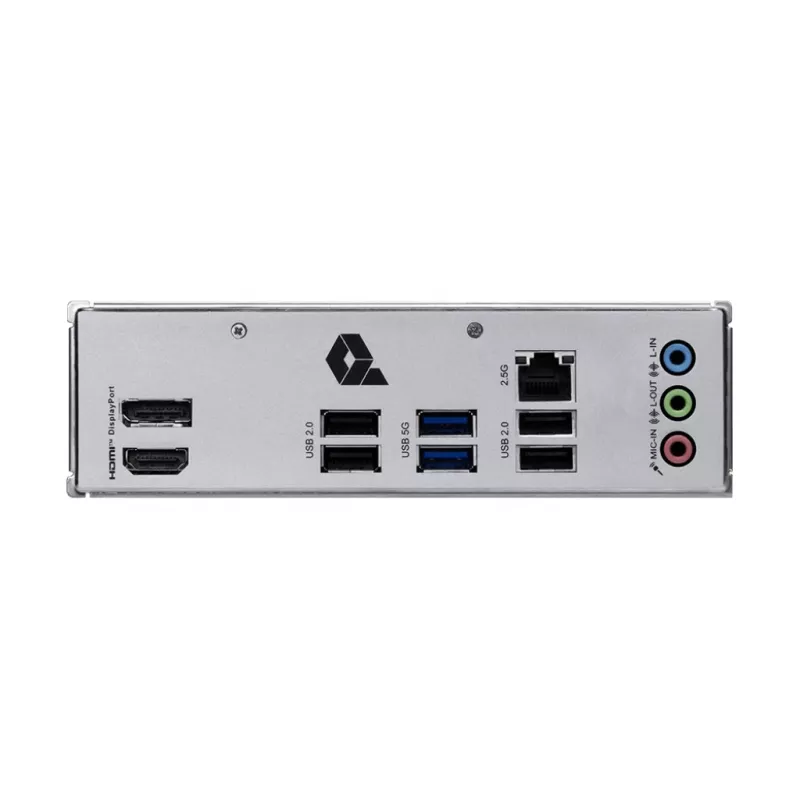

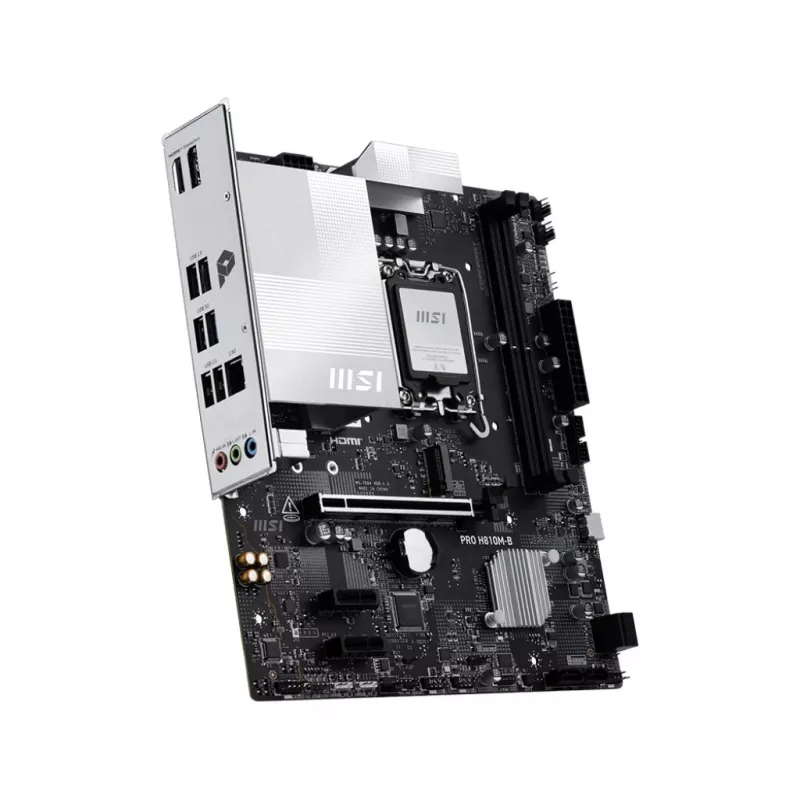

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

EZ Memory Detection LED
This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO H810M-B is ready to deliver the world-class memory performance.

Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

How to use

Install the motherboard into a micro ATX compatible case, ensuring the pre-installed I/O shield aligns with the rear I/O cutout. Mount an LGA 1851 CPU following the CPU and cooler manufacturer instructions, insert DDR5 modules into the two DIMM slots, and connect storage devices to SATA III ports or PCIe storage slots as required. Connect the 24-pin ATX and CPU power headers, front panel connectors, and attach required case fans or liquid cooler pump to the dedicated headers. Use the MSI BIOS or MSI Center software to configure memory, storage, boot order, and to enable integrated AI features such as AI Engine, AI LAN Manager, Frozr AI Cooling, and AI Boost for optimized performance and network prioritization.

Recommendations

For stable operation, use certified DDR5 modules and a compatible cooling solution appropriate for your Intel Core Ultra processor. Keep BIOS and MSI Center up to date to benefit from AI optimizations, network driver improvements, and security updates. During troubleshooting, consult the EZ DEBUG and EZ Memory Detection LEDs to identify faulty components quickly.
