Placa embellecedora, Busch-Jaeger 1743-884, blanco, diseño convencional, 63×63 mm

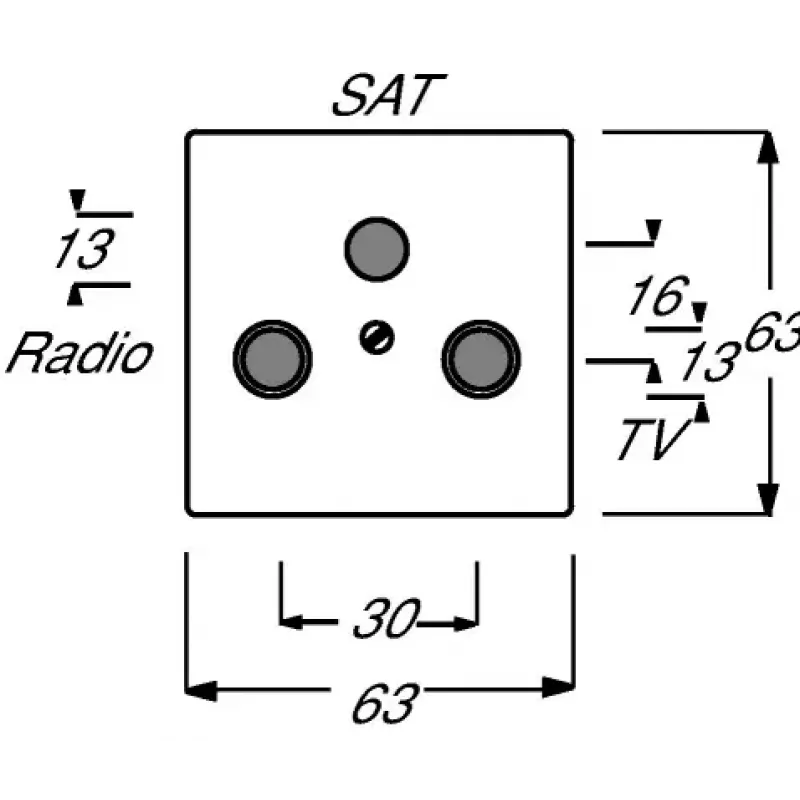

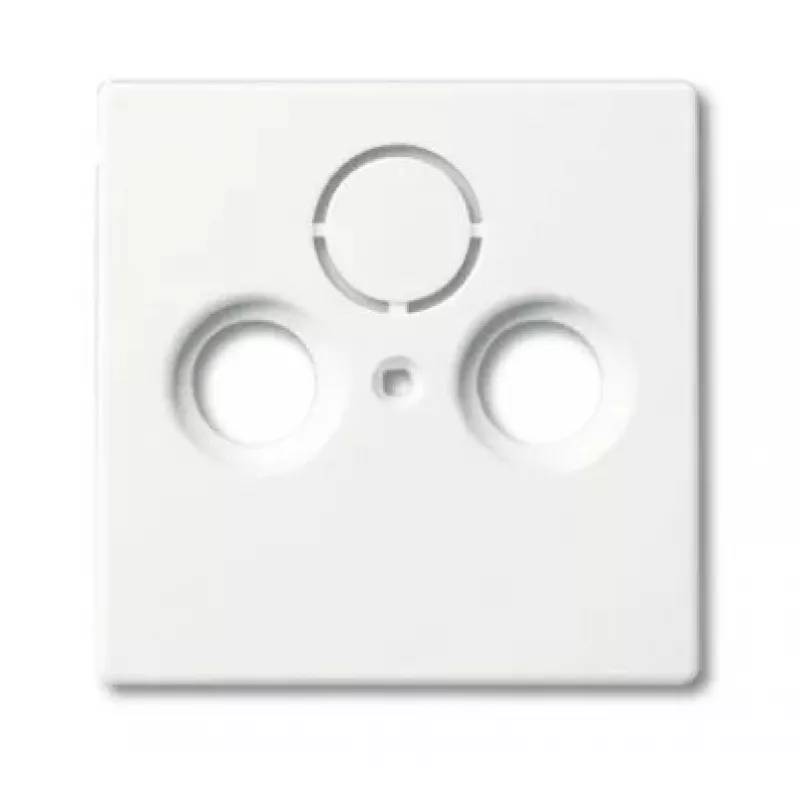

Busch-Jaeger 1743-884 is a white, conventional-design wall plate cover sized 63 × 63 mm. It is intended to finish radio/TV/SAT and electrical outlet openings and matches Busch-Jaeger fittings for a uniform appearance in residential and commercial installations.

Advantages

The cover has two connectors and complies with German standard DIN 45330. It includes an M3 fixing screw for secure mounting and a third opening that can be knocked out when an additional connection is required. The surface is painted to provide a neat, consistent finish.

Suitable for

Key specifications

How to use

Position the wall plate over the outlet or opening and secure it using the supplied M3 fixing screw. If an additional connector is needed, knock out the third opening before mounting. Ensure compatibility with existing Busch-Jaeger fittings and align connectors with the installed coaxial outlets for radio/TV/SAT connections.

Recommendations

Use the cover with compatible Busch-Jaeger coaxial socket inserts and tighten the M3 screw to a moderate torque to avoid damaging the plate. For installations requiring grounding or additional electrical considerations, follow local regulations and applicable installation instructions.
