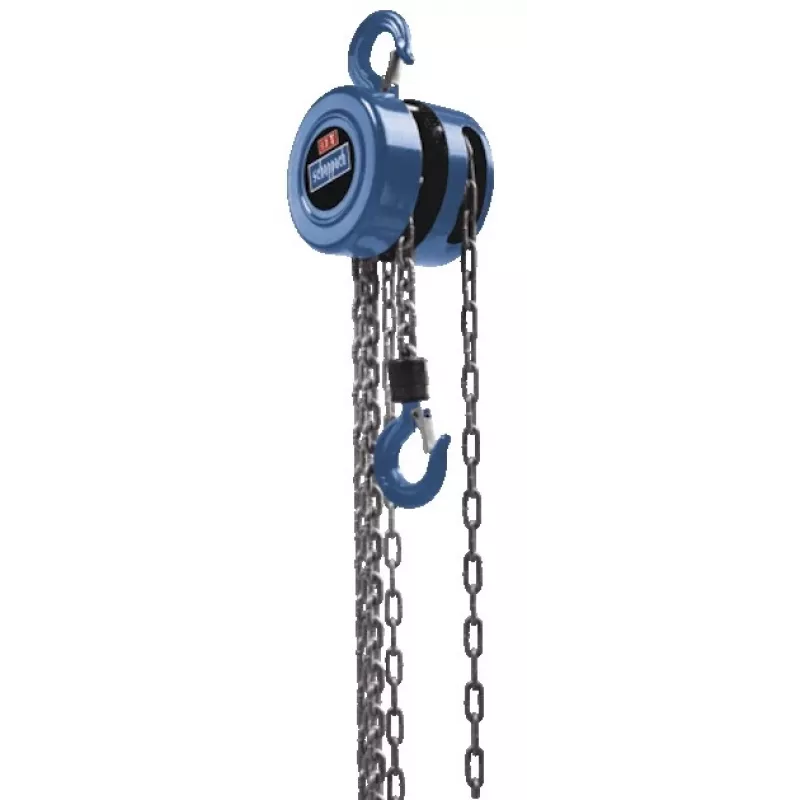

Polipasto de cadena SCHEPPACH CB01 1000 kg con cable manual

The SCHEPPACH Chain Winch CB01 is a robust manual hoist designed for lifting loads up to 1000 kg. Ideal for workshops, garages, and industrial environments, it features a durable steel housing, high-strength alloy steel load chain, and forged steel hooks with 360° swivel and safety latches. The automatic load-actuated brake ensures safe operation, while the spur gear system provides smooth lifting. With a standard lifting height of 2.5 m and a minimum headroom of 290 mm, this hoist is compact yet powerful.

Advantages

Reliable manual operation with automatic brake for safety. Compact design with low headroom requirement. Durable powder-coated finish resists corrosion. CE certified for quality assurance.

Suitable for

• Lifting heavy machinery and equipment
• Workshop and garage applications
• Industrial maintenance and assembly

Key specifications

• Lifting Capacity: 1000 kg
• Lifting Height: 2.5 m
• Chain Diameter: 6 mm
• Number of Falls: 1
• Housing Material: Steel
• Chain Material: High-strength alloy steel (Grade 80)
• Hook Material: Forged steel with safety latches
• Brake System: Automatic load-actuated
• Minimum Headroom: 290 mm
• Gear System: Spur gear
• Finish: Powder-coated
• Certification: CE

Recommendations

For safe and efficient lifting, ensure the hoist is properly mounted and regularly inspected. Always use within rated capacity.
