HOLZMANN MASCHINEN ESZ250D-230V Polipasto eléctrico 250 kg doble ramal 125 kg ramal simple 230 V

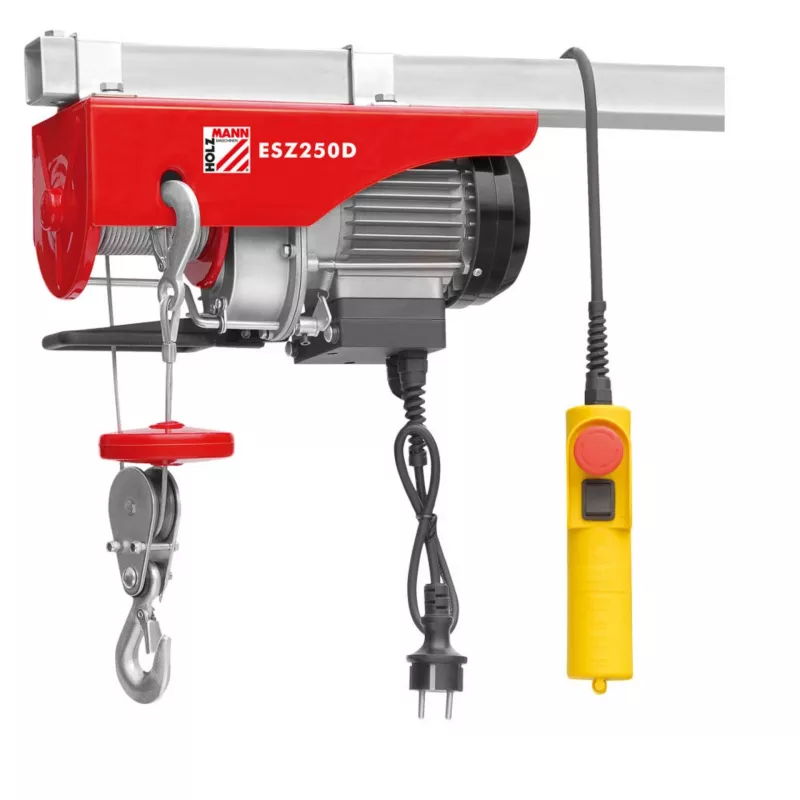

The Holzmann ESZ250D-230V electric wire rope hoist delivers dependable lifting power for workshops, garages, and light industrial settings. Unlike basic pulley systems, this unit combines a robust 500 W motor with dual-line capability, letting you switch between 250 kg capacity with slower, controlled lifting and 125 kg capacity with faster single-line operation. The die-cast aluminum and steel housing keeps the hoist lightweight yet durable, while IP54 protection guards against dust and water splashes for long-term reliability.

Highlights

• Dual lifting modes: 250 kg double line or 125 kg single line
• Powerful 500 W motor with 230 V / 50 Hz operation
• IP54-rated housing resists dust and moisture
• Emergency stop and automatic limit stops for safety
• Includes 12 m steel cable and 1.5 m control cable

In daily use

Mount the ESZ250D-230V via its hook suspension and connect to a standard 230 V outlet. The pendant control with 1.5 m cable allows precise positioning, while the automatic limit stops prevent over-travel. With a lifting speed of 5 m/min in double-line mode and 10 m/min in single-line mode, you can handle engines, machinery parts, or building materials efficiently. The 3 mm steel cable offers a good balance of flexibility and strength, and the S3 20% duty cycle (10 minutes) suits intermittent lifting tasks.

Full specifications

• Max. lifting capacity (double line): 250 kg
• Max. lifting capacity (single line): 125 kg
• Max. lifting height (double line): 5.5 m
• Max. lifting height (single line): 11 m
• Lifting speed (double line): 5 m/min
• Lifting speed (single line): 10 m/min
• Motor power: 500 W
• Operating voltage: 230 V / 50 Hz
• Protection class: IP54
• Operating mode: S3 20% - 10 min
• Steel cable diameter: 3 mm
• Steel cable length: 12 m
• Control cable length: 1.5 m
• Safety features: Emergency stop, automatic limit stops
• Mounting type: Hook suspension
• Housing material: Die-cast aluminum / steel

Final note

For reliable lifting with the flexibility of two capacities, the Holzmann ESZ250D-230V is a practical choice that balances power, safety, and ease of use.
