Portero automático de audio de 2 hilos EURA ADP-24A3 negro

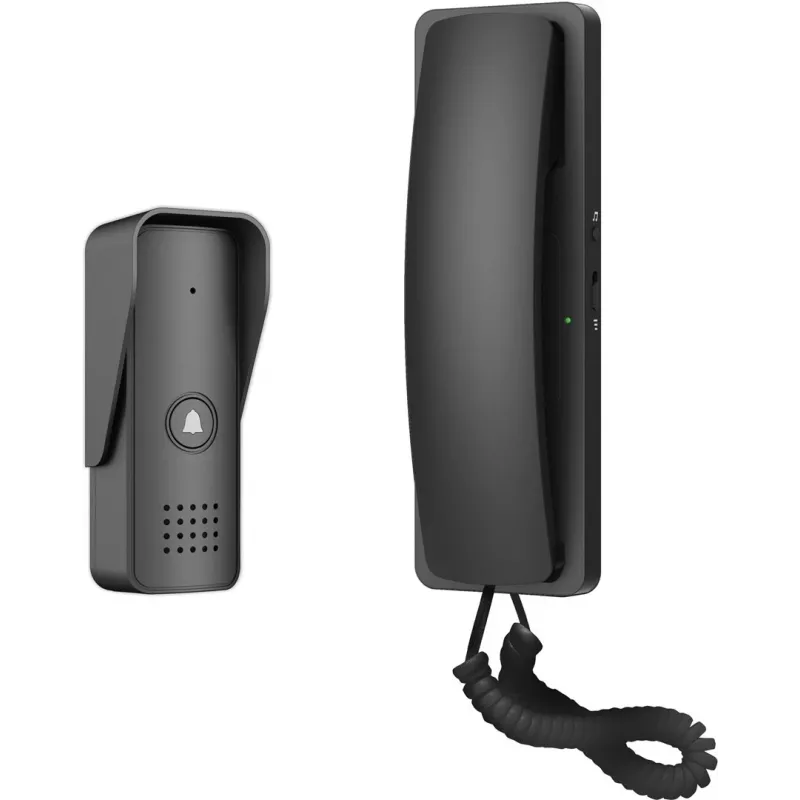

The EURA ADP-24A3 is a reliable 2-wire audio intercom system designed for single-family homes. This kit includes a surface-mount outdoor panel with a handset and a wall-mounted indoor uniphone, providing clear communication and convenient door release functionality. The outdoor panel is constructed from durable aluminum alloy and plastic, with an IP44 rating for weather resistance.

Advantages

Easy 2-wire non-polarized installation simplifies wiring. The outdoor panel's IP44 rating ensures reliable operation in various weather conditions. Adjustable call volume on the uniphone allows personalized sound levels. The door release output (12V DC, 500mA) supports electric strike locks.

Suitable for

• Single-family homes requiring a simple audio intercom
• Surface-mount installations on walls or posts
• 2-wire systems with cable runs up to 100m

Key specifications

• System Type: Audio Intercom
• Wiring: 2-Wire (Non-Polarized)
• Outdoor Panel Material: Aluminum Alloy / Plastic
• Outdoor Panel IP Rating: IP44
• Uniphone Type: Handset with Door Release Button
• Power Supply: AC 230V/50Hz via 12V DC Adapter
• Max. Cable Length: 100m
• Operating Temperature (Outdoor): -15°C to +50°C
• Operating Temperature (Uniphone): 0°C to +45°C
• Outdoor Panel Dimensions: 140 x 65 x 40 mm
• Uniphone Dimensions: 210 x 80 x 45 mm

Recommendations

For best performance, use a twisted-pair cable of at least 0.5mm² cross-section. Ensure the outdoor panel is mounted in a sheltered location to prolong its lifespan.
