Portero automático de audio Fanvil I16S

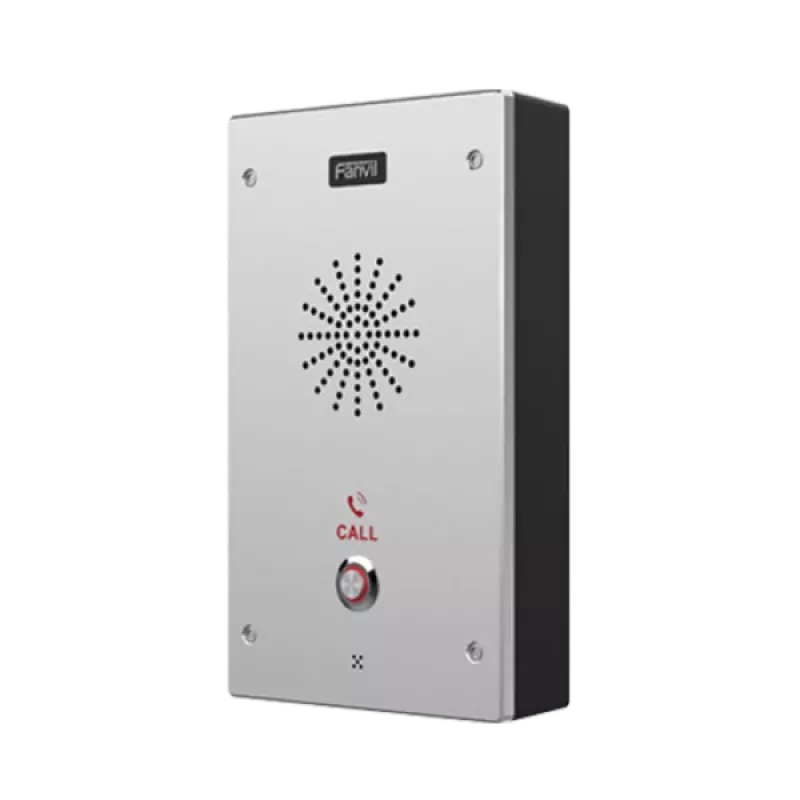

The Fanvil I16S is a stainless steel audio intercom system designed for wall mounting in outdoor and semi-outdoor environments. With IP65 ingress protection and IK10 impact resistance, the Fanvil I16S provides a durable solution for secure two‑way audio communication and public address where weather and vandal resistance are required. The unit supports wired network connectivity via an RJ‑45 connector and is sized at 195 mm (W) × 120 mm (D) × 40 mm (H).

Advantages

The Fanvil I16S combines stainless steel construction with IP65 and IK10 ratings for reliable performance in harsh environments. It delivers clear HD audio for intercom and broadcasting functions and integrates easily into SIP-based VoIP systems using standard RJ-45 network connectivity. Its wall-mount form factor and compact dimensions make it suitable for controlled access points and perimeter communication.

Suitable for

• Entrance gates and perimeter security
• Building lobbies and outdoor access points
• Parking facilities and loading docks
• Industrial sites requiring weatherproof intercoms

Key specifications

• Model: Fanvil I16S (MPN: I16S)
• Material: Stainless steel
• Protection: IP65, IK10
• Connectivity: Wired, RJ-45
• Dimensions: 195 mm × 120 mm × 40 mm
• EAN: 6937295602623

How to use

Mount the Fanvil I16S on a secure wall surface following local installation standards for outdoor electrical equipment. Connect the unit to the local network using the RJ‑45 port and configure SIP account settings via the device web interface or provisioning server. Test audio transmit and receive functions and adjust volume or network parameters as required for reliable two‑way communication and broadcasting.

Recommendations

Install the intercom at a height and location that reduces direct exposure to extreme weather and prevents obstruction of the microphone and speaker. Use surge protection on the network line in areas prone to electrical storms and follow regular maintenance checks to ensure seals and fasteners remain intact for continued IP65 performance.
