Tarjeta gráfica AMD Radeon RX 9060 XT 16 GB GDDR6

The PowerColor Hellhound AMD Radeon RX 9060 XT 16GB GDDR6 is a discrete graphics card designed for high-performance 1440p gaming and graphics workloads. It features 16 GB of GDDR6 memory on a 128-bit bus, PCI Express 5.0 interface and supports modern APIs including DirectX 12.0 and OpenGL 4.6. The card includes a three-fan active cooling system with intelligent fan control, reinforced metal backplate and an Arctic Blue LED accent that can be toggled with a physical switch.

Advantages

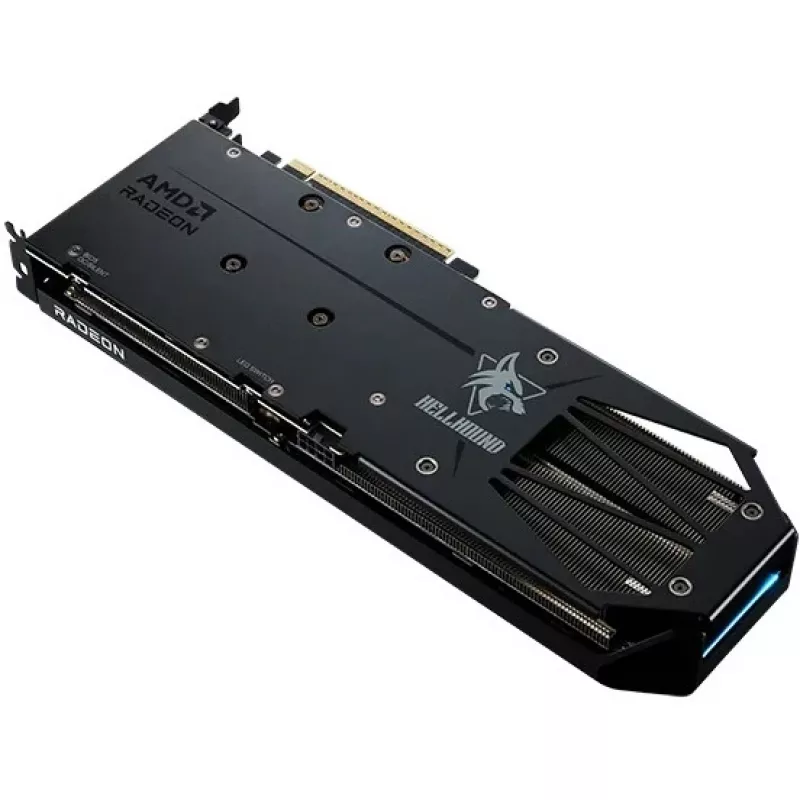

The Hellhound model integrates a high-efficiency DrMOS power module with a 5+1 phase GPU and 2+1 phase memory power design, conductive polymer capacitors, and a premium 6-layer PCB with a 2oz power layer to improve signal stability and reliability under load. Cooling is addressed through a vertical heatsink with precisely spaced fins, four nickel-plated copper heatpipes, a smooth nickel-plated copper base for direct contact cooling, and Honeywell PTM7950 phase-change material to reduce micro gaps. The triple-fan assembly uses a 9-blade ring design with Japanese dual ball bearings and a dual-BIOS switch for OC and Silent modes.

Suitable for

• 1440p gaming with advanced visuals and ray tracing
• Content creation and video editing that require large GPU memory
• High-resolution displays up to 7680 × 4320 for multimedia and productivity
• PC builds using AM5 platform and PCIe 5.0 motherboards

Key specifications

• Graphics processor: Radeon RX 9060 XT
• Memory: 16 GB GDDR6
• Memory bus: 128-bit
• Interface: PCI Express x16 5.0
• Maximum resolution: 7680 × 4320
• APIs: DirectX 12.0, OpenGL 4.6

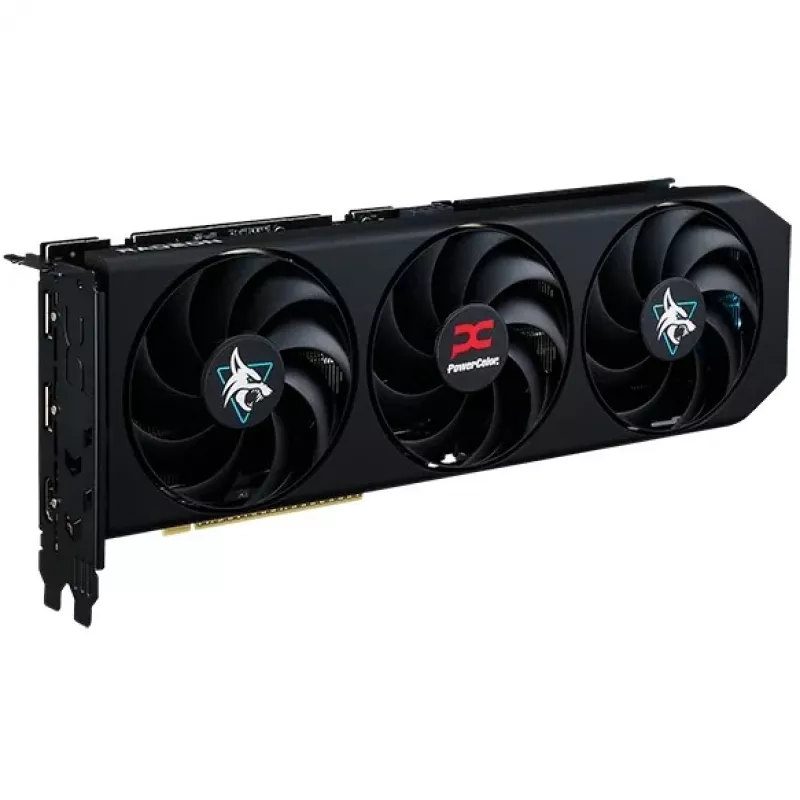

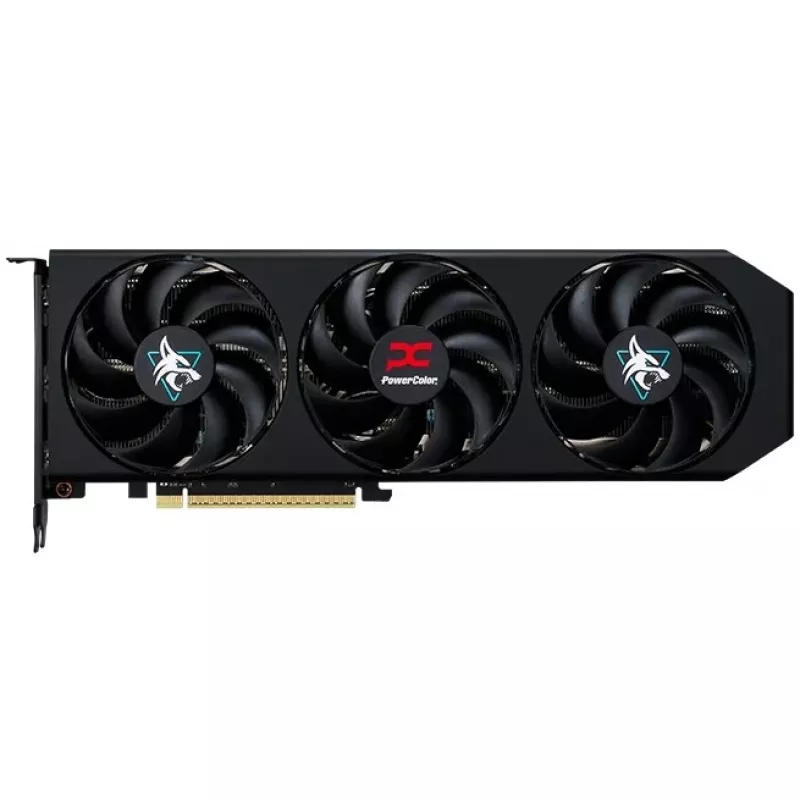

• Cooling: Triple-fan active cooling, vertical heatsink, 4 × 6φ nickel-plated copper heatpipes

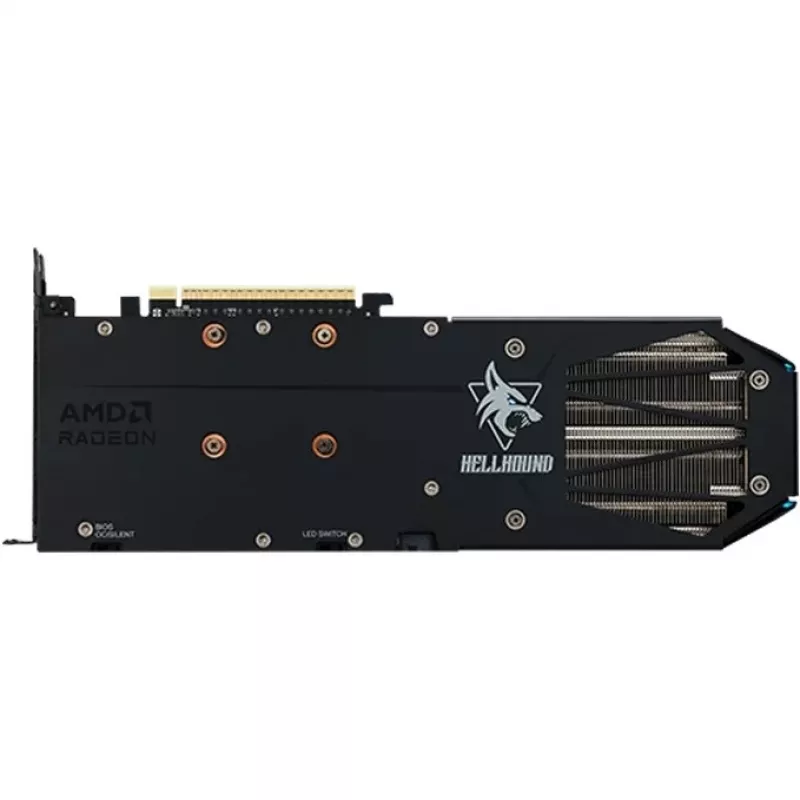

• Features: Dual BIOS (OC/Silent), Arctic Blue LED, reinforced metal backplate

How to use

Install the graphics card in a compatible PCI Express x16 slot on a motherboard that supports PCIe 5.0 for optimal bandwidth. Connect the required power cables from the PSU according to the card’s power requirements and secure the card to the case using screws. Use the physical switch to toggle the Arctic Blue LED and the dual-BIOS switch to select OC or Silent mode. After hardware installation, install the latest AMD Radeon drivers from the official AMD or PowerColor support site and configure display and performance settings via AMD Software: Adrenaline Edition.

Recommendations

For reliable operation, ensure adequate case airflow and a power supply that meets the card’s wattage and connector requirements. Set fan and BIOS modes according to your balance of noise and performance preferences; the intelligent fans start at around 60°C and stop below 50°C. Keep GPU drivers updated and pair the card with compatible CPUs (for example AMD Ryzen 9000 Series) to leverage Smart Access Memory and PCIe 5.0 features.
