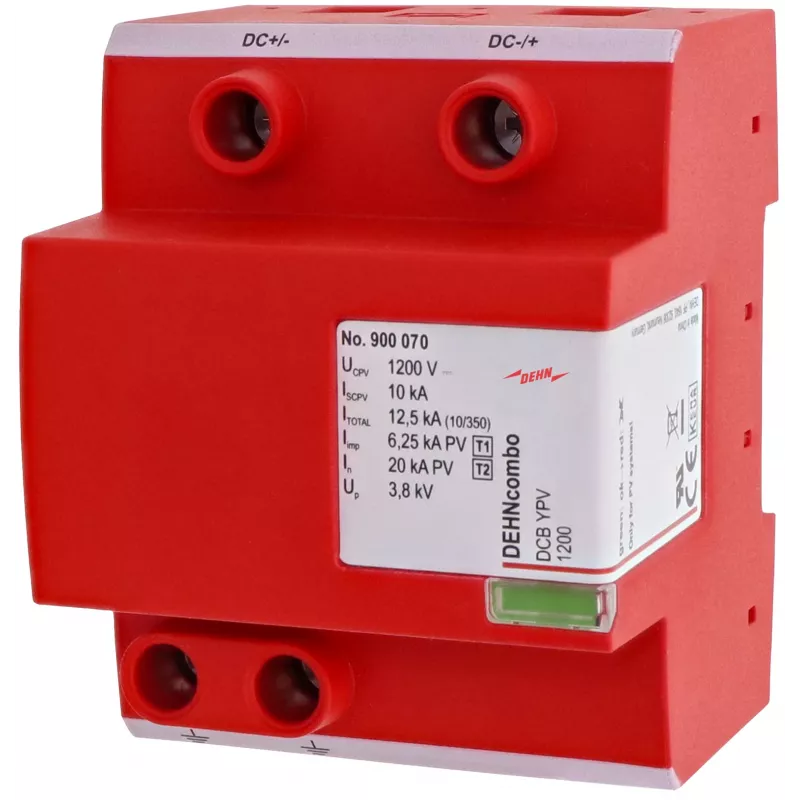

Protector combinado de sobretensión y corriente de rayo DEHN DCB YPV 1200 para instalaciones fotovoltaicas (900070)

The DEHN DCB YPV 1200 stands out as a combined lightning current and surge arrester specifically engineered for photovoltaic systems, integrating Type 1 and Type 2 protection in a single compact unit. Its spark-gap-controlled, short-circuit-free technology ensures reliable protection without the risk of short circuits, making it a robust choice for demanding PV installations.

Highlights

• Combined Type 1 + Type 2 surge protection for PV systems
• High maximum continuous operating voltage of 1200 V DC
• Lightning impulse current of 6.25 kA per pole (10/350 µs)
• Potential-free remote signalling contact for status monitoring
• DIN rail mountable for easy installation

In daily use

Designed for photovoltaic systems, this arrester protects against both direct lightning strikes and surge voltages. Its three protection paths (DC+/PE, DC-/PE, DC+/DC-) ensure comprehensive coverage, while the remote signalling contact allows integration into monitoring systems. The unit operates reliably in temperatures from -40 °C to +80 °C and supports conductor cross-sections up to 35 mm² solid or 25 mm² stranded.

Full specifications

• Arrester type: Combined lightning current and surge arrester
• Application: Photovoltaic (PV) systems
• SPD type: Type 1 + Type 2
• Max. continuous operating voltage (Ucpv): 1200 V DC
• Nominal discharge current (In) (8/20 µs): 20 kA
• Max. discharge current (Imax) (8/20 µs): 40 kA
• Lightning impulse current (Iimp) (10/350 µs) per pole: 6.25 kA
• Total lightning impulse current (Itotal) (10/350 µs): 12.5 kA
• Voltage protection level (Up): ≤ 4.0 kV
• Short-circuit withstand capability (Iscpv): 1000 A DC
• Protection paths: DC+/PE, DC-/PE, DC+/DC-
• Number of poles: 3
• Technology: SCI (Spark-gap-controlled, short-circuit-free)
• Remote signalling contact: Yes (potential-free changeover contact)
• Mounting type: 35 mm DIN rail
• Degree of protection: IP20
• Operating temperature range: -40 °C to +80 °C
• Max. conductor cross-section (solid): 35 mm²
• Max. conductor cross-section (stranded): 25 mm²
• Standards: IEC 61643-31, EN 50539-12

Final note

With its high voltage rating and robust lightning protection, the DEHN DCB YPV 1200 is a reliable choice for safeguarding photovoltaic systems against electrical surges.
