Protector contra sobretensiones Triton RAB-PD-X12-A1 negro 7 tomas AC 2 m

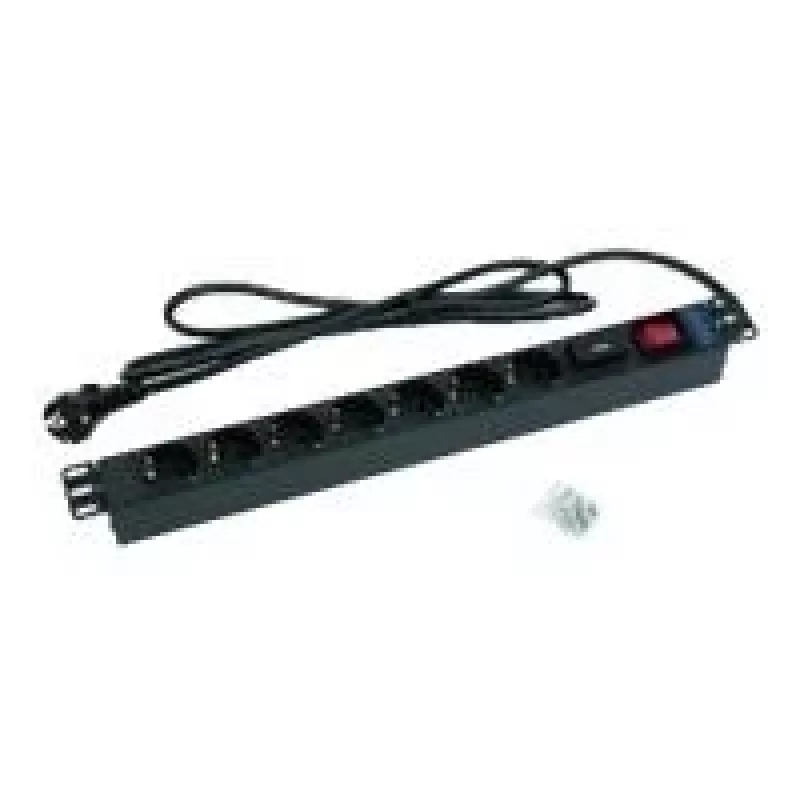

The Triton RAB-PD-X12-A1 is a 1U 19" distribution panel surge protector in black, featuring seven AC outlets, a 2 m power cable with a 3 x 1.5 mm² conductor, a DIN49441 16 A plug and an illuminated on/off switch. Designed for installation in a standard 19" rack or use as a compact desktop protector, it provides basic surge protection and convenient power distribution for connected equipment.

Advantages

The unit offers seven DIN-standard sockets in a slim 1U form factor that fits 19" racks, a max. 16 A switch for controlled power, integrated surge protection to reduce risk from transient overvoltages, and a 2 m cable with a 16 A plug for immediate connection. The illuminated switch makes status visible in low-light environments.

Suitable for

• Small server or network equipment in 19" racks
• Office workstations and peripheral devices
• Home AV components and desktop setups
• Workbenches and compact equipment cabinets

Key specifications

• Model: Triton RAB-PD-X12-A1
• Form factor: 19" 1U distribution panel
• AC outlets: 7 (DIN standard)
• Maximum switch rating: 16 A
• Surge protection: integrated (transient protection)
• Cable: 3 x 1.5 mm², length 2 m
• Plug standard: DIN49441, 16 A
• Colour: Black
• Brand: Triton, MPN: RAB-PD-X12-A1, EAN: 8595105054222

How to use

Install the panel into a 19" rack if rack mounting is required, securing it at 1U height using appropriate rack screws. Alternatively, place it on a flat surface for desktop use. Connect the DIN49441 16 A plug to a compatible mains socket, switch the illuminated power switch to the ON position, and then plug equipment into the seven DIN sockets. Ensure total connected load does not exceed the 16 A rating of the switch and plug.

Recommendations

Do not exceed the rated current of 16 A for the switch and plug; avoid connecting equipment that draws high inrush currents beyond the cable and connector ratings. For critical or sensitive electronics, use additional UPS or advanced surge protection systems as needed. Regularly inspect cable and housing for wear and replace if damaged.
