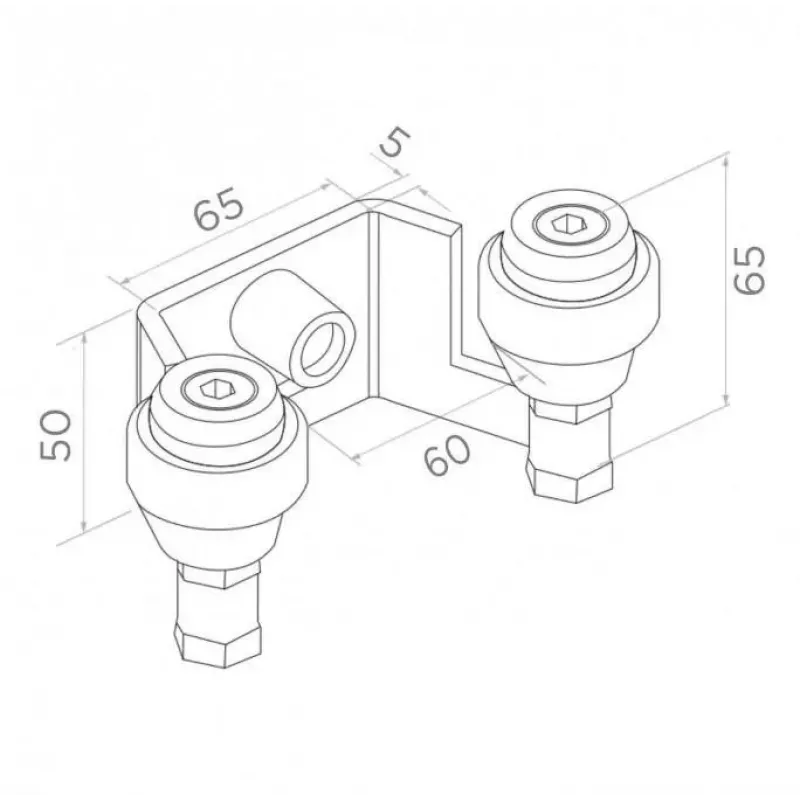

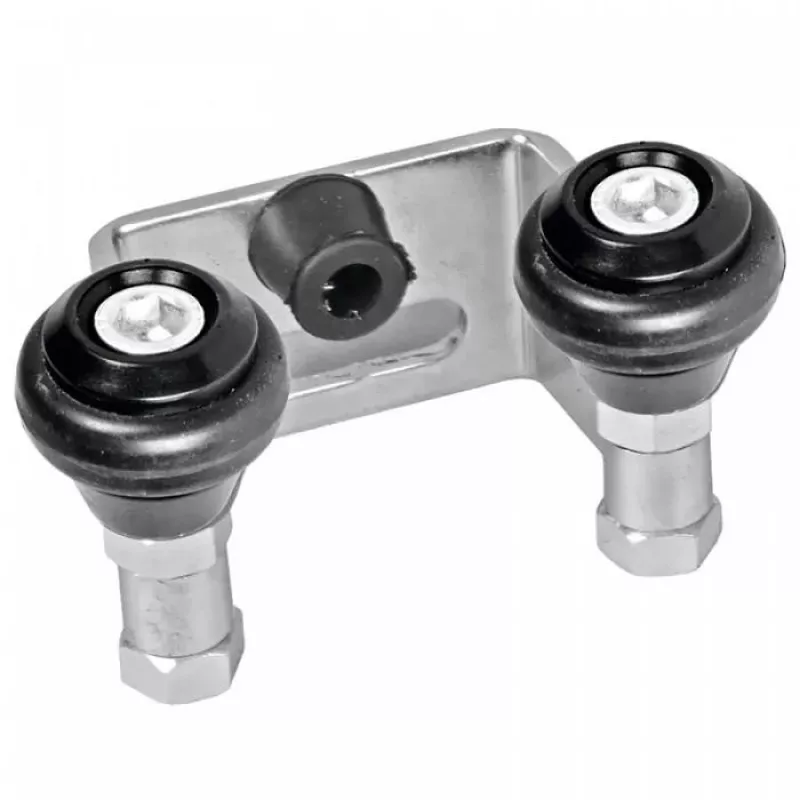

PSG 60.023 soporte superior para puertas correderas 60mm (2 rodillos)

The PSG 60.023 is a robust upper guide bracket designed for sliding gates with a 60mm profile diameter. Featuring two polyamide rollers on a galvanized steel bracket, it ensures smooth and stable gate operation. This weld-on bracket is built to withstand weather and abrasion, making it ideal for residential and light commercial applications.

Advantages

Durable galvanized steel construction with zinc plating provides excellent corrosion resistance. The polyamide rollers offer low friction and quiet operation. Easy weld-on installation saves time and ensures a secure fit.

Suitable for

• Sliding gates with 60mm round profiles
• Top mounting for gate guidance and stabilization
• Residential and light commercial gate systems

Key specifications

• Product Type: Gate Guide Bracket
• Application: Sliding Gates
• Mounting Position: Upper / Top
• Compatible Gate Profile Diameter: 60 mm
• Number of Rollers: 2
• Roller Material: Polyamide (PA)
• Bracket Material: Galvanized Steel
• Corrosion Protection: Zinc-plated (Galvanized)
• Mounting Method: Weld-on
• Roller Type: Vertical Guide Roller
• Intended Function: Gate stabilization and guidance
• Resistance: Weather and abrasion resistant
• Finish (Bracket): Metallic Zinc
• Finish (Rollers): Black
• Country of Origin: Poland

Recommendations

For optimal performance, pair with a matching lower guide bracket and ensure proper alignment during welding. Regularly inspect rollers for wear and clean debris from the track.
