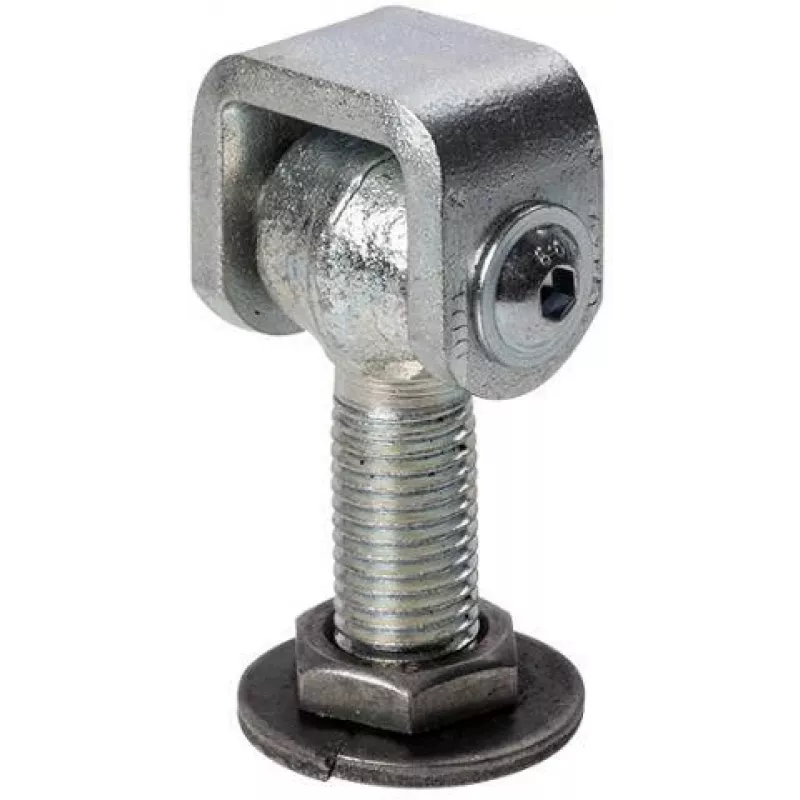

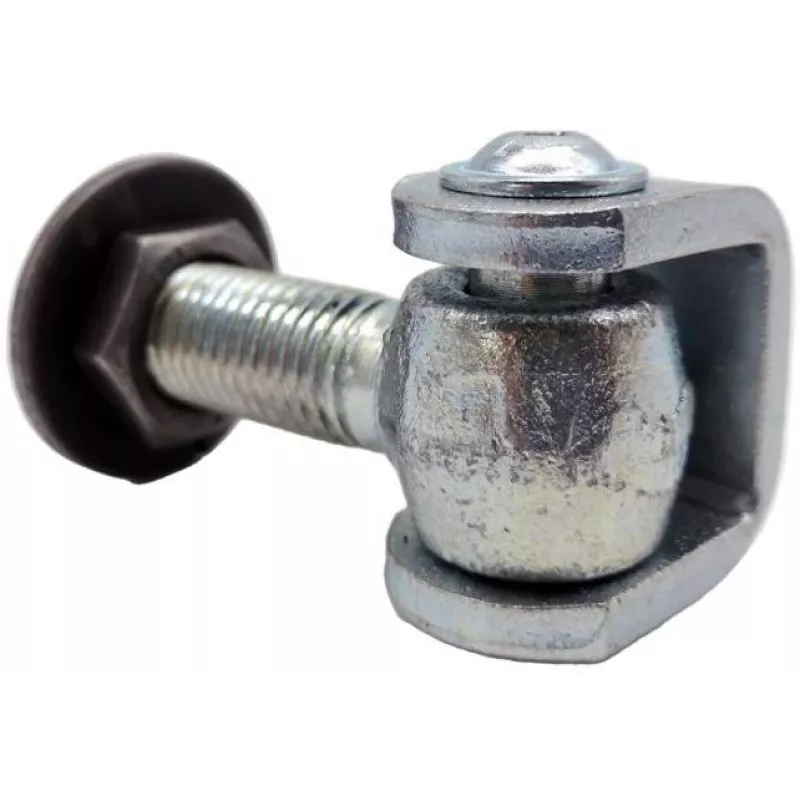

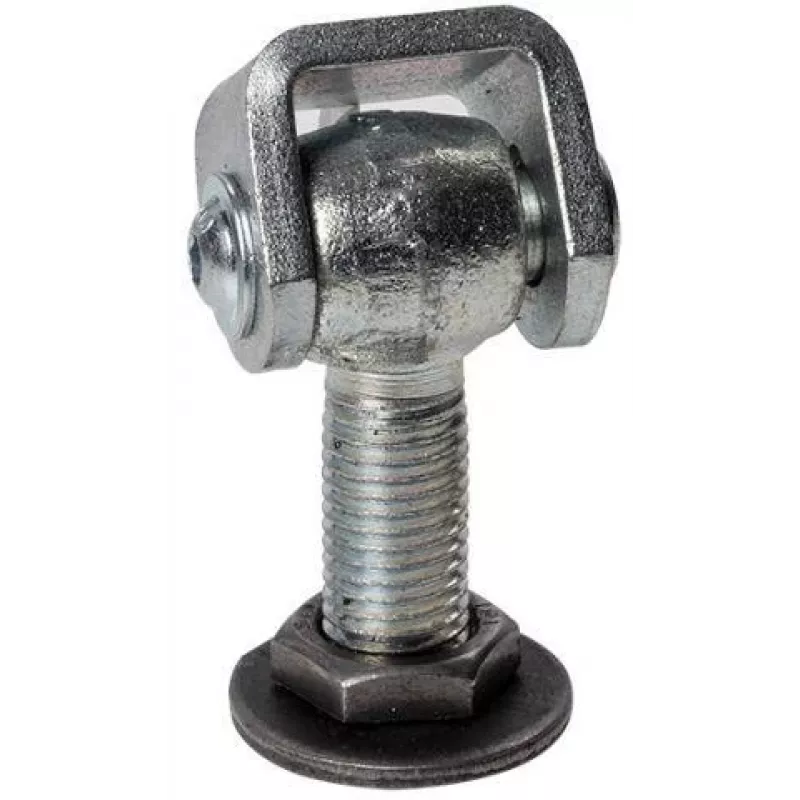

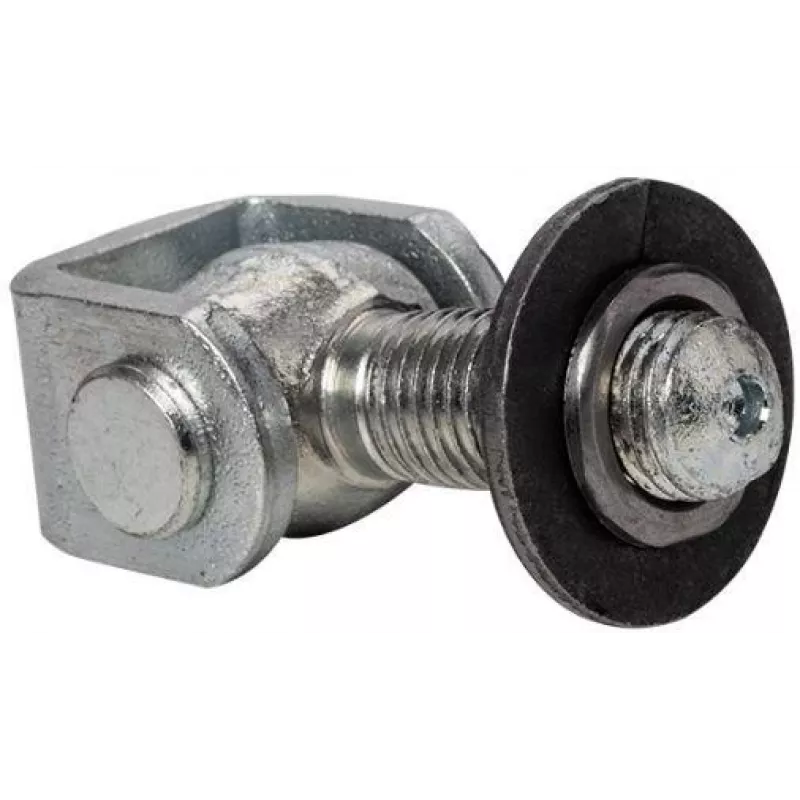

PSG 61.012.01 Bisagra para soldar - rosca M16 (ajustable, ojo galvanizado)

The PSG 61.012.01 weld-on hinge is a robust and adjustable hinge designed for heavy-duty applications such as gates, industrial doors, and agricultural machinery. Featuring a galvanized eye and raw steel body, this hinge is ready for welding and painting, providing a secure and durable connection.

Advantages

Adjustable M16 threaded pin allows for precise alignment and tension adjustment. Galvanized eye offers high corrosion resistance, while the raw steel body can be painted after welding to match the surrounding structure. Suitable for loads up to 200 kg per pair.

Suitable for

• Heavy gates and doors
• Industrial equipment
• Agricultural machinery
• Weld-on applications requiring adjustability

Key specifications

• Type: Weld-on hinge with adjustable threaded pin
• Thread size: M16
• Overall length: 110 mm
• Pin length: 80 mm
• Eye width: 30 mm
• Eye height: 40 mm
• Weld plate width: 30 mm
• Weld plate thickness: 6 mm
• Eye material: Galvanized steel
• Body material: Raw steel
• Pin material: Steel
• Finish (eye): Galvanized
• Finish (body): Unfinished (raw steel)
• Load capacity: Up to 200 kg per pair (application dependent)

Recommendations

For optimal performance, weld the hinge securely and apply a protective coating to the raw steel body after installation. Ensure the M16 threaded pin is properly adjusted for smooth operation.
