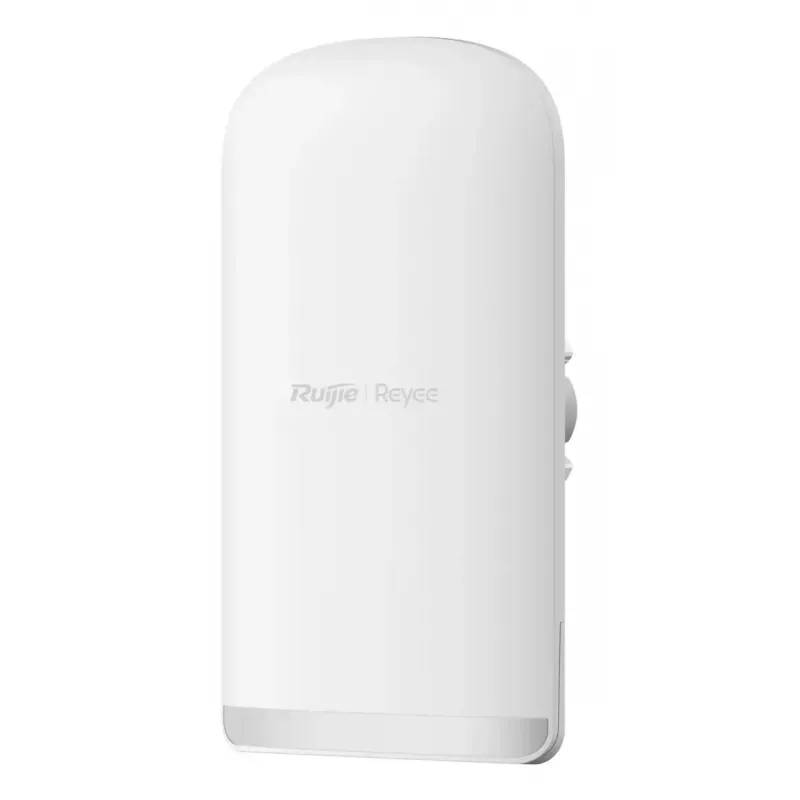

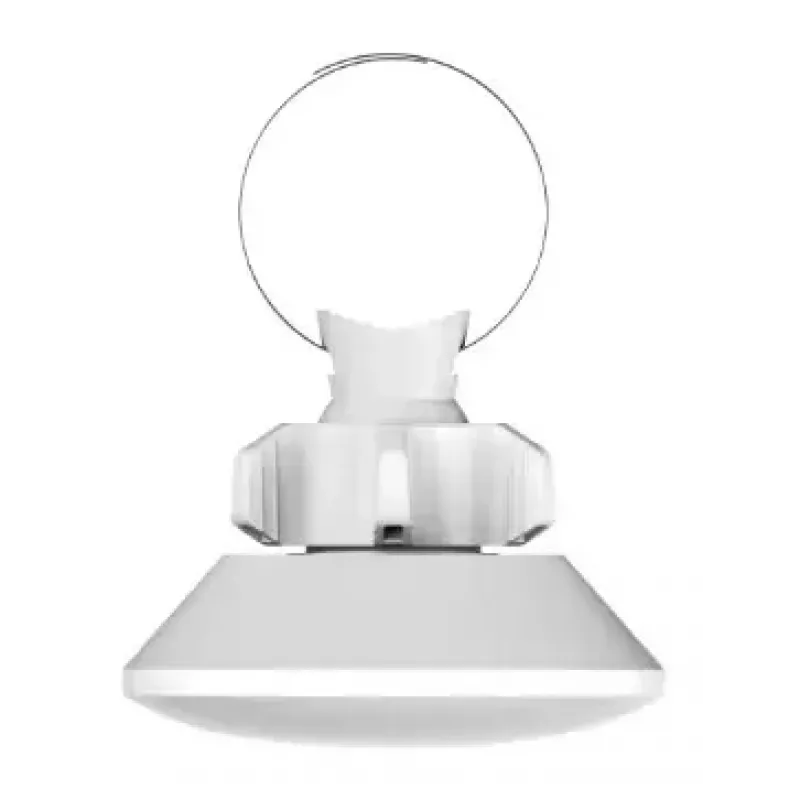

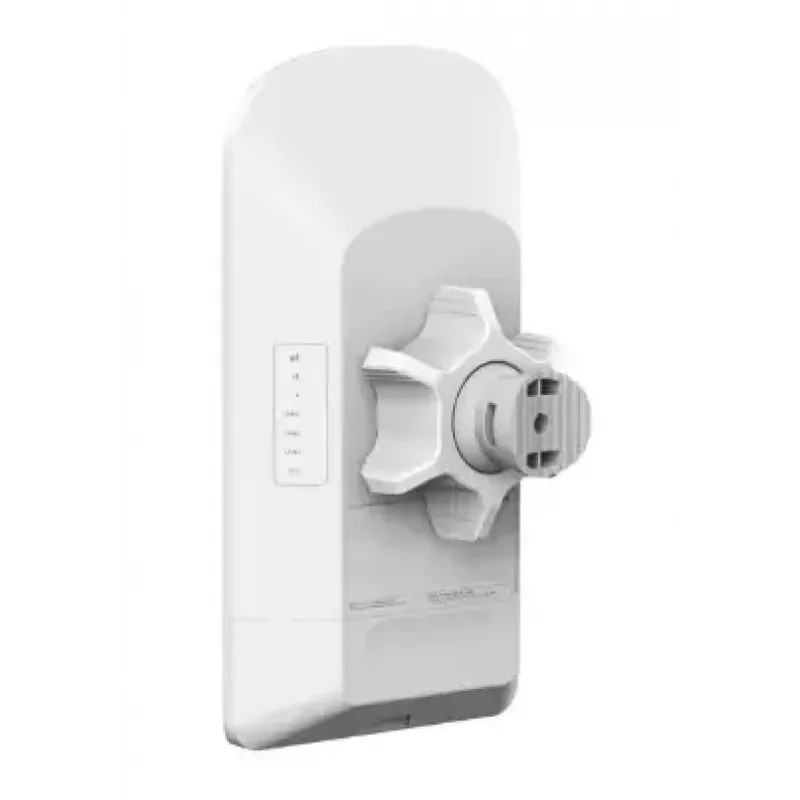

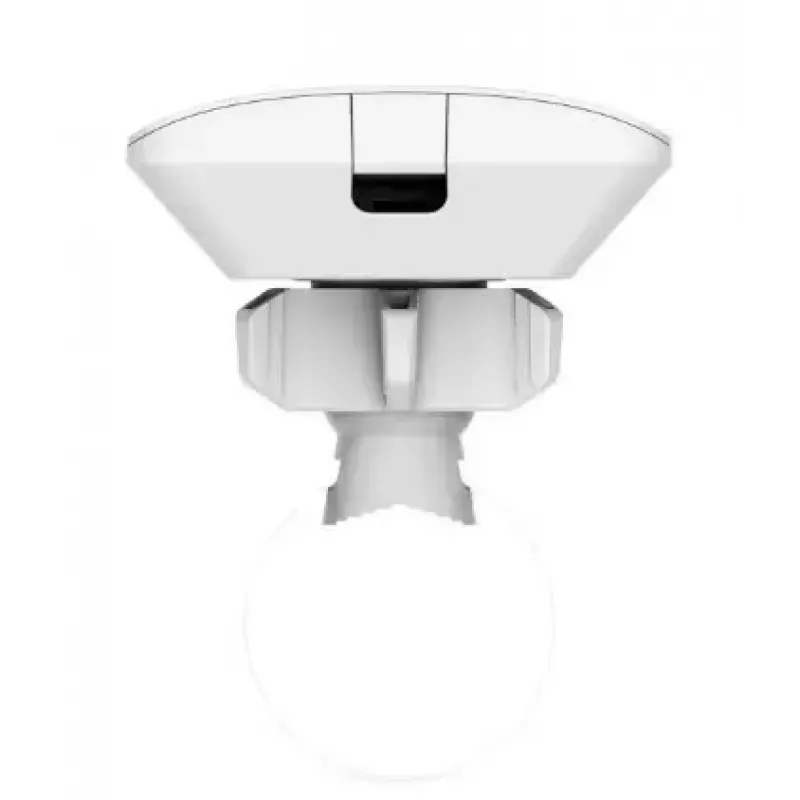

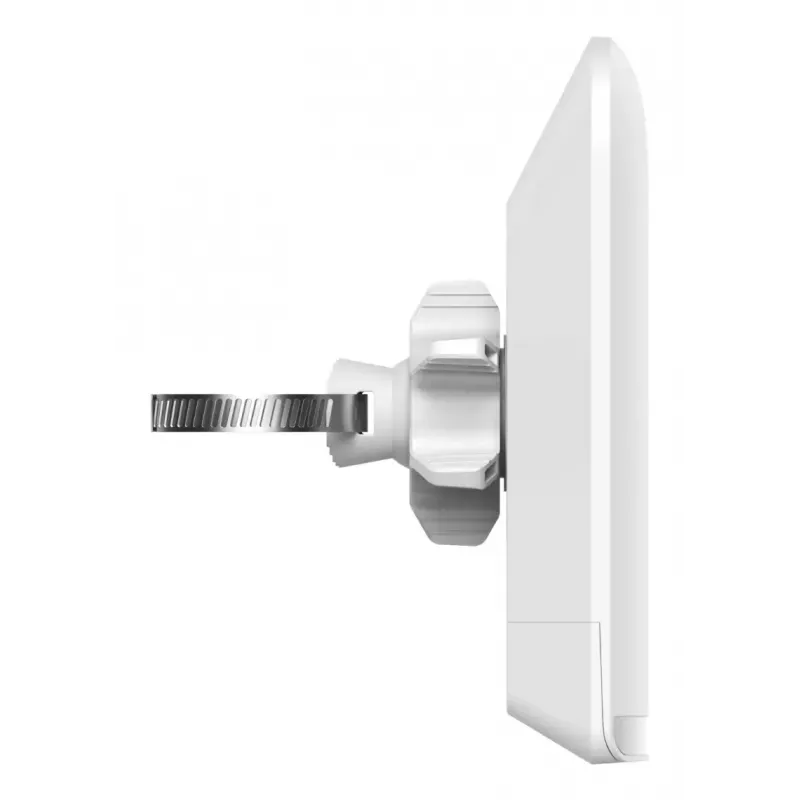

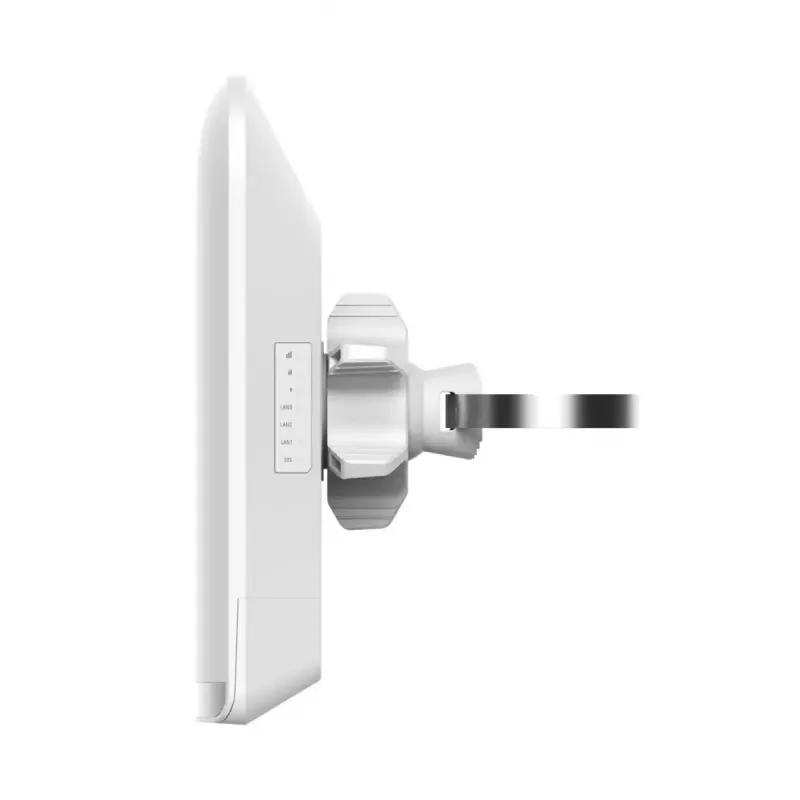

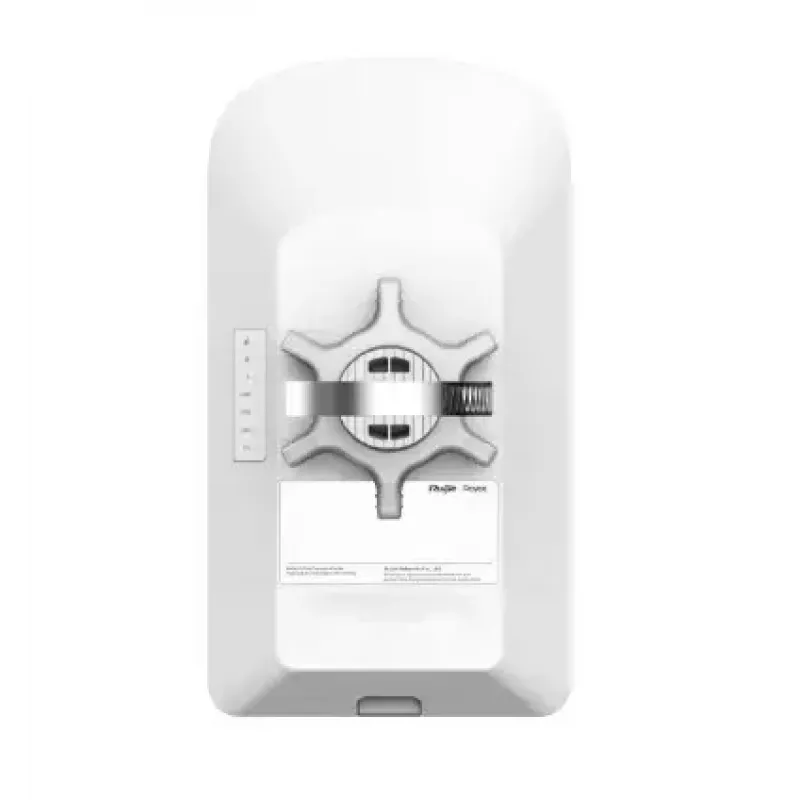

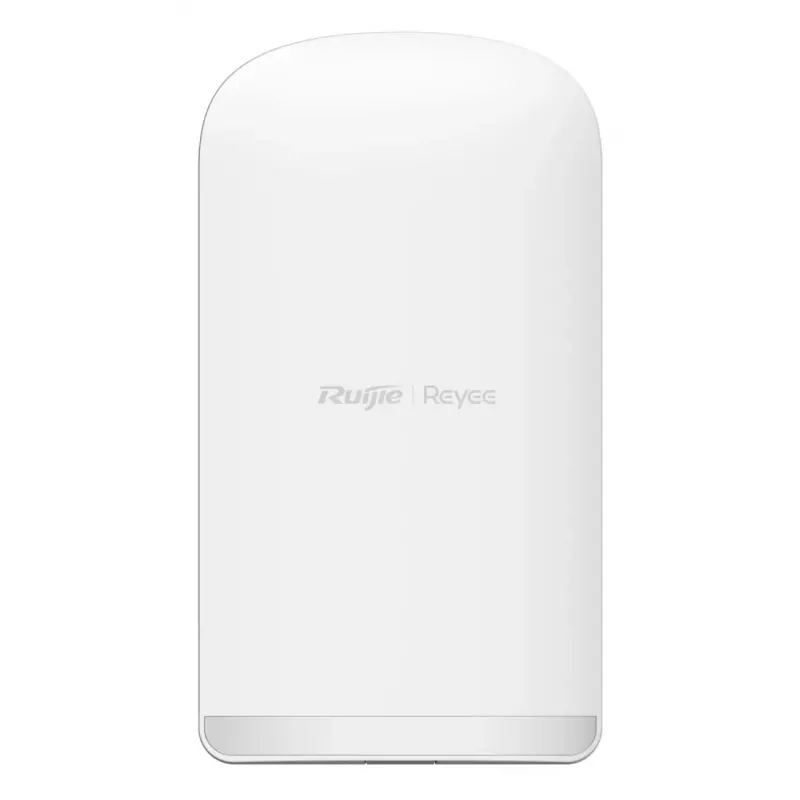

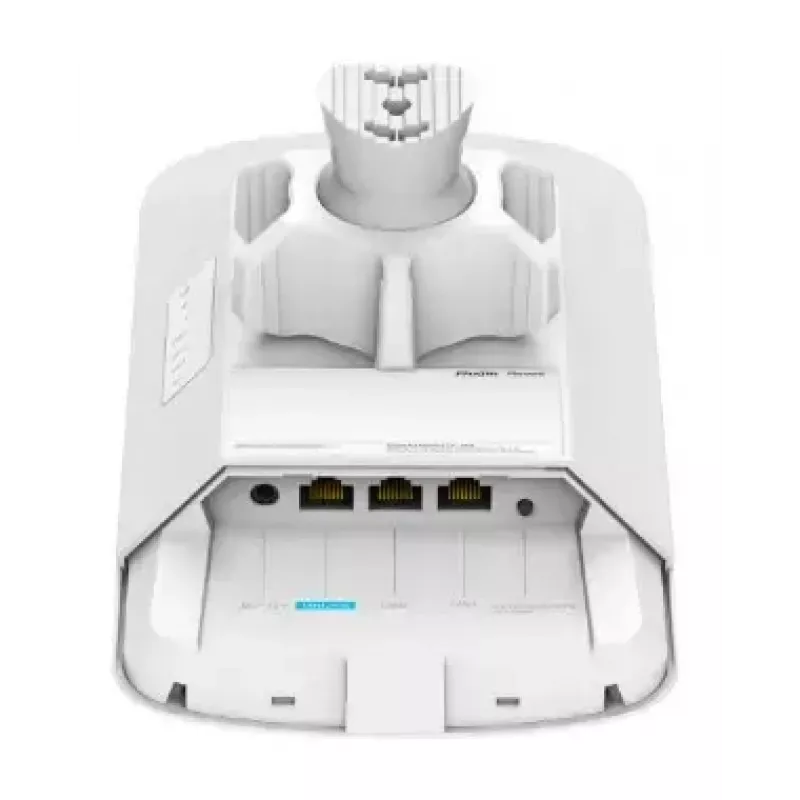

Puente de red RUIJIE RG-EST350G Bridge/Repeater, WLAN doble banda Wi‑Fi 5, 1000 Mbit/s, antena interna de 16 dBi, hasta 5000 m

RUIJIE RG-EST350G is a network bridge and repeater designed for long-range wireless links and point-to-point or point-to-multipoint deployments. The device supports dual-band Wi‑Fi (2.4 GHz and 5 GHz) based on Wi‑Fi 5 (802.11ac), delivers up to 1000 Mbit/s throughput, and offers a bridging range up to 5000 m. It integrates internal high-gain antennas (16 dBi) and multiple Gigabit Ethernet ports for wired connectivity, enabling integration into existing networks while meeting outdoor protection requirements with an IP55 rating.

Advantages

The RG-EST350G combines long-distance wireless performance with flexible installation and power options. It provides automatic PTP pairing and one-touch pairing for PTMP mode to simplify link setup, and supports TDMA and SON for efficient spectrum use and scalable network topology. Multiple power supply methods, including 12 V DC, passive PoE and 802.3af/at, and three Gigabit Ethernet ports allow versatile deployment scenarios and reliable wired backhaul. The compact white housing with internal 16 dBi antenna reduces visual impact while delivering targeted signal gain.

Suitable for

• Establishing long-distance point-to-point wireless links between buildings or sites
• Creating point-to-multipoint links for access distribution to remote locations
• Extending network connectivity to remote cameras, sensors, or access points
• Bridging Ethernet segments where fiber is impractical or cost-prohibitive

Key specifications

• Wireless: Dual-band 2.4 GHz / 5 GHz, Wi‑Fi 5 (802.11ac)
• Throughput: up to 1000 Mbit/s (wireless bridge)
• Maximum bridging distance: up to 5000 m (line-of-sight dependent)
• Antennas: integrated internal antenna, up to 16 dBi gain
• Ethernet: 3 × Gigabit Ethernet ports (10/100/1000); supports 10 Gigabit Ethernet interface types for integration
• Power: supports 12 V DC, passive PoE and 802.3af/at
• Deployment modes: PTP automatic pairing, one-touch PTMP pairing, TDMA support
• Management: SON support for simplified network operation
• Ingress protection: IP55 suitable for outdoor installations
• Color and design: white enclosure with internal antenna design

How to use

Install the RG-EST350G at locations with clear line of sight between endpoints to achieve the published bridging distances. Connect a wired network via one of the Gigabit Ethernet ports and supply power using 12 V DC, passive PoE or a compatible 802.3af/at injector or switch. Use the device’s automatic PTP pairing function for point-to-point setup or the one-touch pairing for point-to-multipoint topology. Configure radio parameters, channel selection and TDMA settings through the vendor management interface to optimise throughput and latency for the intended link.

Recommendations

For reliable long-range performance, align units precisely and verify line-of-sight clearance; avoid mounting near large reflective surfaces or strong RF interference sources. When deploying multiple links in the same area, use TDMA and SON features to reduce contention and manage spectrum. Choose appropriate power delivery (PoE standard or DC) that matches site infrastructure and use weatherproof cable glands and mounting brackets rated for outdoor use.
