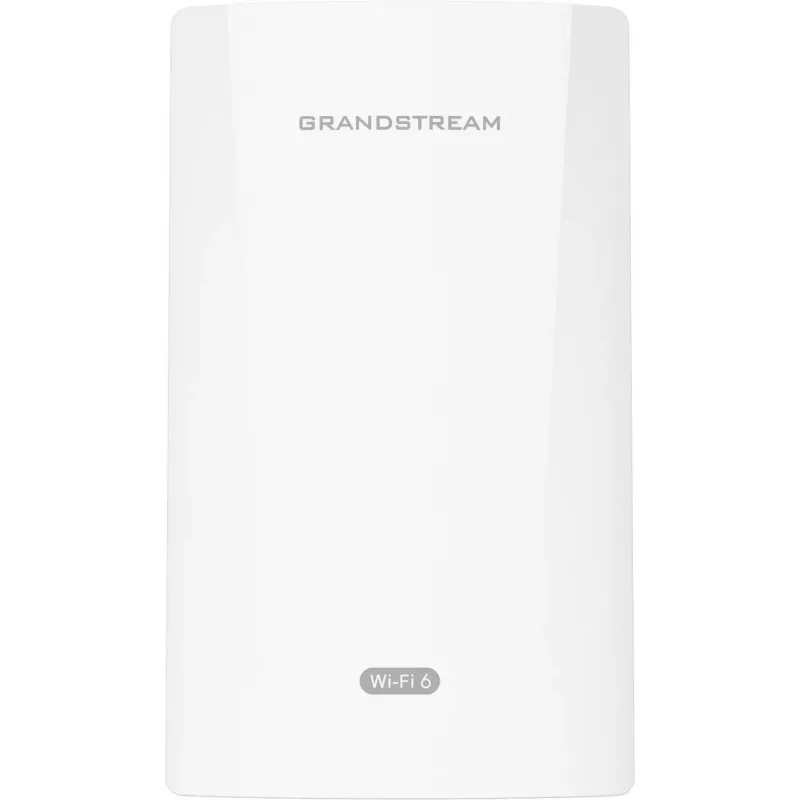

Puente inalámbrico Grandstream GWN7302 PtP/PtMP 2x2:2 MIMO IP66 TDMA 2 puertos Gigabit 5 km de alcance

The Grandstream GWN7302 is a fixed wireless point-to-point/point-to-multipoint bridge designed for medium to large enterprises that need long-distance wireless links. It uses single-band 2x2:2 MIMO with TDMA technology to improve spectrum efficiency, reduce interference, and maintain stable throughput. The unit is housed in an IP66-rated enclosure for outdoor deployments and provides two Gigabit Ethernet ports with PoE IN and PoE OUT support for flexible installation and powering of connected devices.

Advantages

The bridge delivers up to 2.4 Gbps of total wireless throughput and supports both PtP and PtMP modes to accommodate different network topologies. TDMA-based traffic scheduling and advanced QoS help ensure low-latency performance for real-time applications. Installation is simplified by an easy pairing function and signal-strength LEDs for antenna alignment. Management can be performed locally through the integrated web interface or remotely using the GWN mobile app and the GDMS cloud platform.

Suitable for

• Linking buildings or sites over distances up to 5 km
• Connecting remote CCTV cameras and surveillance systems
• Extending broadband to construction sites, parking lots, and outdoor venues
• Providing backhaul for temporary or permanent outdoor networks

Key specifications

• Wireless throughput: up to 2.4 Gbps
• Radio: single-band 2x2:2 MIMO with TDMA
• Maximum range: up to 5 kilometres (environment dependent)
• Ethernet: 2 x Gigabit RJ45 ports with PoE IN and PoE OUT support
• Enclosure rating: IP66 for outdoor weather resistance
• Quality of Service: advanced QoS for low-latency and real-time traffic
• Management: integrated web UI, GWN mobile app, GDMS cloud platform, SSH tunneling
• Automatic PoE+ detection and self-adjusting power supply

How to use

Mount the GWN7302 on a suitable outdoor mast or fixed structure with clear line of sight to the remote site. Connect a Gigabit Ethernet cable to supply PoE power or receive power via PoE IN, and use the second port to connect downstream equipment if required. Use the built-in pairing function and signal-strength LEDs to align and synchronise devices for PtP or PtMP links. Configure network settings and QoS through the device web interface, or connect via the device Wi‑Fi broadcast to configure using the GWN mobile app. For centralized or remote management, register the device with the GDMS cloud platform.

Recommendations

Install the bridge with clear line-of-sight and minimal obstructions for best range and performance. Use TDMA-capable endpoints in the same deployment to maximise spectrum efficiency, and enable advanced QoS settings for latency-sensitive traffic such as CCTV or VoIP. Ensure cables and mounts are weatherproofed to maintain IP66-rated protection.
