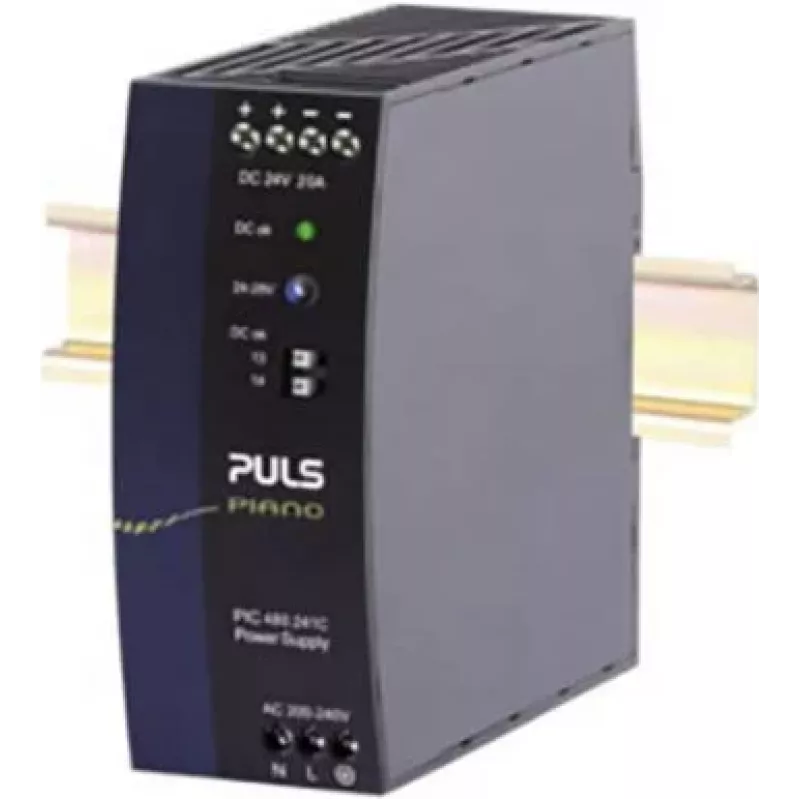

PULS PIANO fuente de alimentación para carril DIN 480W 24V 20A PIC480.241C

The PULS PIANO PIC480.241C delivers 480W of output power with 94.6% efficiency at 230V AC, making it a high-performance DIN rail power supply for industrial control systems.

Overview

Part of the PULS PIANO series, this DIN rail power supply converts 100-240V AC input to a regulated 24V DC output at up to 20A. It is designed for mounting on TS35/7.5 or TS35/15 DIN rails and uses convection cooling for silent operation.

What stands out

• High efficiency of 94.6% at full load reduces energy waste and heat generation.
• Wide input voltage range of 85-276V AC or 90-300V DC for flexible installation.
• Comprehensive protection: overload (constant current, hiccup mode), short circuit, and output overvoltage.
• Low output ripple and noise: less than 50 mVpp (20 MHz bandwidth).
• Hold-up time greater than 20 ms at full load ensures stable output during brief input interruptions.
• Operating temperature range from -25°C to +70°C suits harsh environments.

Technical details

• Output voltage: 24V DC
• Output current: 20A
• Output power: 480W
• Input voltage range: 85-276V AC, 90-300V DC
• Input frequency: 50/60 Hz
• Efficiency: 94.6% at 230V AC, full load
• Protection class: IP20
• Cooling: Convection
• Connection: Screw terminals
• Number of outputs: 1
• Ripple and noise: <50 mVpp
• Hold-up time: >20 ms

Our verdict

The PULS PIANO PIC480.241C combines high power density with excellent efficiency and robust protection features, making it a reliable choice for demanding industrial applications.
