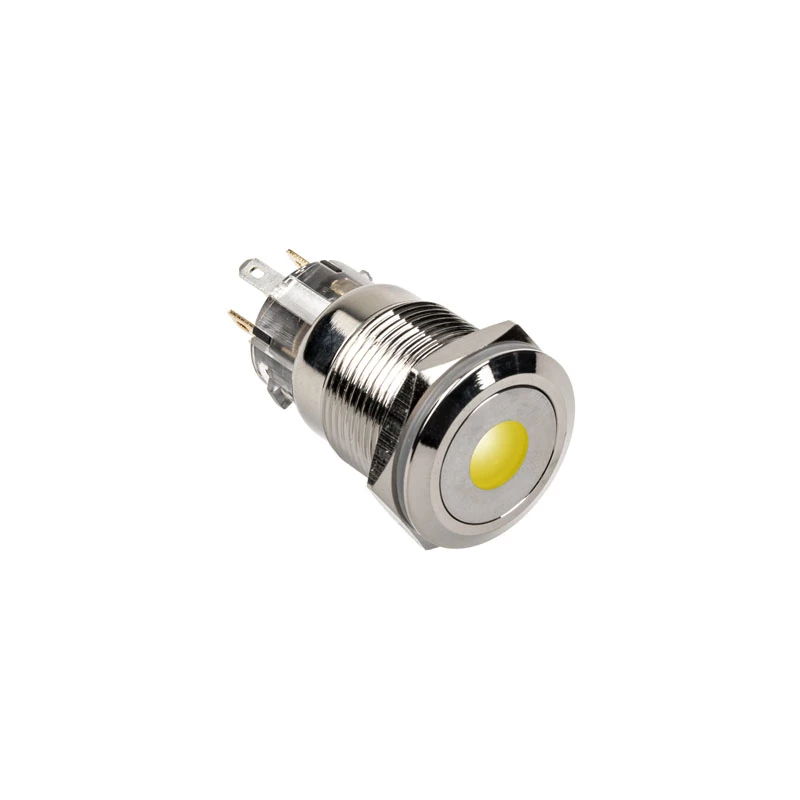

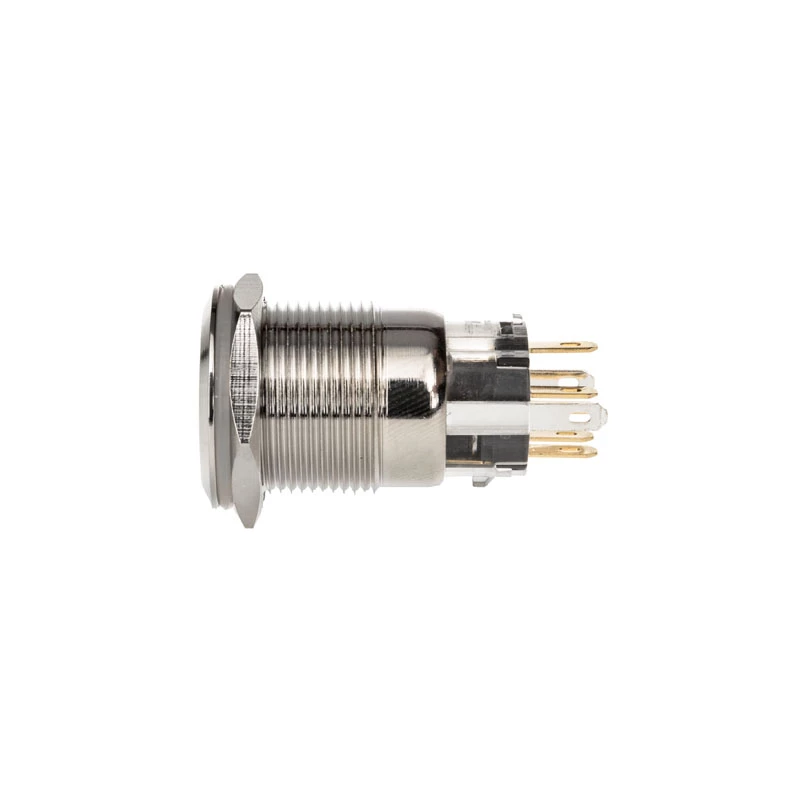

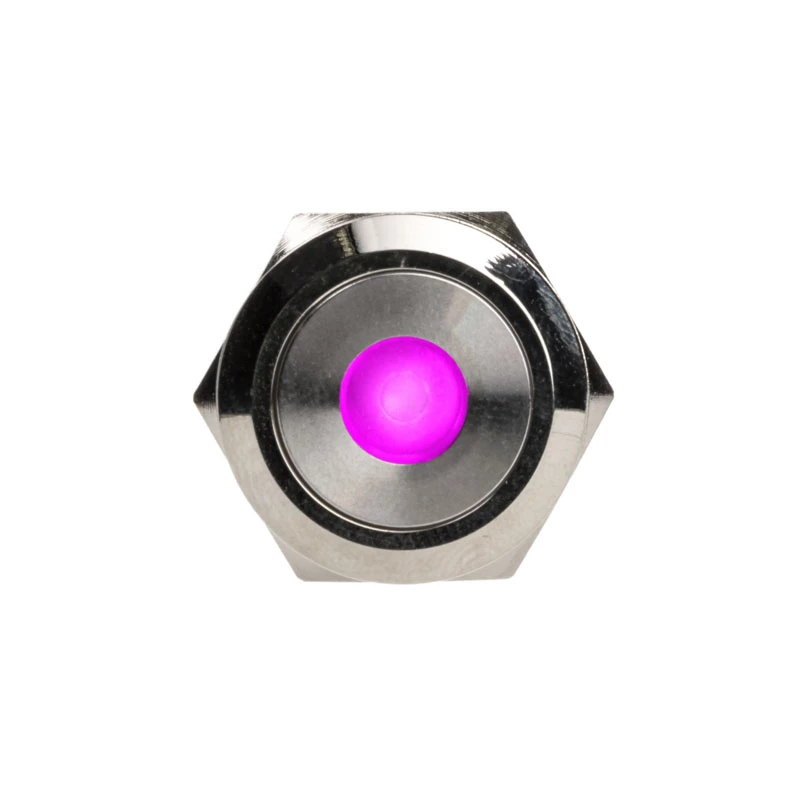

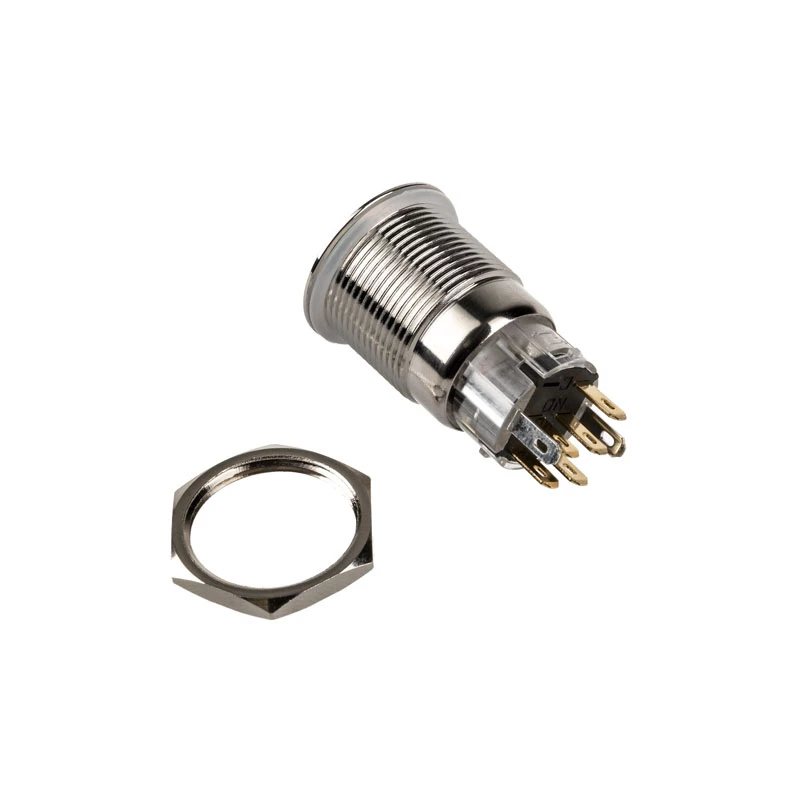

Pulsador antivandálico DimasTech 19 mm Silverline Dot RGB PD210

The DimasTech vandal-resistant push button 19 mm Silverline Dot RGB PD210 is a compact, illuminated control switch designed for robust front-panel applications. The 19 mm diameter actuator and metal construction are intended for environments where mechanical strength and visual signalling are required. RGB backlighting provides selectable color indication for status or mode, while the vandal-resistant design reduces the risk of tampering or accidental damage in public or industrial settings.

Advantages

This push button combines a compact 19 mm actuator with a durable metal bezel and sealed assembly to withstand mechanical stress and frequent use. The integrated RGB illumination allows clear visual feedback using multiple colours without additional external lighting. The construction is suitable for exposed installations, offering resistance to impact and vandalism while maintaining a low-profile footprint for panels and kiosks.

Suitable for

• Access control systems and entry panels
• Industrial control panels and machinery interfaces
• Self-service kiosks and vending machines
• Public installations such as ticketing terminals and information stands

Key specifications

• Actuator diameter: 19 mm
• Illumination: RGB backlight for multi-colour indication
• Bezel material: metal, vandal-resistant design
• Mounting: front-panel mount for compact installations
• Intended use: illuminated push button for status signalling and user input

How to use

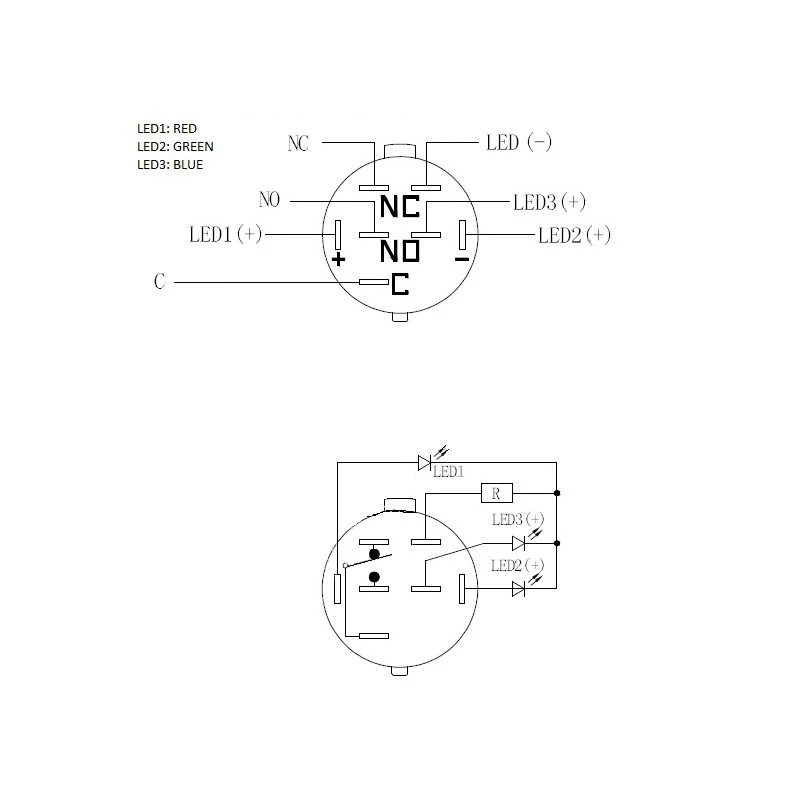

Install the push button into a 19 mm panel cut-out and secure the bezel according to the panel mounting method. Connect the illumination leads and switch contacts to the control circuitry following the device wiring diagram and the system's voltage requirements. Use the RGB lighting to indicate different operational states by configuring the controller or driver that supplies the LED backlight. Ensure connections are made with the power off and verify illumination and switching functions before placing the panel into service.

Recommendations

For reliable long-term operation, use the button in panels of appropriate thickness and protect wiring from moisture and mechanical strain. When installing in public or high-traffic locations, combine the vandal-resistant switch with secure mounting hardware and tamper-resistant fittings. Match LED supply voltage and control logic to the system to avoid overdrive of the illumination circuit.
