Pulsador antivandálico Impactics 19 mm, IP65, LED azul, negro

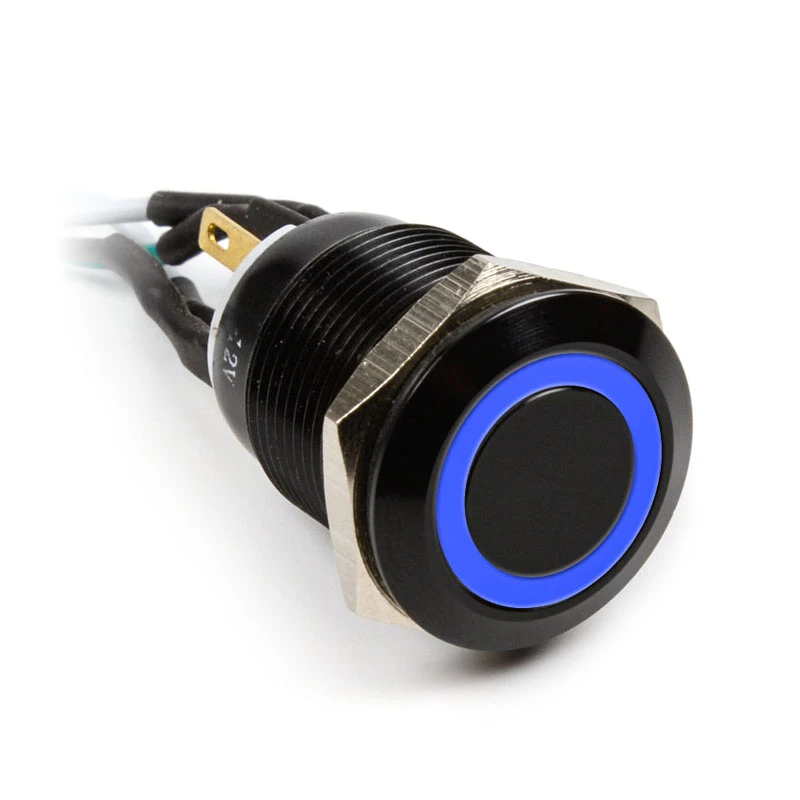

The Impactics vandal-proof push button features a 19 mm diameter actuator, a robust metal/plastic bezel in black and an integrated blue LED indicator. Rated IP65, the switch is protected against dust ingress and low-pressure water jets, making it suitable for indoor and outdoor control panels, access systems and equipment where tamper resistance and clear visual status indication are required.

Advantages

The design combines a vandal-resistant actuator and a corrosion-resistant bezel for enhanced durability in public and industrial environments. The built-in blue LED provides immediate visual feedback of switch state or system status without additional wiring for external indicators. IP65 protection ensures reliable operation in dusty or wet conditions, while the compact 19 mm size allows installation in standard-panel cutouts with minimal space requirements.

Suitable for

• Access control panels and entry systems
• Industrial machinery and control cabinets
• Outdoor kiosks, terminals and vending machines
• Public or high-traffic installations requiring tamper resistance

Key specifications

• Actuator diameter: 19 mm
• Protection rating: IP65 (dust-tight and water-resistant)
• Indicator: integrated blue LED
• Bezel finish: black metal/plastic combination
• Mounting: panel-mounted, standard cutout for 19 mm actuator

How to use

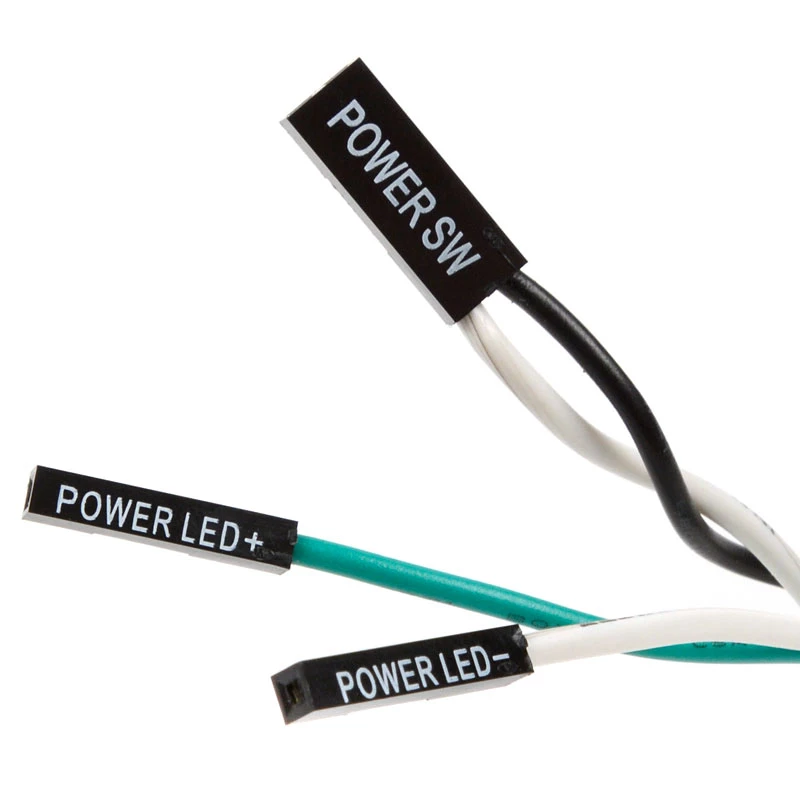

Install the push button into a compatible panel cutout for 19 mm actuators and secure the bezel according to the panel thickness and mounting instructions. Connect the LED and switch contacts to the control circuit following the system wiring diagram and observing correct polarity for the LED. After wiring, verify mechanical operation and LED indication by actuating the button and checking the corresponding response from the connected equipment or control system.

Recommendations

For reliable long-term operation, mount the button where it is accessible for maintenance but protected from excessive mechanical abuse beyond normal tampering. Use appropriate sealing and cable glands on panel entries to maintain IP65 integrity, and confirm electrical ratings and wiring compatibility with the receiving control system before final installation.
