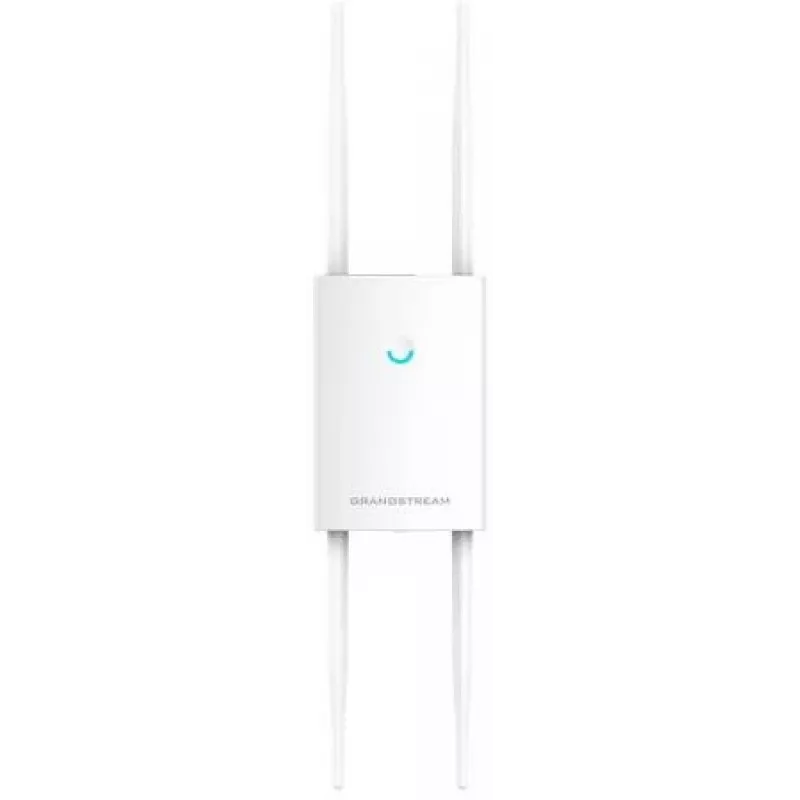

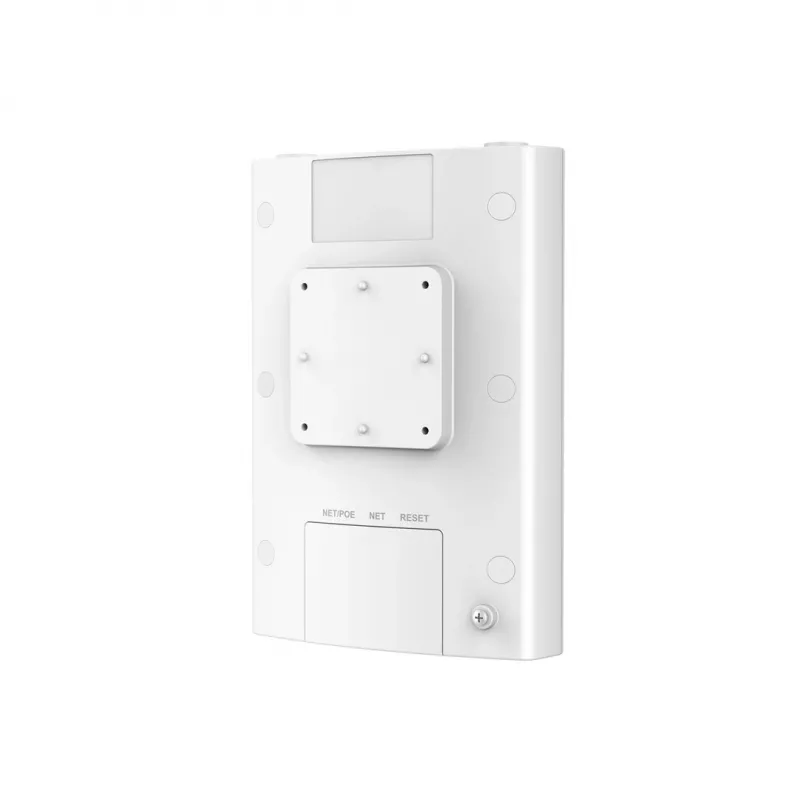

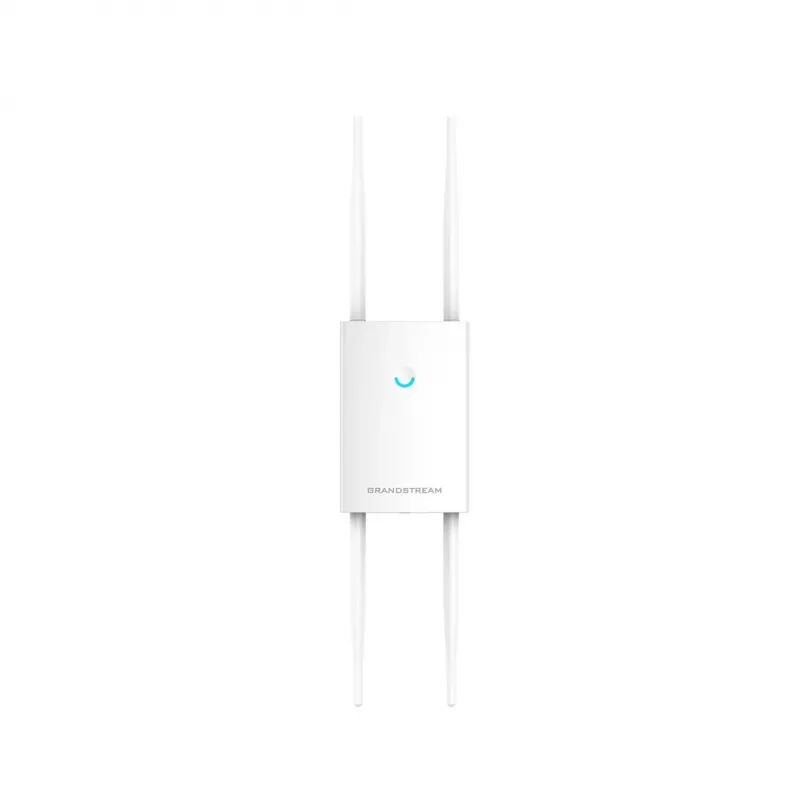

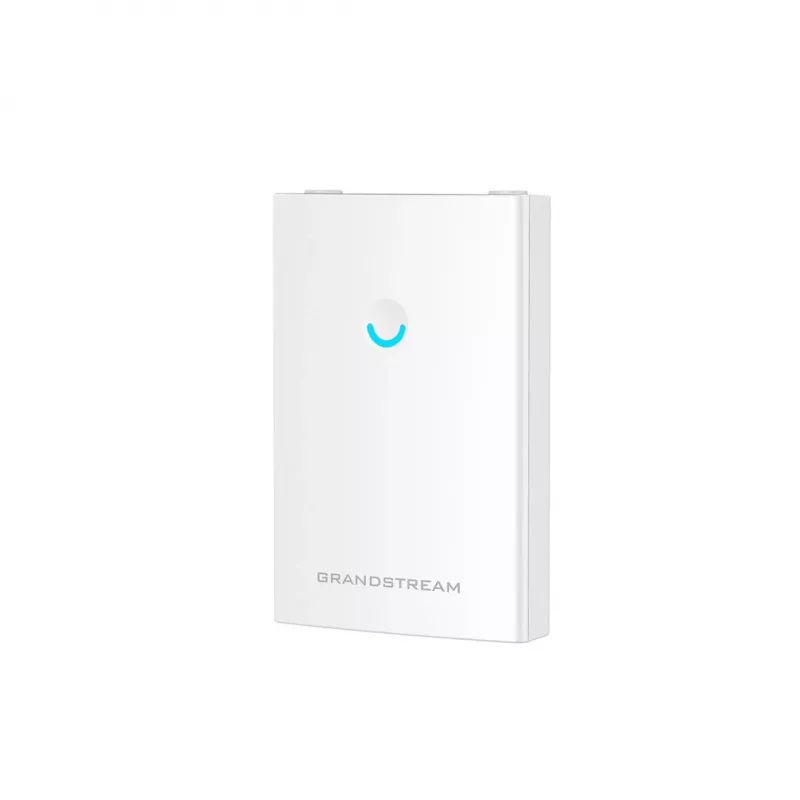

Punto de acceso inalámbrico Grandstream GWN7630LR 2,4 GHz 5 GHz Wi-Fi 802.11ac

The Grandstream GWN7630LR is an outdoor long-range wireless access point designed for medium to large businesses and enterprises requiring extended Wi‑Fi coverage in both outdoor and indoor environments. It supports dual‑band Wi‑Fi at 2.4 GHz and 5 GHz with a maximum data rate of 1733 Mbit/s, MU‑MIMO 4×4 technology, weatherproof casing and heat‑resistant design, making it suitable for deployments that demand robust, long‑range connectivity and support for 200+ clients.

Advantages

The access point combines dual‑band 4×4:4 MU‑MIMO performance with a sophisticated antenna design to maximise network throughput and extend coverage up to approximately 300 metres. It includes Power over Ethernet (PoE) support and dual Gigabit Ethernet ports (10/100/1000 Mbit/s), and implements common security protocols such as WEP, WPA, WPA2‑Enterprise and WPA2‑PSK for secure connections. The device is weatherproof and heat resistant for reliable outdoor operation.

Suitable for

• Enterprise campuses and multi‑building sites
• Multi‑floor offices and large indoor spaces
• Warehouses and industrial premises
• Hospitals and healthcare facilities
• Schools, universities and educational campuses

Key specifications

• Model: Grandstream GWN7630LR (MPN: GWN7630LR, EAN: 6947273702962)
• Wireless bands: 2.4 GHz and 5 GHz (dual‑band)
• Maximum data transfer rate: 1733 Mbit/s
• MU‑MIMO: 4×4:4
• Client capacity: supports 200+ clients
• Coverage range: up to ~300 m (outdoor long‑range performance)
• Ethernet: 2 × RJ‑45 Gigabit ports (10/100/1000 Mbit/s), PoE support
• Antennas: 4 external antennas
• Colour: White
• Weight: 0.564 kg

How to use

Mount the GWN7630LR in an outdoor location that provides clear line of sight toward the coverage area and where the device will be protected from direct physical damage. Connect one of the RJ‑45 ports to a PoE‑capable switch or PoE injector to power the unit and provide network connectivity. Use the Grandstream management interface or a supported controller to configure SSIDs, security (WEP/WPA/WPA2 settings), VLANs and client access policies. Positioning and antenna orientation may be adjusted to optimise long‑range coverage and client performance.
