Punto de acceso inalámbrico Ubiquiti B-DB-AC 2,4 GHz 5 GHz

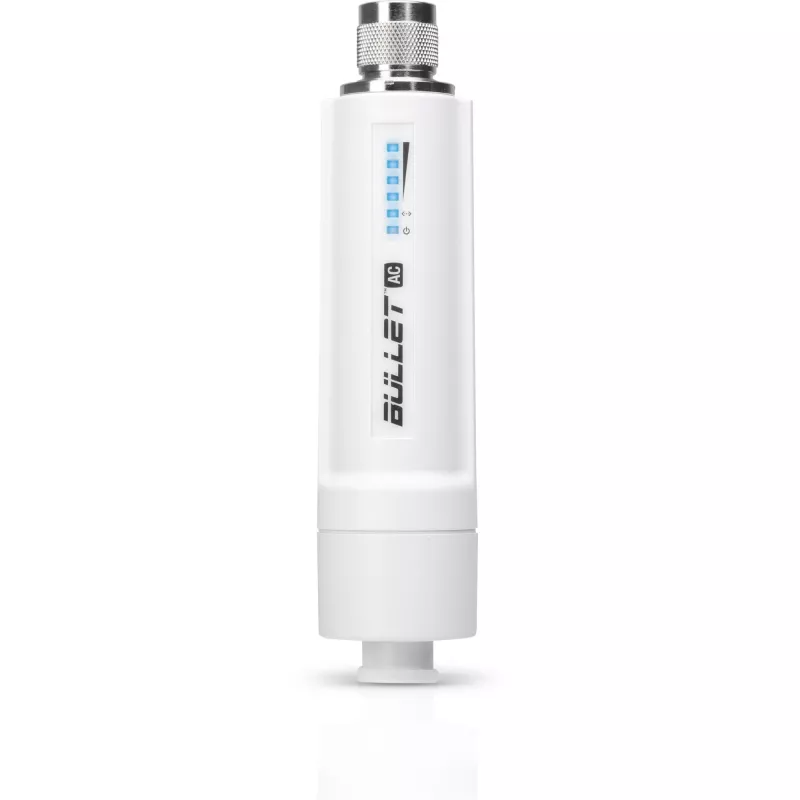

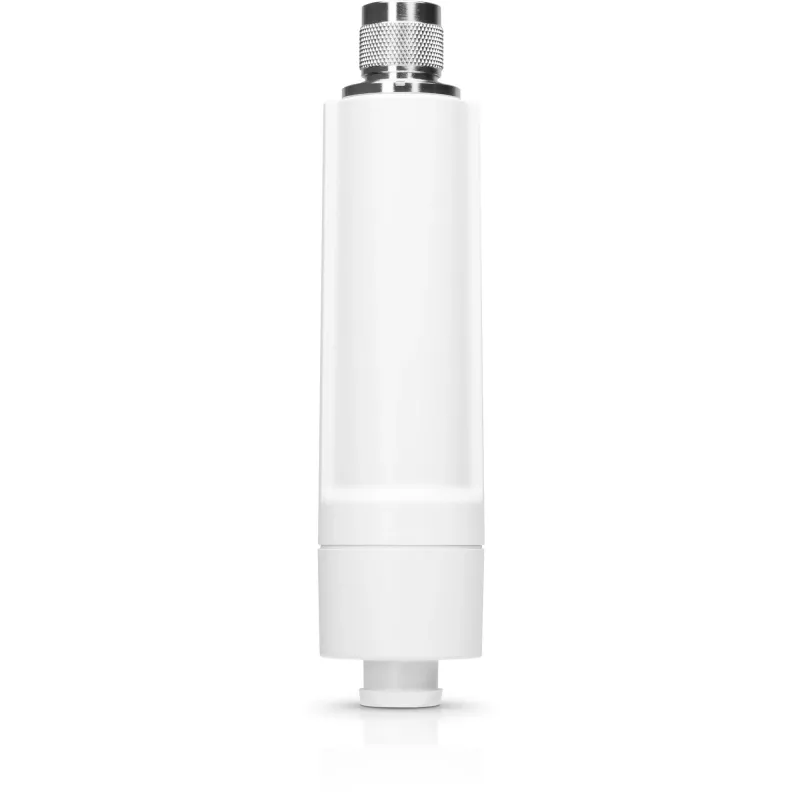

The Ubiquiti B-DB-AC is a fully integrated wireless access point designed for outdoor and indoor use, supporting dual-band 2.4 GHz and 5 GHz operation with carrier-class throughput. Launched as part of the Bullet™ family, this model combines a compact, weatherproof enclosure with airMAX® ac technology to deliver reliable TCP/IP throughput up to 300+ Mbps and simplified deployment when paired with an external N-type antenna.

Advantages

The device offers carrier-class throughput and improved latency, noise immunity and scalability thanks to airMAX® ac and the TDMA airMAX protocol. Its robust, weatherproof housing is built to endure harsh outdoor conditions. Plug-and-play integration with any antenna that has an N-type female connector simplifies installation, and PoE support allows flexible mounting and power delivery.

Suitable for

• Wireless Internet Service Providers (WISPs) and point-to-multipoint links
• Outdoor basestation installations where a compact, weatherproof radio is required
• Backhaul or distribution links using external N-type antennas
• Small office or home deployments needing dual-band coverage and PoE installation

Key specifications

• Model: Ubiquiti Bullet™AC (B-DB-AC)
• Frequencies: 2.4 GHz and 5 GHz (dual-band)
• Maximum TCP/IP throughput: up to 300+ Mbps

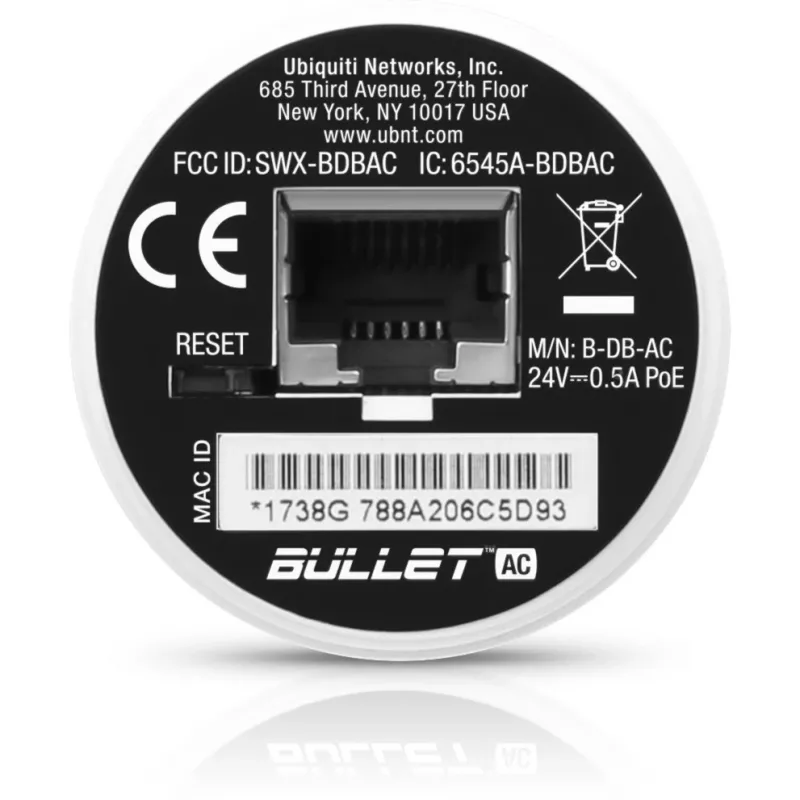

• Ethernet: 1 × RJ-45 (supports PoE)
• Maximum Ethernet LAN rate: up to 1000 Mbit/s (per product data)
• Power consumption: max 8 W
• Weight: 0.196 kg
• Colour: White

How to use

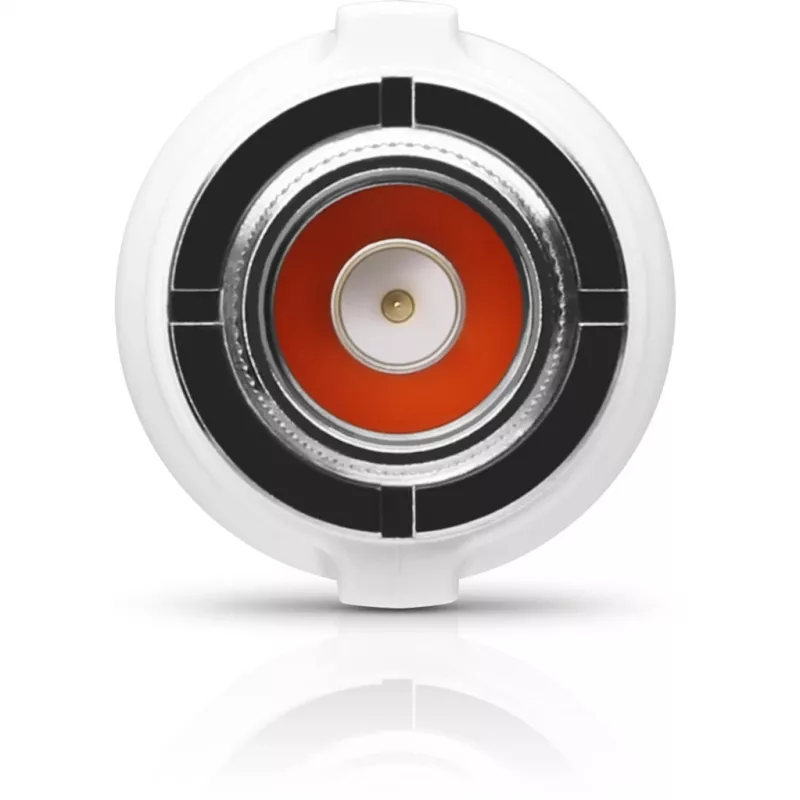

Mount the Bullet™AC near the chosen antenna and connect it to any N-type female antenna connector. Provide power via a compatible PoE injector or switch to the RJ-45 port. Configure wireless settings and airMAX® parameters through the Ubiquiti management interface to optimize throughput, channel planning and TDMA scheduling for point-to-multipoint networks. Ensure secure access by setting appropriate authentication and management credentials.

Recommendations

For best performance, pair the Bullet™AC with a properly aligned external N-type antenna, perform site surveys to select clear channels, and keep firmware updated. Use PoE-certified injectors and follow outdoor cabling best practices to maintain reliability in harsh conditions.
