Rack autoportante Triton RMA-15-A61-CAX-N1 15U gris 800 kg de capacidad de carga

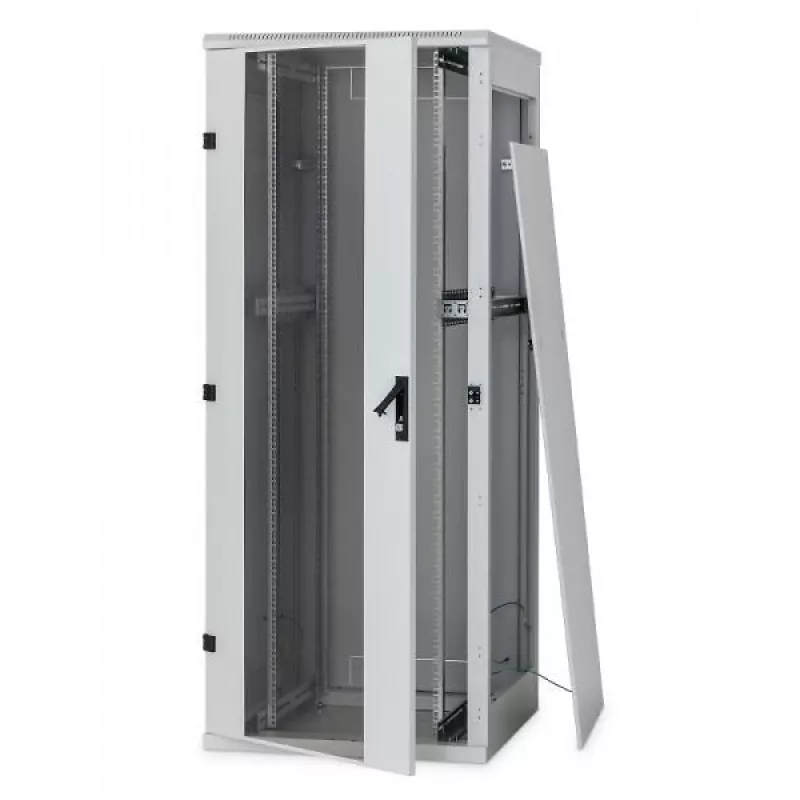

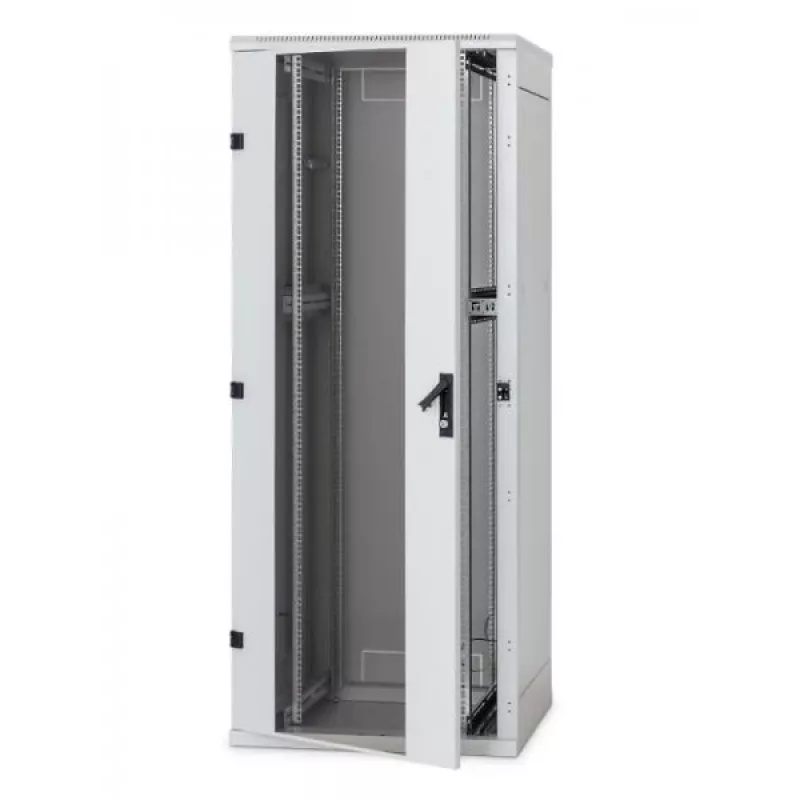

The Triton RMA-15-A61-CAX-N1 is a freestanding 15U network rack designed for data and telecommunication equipment. It features a rigid welded frame, adjustable 19" vertical rails, removable side panels and rear cover, and multiple cable entry points. With an IP20 rating and a maximum load capacity of 800 kg, the cabinet supports efficient cable management and flexible installation in server rooms and network closets.

Advantages

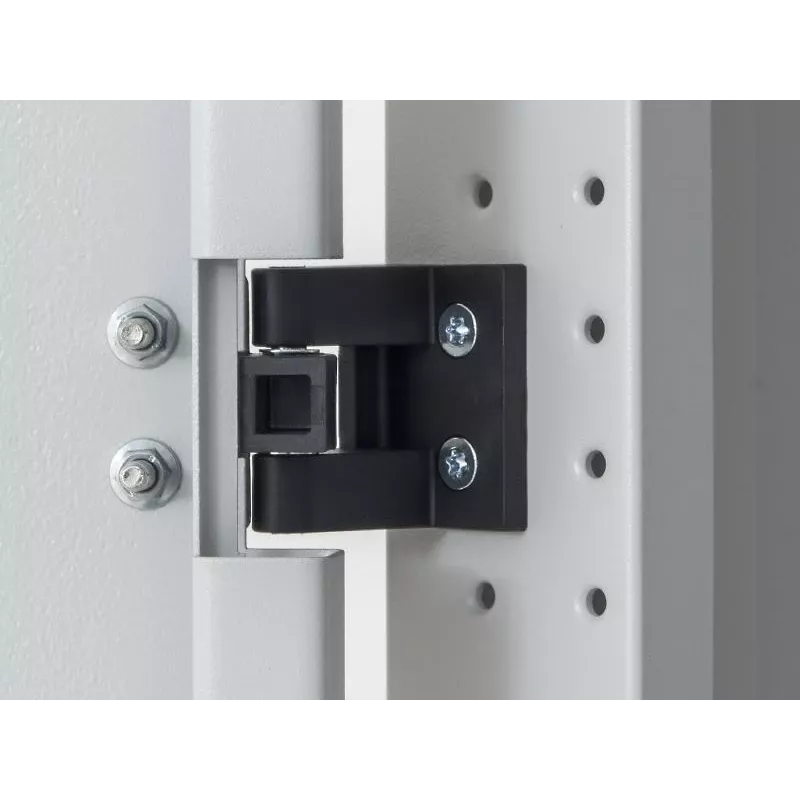

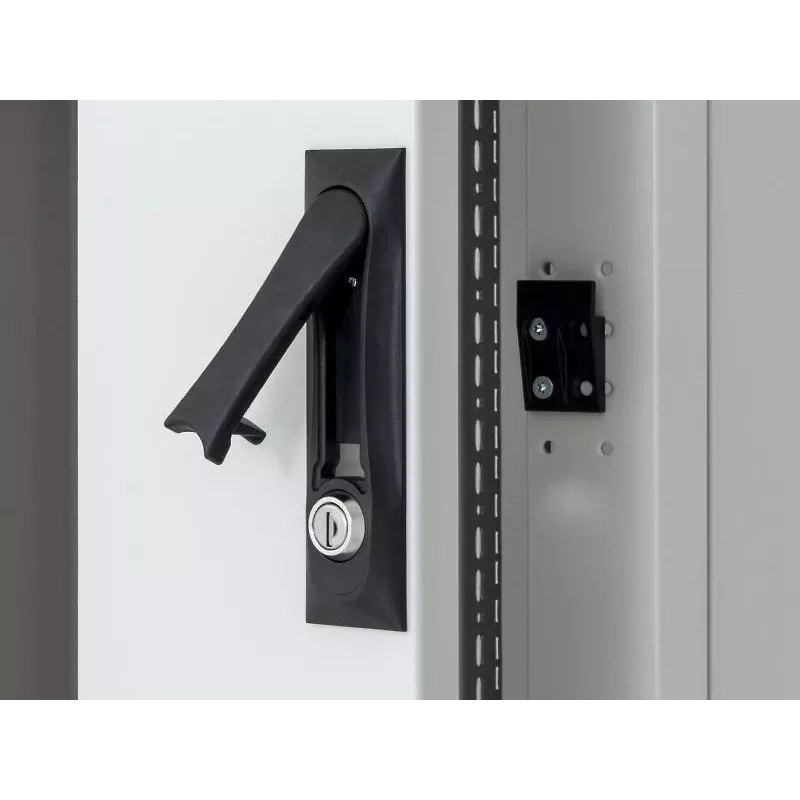

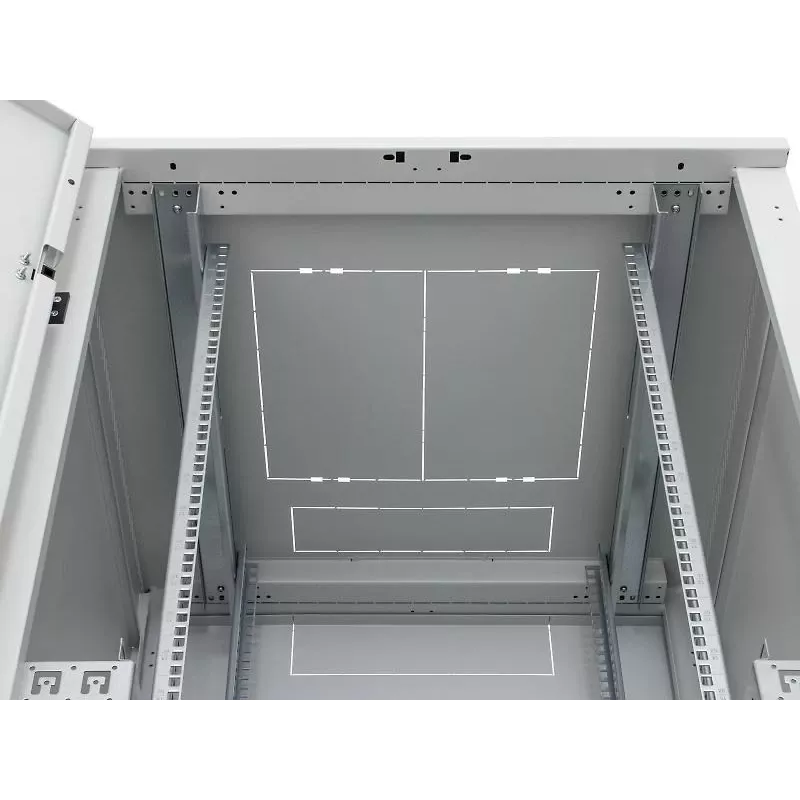

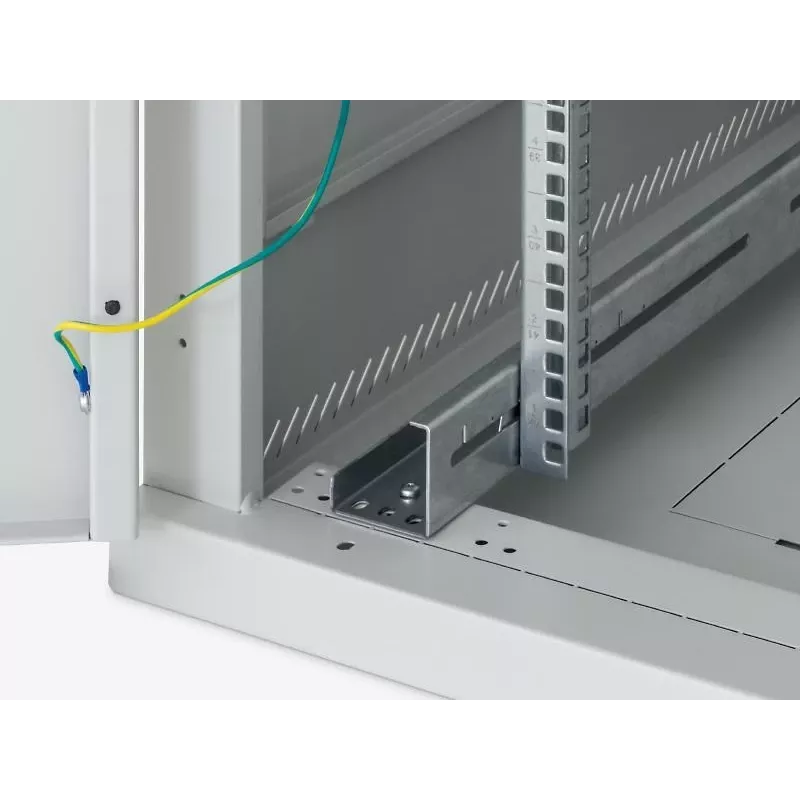

The cabinet has a robust welded construction with widened skeleton rails made from 1.3 mm thick material for increased rigidity. Doors can open nearly 180° and are removable or reversible; double-wing doors use hook-on hinges. Triton-manufactured handles allow fitting a half-cylindrical lock insert (plastic module not included). Perforated skeleton panels and optional fan-unit doors provide airflow and support active cooling. Breakout-type blanking panels and brush strips reduce dust ingress at cable entries. Detachable parts are bonded according to standards and a third central pair of rails is included for deeper enclosures to support additional mounting options.

Suitable for

• Housing rack-mount servers, switches and patch panels
• Small to medium network and telecom installations
• Environments requiring flexible cable management and active cooling

Key specifications

• Model: Triton RMA-15-A61-CAX-N1
• Rack capacity: 15U
• Maximum load capacity: 800 kg
• Dimensions (W×D×H): 600 × 1000 × 770 mm
• Weight: 46.6 kg
• IP rating: IP20
• Colour: Grey

How to use

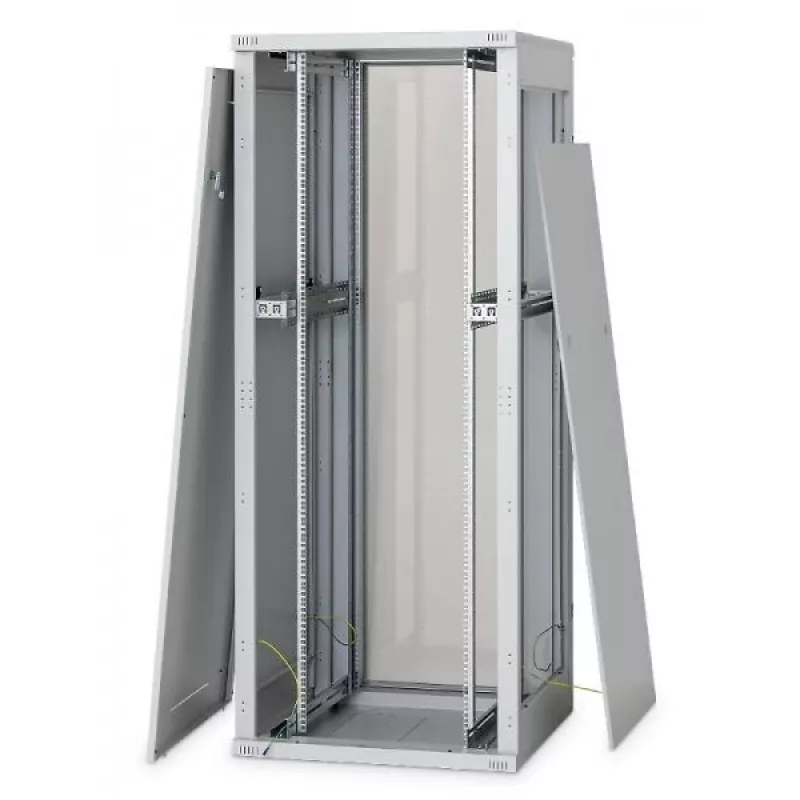

Place the cabinet on the included levelling feet or fit optional castors or a base as required. Adjust the 19" vertical rails to the desired depth for your equipment, mount servers, switches or patch panels using standard 19" fasteners, and route cables through the breakout-type blanking panels. If needed, install Triton fan units via the dedicated opening or order the special fan door for easy mounting. Removable side panels and the rear cover can be unlocked with the same key as the door for access and maintenance.

Recommendations

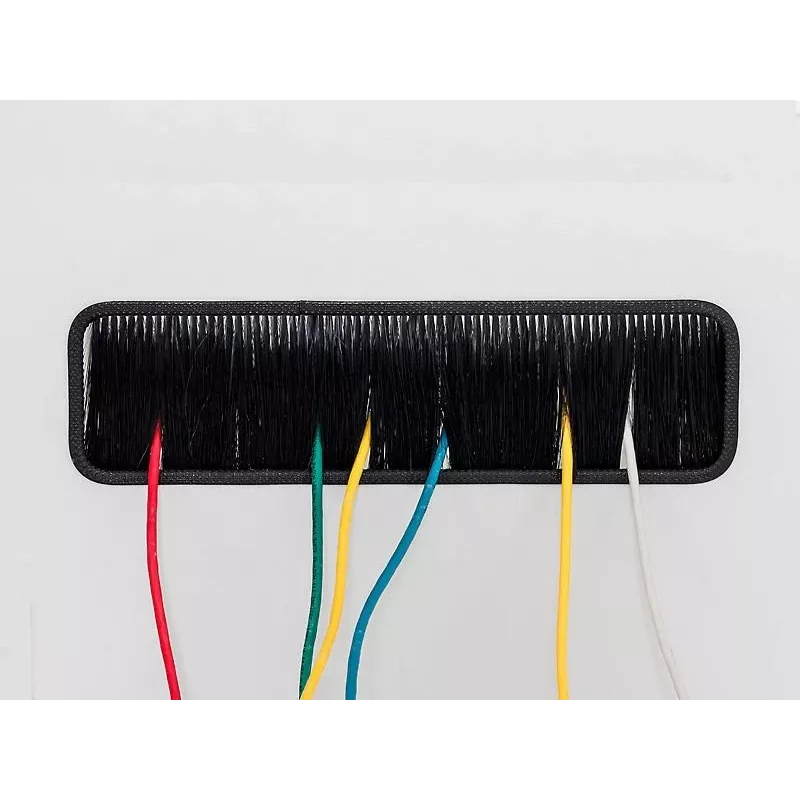

For installations with heavy equipment or loads over 500 kg, install the horizontal cable management reinforcement in the skeleton. Use brush strips or the protective fringe edge supplied to seal cable openings and reduce dust ingress; consider fan units to support airflow in densely populated racks.
