Rack de montaje en pared Digitus DN-19 16U-6/6-I-OD

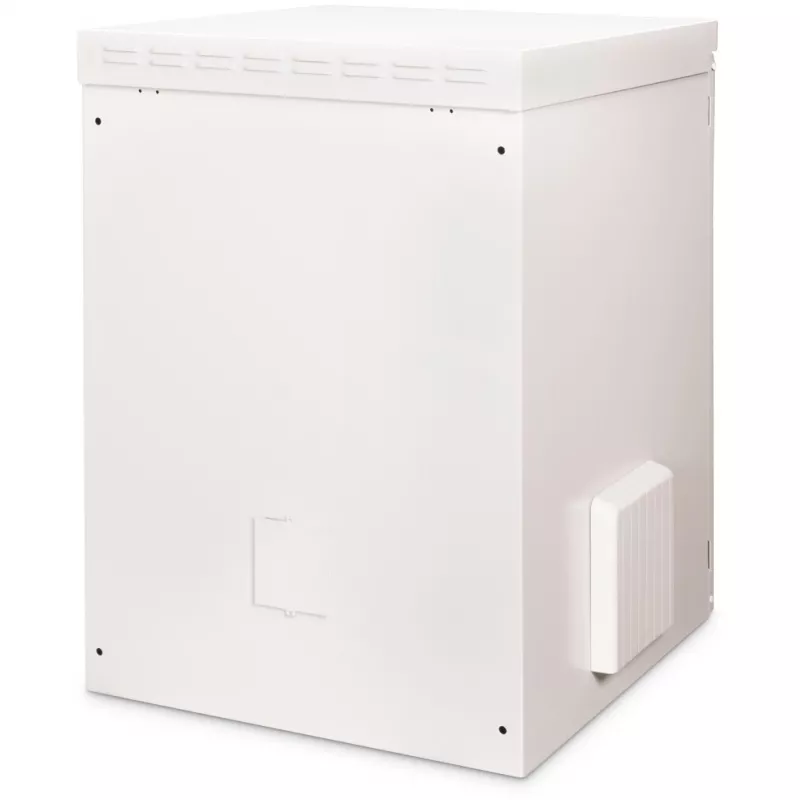

Weatherproof and rugged, the DIGITUS DN-19 16U-6/6-I-OD stands apart from ordinary indoor racks with its IP55-rated sealed steel enclosure. Built for outdoor and industrial use, this 19-inch wall-mount cabinet protects active equipment from dust, rain, and water jets while keeping installation simple. The 600 x 600 x 600 mm footprint and 16U capacity fit switches, patch panels, and small servers in exposed locations.

Highlights

• IP55 protection against dust and water jets for harsh environments
• Robust sheet steel construction up to 2.0 mm with grey RAL 7035 powder coating

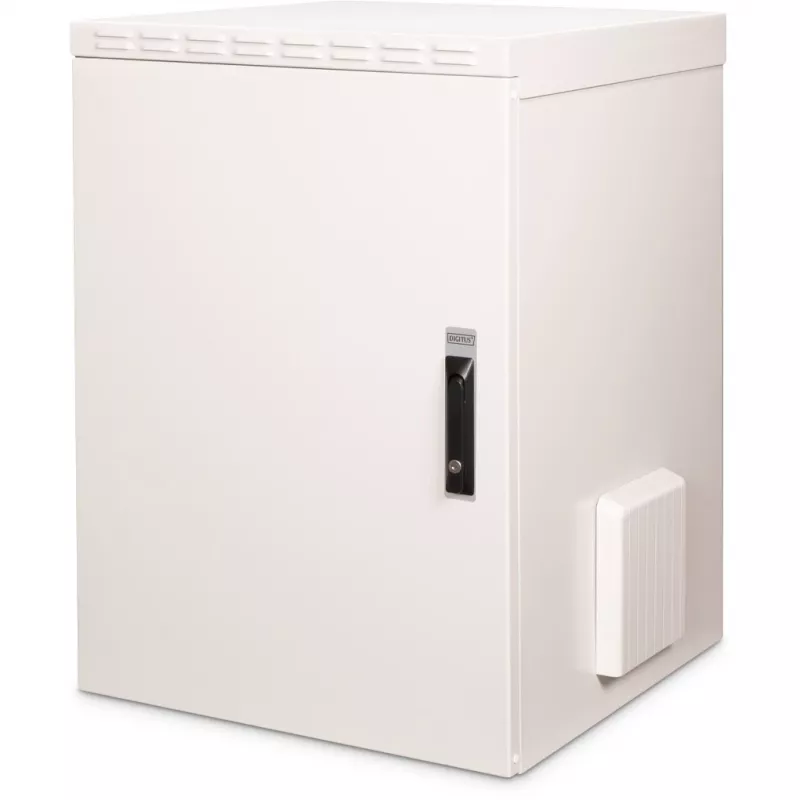

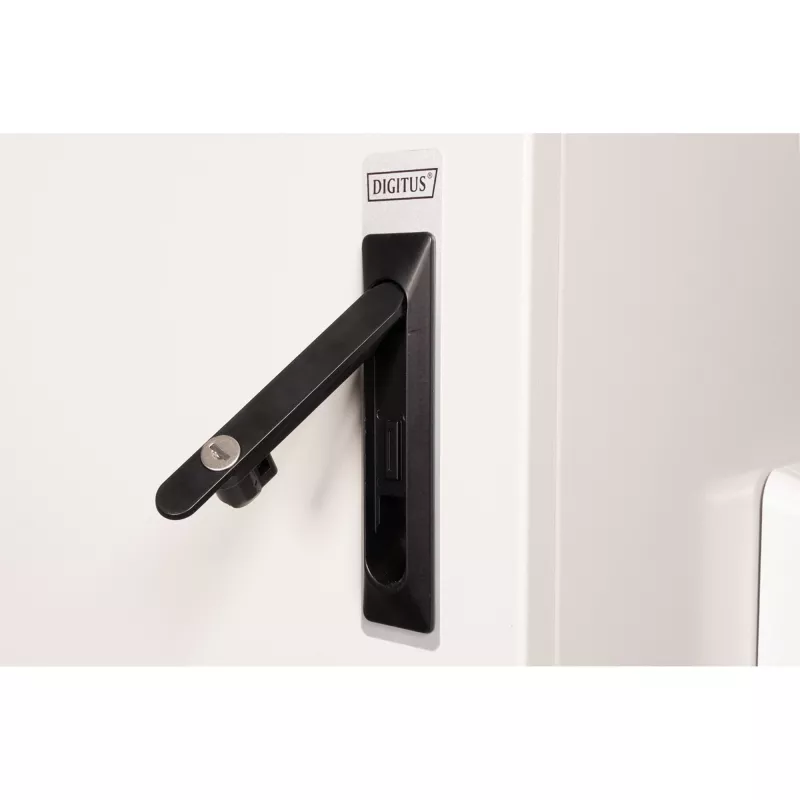

• Lockable steel front door with 3-point locking and swing handle
• Adjustable galvanized 19" profile rails with rack unit markings

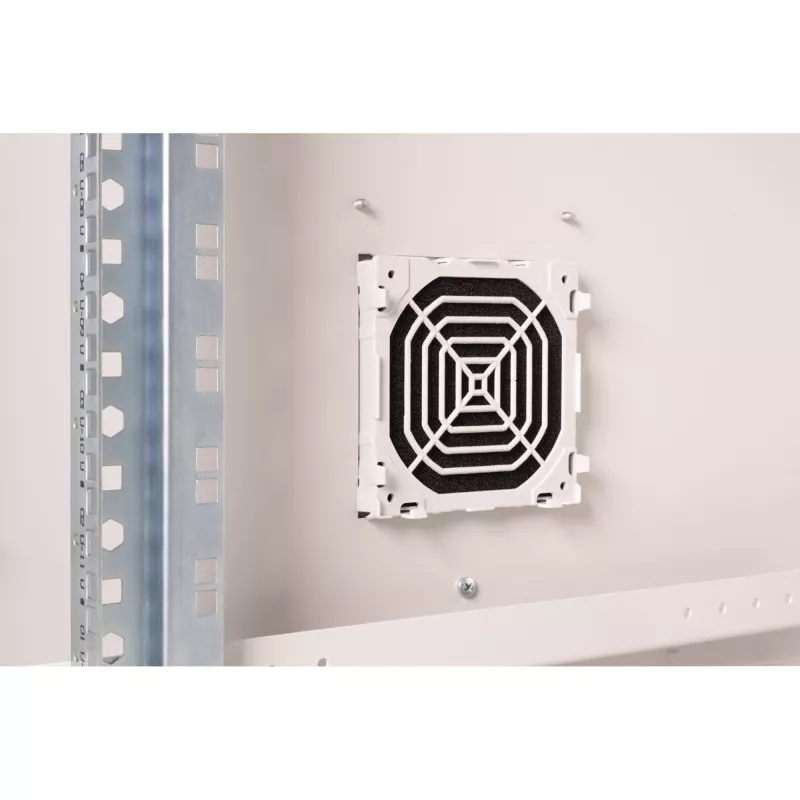

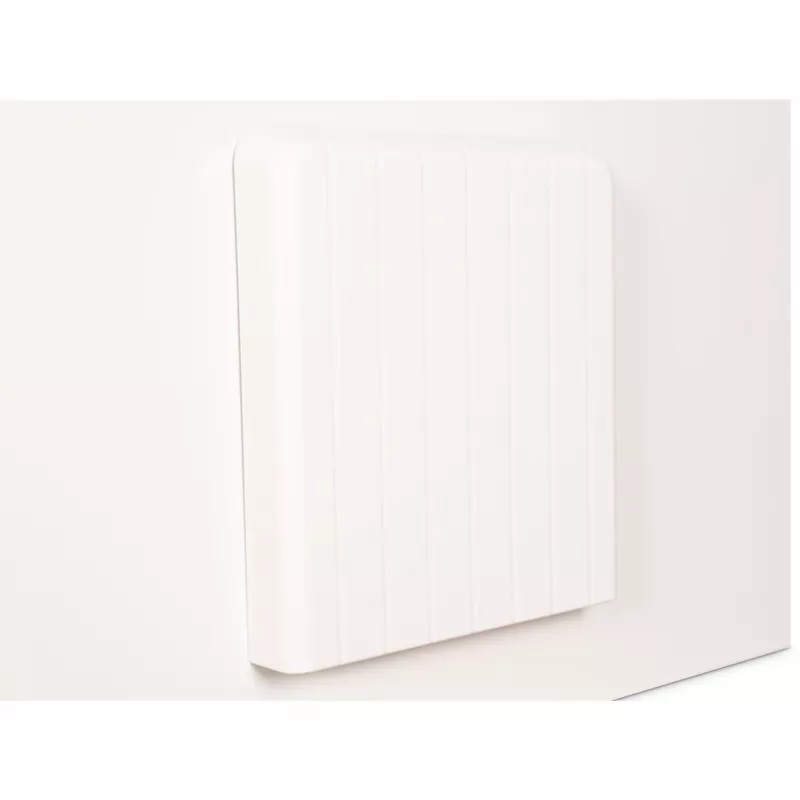

• Prepared for fan/filter modules to maintain airflow without compromising ingress protection
• Includes earthing lead and insulated PG cable glands for safe cable entry

In daily use

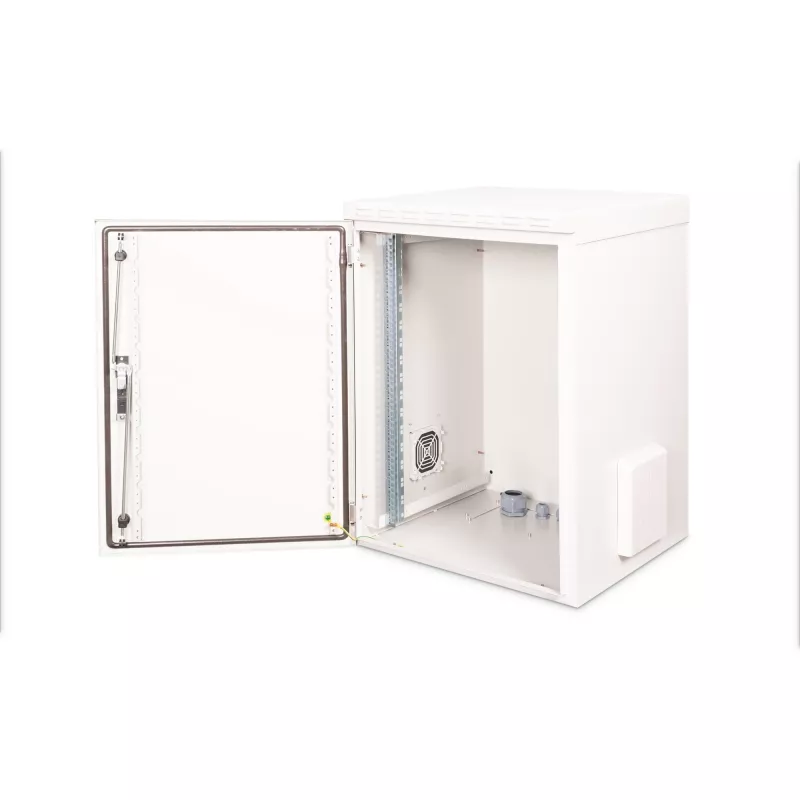

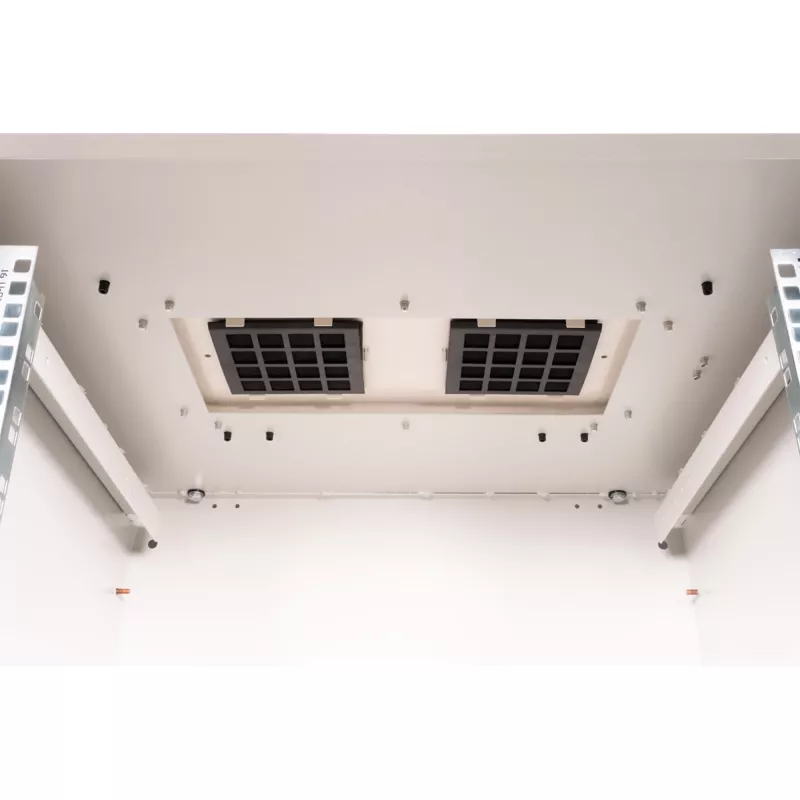

Mounting the DN-19 16U-6/6-I-OD on an exterior wall or in a dusty workshop is straightforward. The adjustable rails slide to accommodate deep equipment, while the gasket-sealed door and welded U-shaped strengthening bars keep the cabinet rigid and weather-tight. A 3-point lock with a lockable swing handle deters tampering, and the pre-punched openings on roof and door accept optional fan/filter units for active cooling. Cable management is simplified by top and bottom entry points with brush strips and PG glands, ensuring a clean, protected installation.

Full specifications

• Model: DN-19 16U-6/6-I-OD
• Rack type: Wall mount cabinet
• Rack capacity: 16U
• External dimensions (W x D x H): 600 x 600 x 600 mm
• Material: Sheet steel up to 2.0 mm
• Colour: Grey (RAL 7035), powder coated
• Protection rating: IP55
• Load capacity: 100 kg
• Front door: Steel, lockable, 3-point locking, swing handle
• Side panels: Fixed, welded

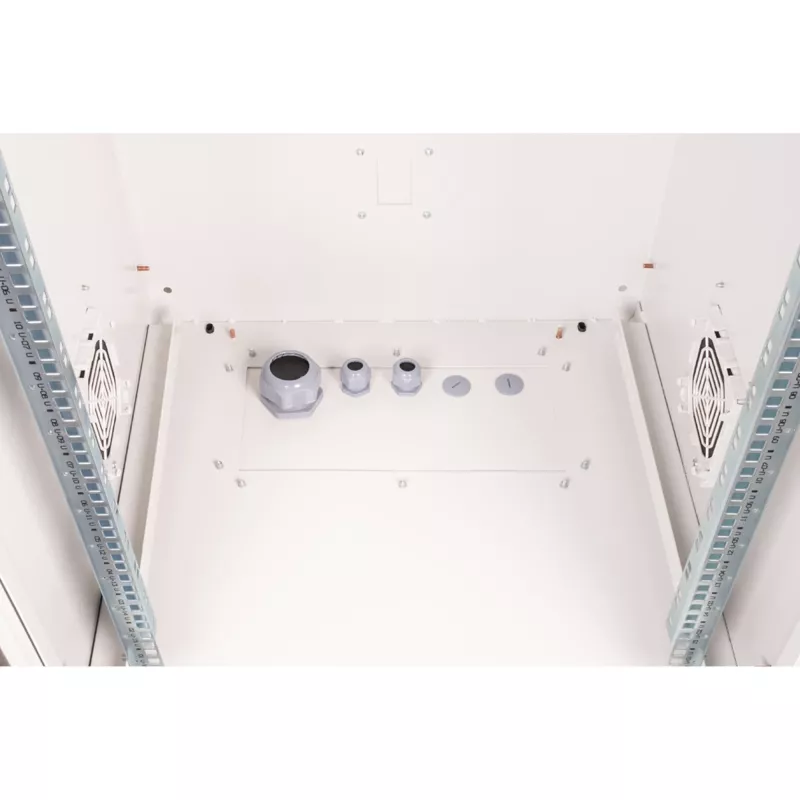

• Cable entry: Top and bottom with brush strips and insulated PG glands
• Ventilation: Passive, prepared for fan/filter modules
• Mounting rails: 2 pairs (front and rear), depth adjustable, galvanized, marked in U

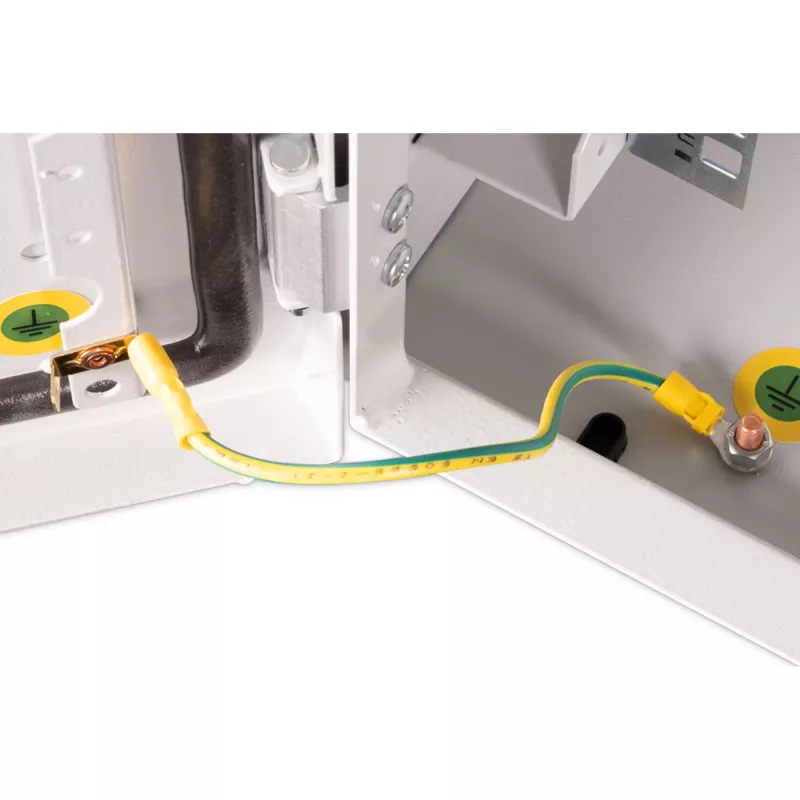

• Grounding: Earthing lead included
• Door opening angle: 180°

Final note

For outdoor network cabinets that must withstand weather and unauthorized access, the DIGITUS DN-19 16U-6/6-I-OD delivers reliable IP55 protection, flexible mounting, and durable steel construction in a compact 600 mm cube.
