Rack de montaje en pared Inter-Tech SMA-6406

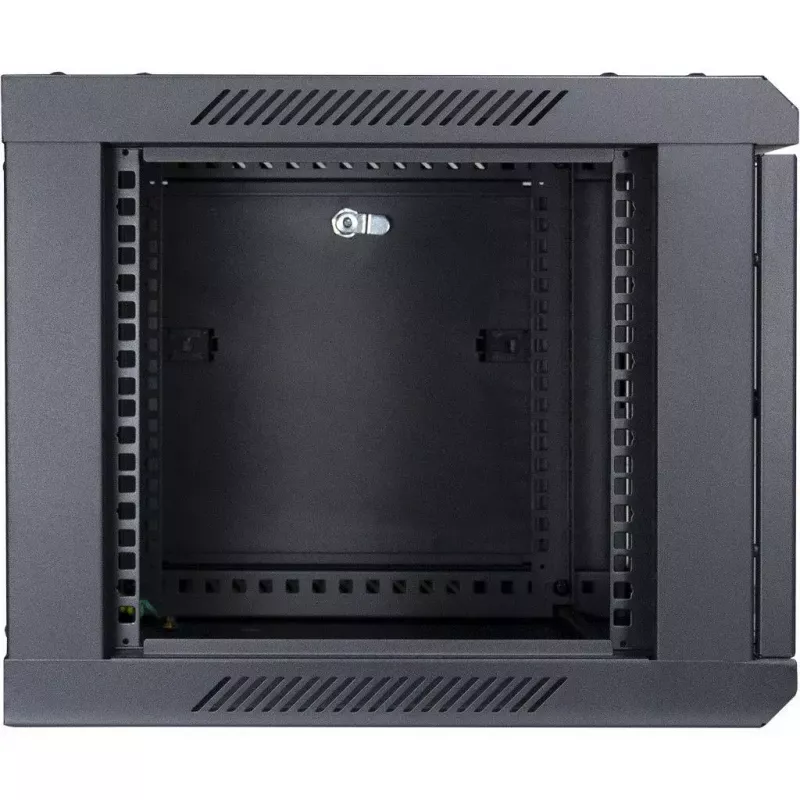

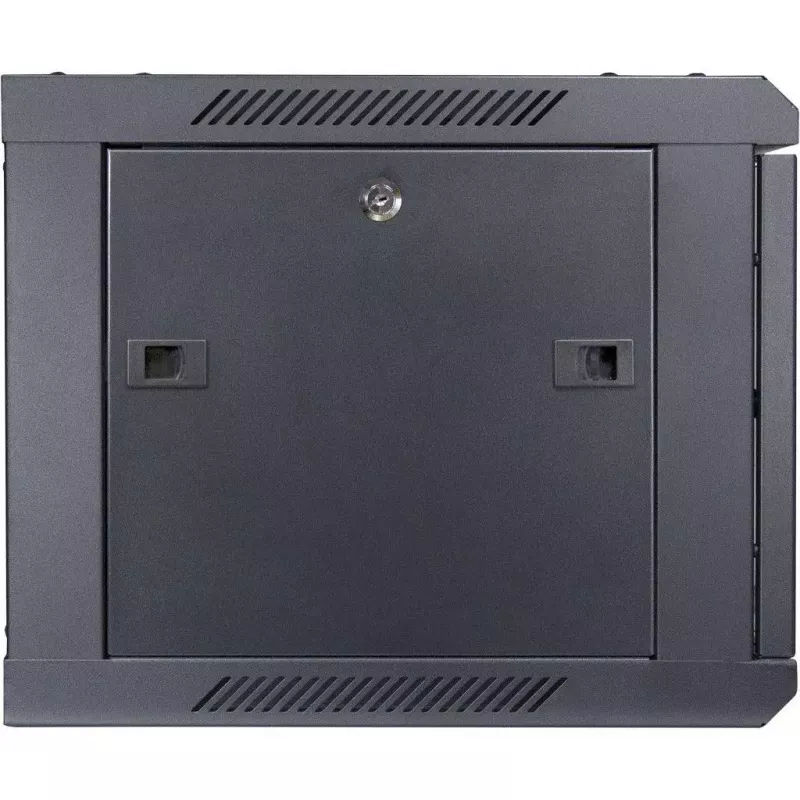

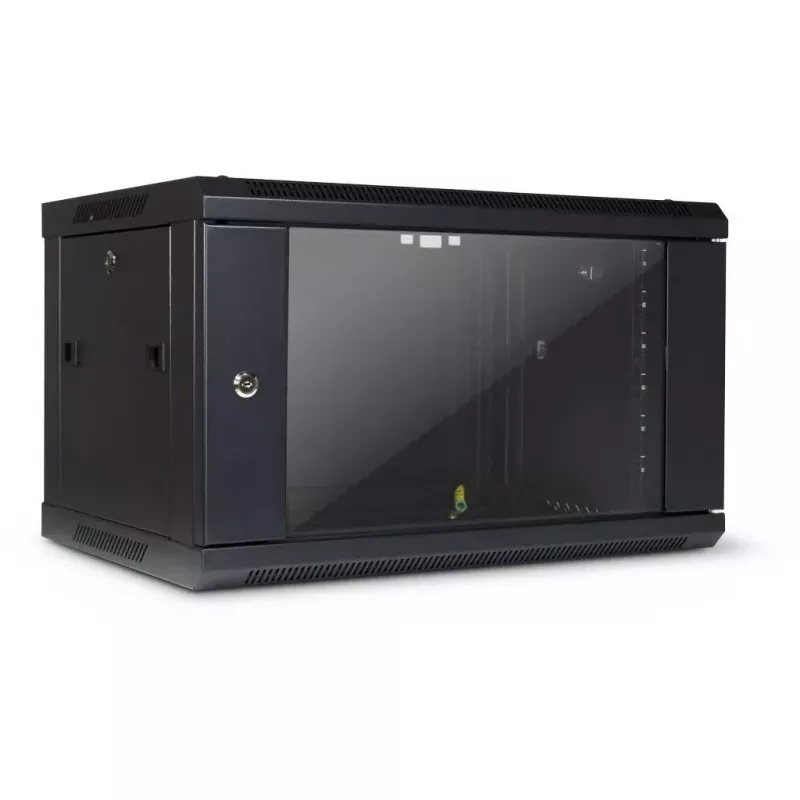

The SMA-6406 wall-mounted rack is a compact 6U server and network cabinet with a depth of 450 mm, designed to save space compared to larger floor-standing cabinets. It is powder-coated in RAL 9005, features a tempered glass front door, removable side panels and cable inlets in both the top and the bottom for tidy cable routing.

Advantages

The rack combines a small footprint with a load capacity suitable for light installations (up to 30 kg). Its 1.25–1.50 mm material thickness provides structural rigidity while meeting IP20 protection class requirements. The tempered glass door allows visual access to installed equipment and removable side panels simplify installation and maintenance. Two optional 120 mm fans can be installed in the lid to improve ventilation when required.

Key specifications

• Height: 6U
• Depth: 450 mm
• Material thickness: 1.25–1.50 mm
• Maximum load: 30 kg
• Protection class: IP20
• Colour: RAL 9005 (powder-coated)

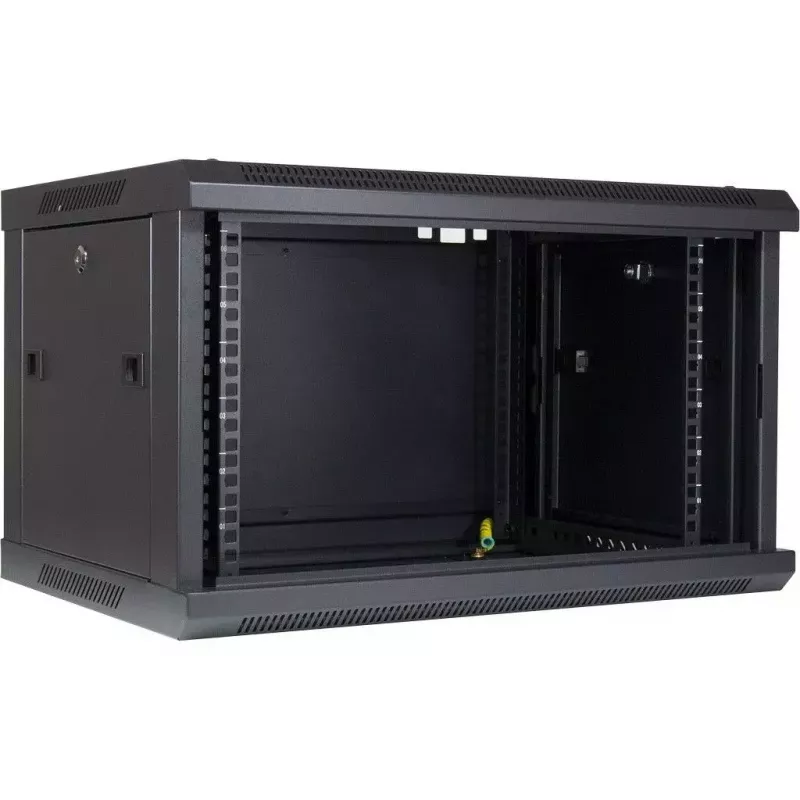

• Front door: tempered glass (integrated)

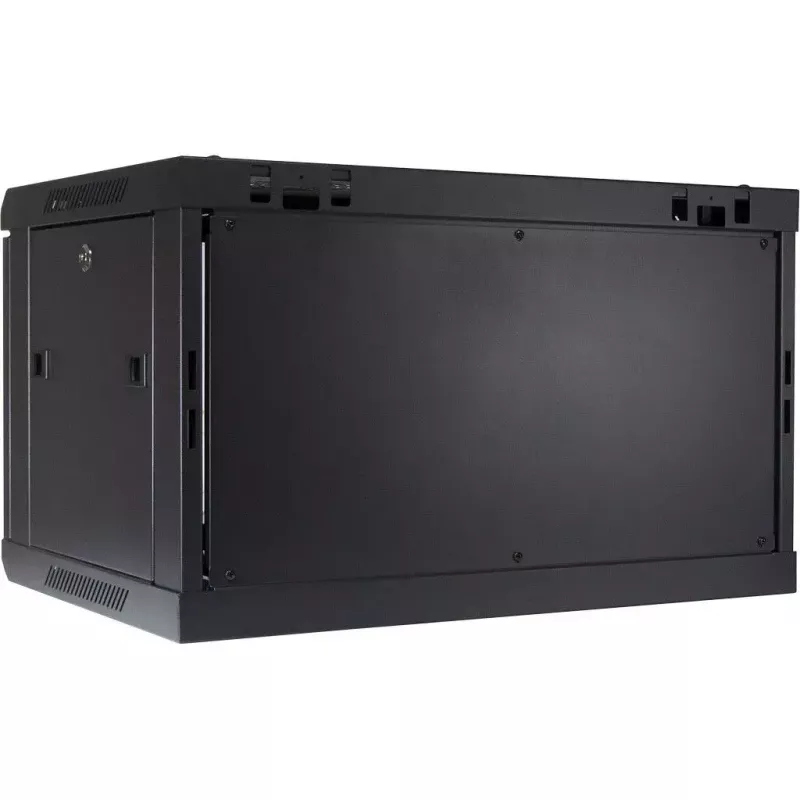

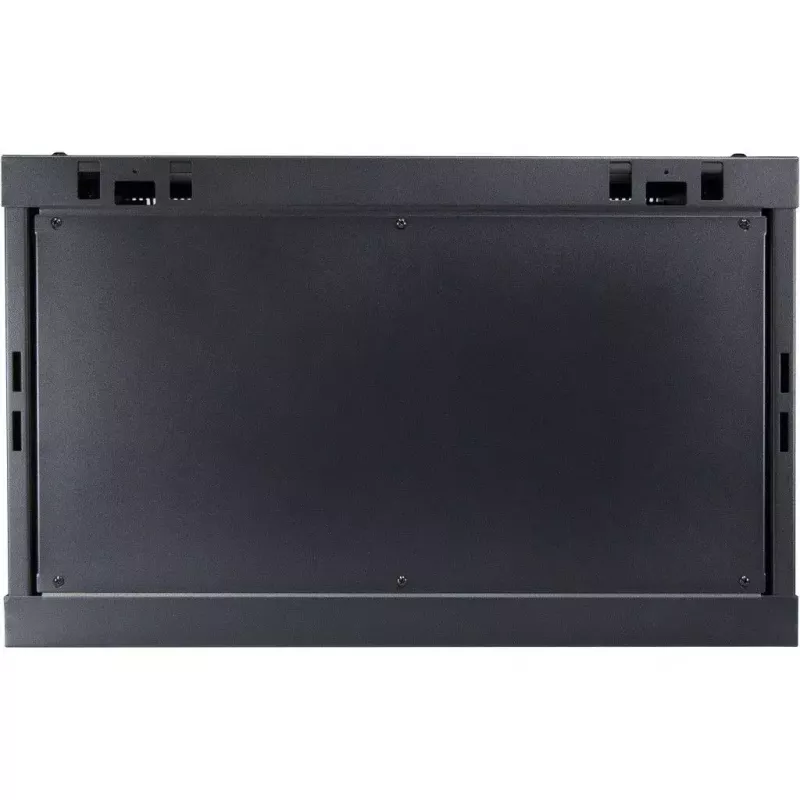

• Side panels: individually removable
• Cable inlets: in lid and floor

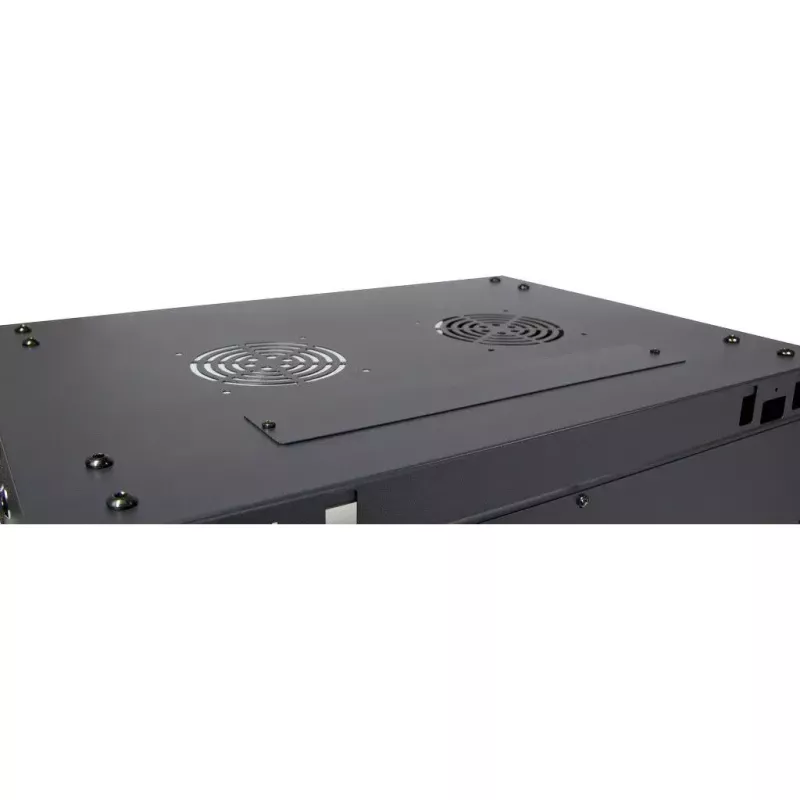

• Optional cooling: two 120 mm fans in lid

How to use

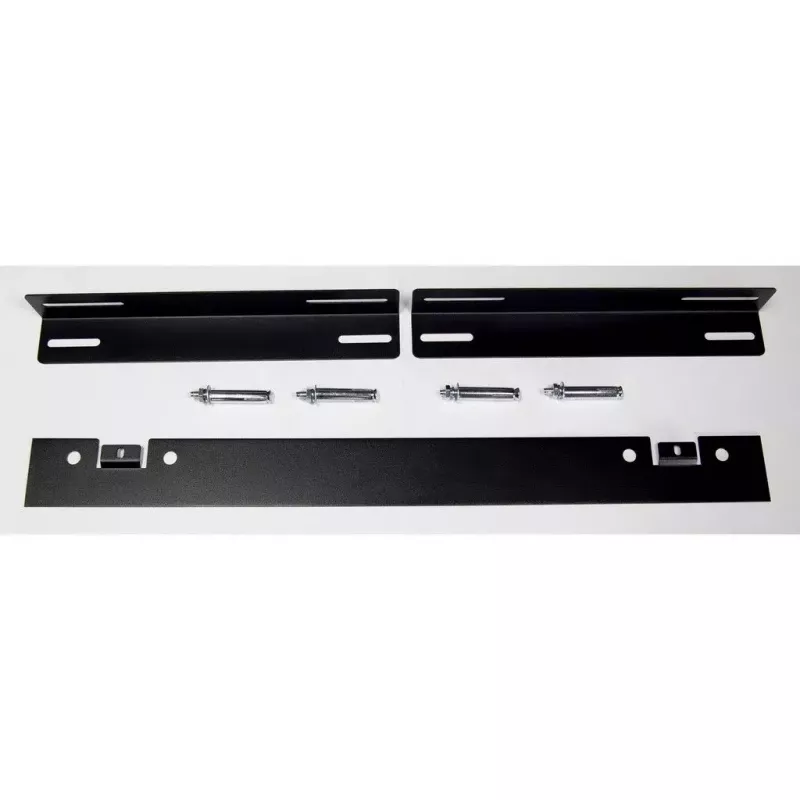

Mount the SMA-6406 on a suitable wall surface using appropriate fasteners for the wall material and the cabinet load. Install equipment in the 6U frame, route cables through the designated inlets at the top or bottom and secure side panels after making connections. If additional ventilation is needed, fit up to two 120 mm fans into the lid and connect them to the available power source following the fan manufacturer’s instructions.

Recommendations

For safe and durable installation, verify wall fixing compatibility with the rack weight and equipment load, plan cable routing to avoid strain, and consider installing the optional 120 mm fans if the enclosed cabinet will host heat-generating devices.
