Rack de pared Equip Pro Mount armario de 19 pulgadas 12U 600X600MM negro

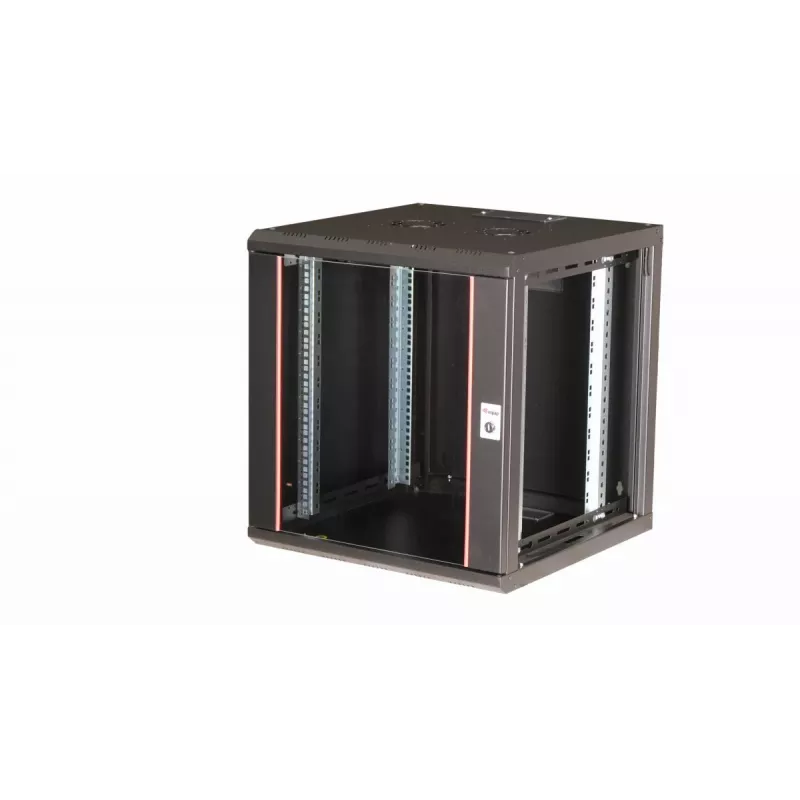

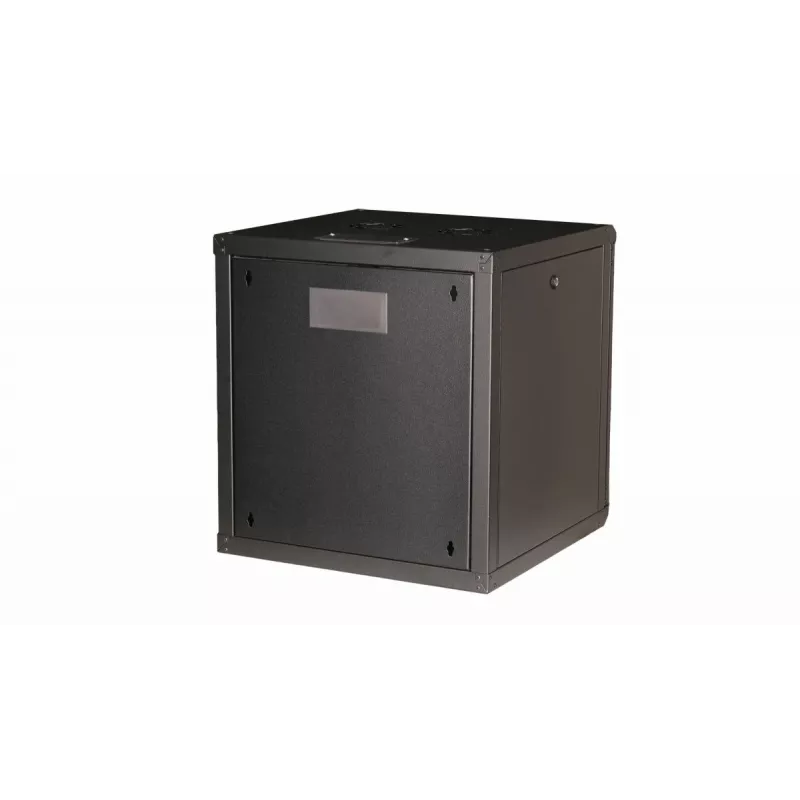

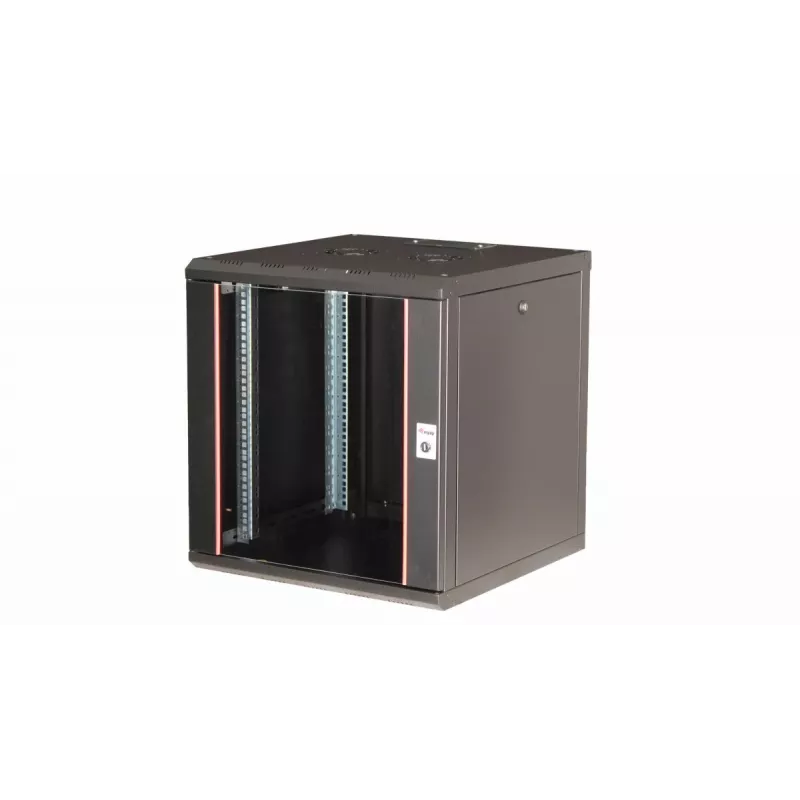

The Equip Pro Mount 19" Cabinet 12U 600x600mm Black is a wall-mounted network rack designed for compact and secure installation of active and passive network components. Constructed from steel sheet up to 1.5 mm thick and finished with a powder coating in black (RAL 9005), the cabinet includes pre-mounted 483 mm (19") profile rails, adjustable depth settings and a sliding roof cable entry with rubber seal to support clean cable routing.

Advantages

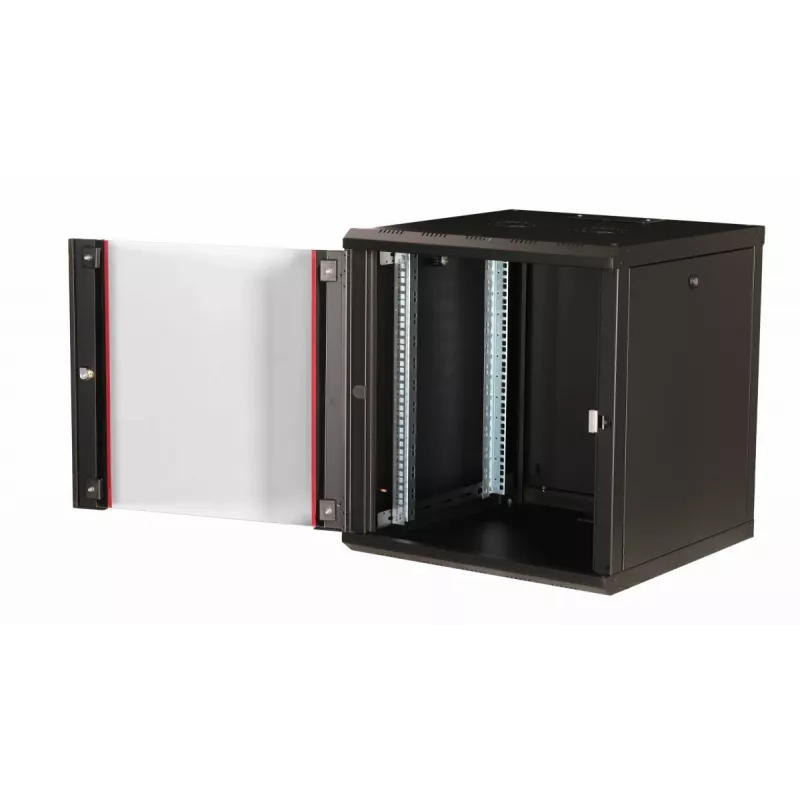

The cabinet offers robust steel construction for durability, a space-saving 12U wall-mount format and a key lock for basic physical security. Galvanized 19" rails with height unit markings readable from both directions and depth adjustability simplify equipment installation. Removable door and side panels plus reversible door orientation allow flexible access, while roof ventilation slots and multiple cable entry options improve airflow and cable management.

Suitable for

• Small server rooms and network closets
• Office or home network equipment racks
• Mounting of switches, patch panels and small UPS units

Key specifications

• Rack capacity: 12U
• External dimensions (H×W×D): 640 × 600 × 600 mm
• Maximum mounting depth: 450 mm
• Weight: 28 kg
• Material: steel sheet up to 1.5 mm
• Finish: powder coating, black (RAL 9005)

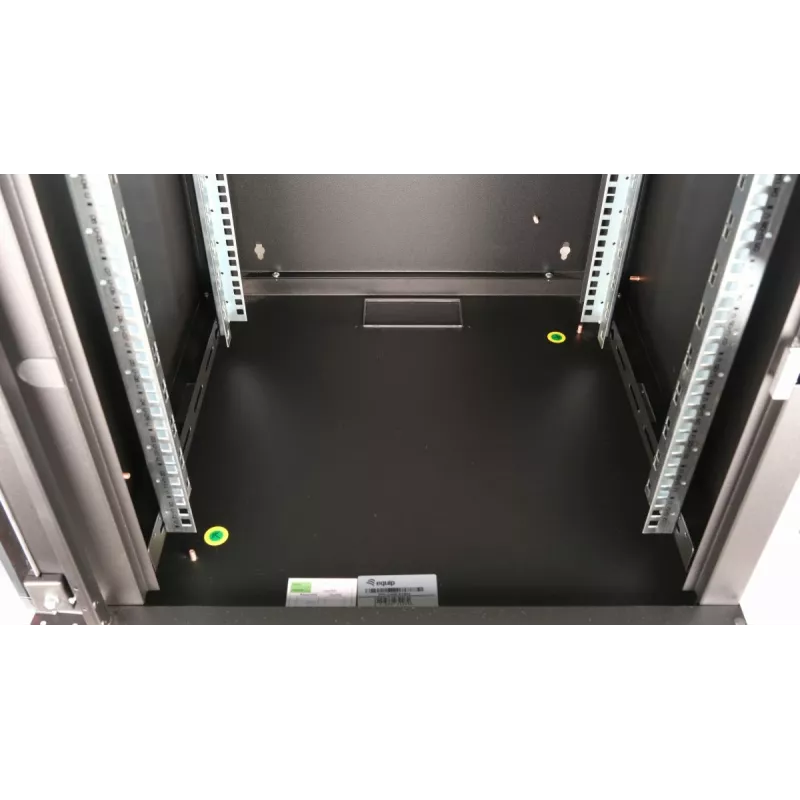

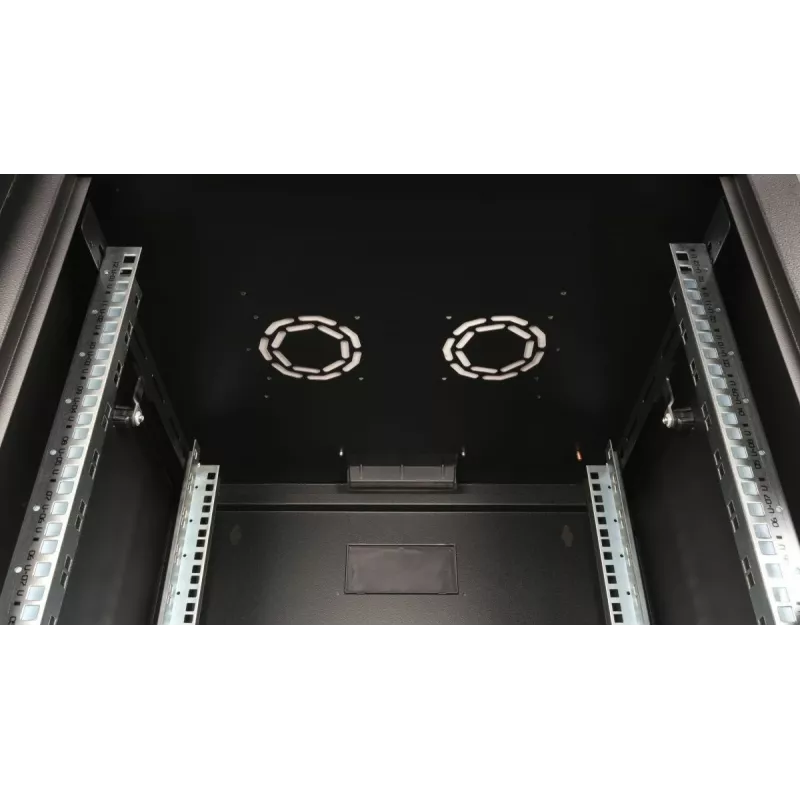

• Included: two pre-mounted 483 mm (19") galvanized profile rails, sliding cable entry panel, roof ventilation slots

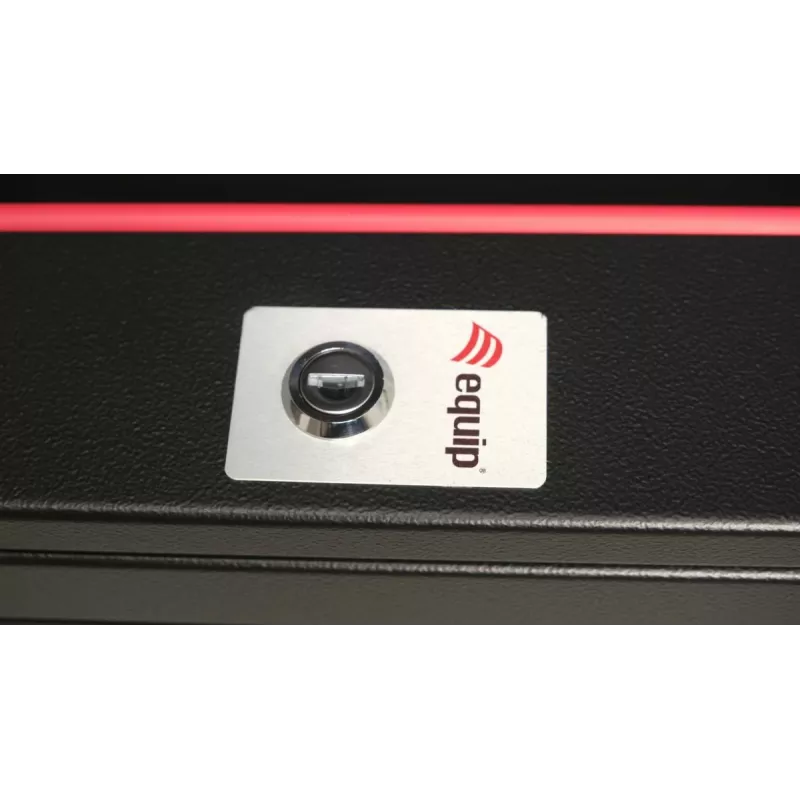

• Security: key lock

How to use

Mount the cabinet on a suitable load-bearing wall using appropriate fixings for your surface. Install equipment onto the included 483 mm (19") rails, adjusting rail depth to match device mounting requirements. Route cables through the sliding roof cable entry with rubber seal, rear/base punched entries or rear frame brush openings as needed. Remove side panels or reverse the door if required for easier access during installation and maintenance.

Recommendations

For safe operation, confirm wall anchor ratings and load limits before installation, distribute equipment weight evenly across the rails, and maintain unobstructed ventilation around the cabinet to ensure adequate airflow.
