Rack de pared LANBERG WF02-6606-10B 6U 600x374,3x600 mm acero inoxidable negro

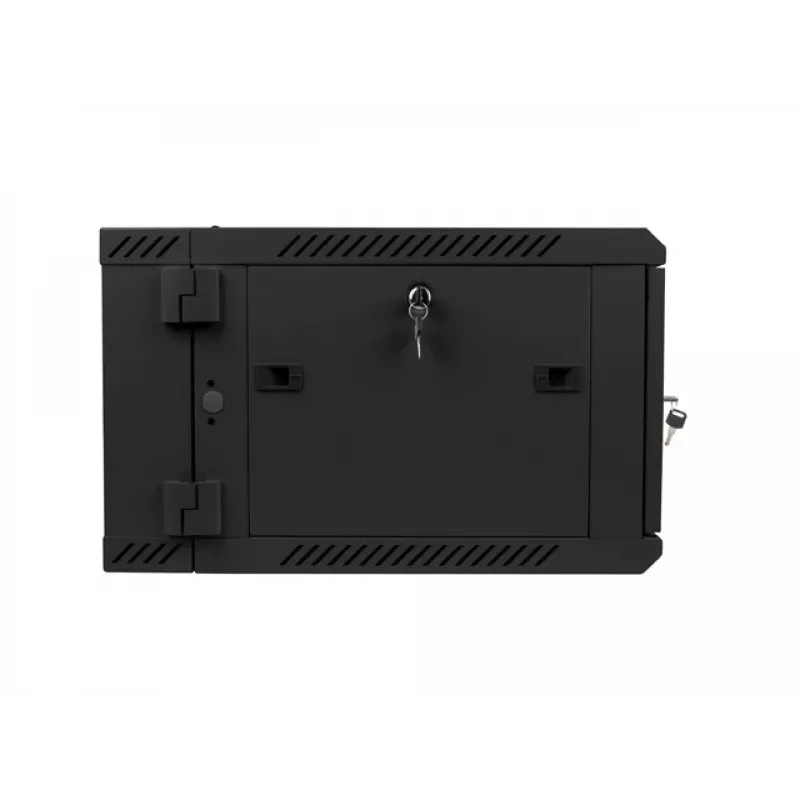

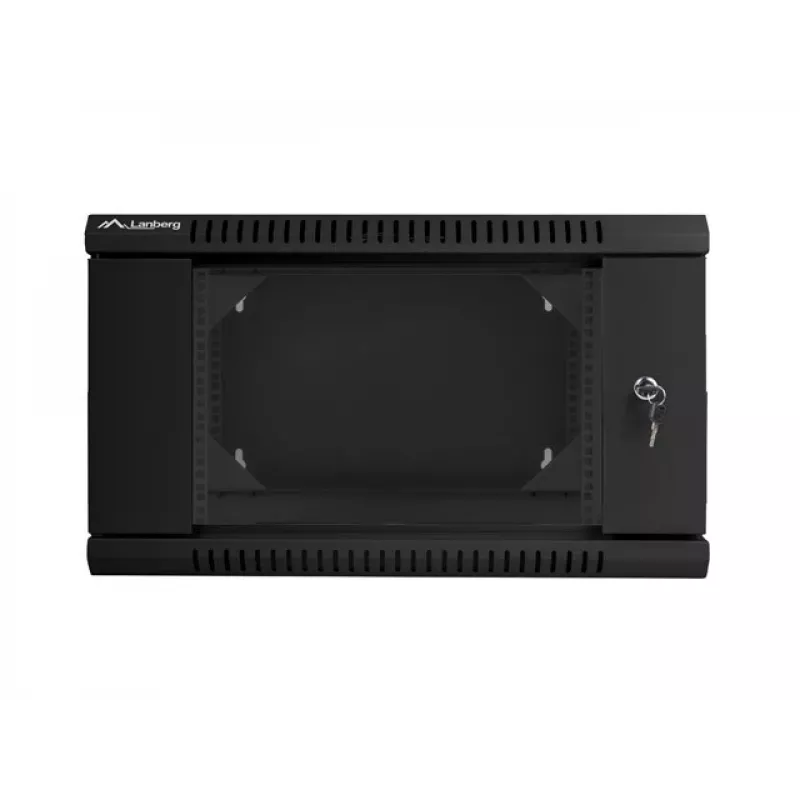

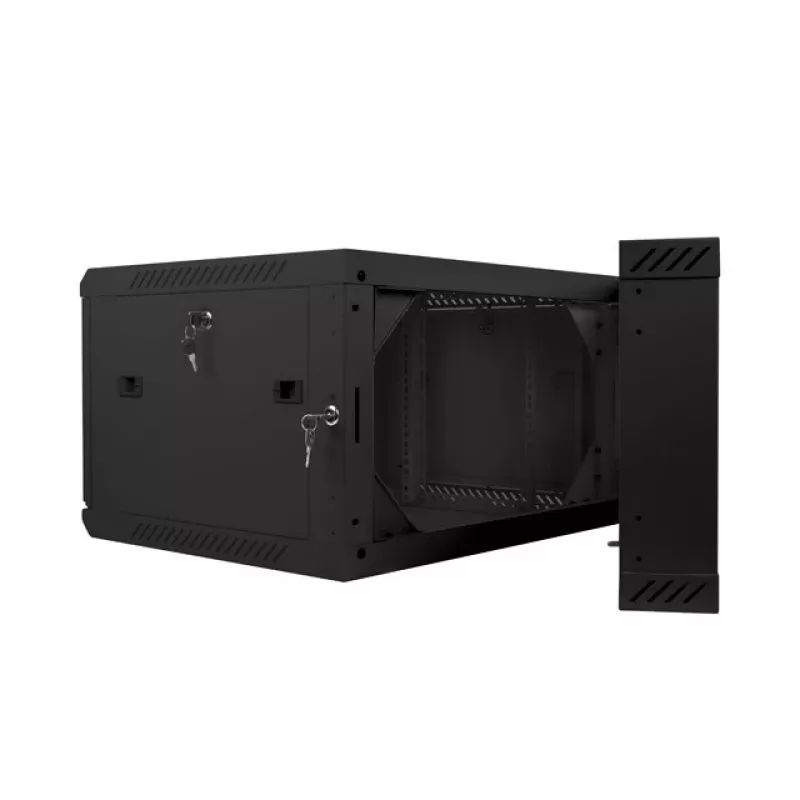

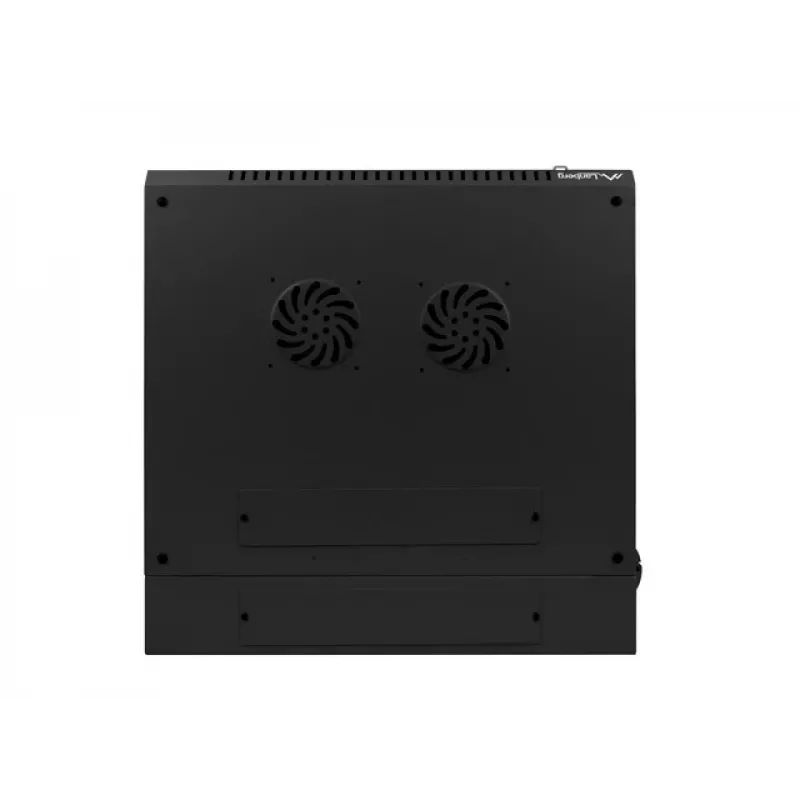

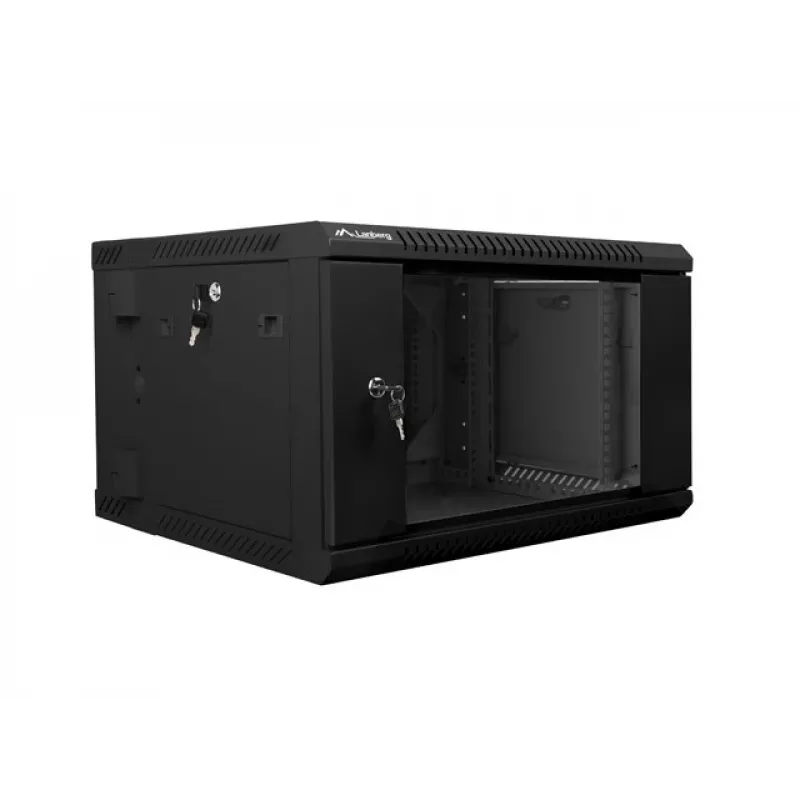

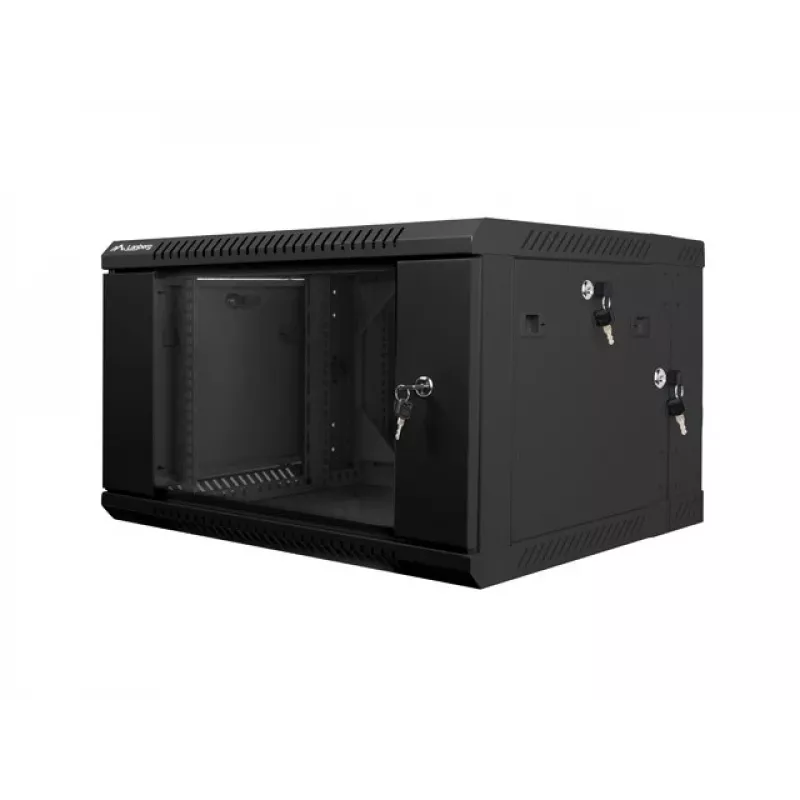

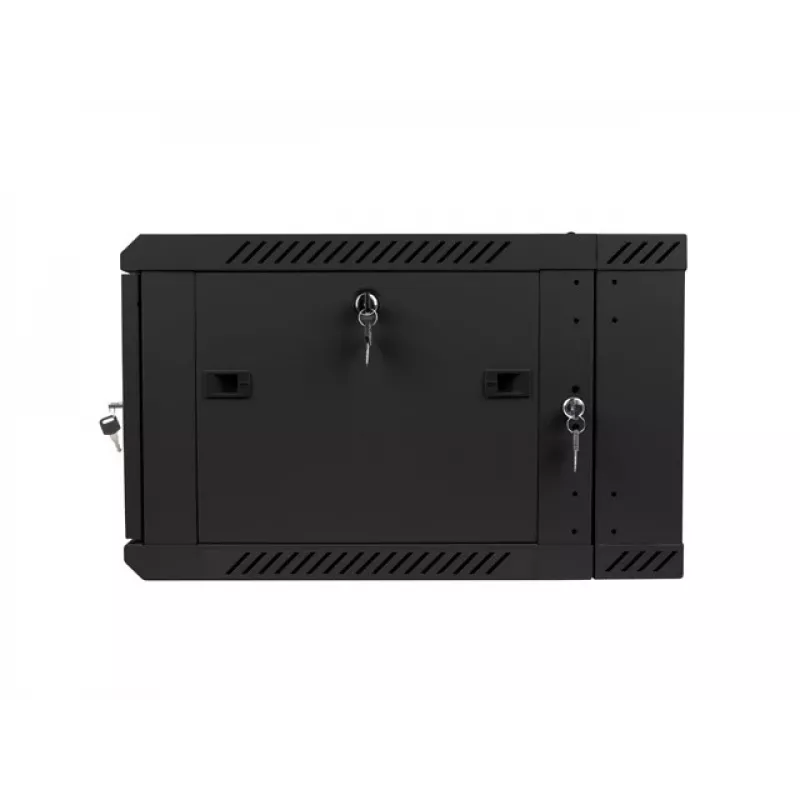

Wall mounted rack LANBERG WF02-6606-10B is a compact 6U network cabinet designed for secure installation of network equipment, patch panels and small servers. Constructed from stainless steel with a tempered glass front door and finished in black, the cabinet measures 600 × 374.3 × 600 mm and supports equipment loads up to 60 kg. The design is intended for wall mounting in offices, server rooms and telecommunications closets where a slim, modern enclosure is required for cabling and active devices.

Advantages

The stainless steel construction provides mechanical strength and corrosion resistance while keeping the cabinet footprint compact. A tempered glass front door allows visual inspection of indicator lights and device status without opening the enclosure. Built-in mounting rails accommodate standard 19" rack equipment up to 6U and the cabinet supports up to 60 kg of distributed load. Its black finish integrates easily into existing rack environments and interior spaces, offering a balance of security and accessibility for medium-density network installations.

Suitable for

• Wall-mounted network switches and patch panels in small offices
• Telecommunications closets and IDF cabinets
• Deployment of small rack-mounted UPS units and microservers
• Cable management for VoIP and surveillance system equipment

Key specifications

• Rack capacity: 6U for 19" equipment
• External dimensions: Width 600 mm × Height 374.3 mm × Depth 600 mm
• Material: Stainless steel body with tempered glass front door
• Finish: Black powder-coated or painted surface
• Maximum supported equipment load: 60 kg (distributed)
• Mounting type: Wall-mounted enclosure
• Net weight: 21 kg

How to use

Mount the LANBERG WF02-6606-10B to a suitable load-bearing wall using appropriate anchors or mounting brackets rated for the combined weight of the cabinet and installed equipment. Install standard 19" devices within the 6U available space using the built-in mounting rails, and route network and power cabling through available entry points or knockouts while maintaining proper bend radii. Secure the front tempered glass door after installation to protect equipment from dust and unauthorized access; periodic inspection through the glass can confirm device operation without opening the cabinet.

Recommendations

Distribute equipment weight evenly across the mounting rails and ensure that the total load does not exceed 60 kg. Allow clearance around the cabinet for ventilation and cable access, and use cable ties or internal organizers to reduce strain on connectors. For installations with heat-generating devices, consider active ventilation or positioning in a conditioned space to maintain safe operating temperatures.
