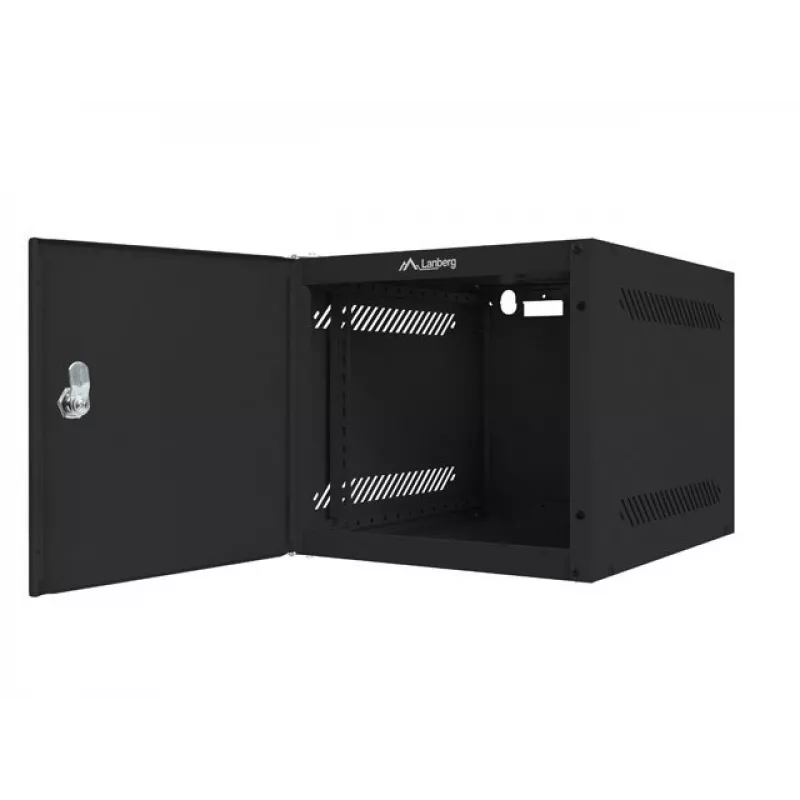

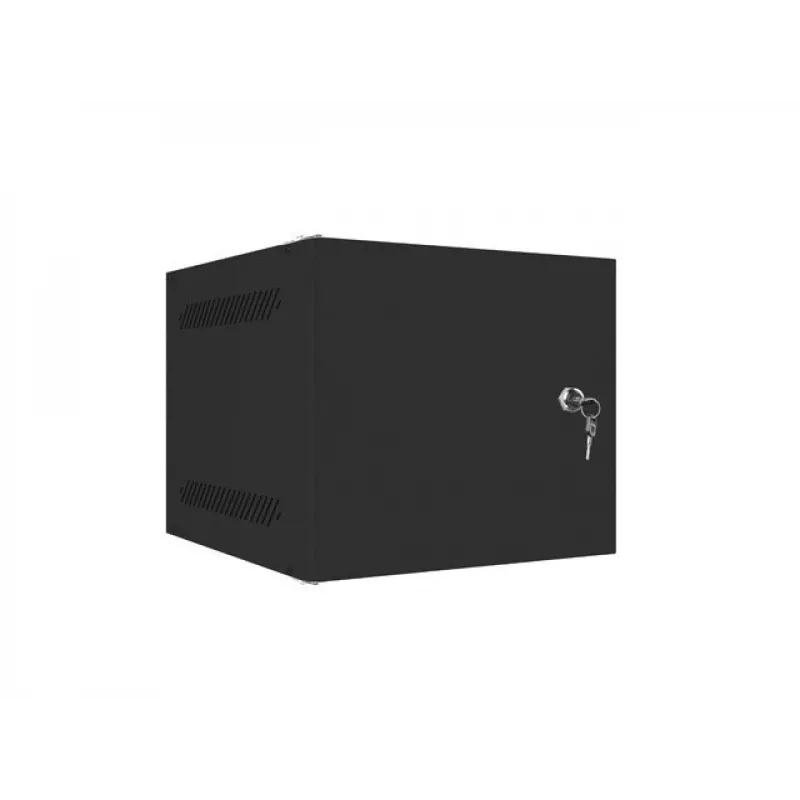

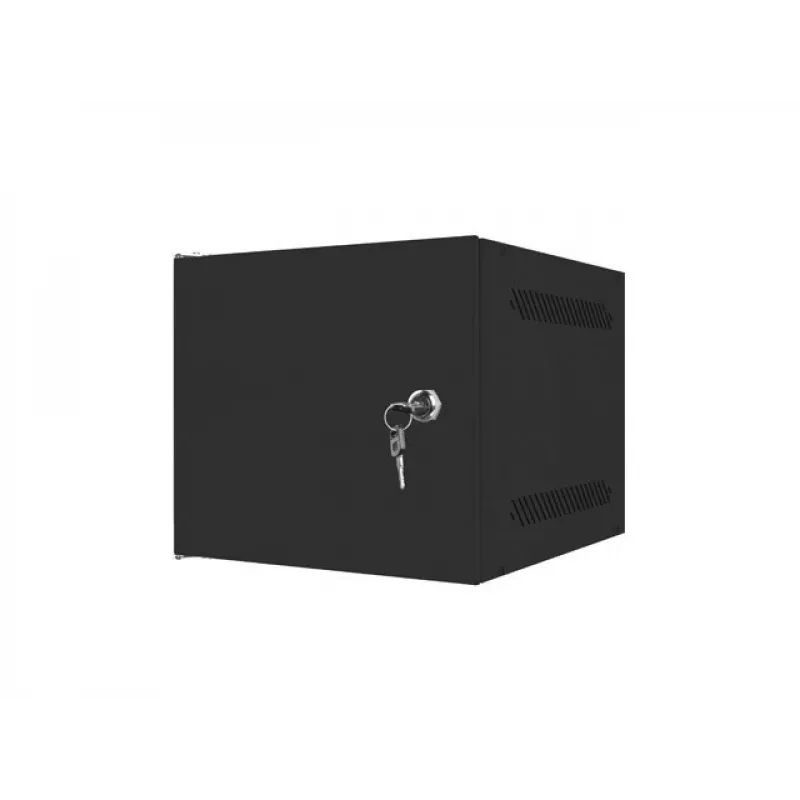

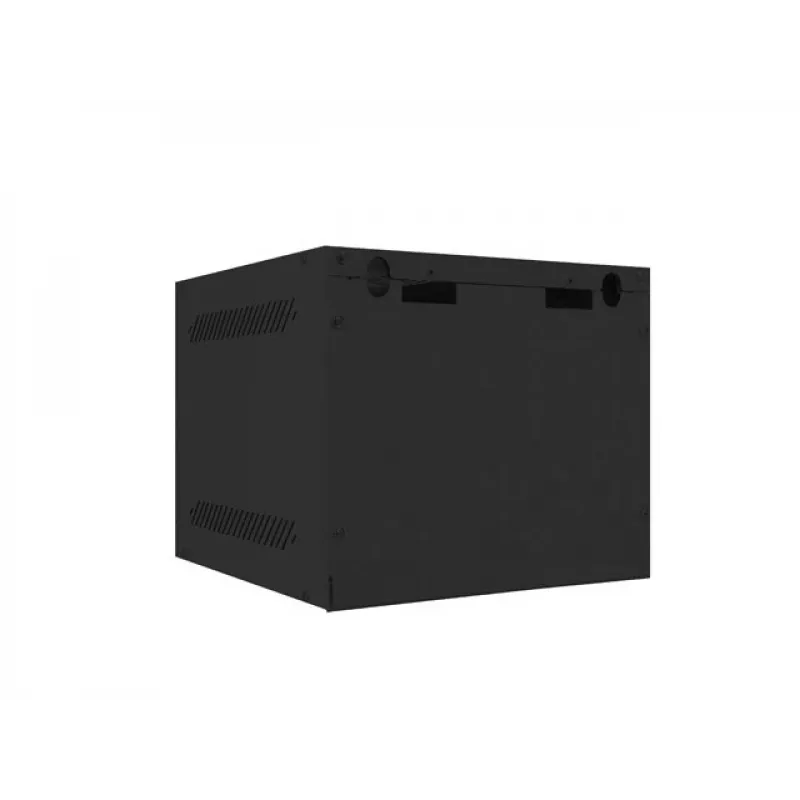

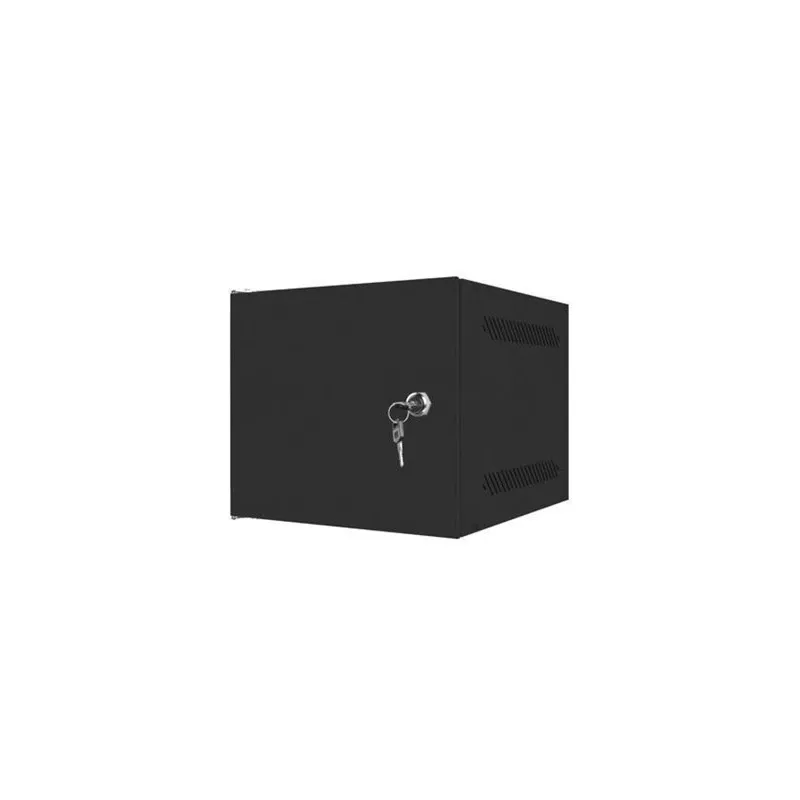

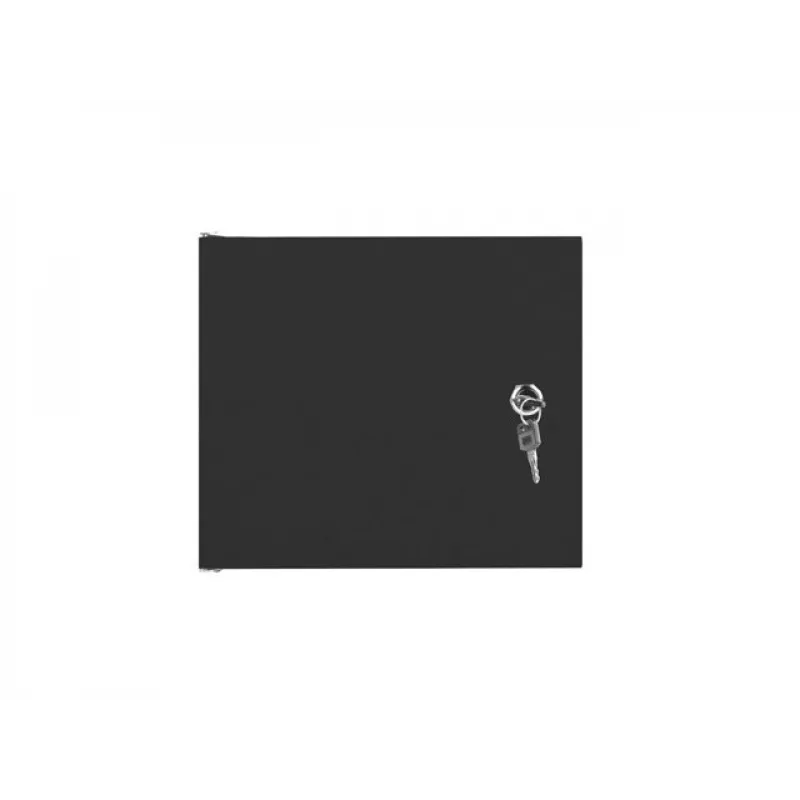

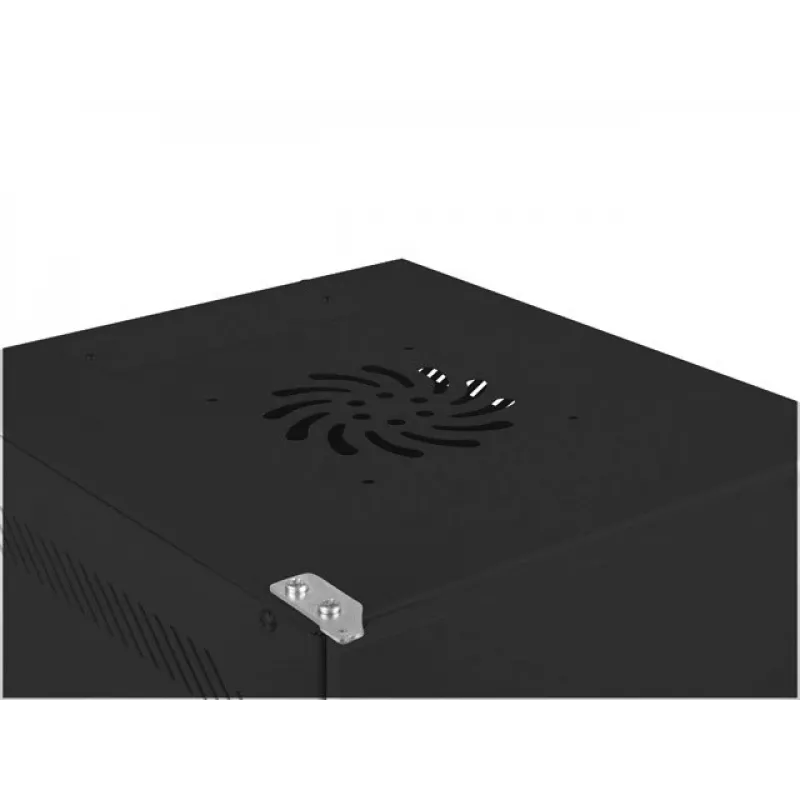

Rack de pared Lanberg WF10-2304-00B

Lanberg WF10-2304-00B is a compact 10" wall mounted rack designed for organized installation of 10" network equipment and cabling. The 4U cabinet supports a maximum combined load of 20 kg and is suitable for small and medium business network implementations as well as low-voltage installations including cable TV, alarm and access control systems, and CCTV/IP surveillance.

Advantages

The cabinet is made of high-quality rolled steel and is supplied as a flat-pack for easier transport and self-assembly. It features an IP20 rating, a lockable glass front door with up to 180° rotation, top and bottom cable entry with blank panels, and includes mounting accessories and M6 screws for wall installation.

Suitable for

• Small and medium-sized business network equipment (10" devices)
• CCTV and IP surveillance installations
• Low-voltage systems: cable TV, alarms, access control

Key specifications

• Model: Lanberg WF10-2304-00B
• Size: 10" (10 inch)
• Rack capacity: 4U
• Maximum load: 20 kg
• Dimensions (WxDxH): 280 × 310 × 247 mm
• Weight: 4.56 kg
• Protection rating: IP20
• Colour: Black
• Front door: glass, lockable, 180° rotation

How to use

Unpack the flat-pack cabinet and follow the included assembly instructions to build the unit and attach the glass door. Secure the cabinet to a suitable wall using the provided mounting accessories and M6 screws, ensuring the wall can support the combined weight of the cabinet and installed equipment. Install network devices into the 4U space and route cables through the top or bottom entry panels; replace blank panels with cable grommets if required.

Recommendations

Install the rack on a stable, load-bearing wall; do not exceed the 20 kg maximum load. For ventilation and equipment longevity, allow adequate airflow around installed devices and avoid placing heat-generating equipment in confined spaces without cooling.
