Rack de pared Lanberg WF10-2306-00B

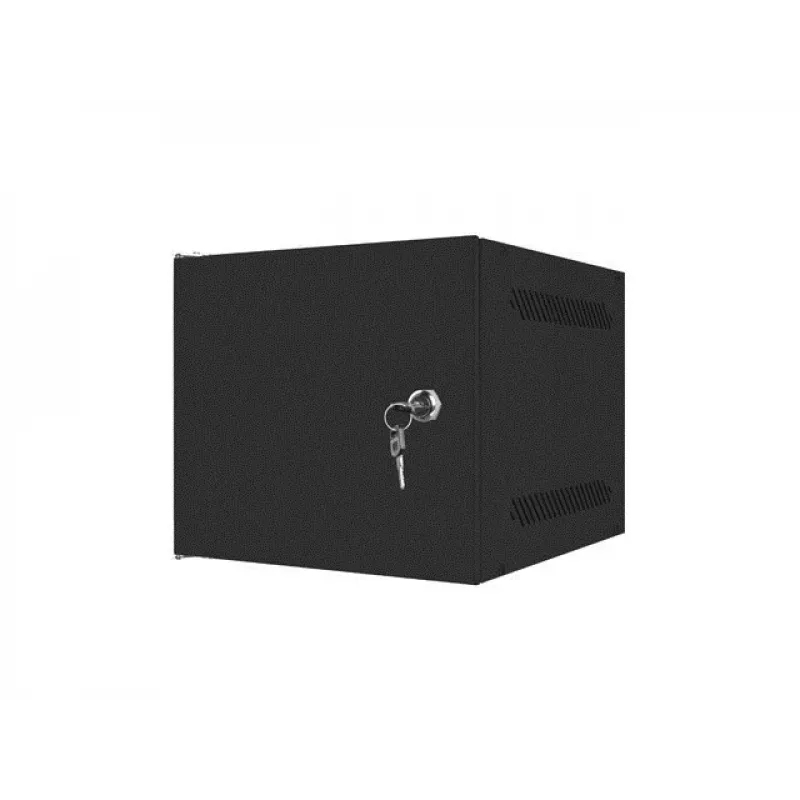

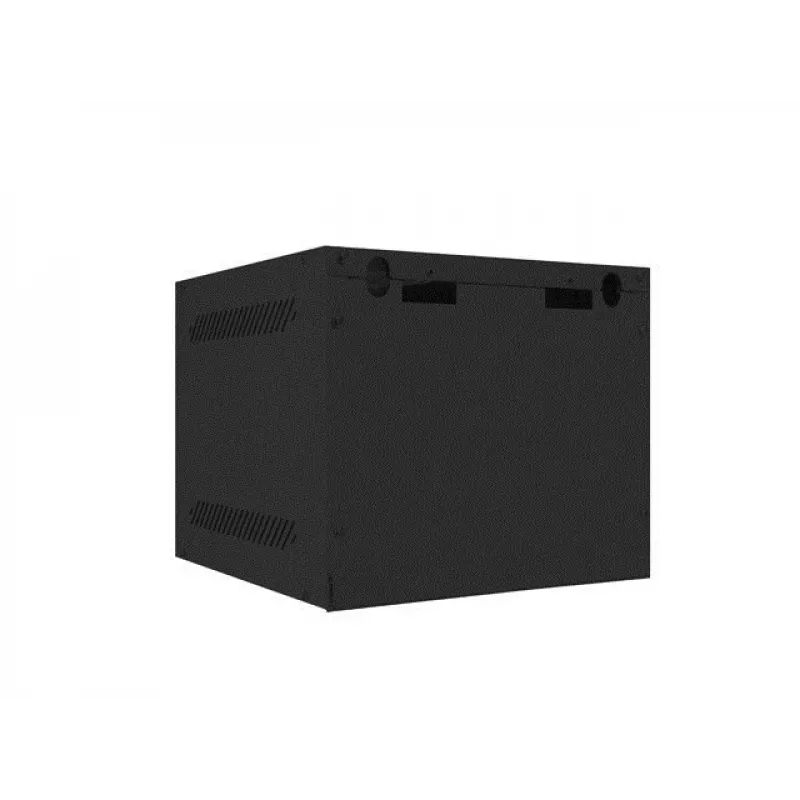

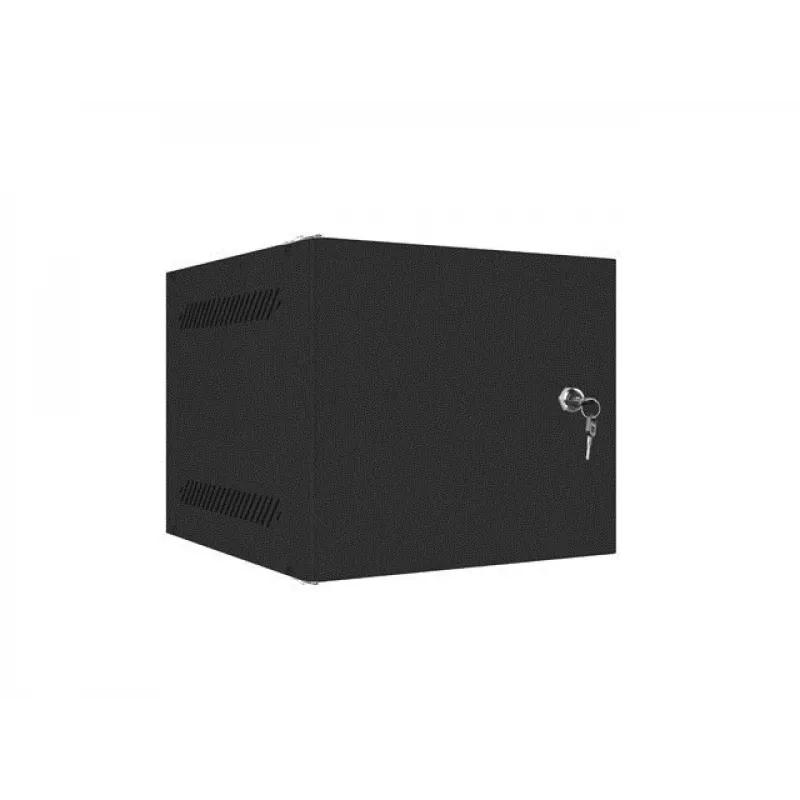

Lanberg's 10" wall mounted rack WF10-2306-00B is a compact 6U cabinet designed for indoor network installations where the total mounted equipment weight does not exceed 20 kg. The black steel cabinet has an IP20 rating, a glass front door with a lock and up to 180° door rotation, and removable blank panels on the top and bottom for cable entry. Supplied in a flat-pack for self-assembly, the unit is intended for tidy organisation of networking, CCTV and other low-voltage systems in small and medium-sized businesses.

Advantages

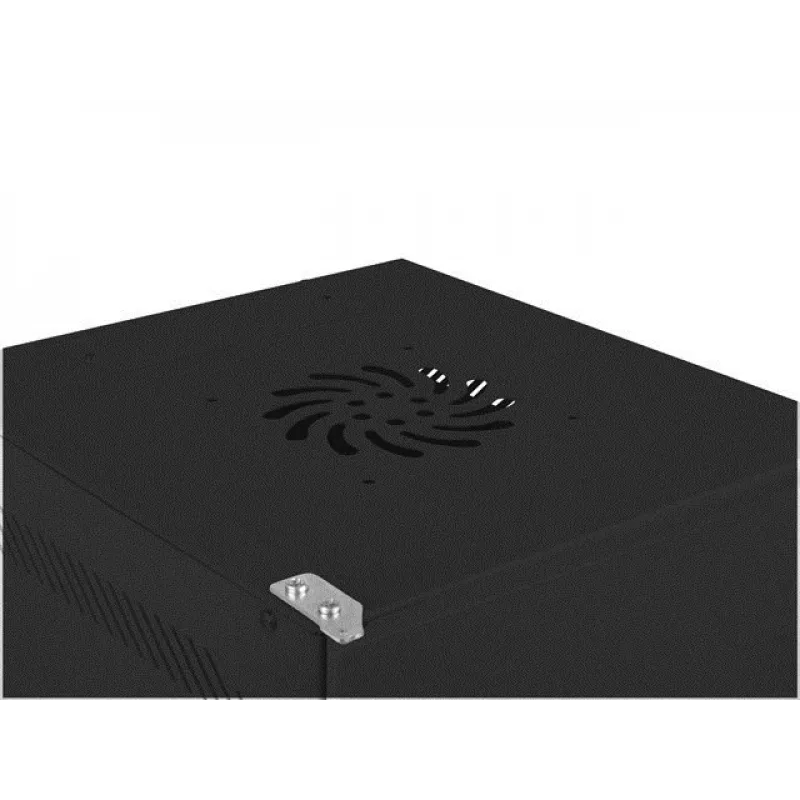

The rack is made of high-quality rolled steel and arrives as a single flat package for easier transport and storage. It provides a secure glass front door with a lock, flexible cable entry through top and bottom blank panels, and a compact footprint (280 x 238 x 336 mm) suitable for locations with limited space. With a 6U capacity and a lightweight construction (5.45 kg), it is convenient to install on walls and to house small network and surveillance devices safely up to the specified 20 kg load.

Suitable for

• Small and medium business network equipment (patch panels, switches within 6U)
• CCTV and IP surveillance cameras’ recording and network devices
• Low-voltage systems: access control, alarm panels and cable TV equipment

Key specifications

• Model: Lanberg WF10-2306-00B
• Rack capacity: 6U
• Maximum combined load: 20 kg
• Dimensions (W x D x H): 280 x 238 x 336 mm
• Weight: 5.45 kg
• IP rating: IP20
• Colour: Black

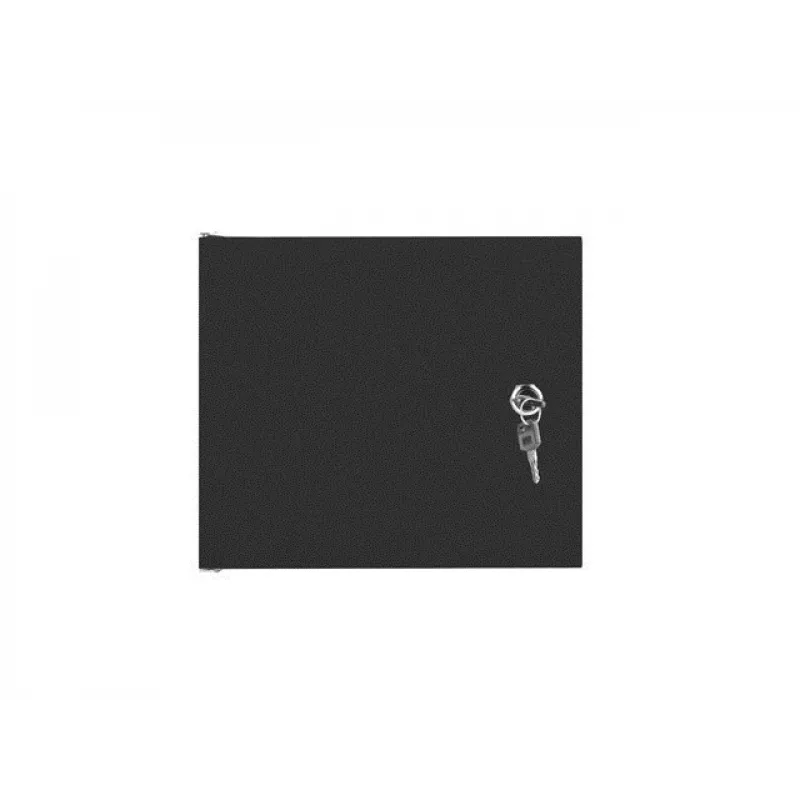

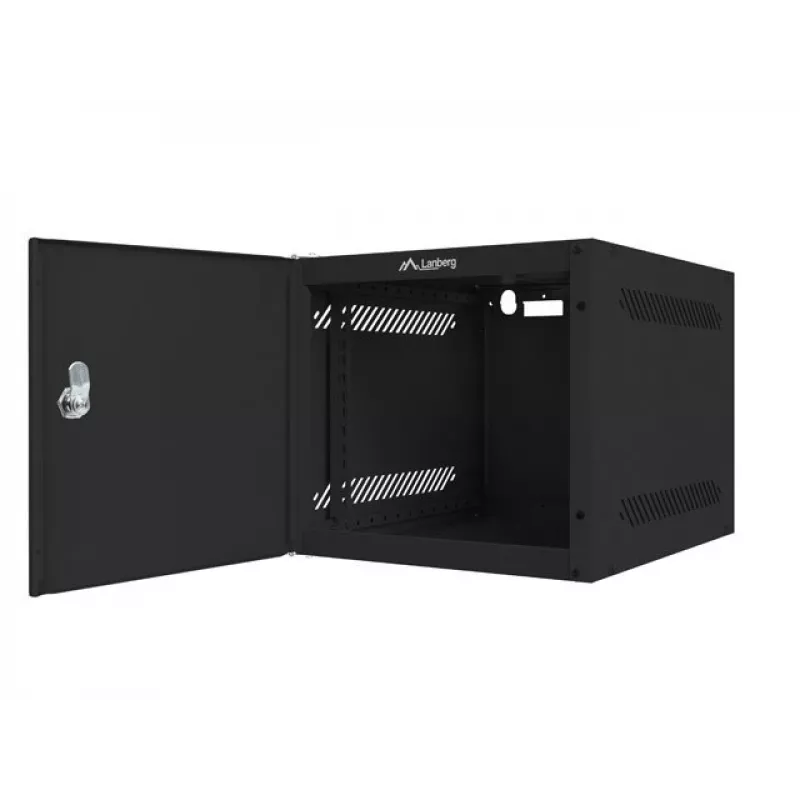

• Front door: glass with lock, rotation up to 180°

How to use

Unpack the flat-packed cabinet and follow the included assembly instructions to mount the side panels and fix the back plate. Use the supplied wall mounting accessories and M6 screws to secure the cabinet to a suitable wall surface, ensuring the wall and fixings can support the total load (up to 20 kg). Remove the top or bottom blank panels as required for cable entry, install your 6U of rack equipment, and lock the glass door to restrict access.

Recommendations

Install the cabinet indoors in a dry environment consistent with an IP20 enclosure. Verify that the combined weight of installed equipment does not exceed 20 kg and ensure adequate ventilation around heat-generating devices. Use appropriate wall anchors for the mounting surface and keep cable routing tidy through the top or bottom openings.
