Rack de servidor de pared EFB Elektronik WGB-1906TS.45 — 6HE, carga máxima 80 kg, negro

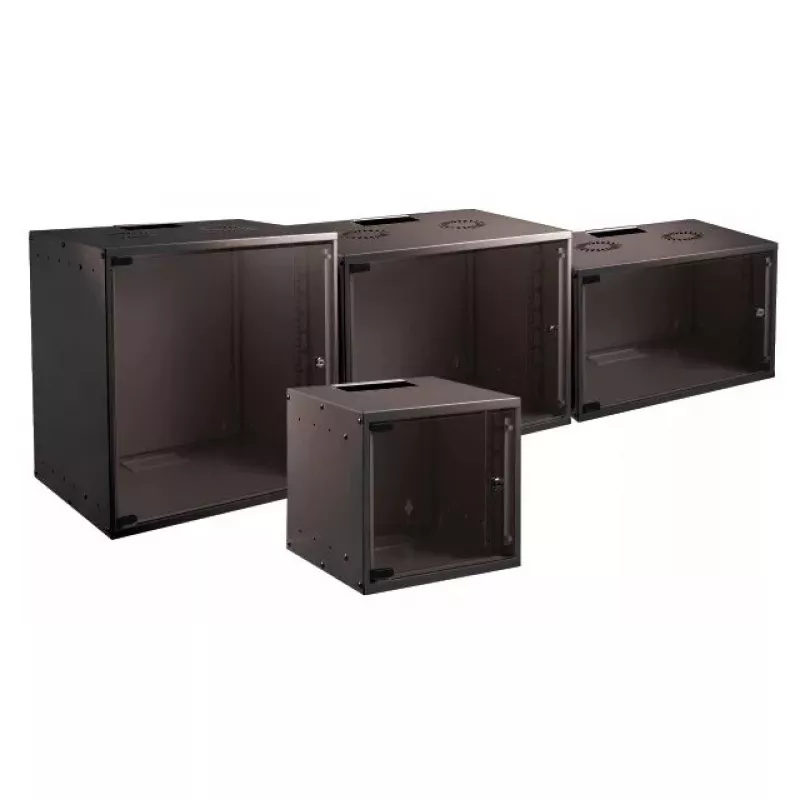

EFB Elektronik WGB-1906TS.45 is a 6U wall-mounted rack cabinet in black engineered to provide a compact, secure mounting solution for network and small server equipment. With a maximum load capacity of 80 kg and a depth of 450 mm, this cabinet fits into confined spaces while accommodating switches, patch panels and compact servers. The cabinet’s 535 mm width and 306 mm height make it suitable for offices, telecom closets and small server rooms that require tidy, space-saving equipment installation.

Advantages

The cabinet combines a sturdy construction with a modest footprint to support up to 80 kg of installed equipment. Its wall-mounted design saves floor space and enables flexible positioning at height. The 6U rack capacity provides standardized mounting points for 19-inch equipment, while the black finish offers a neutral appearance that integrates with most interiors. The moderate depth supports a wide range of network devices without excessive projection into the room.

Suitable for

• Wall-mounted network switches and patch panels
• Small rack-mountable servers and single-board computers
• Telecom closets and MDF/IDF distribution points
• Office network closets and meeting room AV equipment
• Edge deployments and compact data communications installations

Key specifications

• Rack capacity: 6U
• Maximum load capacity: 80 kg
• Width: 535 mm
• Depth: 450 mm
• Height: 306 mm
• Colour: black

How to use

Mount the cabinet on a load-bearing wall using appropriate anchors and fasteners rated for the combined weight of the cabinet and installed equipment. Install standard 19-inch rack rails at the required unit positions to accept switches, patch panels and servers. Route power and data cables through the cabinet openings or cable entry points, and secure cabling to avoid strain on connectors. Ensure sufficient ventilation around installed equipment and leave access for future maintenance and expansion.

Recommendations

Position the cabinet at an accessible height for maintenance and connect power through a protected circuit or surge protection device. Distribute weight evenly across the 6U mounting positions and avoid exceeding the 80 kg maximum load. For devices with significant heat output, allow for additional airflow or use low-profile fan units to maintain safe operating temperatures.
