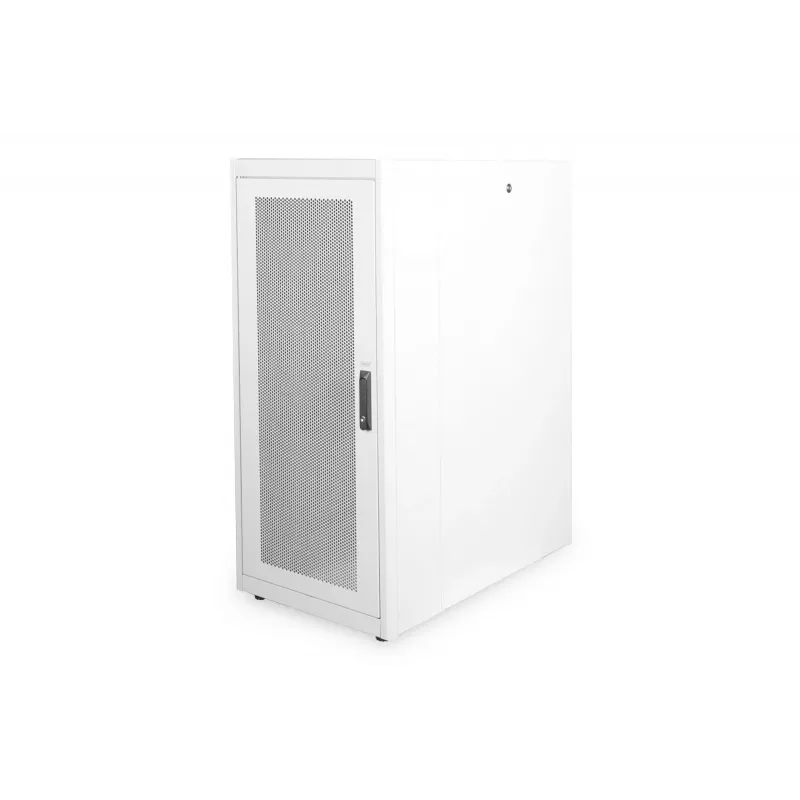

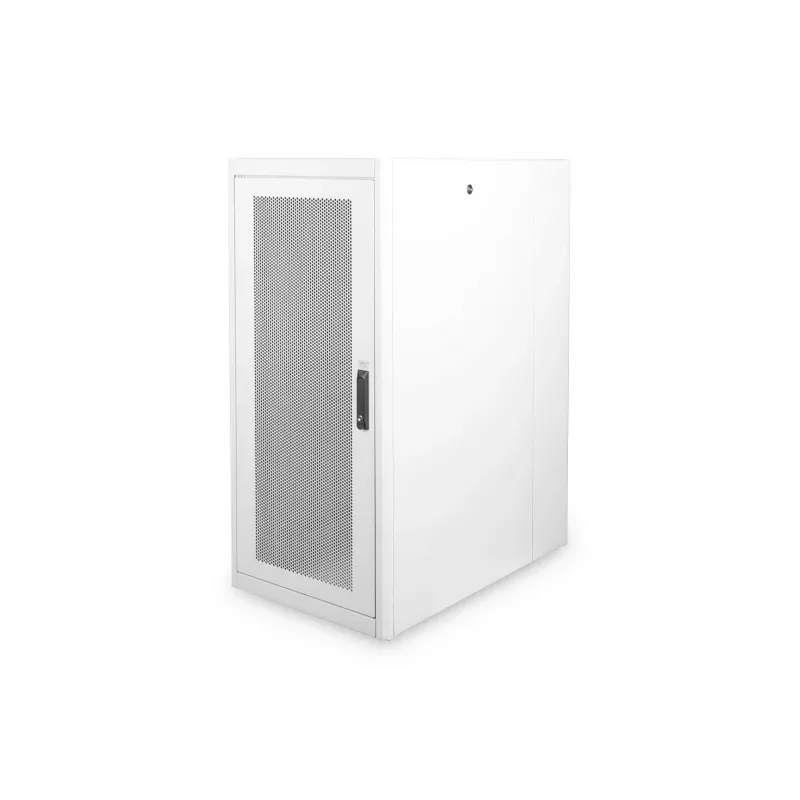

Rack independiente Digitus DN-19 SRV-26U-D 600x1000 mm 26U 600 kg

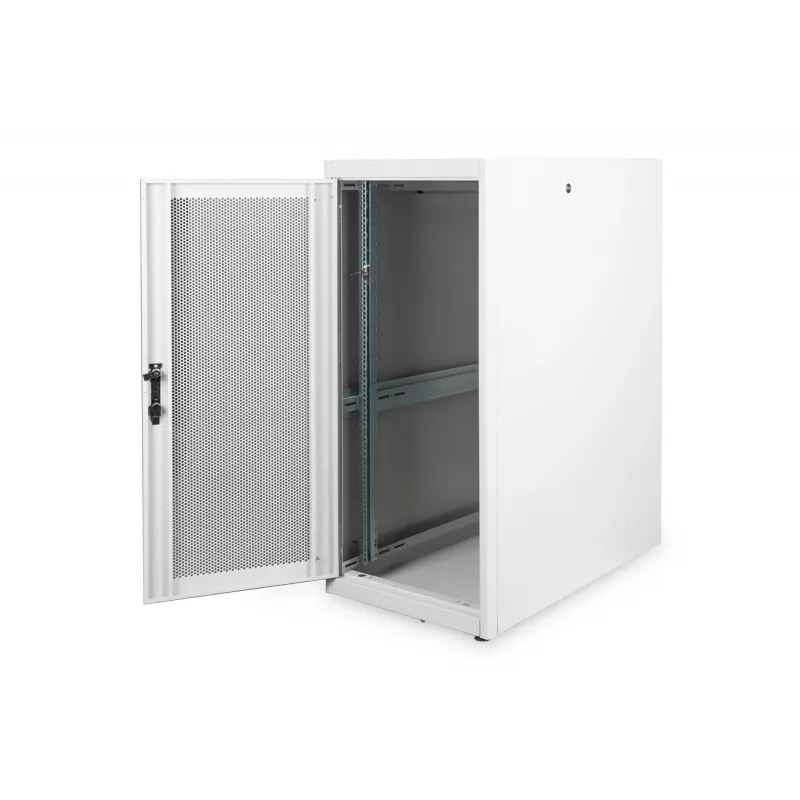

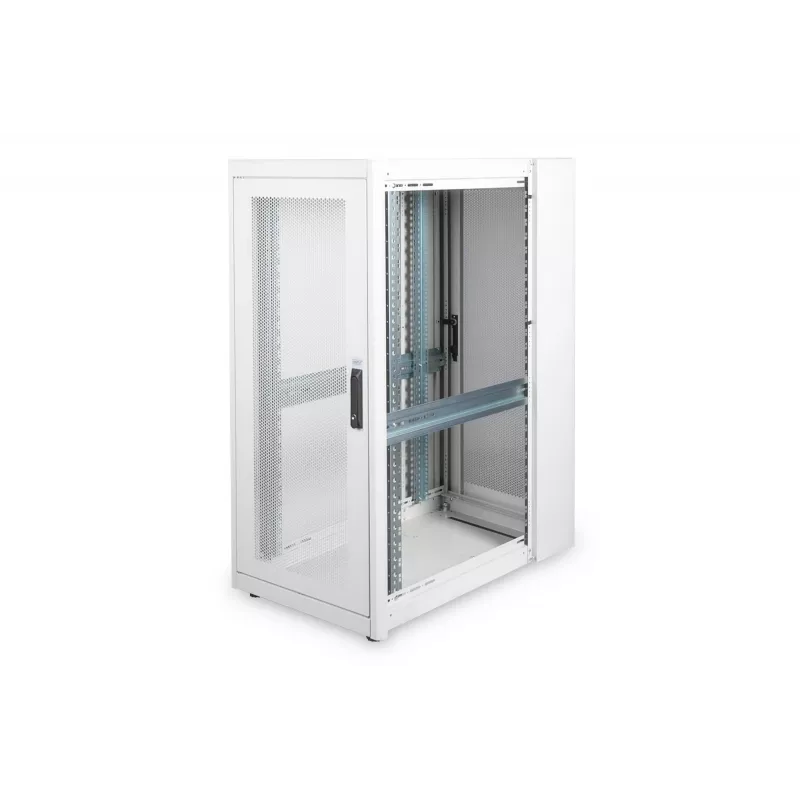

The DIGITUS Dynamic Basic Series freestanding rack DN-19 SRV-26U-D is a 19" server cabinet with external dimensions 600 x 1000 mm and a rack capacity of 26U. Constructed from up to 1.5 mm sheet steel and finished with electrostatic powder coating in grey (RAL 7035), the cabinet is designed for cost-optimized network expansion and general IT infrastructure use. It provides IP20 protection and a maximum load capacity of 600 kg. The roof includes pre-cut areas for fan modules and the base has a covered, punched cable entry protected by a screwed metal plate. Removable side panels and lockable, removable perforated front and rear doors with reversible hinges improve accessibility and serviceability.

Advantages

The cabinet offers tool-accessible cable routing with central rear floor entry and additional side inlets on wider models, adjustable and labeled galvanized 19" profile rails readable from either direction, and a collapsible design that allows complete dismantling if required. The painted steel construction and lockable doors provide physical protection, while the prepared roof supports fan units for passive or active cooling options.

Suitable for

• Small to medium server and network installations
• Telecom and patching equipment
• Storage of switches, routers and PDUs within a 26U rack space

Key specifications

• Model: DN-19 SRV-26U-D
• Rack size: 19" (483 mm)
• Rack capacity: 26U
• External dimensions (W x D): 600 x 1000 mm
• Height: 1342 mm
• Maximum load: 600 kg
• Protection class: IP20
• Material thickness: up to 1.5 mm sheet steel
• Finish: Electrostatic powder coating, Grey (RAL 7035)

How to use

Place the freestanding rack on a level, stable surface and secure its feet according to the installation environment. Install equipment into the adjustable 19" profile rails, aligning devices to the rack unit markings. Route power and data cabling through the rear central floor entry or the side/roof inlets as required; cover unused openings with the supplied plates. If cooling modules are needed, mount fan units in the prepared roof cut-outs. Side panels and the perforated front and rear doors can be removed for easier access during installation and maintenance.

Recommendations

For optimal ventilation and load distribution, ensure at least 5–10 cm clearance around the rack, mount heavier equipment toward the bottom, and use proper cable management and PDUs. Verify the IP20 rating is appropriate for the installation environment and avoid locations with significant dust or moisture exposure.
