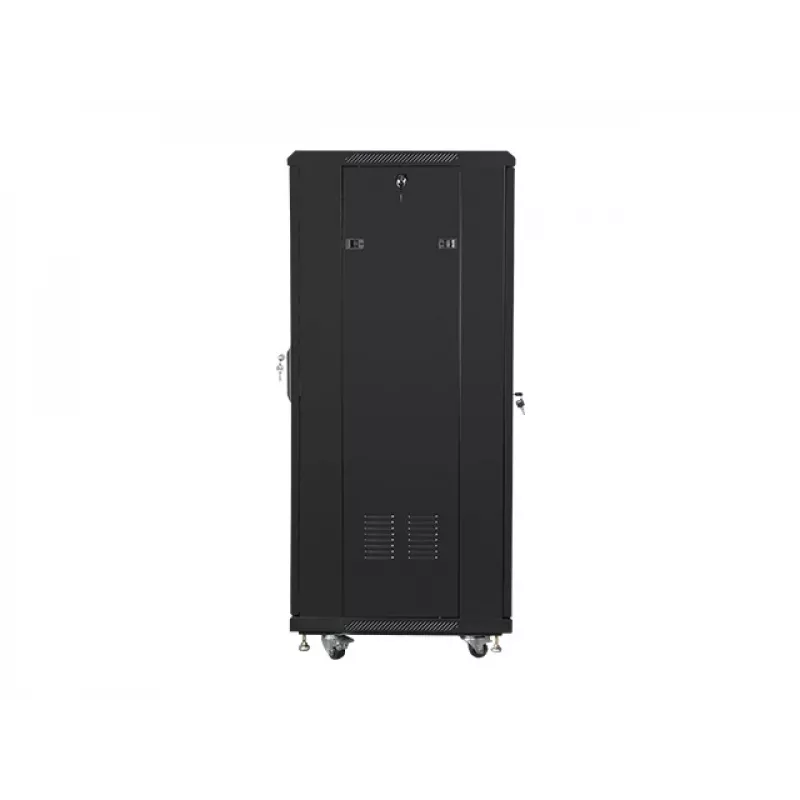

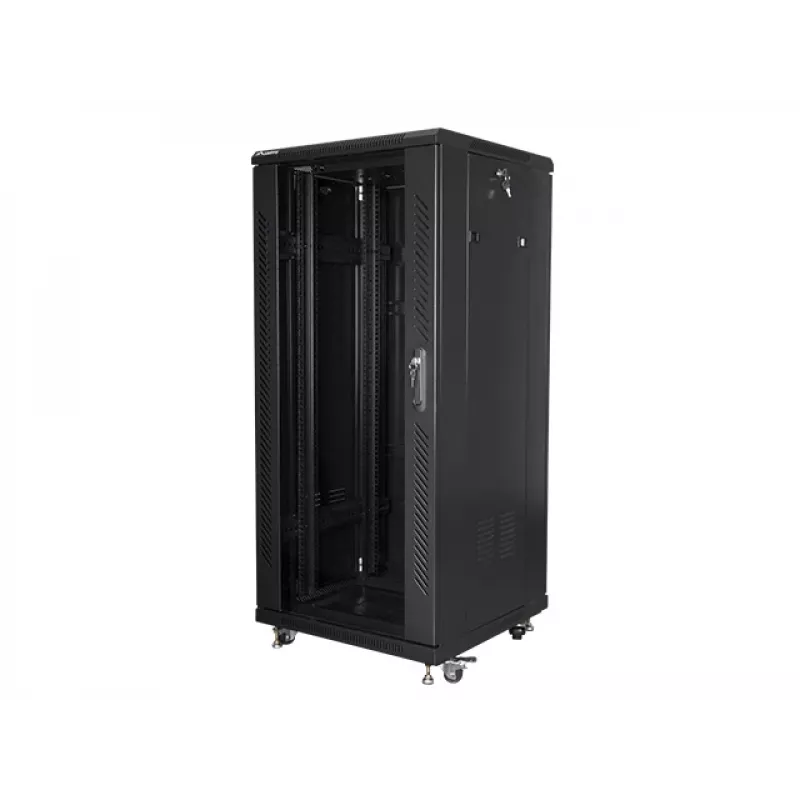

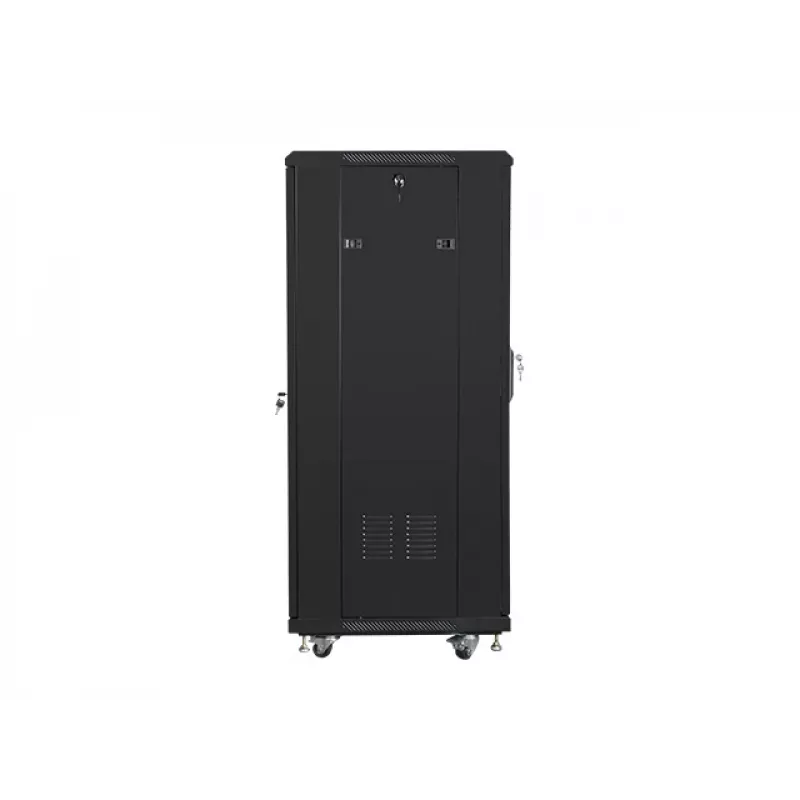

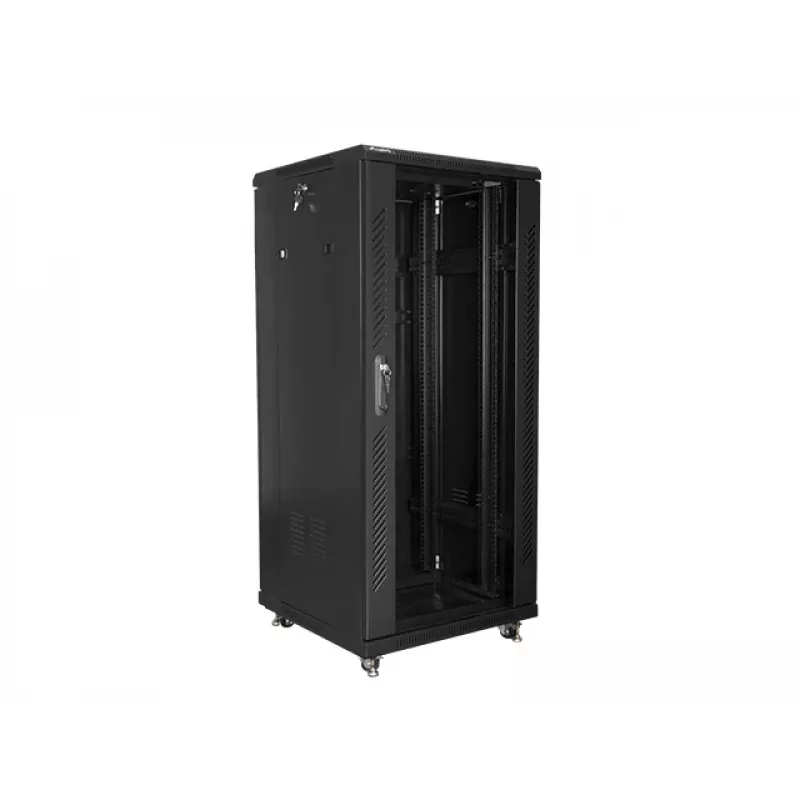

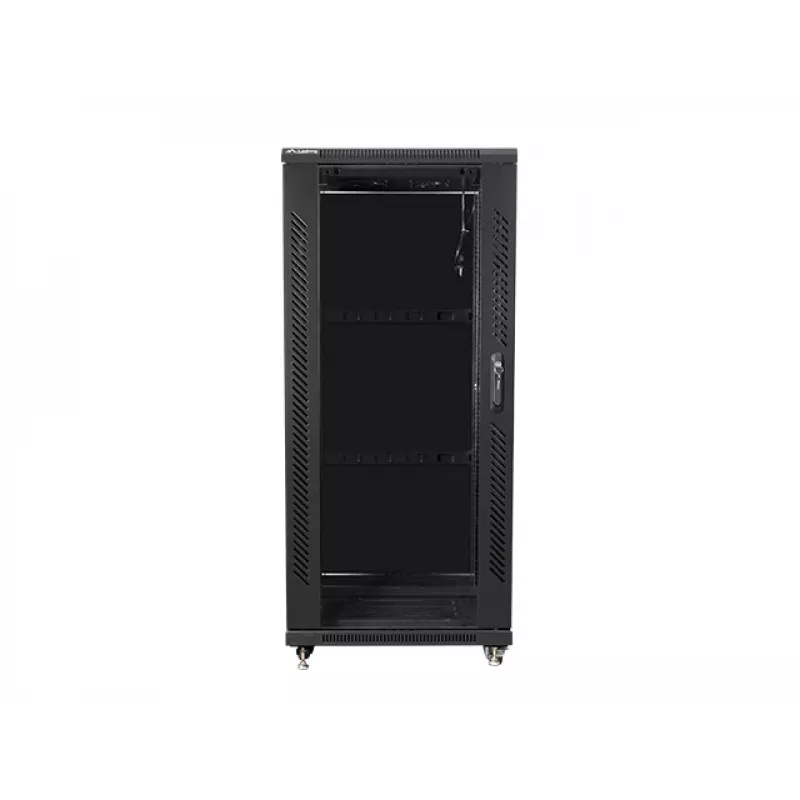

Rack independiente Lanberg FF01-6627-12B

The Lanberg FF01-6627-12B freestanding rack is a 27U network cabinet designed for indoor IT and telecom equipment organization. Built from sturdy materials and finished in black, the cabinet provides a stable mounting environment with a maximum load capacity of 800 kg and a maximum mounting depth of 520 mm. It includes adjustable feet and castor wheels to combine transportability with on-site stability, and a key lock for basic access control. Rated IP20, the cabinet is intended for protected indoor spaces such as server rooms, wiring closets and equipment areas.

Advantages

This rack cabinet offers a high load capacity of up to 800 kg while maintaining compact external dimensions (600 × 600 mm footprint, 1381 mm height). The 27U frame and standard 19" mounting size support a wide range of network and server equipment. Adjustable feet and castors provide flexibility during installation and relocation, and the key lock delivers simple physical security. The IP20 rating ensures suitability for indoor deployments where protection against solid objects greater than 12 mm is required.

Suitable for

• Server rooms and data cabinets in office environments
• Network closets and patch panel installations
• Telecommunications equipment and small switch or router setups
• Edge computing or rack-mounted UPS and power distribution

Key specifications

• Rack capacity: 27U
• Maximum load capacity: 800 kg
• Maximum mounting depth: 520 mm
• External height: 1381 mm
• External width: 600 mm
• External depth: 600 mm
• Weight: 64 kg
• Standard rack size: 19"
• Colour: Black
• Ingress protection: IP20 (indoor use)

How to use

Place the Lanberg freestanding rack on a level surface and adjust the feet to achieve stable leveling. If mobility is required, fit the castor wheels and lock them once the cabinet is positioned. Mount 19" equipment onto the rack rails using appropriate cage nuts and screws, respecting the maximum mounting depth of 520 mm. Distribute equipment weight evenly across the vertical space and use blanking panels where necessary to maintain airflow paths. Use the key lock to limit physical access to installed equipment.

Recommendations

For safe and reliable operation, install the cabinet in a clean indoor environment with adequate ventilation and restricted access. Allow clearance for cable entry and service access at the front and rear. Verify total equipment weight and account for any additional accessories to ensure the combined load does not exceed 800 kg. For permanent installations, level and secure the cabinet to the floor if required by local regulations.
