EFB Elektronik PRO Armario de servidor 42U 19" para red Jet Black RAL 9005 800x1000mm

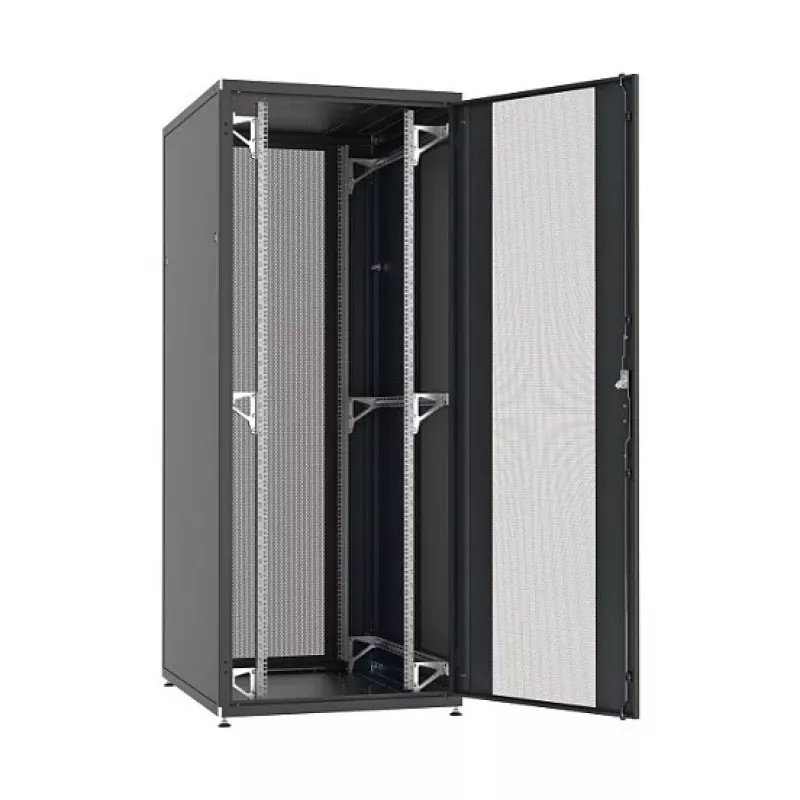

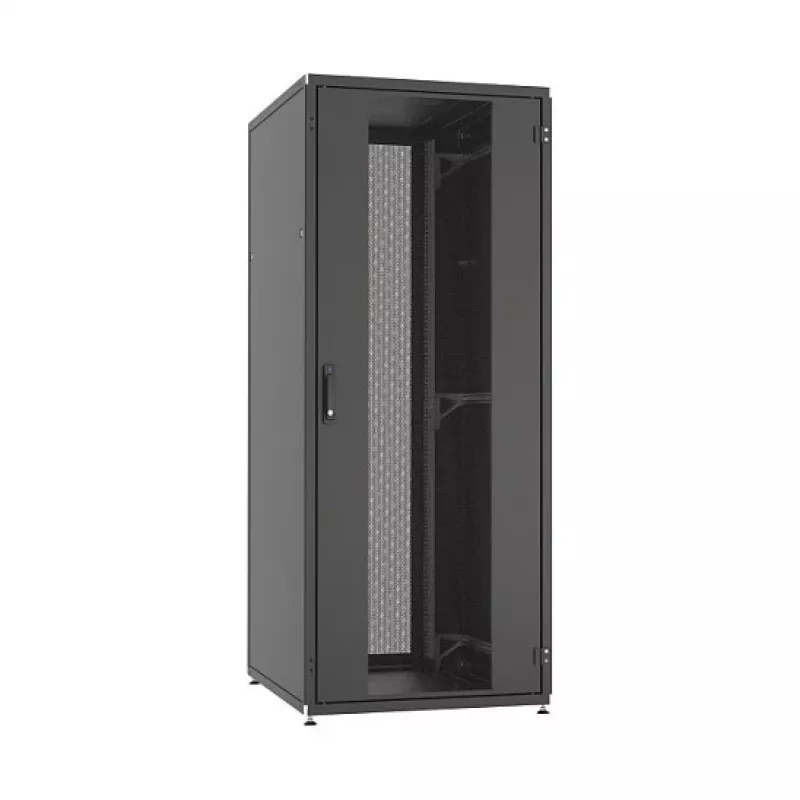

The EFB Elektronik PRO 42U Server Cabinet is a robust and reliable 19-inch network cabinet designed for professional data center and server room environments. With a spacious 800x1000mm footprint and 42 rack units of height, this cabinet provides ample space for mounting servers, switches, patch panels, and other network equipment. The cabinet features a sleek Jet Black (RAL 9005) finish and is constructed from high-quality steel for durability and security.

Advantages

This server cabinet offers exceptional value with its high static load capacity of 1000 kg, allowing you to install heavy equipment without concern. The single-part perforated steel doors on both front and rear provide excellent ventilation while maintaining security. The removable and lockable side panels offer easy access for cable management and maintenance. The adjustable 19-inch mounting rails ensure compatibility with a wide range of equipment.

Suitable for

• Data centers and server rooms requiring high-density equipment mounting
• Network infrastructure including switches, routers, and patch panels
• Enterprise IT environments needing secure and organized equipment housing
• Telecommunications and broadcast applications

Key specifications

• Rack Standard: 19 inch
• Rack Units: 42U
• External Dimensions (WxDxH): 800 x 1000 x 2055 mm
• Color: RAL 9005 (Jet Black)
• Material: Steel
• Static Load Capacity: 1000 kg
• Protection Rating: IP20
• Front Door: Single-part perforated steel door
• Rear Door: Single-part perforated steel door
• Side Panels: Removable, lockable

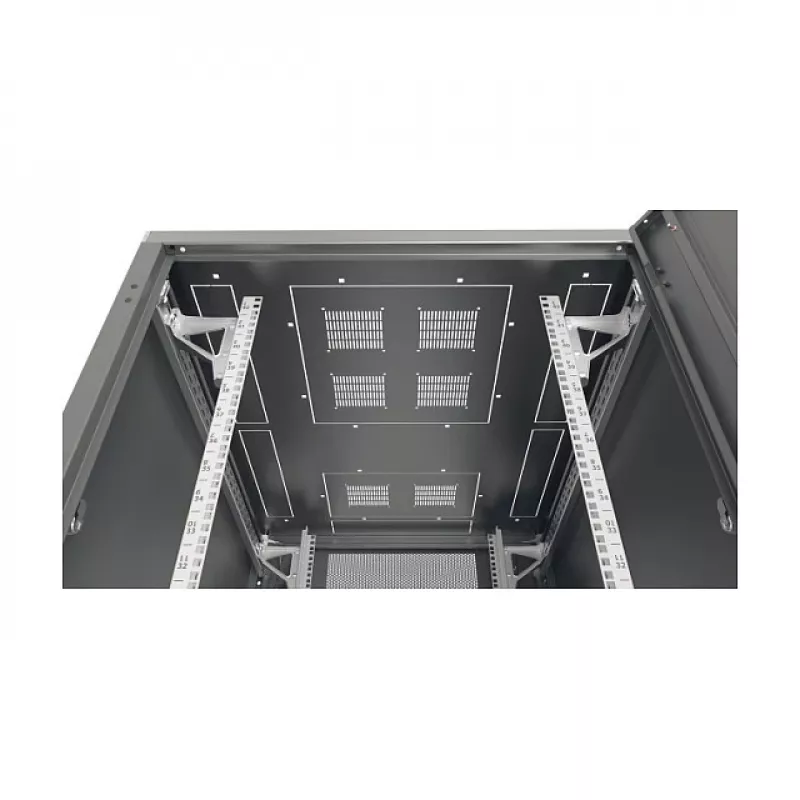

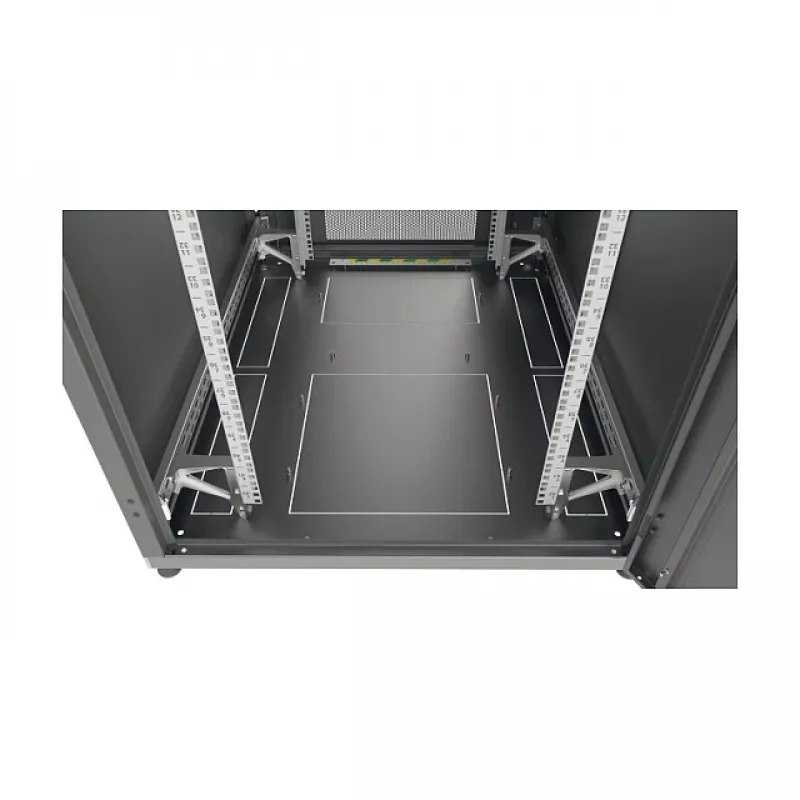

• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Adjustable 19-inch mounting rails
• Frame Construction: Welded steel frame
• Ventilation: Passive via perforated doors
• Number of Doors: 2 (front and rear)
• Locking System: Single-point locking with key for doors and side panels
• Included Accessories: Leveling feet

Recommendations

For optimal performance, ensure proper ventilation and cable management. This cabinet is designed for indoor use only. Professional installation is recommended for heavy equipment.
