Rack independiente Lanberg FF01-6837-12BL

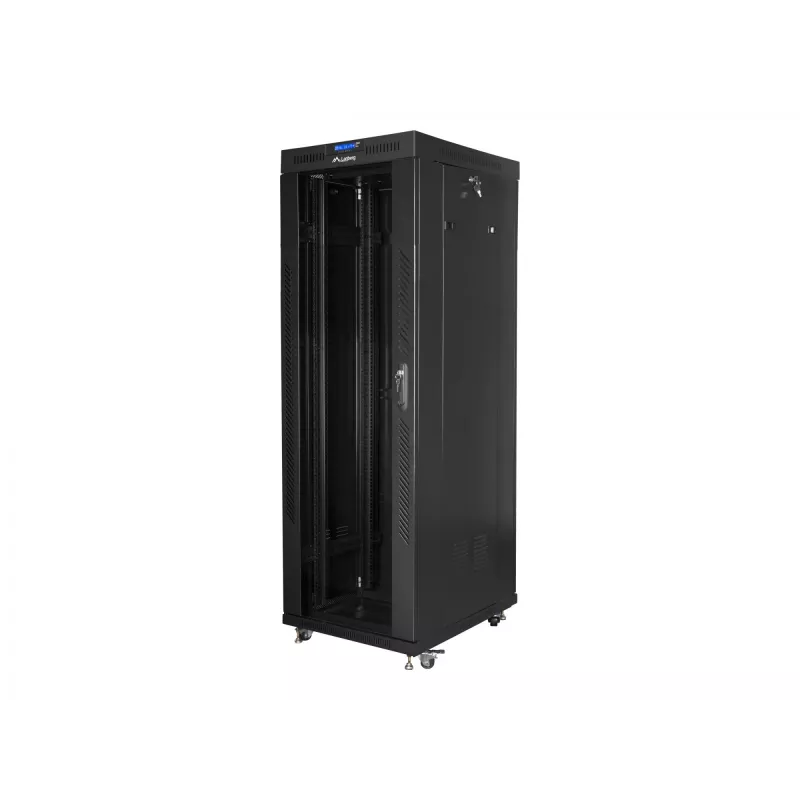

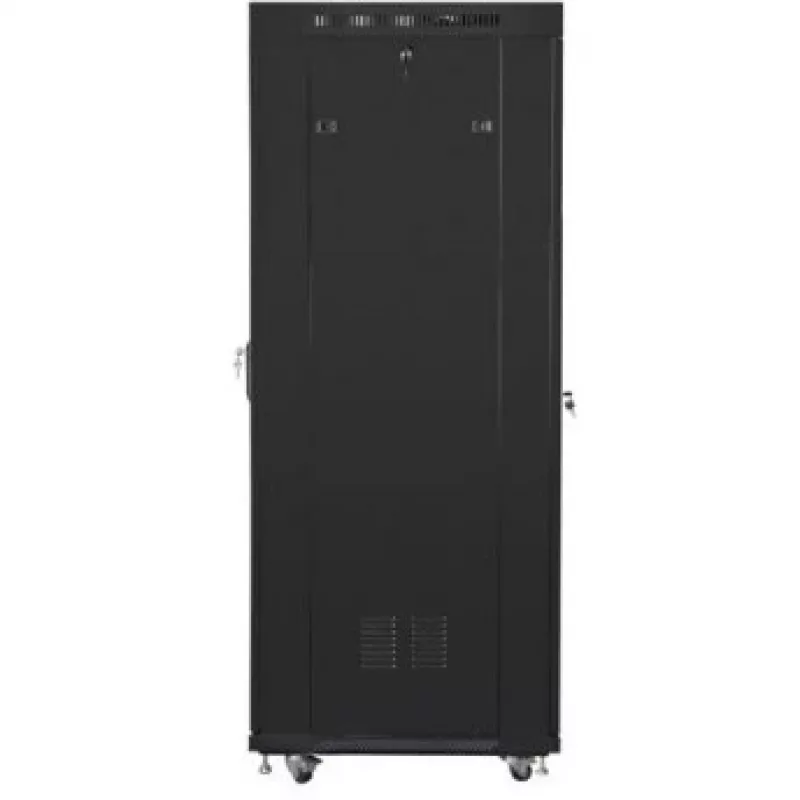

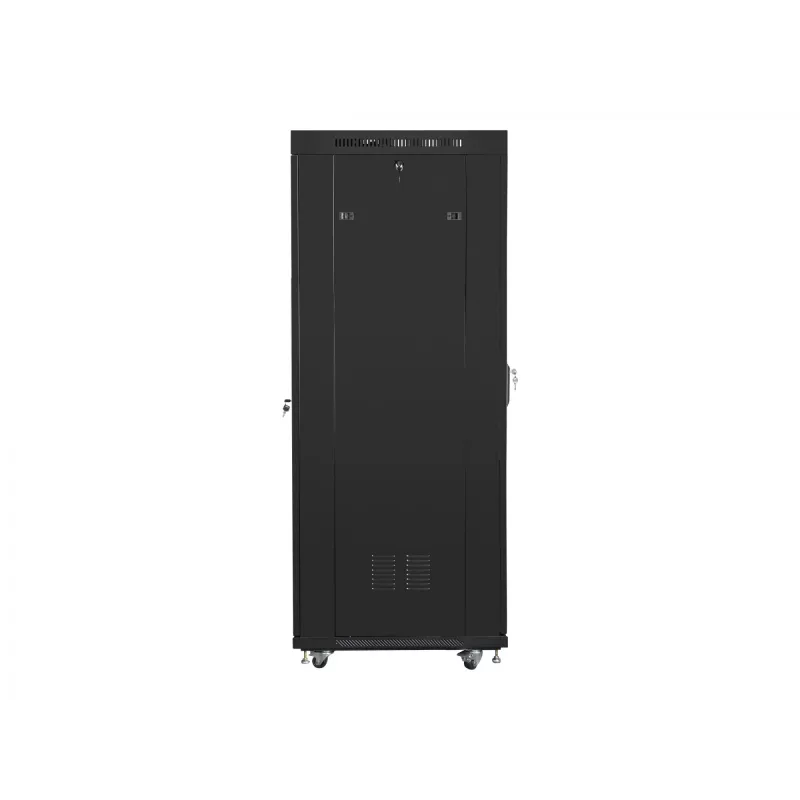

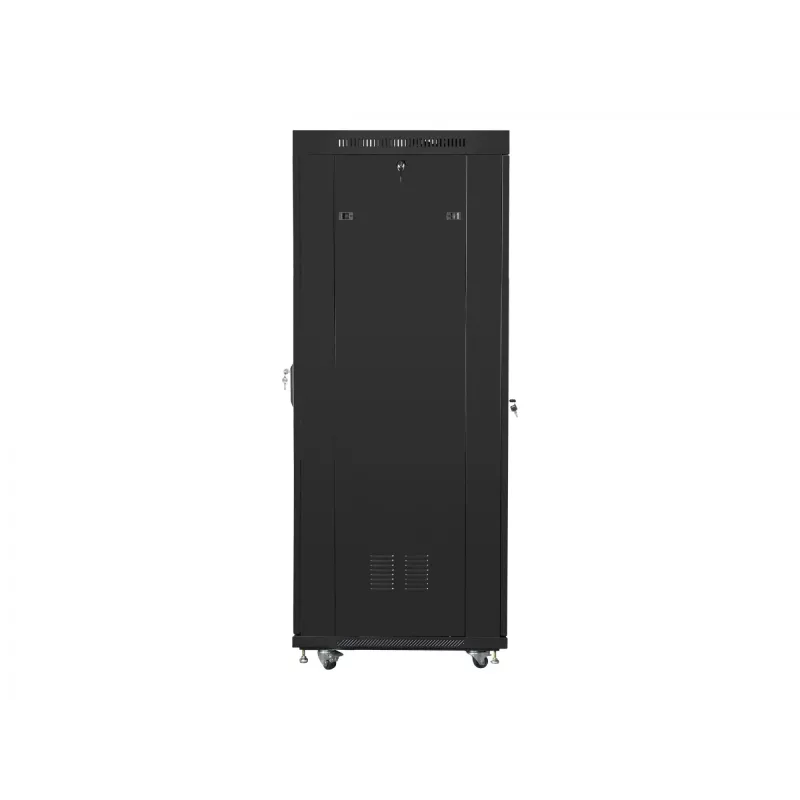

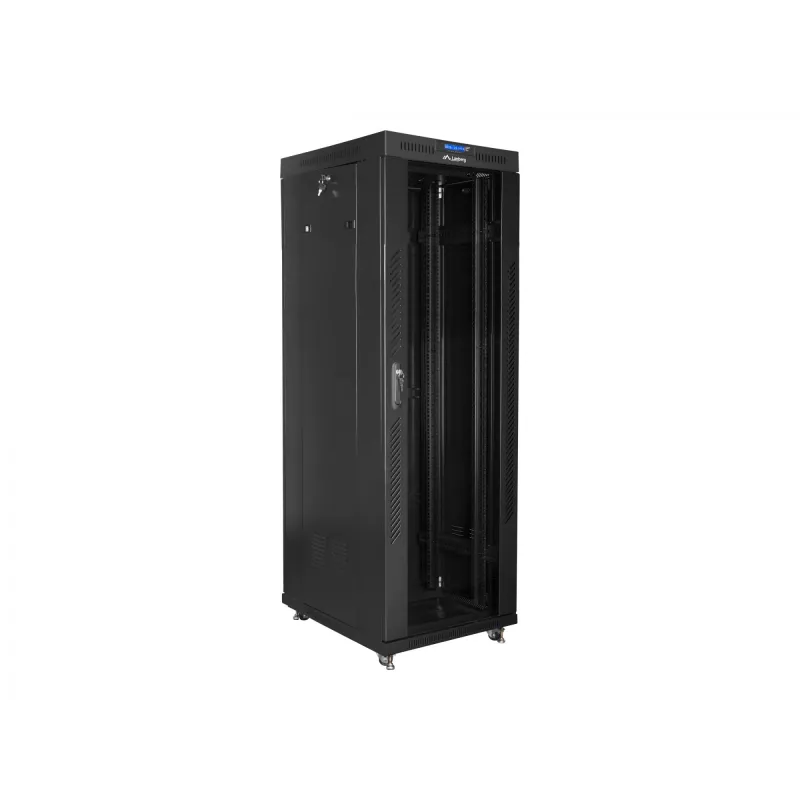

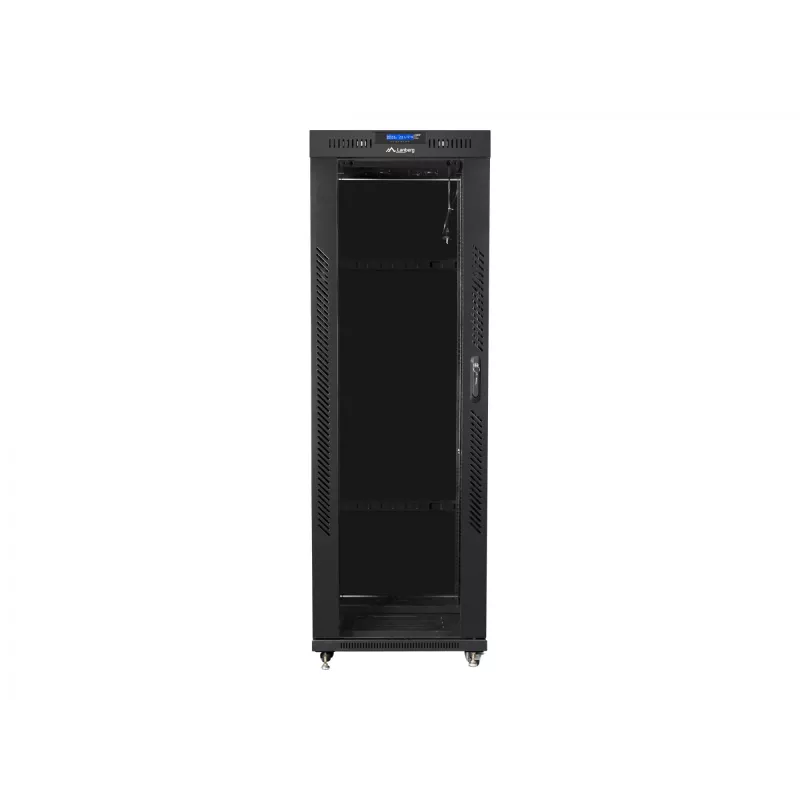

The Lanberg FF01-6837-12BL freestanding rack cabinet is a 37U, 19" server cabinet designed for reliable storage and management of IT equipment. Built from cold-rolled steel with IP20 protection, this black cabinet offers a maximum payload of 1200 kg and comes with rack rails for mounting standard equipment. The cabinet measures 1900 mm in height, 600 mm in width and 800 mm in depth and weighs 97.5 kg.

Advantages

The FF01 series features robust construction, precise workmanship and a flat-pack format for easier transport and on-site assembly. Integrated grounding, effective cooling design with top ventilation and optional built-in fans, plus an LCD panel for thermostat, timer and manual fan control, support safe and controlled operation of installed hardware. Increased thickness of key structural elements and upgraded 3-inch wheels improve load capacity and mobility when fully loaded.

Suitable for

• Data centres and server rooms
• Telecommunications and network equipment housing
• Small and medium business IT infrastructure
• Edge and branch office deployments

Key specifications

• Model: Lanberg FF01-6837-12BL
• Rack capacity: 37U (19")
• Maximum payload: 1200 kg
• Protection rating: IP20
• Dimensions: 1900 mm (H) x 600 mm (W) x 800 mm (D)
• Weight: 97.5 kg
• Colour: Black
• Includes: Rack rails, grounding cable and nuts

How to use

Unpack the cabinet following the supplied paper instructions or the online step-by-step video guide. Assemble the cabinet from the flat-pack components, secure the frame and install the supplied rack rails at desired U positions. Connect the grounding cable to a certified earth point before powering any equipment. Install equipment from the bottom upwards, distribute load evenly and use the built-in ventilation openings and fans as required. Adjust the LCD panel settings to configure thermostat thresholds, timer functions and manual fan control.

Recommendations

Place the cabinet on a level, stable surface; ensure adequate clearance at the front and rear for airflow and maintenance. For optimal cooling, combine the top vent with active fans and set the thermostat on the LCD panel according to your equipment manufacturer’s temperature range. Verify grounding connection and secure heavy equipment lower in the rack to maintain stability.
