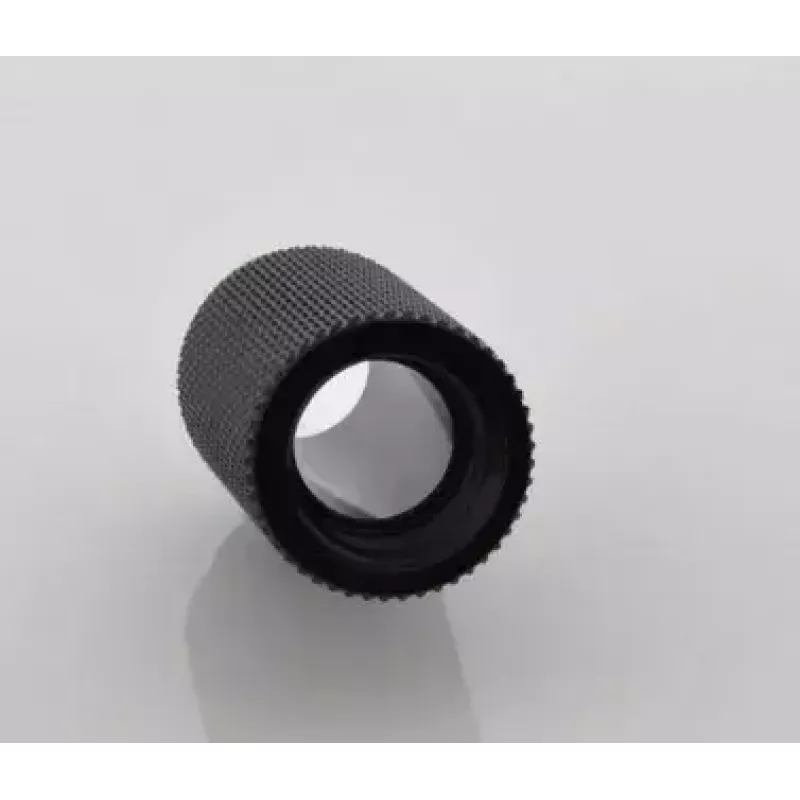

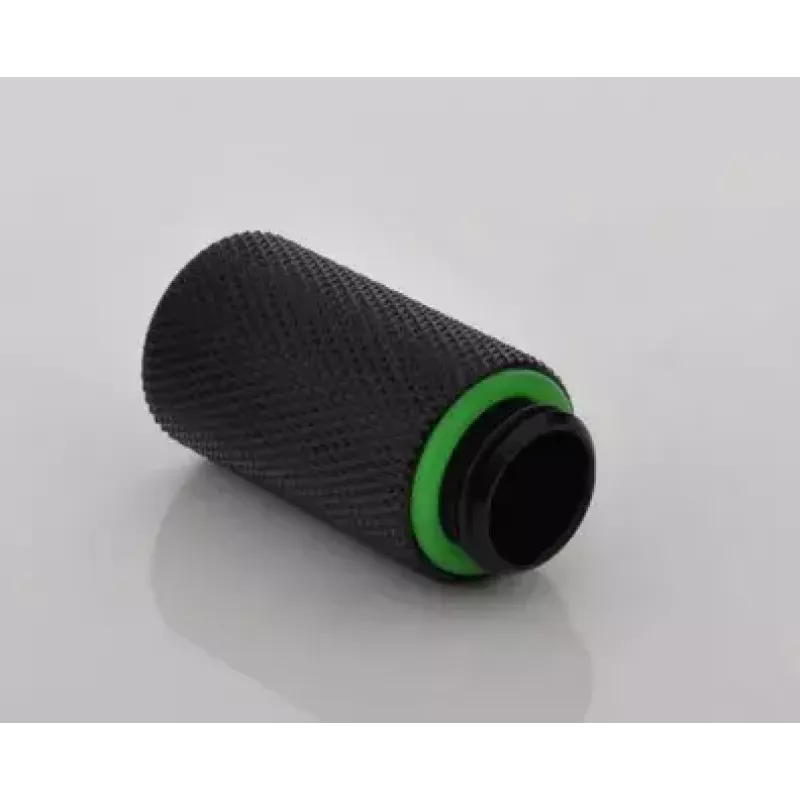

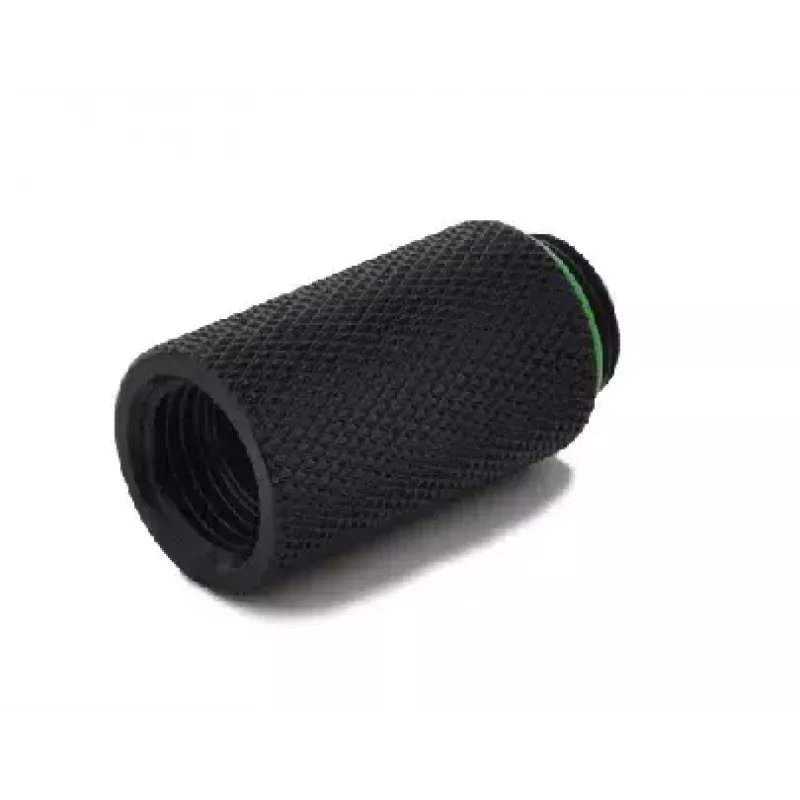

Racor sanitario BitsPower BP-MBWP-C63 — diámetro 1,8 cm, altura 30 mm, unidad

BitsPower BP-MBWP-C63 is a single-piece plumbing fitting with a 1.8 cm diameter and 30 mm height designed for liquid cooling and custom plumbing projects. Manufactured from high-quality brass with a deep black e-plated finish, this compact connector provides a precision interface for tubing or hardline runs. The fitting incorporates a hiding O-ring design and a hi-flow geometry, and it is intended to extend a G1/4" thread by 30 mm for neat, reliable joins in cooling loops.

Advantages

The fitting offers a hi-flow internal profile that helps maintain coolant circulation while minimizing pressure drop. Its brass construction ensures mechanical strength and corrosion resistance, while the deep black e-plated surface improves wear resistance and provides a uniform appearance. The hiding O-ring design protects the sealing element from external exposure and facilitates cleaner aesthetics. Compact dimensions make it suitable where space is limited and precise thread extension is required.

Suitable for

• Custom liquid cooling loops in desktop PCs
• Connecting tubing or hardline runs in confined spaces
• Extending or adapting G1/4" threaded components
• Repairs and system modifications requiring a single robust fitting

Key specifications

• Outer diameter: 1.8 cm
• Height/length: 30 mm
• Material: brass
• Surface finish: deep black e-plating
• Sealing: hiding O-ring design
• Flow characteristic: hi-flow internal design
• Intended thread interface: extends G1/4" thread by 30 mm
• Compliance: RoHS compliant

How to use

Install the fitting by threading it onto the G1/4" port until hand-tight, then secure with an appropriate wrench if needed; avoid over-tightening to prevent damage to the plating or O-ring. Ensure the O-ring is seated correctly before assembly to maintain a leak-free connection. Use compatible tubing or hardline fittings that match the stated diameter and thread type. Inspect the sealing surfaces and O-ring for debris or damage prior to installation and clean with a lint-free cloth if necessary.

Recommendations

For best results, pair this fitting with components that use G1/4" threads and maintain recommended torque limits for metal-plated fittings. Periodically check connections for leaks after initial operation and after thermal cycling. When disassembling, support adjoining components to avoid placing stress on connected tubing or hardline.
