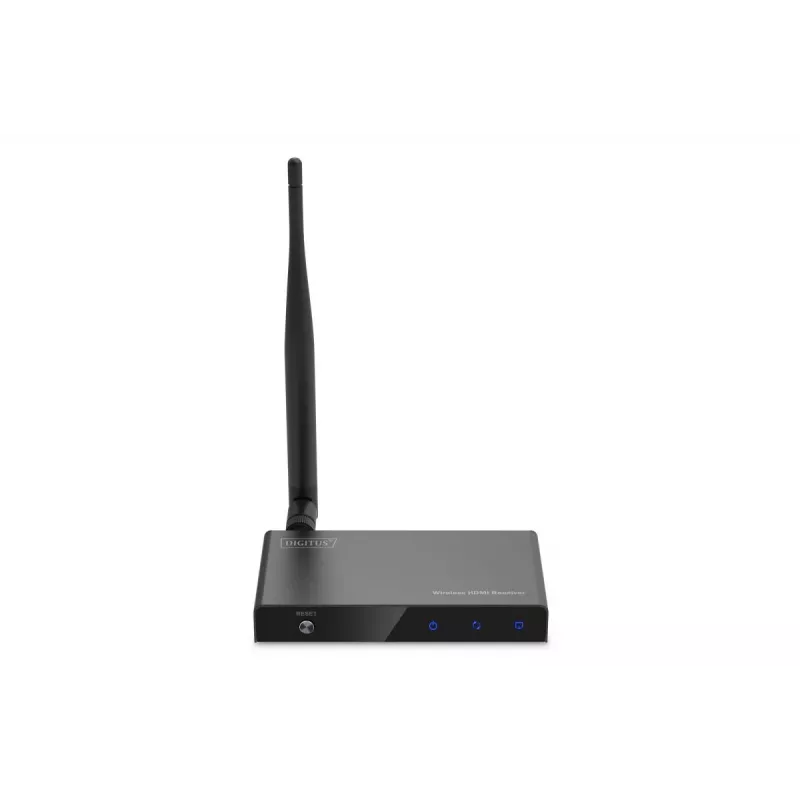

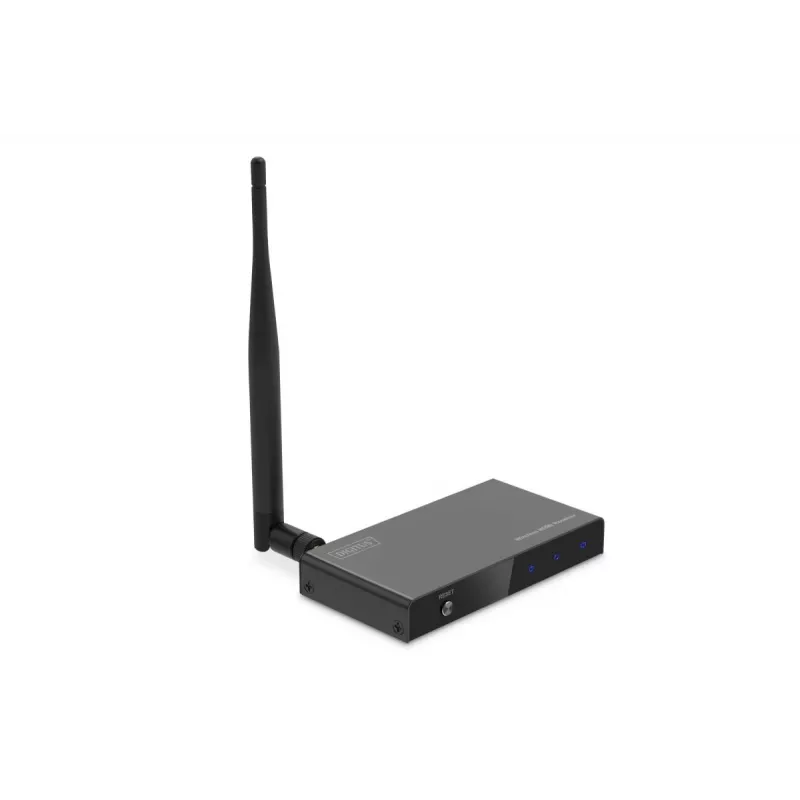

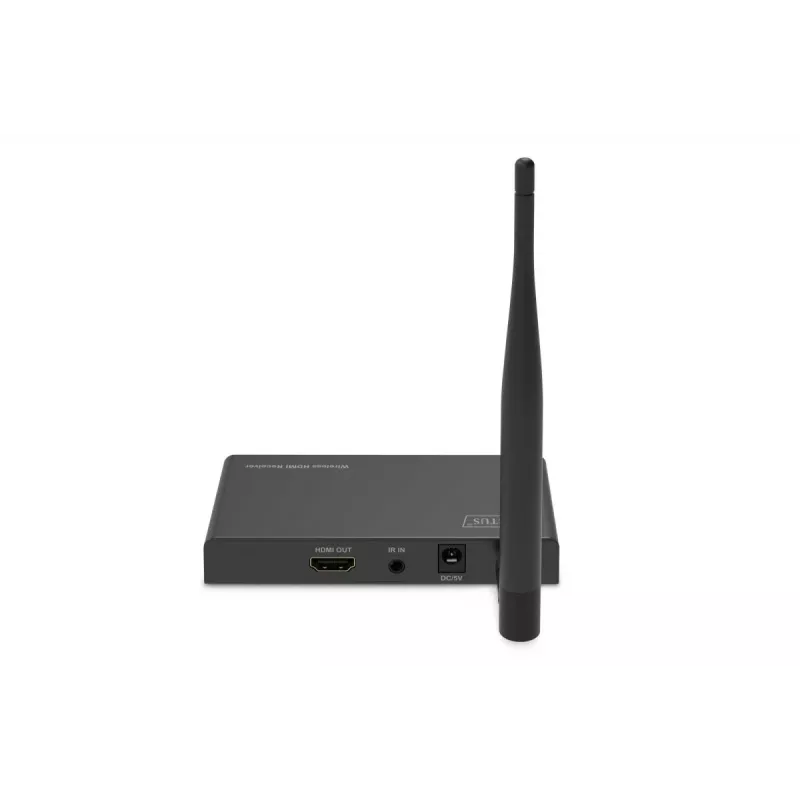

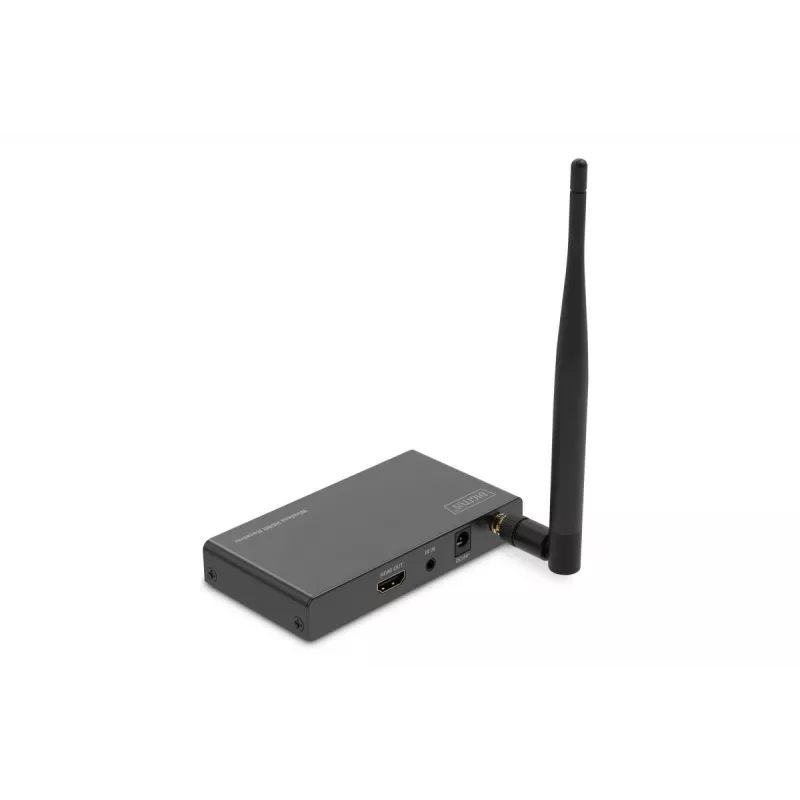

Receptor AV Digitus DS-55346 Receptor HDMI inalámbrico 1920x1080 100m

The Digitus DS-55347 additional wireless HDMI receiver expands the Wireless HDMI Extender / Splitter Set (DS-55346) by adding one more receiver to your multicast setup. It receives high‑resolution HDMI video and audio signals wirelessly at up to 1920 x 1080 (1080p) and supports transmission distances of up to 100 m under line‑of‑sight conditions. The compact black receiver uses HDMI 1.4 with HDCP 1.3 and requires no drivers for plug & play operation.

Advantages

This AV receiver lets you distribute a single HDMI source to additional displays without running cables, expanding the DS-55346 system by up to four receivers. It delivers Full HD video at a maximum of 1080p/60 Hz, includes IR passthrough for remote control of the source device from the output display, and operates with a low power consumption on a 5 V supply. The unit is compact and easy to integrate into existing AV setups.

Suitable for

• Extending wireless HDMI distribution to additional TVs or monitors
• Conference rooms and meeting spaces requiring multiple displays
• Digital signage installations with line-of-sight transmission
• Home entertainment systems where cable routing is impractical

Key specifications

• Product type: AV receiver
• Compatible set: Digitus Wireless HDMI Extender / Splitter Set DS-55346
• Maximum resolution: 1920 x 1080 (Full HD), up to 1080p/60 Hz
• Transmission distance: up to 100 m (line of sight, 1:1 connection)
• HDMI version: HDMI 1.4; HDCP 1.3
• Number of HDMI outputs: 1
• Power supply: 5 V; max. power consumption 1.5 W
• Colour: Black
• Dimensions (approx.): 63.5 x 118 x 18 mm; Weight: 170 g

How to use

Connect the receiver to a display using an HDMI cable, power the unit with the supplied 5 V adapter, and pair it with the DS-55346 transmitter/multicast system. No additional drivers or software are required; the receiver operates in plug & play mode. Use the IR extender function if you need to control the source device remotely from the receiver location.

Recommendations

For reliable Full HD transmission, maintain a clear line of sight between the transmitter and receiver and avoid placing the units behind large obstructions. When deploying multiple receivers, follow the DS-55346 system guidelines for multicast configuration to ensure stable signal distribution.
