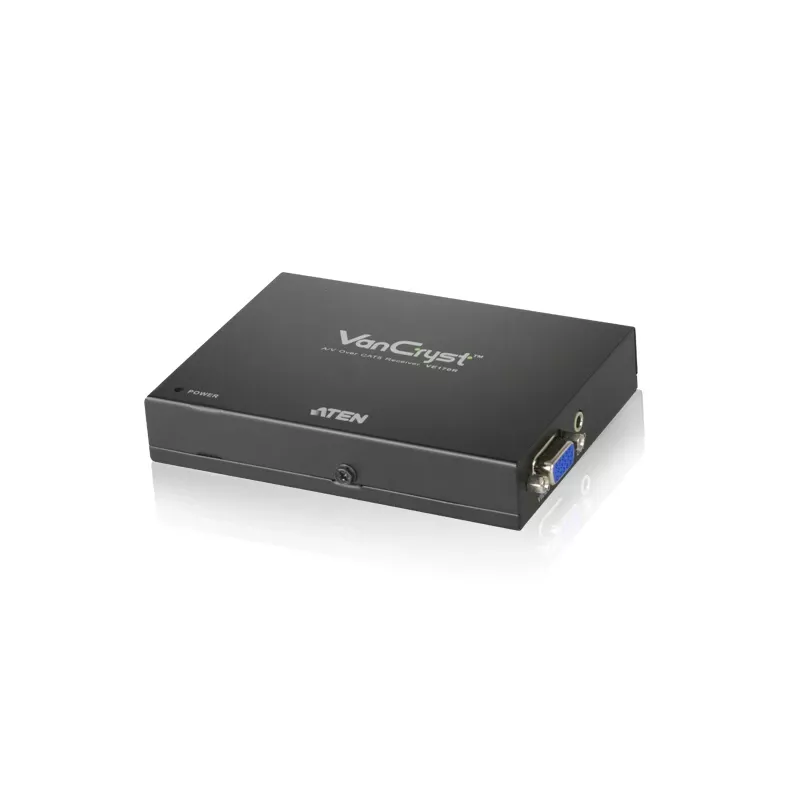

Receptor de audio/vídeo ATEN VGA sobre Cat5e/6 (300 m)

The ATEN VE170R AV receiver connects to a compatible transmitter to extend audio and video signals up to 300 m over a Cat5 cable. Supporting a maximum resolution of 1920 x 1200 and operating at 5.3 V, this compact receiver (85.6 x 119.5 x 22.6 mm, 250 g) is designed for straightforward integration into AV extension setups where reliable signal reception and space-saving installation are required.

Advantages

The VE170R offers efficient signal extension over Cat5 infrastructure with support for resolutions up to 1920 x 1200, a compact black housing that is easy to place in equipment racks or near displays, and low weight for flexible installation. It provides a cost-effective way to receive high-quality audio and video at distances up to 300 m from the transmitter.

Suitable for

• Extending video and audio signals from a central source to remote displays
• Digital signage installations in retail or public spaces
• Conference rooms and meeting spaces requiring remote AV endpoints
• AV distribution in classrooms and corporate training areas

Key specifications

• Type: AV receiver
• Maximum resolution: 1920 x 1200
• Maximum transfer distance: 300 m (over Cat5 cable)
• Cable types supported: Cat5 (Cat5e recommended)
• RJ-45 input ports: 1
• Power: 5.3 V
• Dimensions: 85.6 x 119.5 x 22.6 mm
• Weight: 0.25 kg
• Colour: Black

How to use

Connect the VE170R receiver to the corresponding ATEN transmitter using a Cat5 patch cable (up to 300 m). Attach the receiver to power (5.3 V) and connect the receiver's AV outputs to the display or audio system. Ensure the transmitter and receiver firmware and settings are compatible and verify signal quality at the display during setup.

Recommendations

For best performance, use good-quality Cat5e or Cat6 cables, avoid running the cable parallel to high-voltage power lines, and verify cable terminations and connections. Place the receiver near the display or AV equipment and confirm the display supports the target resolution of 1920 x 1200.
