Receptor de cable TechniSat HD-C 233 negro DVB-C 1 sintonizador

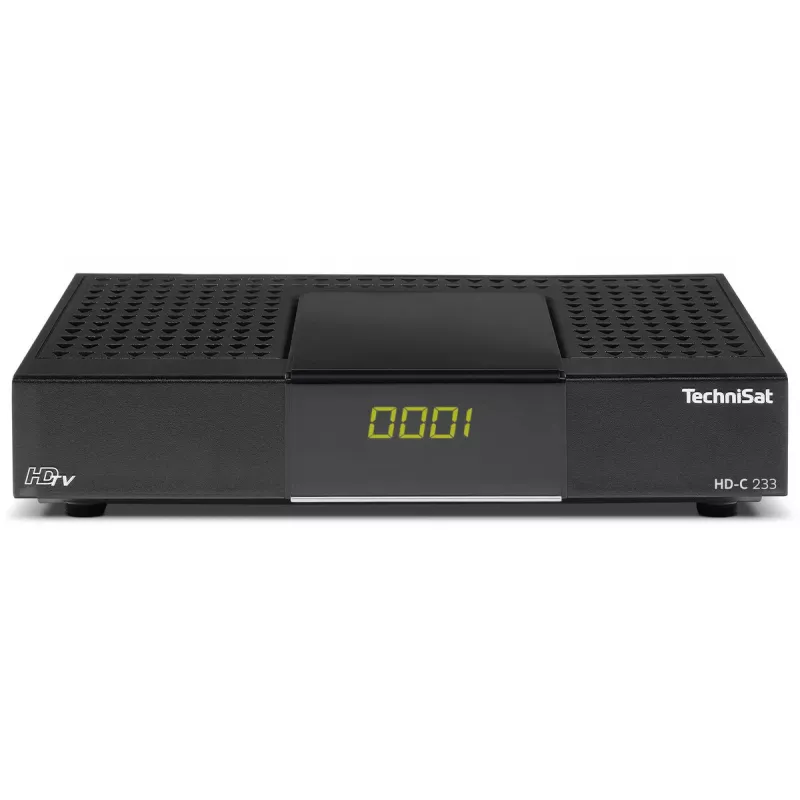

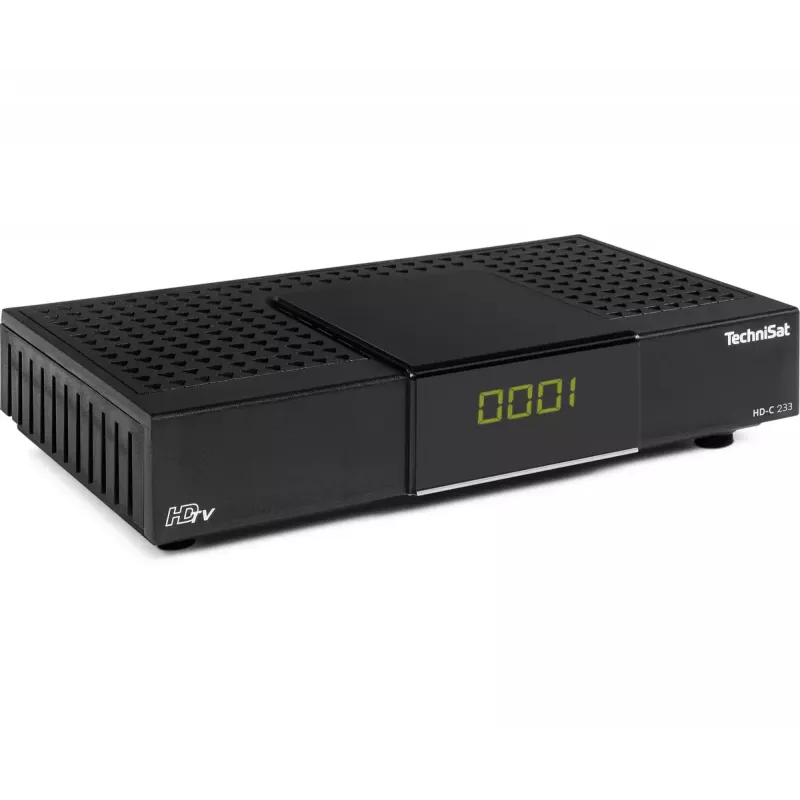

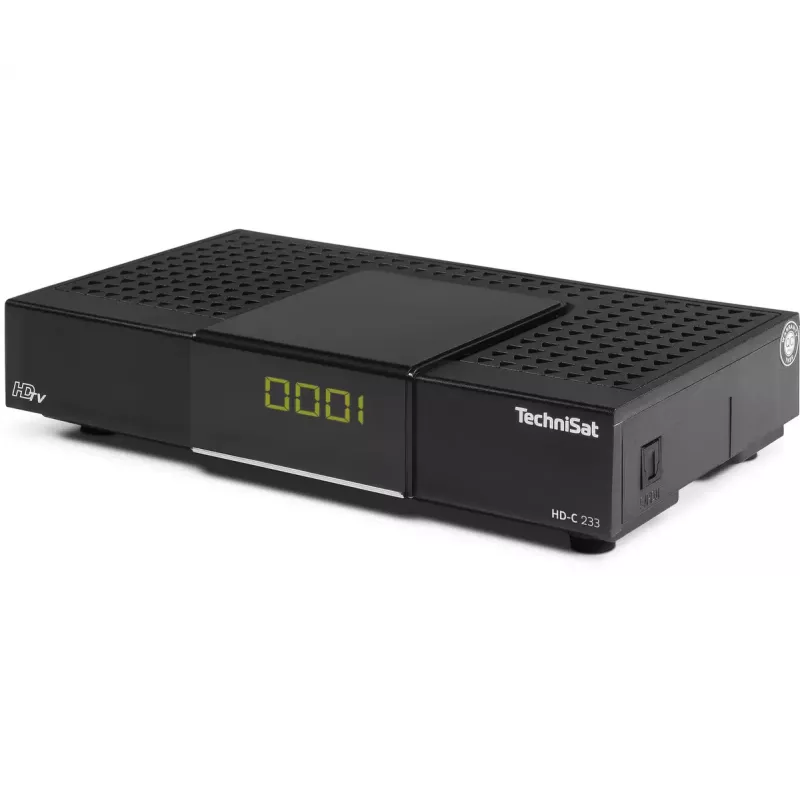

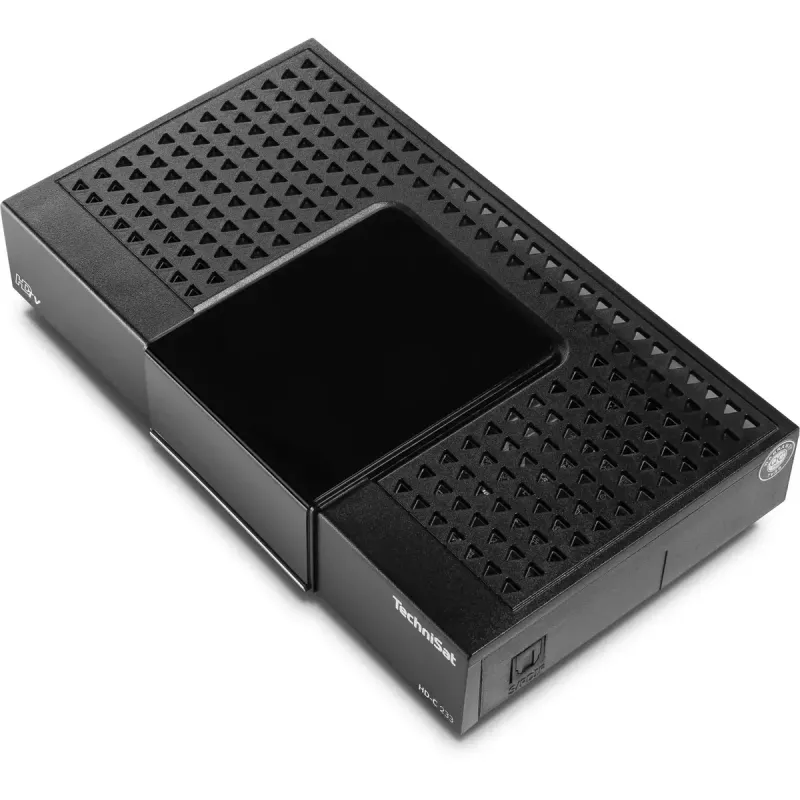

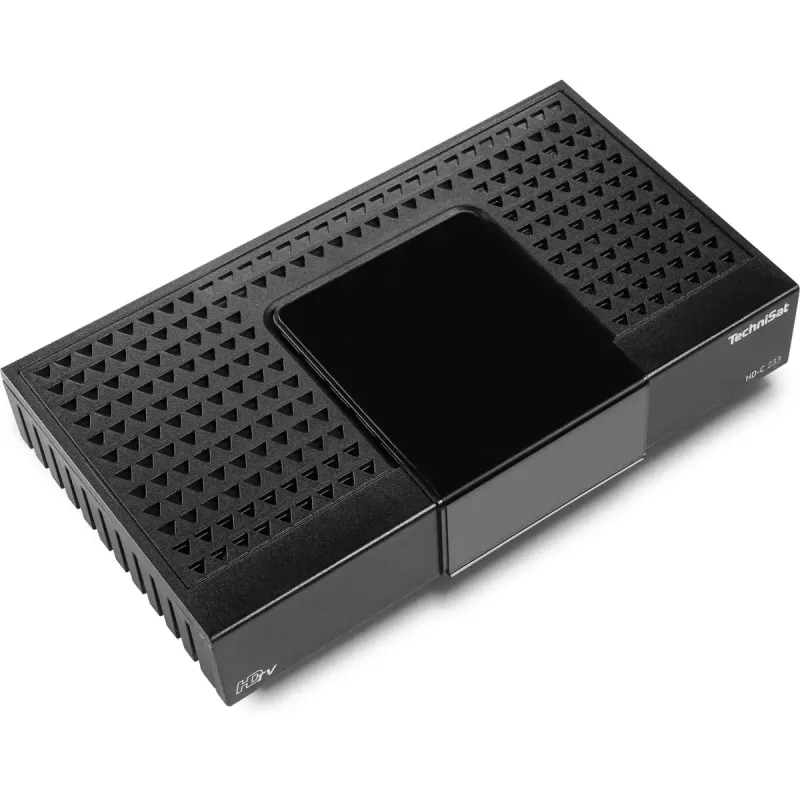

The TechniSat HD-C 233 Black DVB-C 1 Tuner is a compact digital cable receiver designed to decode cable television signals and deliver standard and high-definition video formats. The receiver supports H.264 and MPEG4 compression formats and presents channel information on a four-digit front display. Its black housing and small footprint make it suitable for installation in home entertainment systems where space is limited. The device operates from a standard 230V AC mains supply with a typical power consumption of 8W and weighs approximately 0.246 kg.

Advantages

This single-tuner cable receiver provides reliable DVB-C reception in H.264 and MPEG4 formats, enabling playback of a wide range of digital channels. The device’s compact black design and low weight allow discreet placement in living rooms or media cabinets. With a low power consumption of 8W and a clear four-digit display, the unit balances energy efficiency and basic user feedback without added network complexity, as it does not include Wi‑Fi or Ethernet LAN.

Suitable for

• Receiving digital cable television channels over DVB‑C networks
• Small living rooms or bedrooms with limited space for AV equipment
• Users who need a simple, single-tuner receiver for linear TV viewing
• Setups where network connectivity is not required (no Wi‑Fi or Ethernet)

Key specifications

• Tuner type: single DVB‑C tuner
• Supported video codecs: H.264, MPEG4
• Display: 4-digit front panel display
• Power supply: 230V AC
• Power consumption: 8W (typical)
• Colour: Black
• Weight: 0.246 kg

How to use

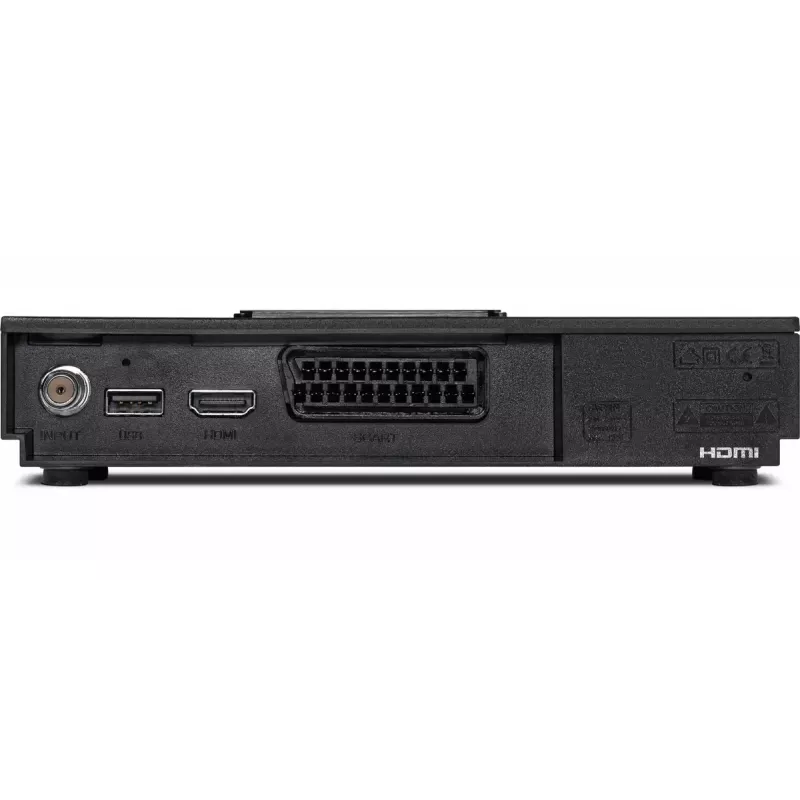

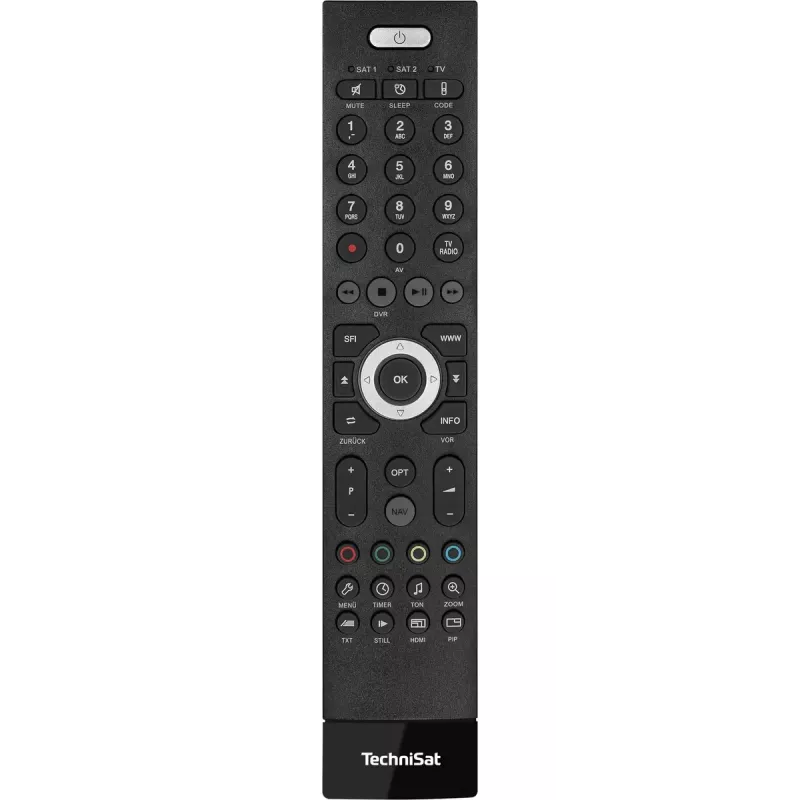

Connect the coaxial cable from the cable service to the receiver’s RF input and attach the receiver to your TV using the appropriate audio/video output (check the TV input compatibility). Power the unit from a 230V AC outlet. Use the receiver’s on‑screen menu and front display to perform an initial channel scan and store available channels. Select channels and adjust basic display settings with the supplied remote control or the front panel buttons as available. No network configuration is required since the receiver does not offer Wi‑Fi or Ethernet connectivity.

Recommendations

Place the receiver in a well‑ventilated location and avoid stacking other heat‑generating devices directly on top of it. For optimal signal reception, ensure the incoming cable connection is secure and free from damage. Use the receiver in environments with stable mains voltage (230V AC) and disconnect power during prolonged periods of non-use or during electrical storms.
