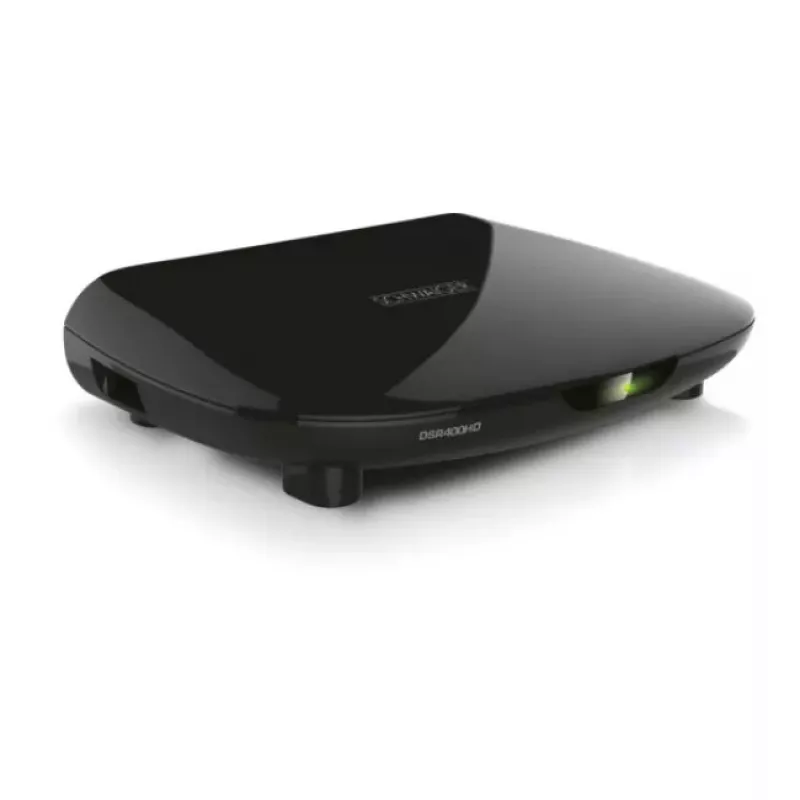

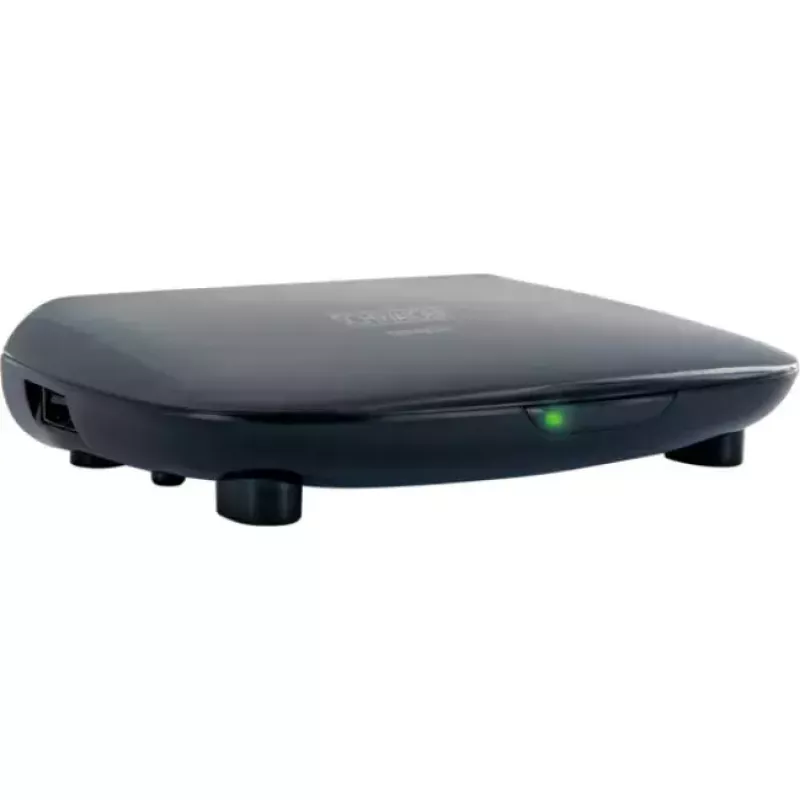

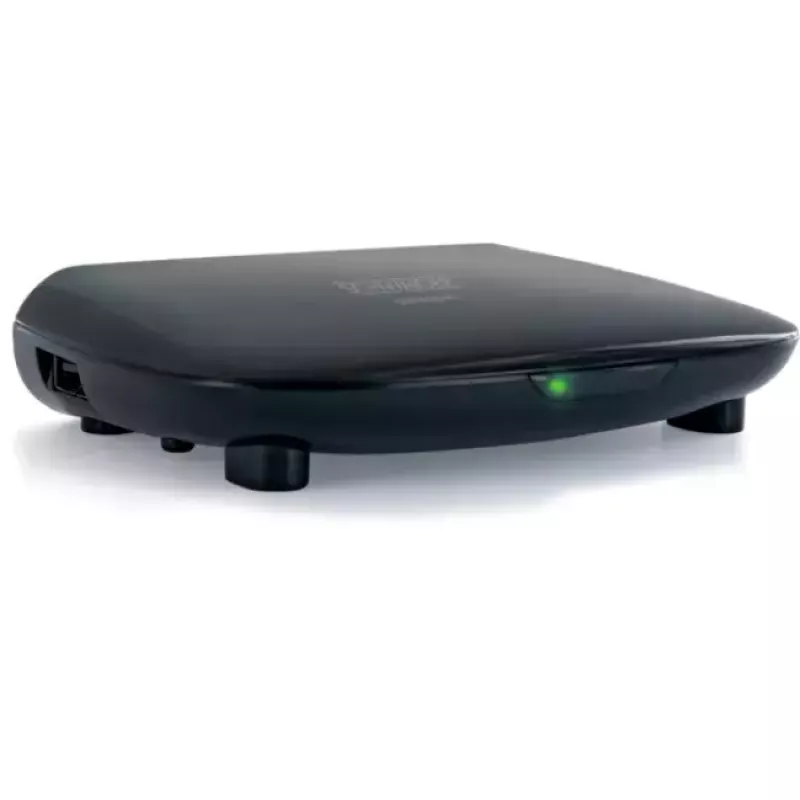

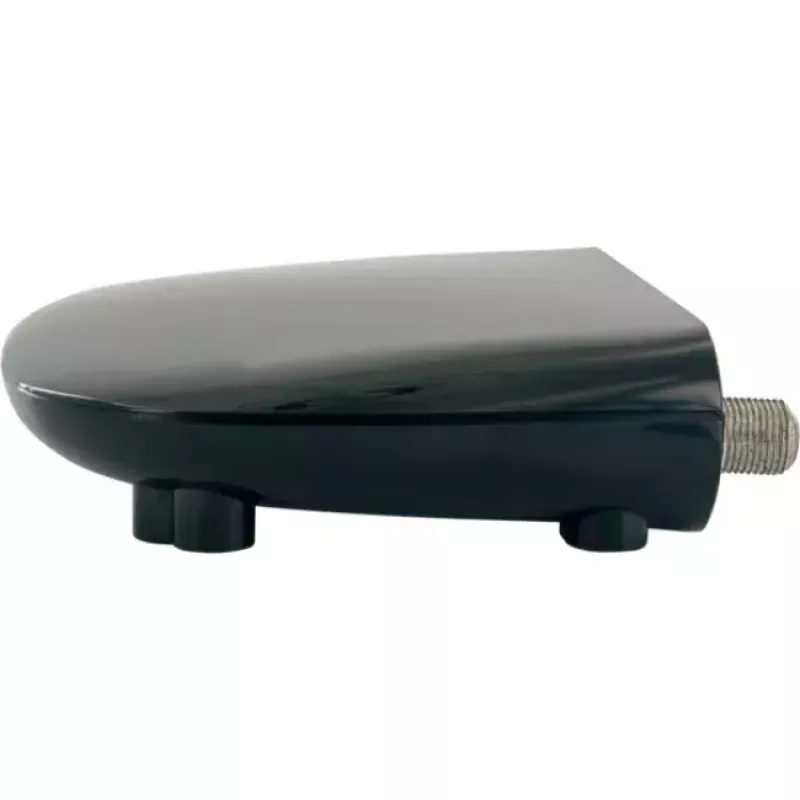

Receptor de satélite Schwaiger DSR400HD Satellite Full HD negro

The SCHWAIGER DSR400HD is a Full HD satellite set-top box designed for reception of all unencrypted TV and radio stations via satellite. It supports DVB-S2 digital signal formats and includes a digital tuner with compatibility for DiSEqC 1.0, 1.1, 1.2 and USALS. Video output is available in standard definition via SCART and in high definition via HDMI. The compact black housing (220 × 135 × 45 mm) and AC input range of 176–264 V, 50 Hz make it suitable for typical home entertainment setups.

Advantages

The receiver provides full support for unencrypted satellite broadcasts with HD output through HDMI and standard output via SCART. Its DVB-S2 tuner and DiSEqC/USALS compatibility allow connection to a wide range of dish and LNB configurations. Software updates can be loaded via a USB thumb drive, enabling firmware maintenance without specialist tools. The device’s compact dimensions and simple connections make installation and integration straightforward.

Suitable for

• Receiving free-to-air TV and radio channels via satellite
• Connecting to modern TVs using HDMI for Full HD content
• Connecting to older TVs using SCART for standard definition
• Home setups requiring DiSEqC or USALS control of the satellite dish

Key specifications

• Model: Schwaiger DSR400HD
• Signal format: DVB-S2
• Tuner: digital satellite tuner
• DiSEqC/USALS: DiSEqC 1.0 / 1.1 / 1.2, USALS

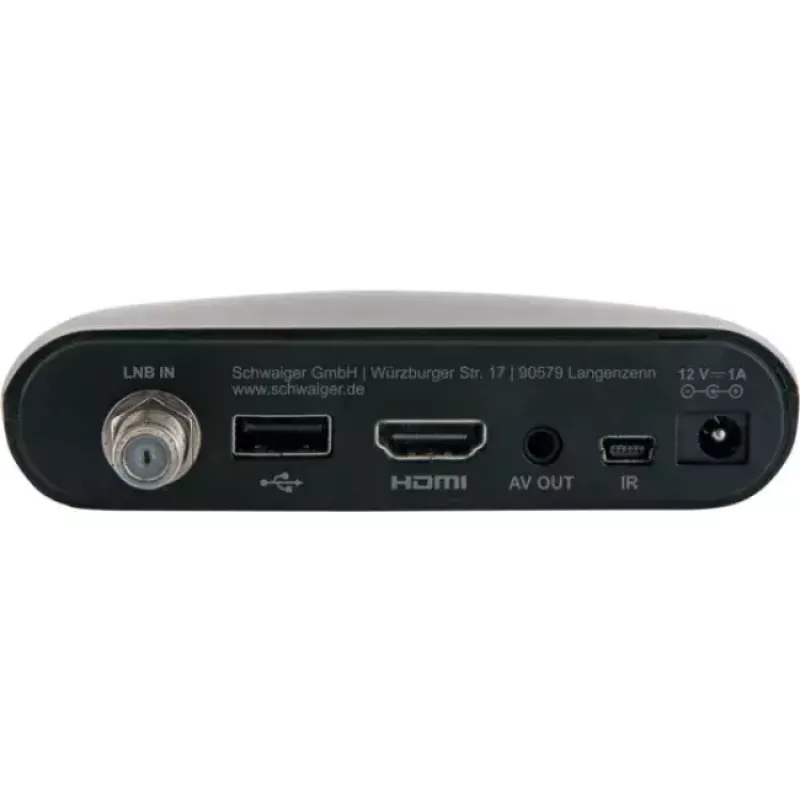

• Video outputs: HDMI (HD) and SCART (SD)
• Power: AC 176–264 V, 50 Hz
• Colour: Black
• Dimensions (W × D × H): 220 × 135 × 45 mm

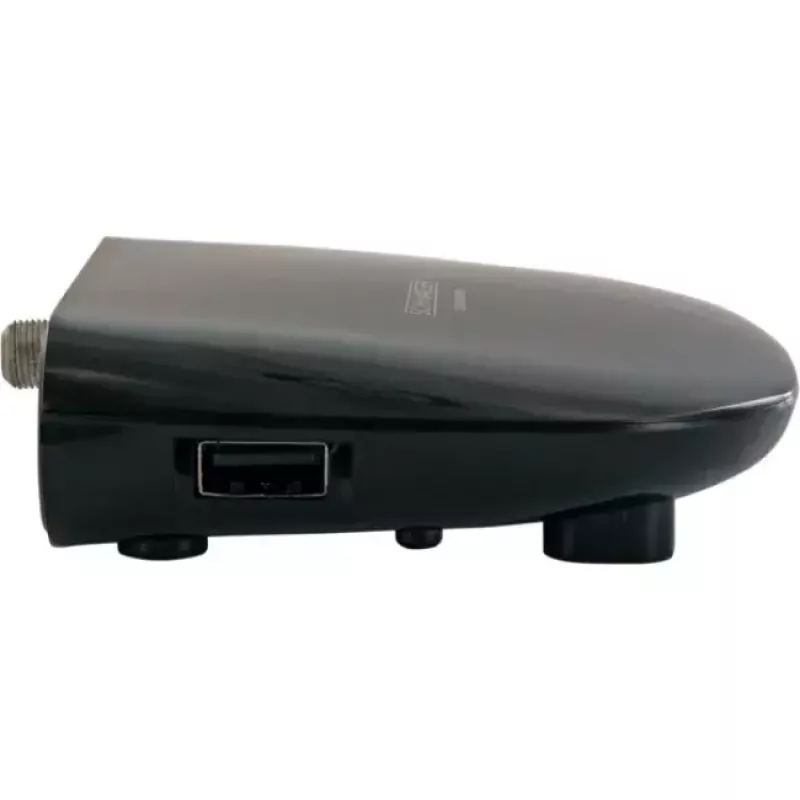

• Firmware updates: via USB thumb drive

How to use

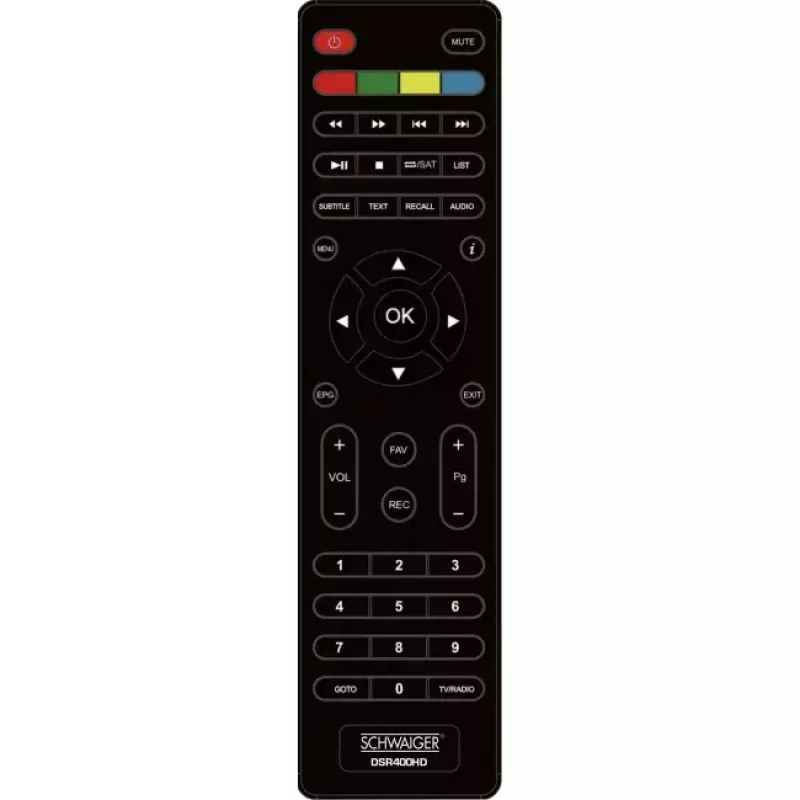

Connect the satellite cable from the LNB to the receiver’s satellite input and attach the receiver to your TV using HDMI for HD output or SCART for standard definition. Configure the receiver using the on-screen menu to scan for unencrypted (FTA) channels and set DiSEqC or USALS parameters if you control the dish positioner. Use the remote control and on-screen menus to navigate channels and settings. To update software, download the firmware file from the manufacturer to a USB thumb drive, insert it into the receiver and follow the on-screen update procedure.

Recommendations

Place the receiver where it has adequate ventilation and avoid covering ventilation slots. Use HDMI for best picture quality when connecting to an HD-capable TV, and keep a USB thumb drive available for future firmware updates.
