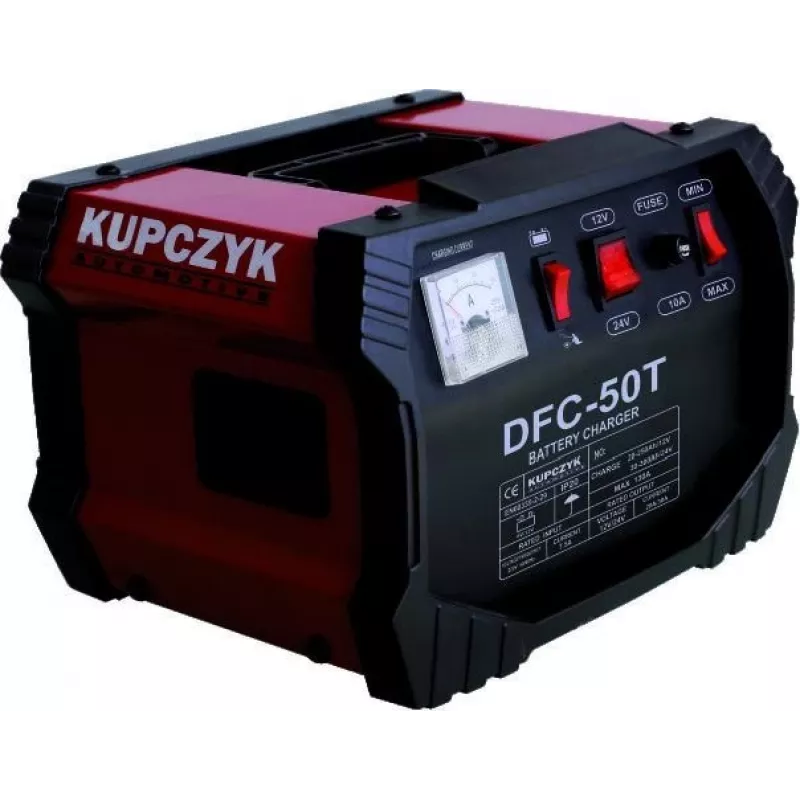

Rectificador Kupczyk DFC-50T con R.R. 12/24

The Kupczyk DFC-50T is a professional transformer-based rectifier and starter, designed for charging and starting lead-acid batteries (WET, MF) with capacities from 50 to 500 Ah. It features dual output voltages (12V/24V) and high effective charging and starting currents, making it ideal for workshops, service stations, and automotive applications.

Advantages

High starting current up to 200A effective ensures reliable engine starts even in cold conditions. Robust transformer-based design delivers stable charging. Built-in protections (overload, short circuit, reverse polarity) safeguard both the device and battery. Analog ammeter provides clear real-time current monitoring.

Suitable for

• Charging and starting lead-acid batteries in cars, trucks, and machinery
• Workshops, garages, and service stations
• Battery maintenance for WET and MF types

Key specifications

• Input: 230V AC, 50Hz
• Output: 12V DC / 24V DC selectable
• Max charging current (12V): 30A effective
• Max charging current (24V): 30A effective
• Max starting current (12V): 200A effective
• Max starting current (24V): 200A effective
• Supported battery capacity: 50-500 Ah
• Max input power (charging): 1000W
• Max input power (starting): 4500W
• Protection: Overload, short circuit, reverse polarity
• Ammeter: Analog
• Cooling: Fan cooled
• Charger type: Transformer-based
• Recommended battery type: Lead-acid (WET, MF)
• Power cable length: approx. 2m
• Charging cable length: approx. 2m

Recommendations

For optimal performance, use with batteries within the specified capacity range. Ensure proper ventilation during operation due to fan cooling. Always connect cables in correct polarity to avoid damage.
