Victron Energy Blue Smart IP22 12 V 15 A – cargador inteligente de tres etapas, IP22

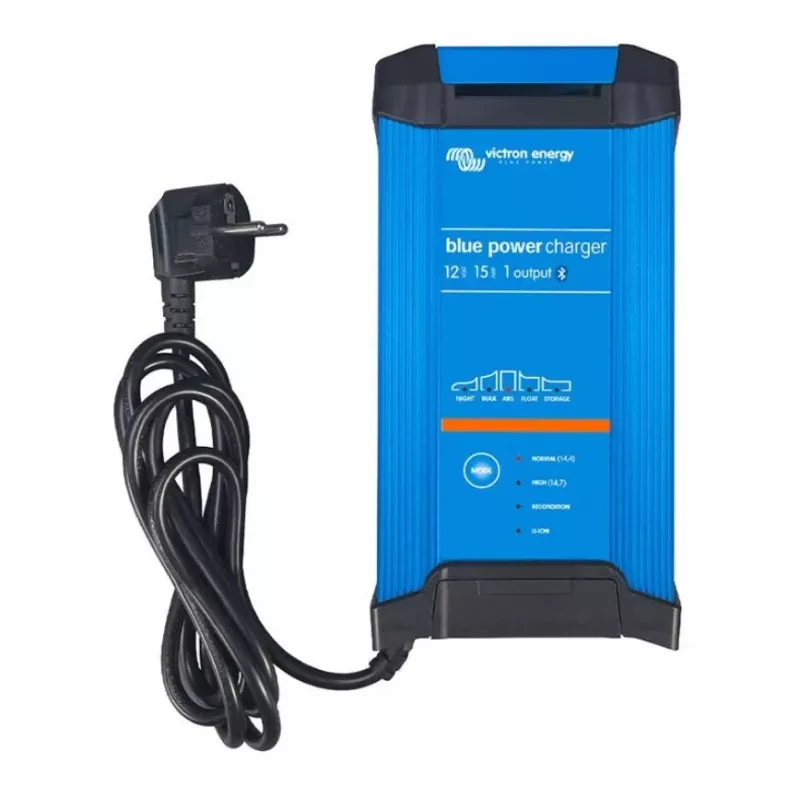

The Victron Energy Blue Smart IP22 12V 15A is a compact three-stage smart battery charger designed for 12 V lead‑acid and compatible batteries. It delivers up to 15 A of charging current and uses an intelligent charging algorithm that automatically transitions through bulk, absorption and float stages to ensure reliable charging and prolonged battery life. The charger features IP22 splash protection for indoor or sheltered installations and is suitable for marine, RV and stationary battery systems that require consistent charging and maintenance.

Advantages

The Blue Smart IP22 combines a small footprint with advanced charging management, offering precise charge control for lead‑acid, AGM and gel batteries. Its three‑stage algorithm reduces overcharging and sulfation risk while the multi‑stage float management maintains battery health during long standbys. IP22-rated splash protection permits safe installation in protected locations on boats, inside caravans or in utility rooms. Built‑in safety features and thermal compensation maintain stable output under varying ambient conditions.

Suitable for

• Charging starter and deep‑cycle 12 V lead‑acid batteries in marine vessels
• Maintaining batteries in motorhomes, caravans and camper vans
• Supplementary charging for off‑grid and stationary 12 V battery systems
• Use where compact size and reliable multi‑stage charging are required

Key specifications

• Nominal output voltage: 12 V DC
• Maximum charging current: 15 A
• Charging method: three‑stage (bulk, absorption, float) with intelligent algorithm
• Battery types supported: lead‑acid, AGM, gel and other compatible 12 V chemistries
• Ingress protection: IP22 (splash protection for indoor/sheltered use)
• Installation: wall‑mountable, compact enclosure for confined spaces
• Thermal compensation and built‑in safety protections (overload, short‑circuit, reverse polarity)

How to use

Install the charger in a dry, ventilated and sheltered location according to the safety instructions supplied with the unit. Connect the positive and negative output leads to the battery terminals, observing correct polarity. Power the unit from a suitable AC source; the charger will automatically detect battery voltage and begin the charge cycle, progressing through bulk, absorption and float stages. Monitor battery voltage and charging current during the initial charge; the unit will switch to maintenance mode once the battery reaches the prescribed float level.

Recommendations

For optimal battery life, use the three‑stage charging mode regularly and avoid leaving batteries in a deeply discharged state. Install the charger in a location protected from direct water spray, corrosive fumes and excessive heat. When used in marine environments, ensure ventilation and periodic inspection of electrical connections. Follow the battery manufacturer’s guidelines for specific charge voltages and temperature compensation settings when available.
