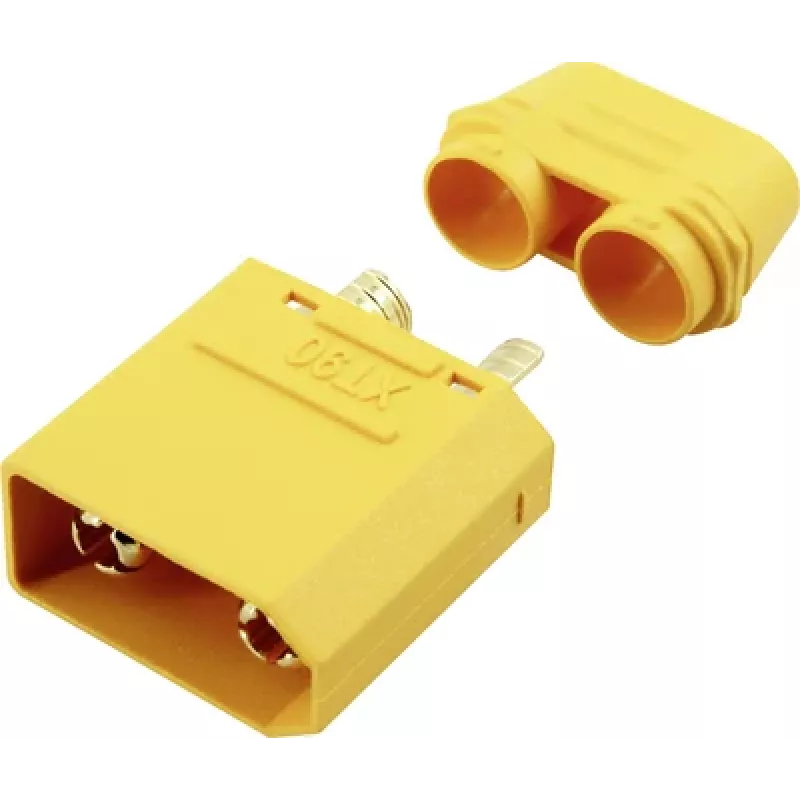

Reely RE-6702312 Conector XT90-S para batería dorado anti-chispa 1 ud.

Handle up to 90 A continuous current with this gold-plated XT90-S male connector, engineered for high-power RC models and drones. The anti-spark design protects your contacts and electronics when connecting high-voltage LiPo batteries.

Overview

This single male XT90-S connector from Reely is built for demanding RC applications. The gold-plated copper alloy contacts ensure minimal resistance and reliable power transfer, while the high-temperature nylon housing withstands harsh conditions. Solder connection required.

What stands out

• Anti-spark feature prevents damaging sparks during connection
• Gold-plated contacts for superior conductivity and corrosion resistance
• Rated for 90 A continuous and 120 A peak current
• High-temperature nylon housing for durability

Technical details

• Connector type: XT90-S
• Gender: Male
• Contact plating: Gold
• Continuous current rating: 90 A
• Peak current rating: 120 A
• Max voltage: 500 V DC
• Housing material: High-temperature nylon (PA)
• Contact material: Copper alloy
• Recommended wire gauge: 8-10 AWG
• Connection method: Solder
• Operating temperature: -20°C to +120°C
• Insulation resistance: >2000 MΩ
• Contact resistance: <0.3 mΩ
• Colour: Yellow
• Quantity per pack: 1

Our verdict

A robust, high-current connector with anti-spark protection, ideal for serious RC enthusiasts who demand reliable power connections.
