Regleta de distribución de corriente Bachmann 800.1657 3m 27 tomas AC interior negro blanco

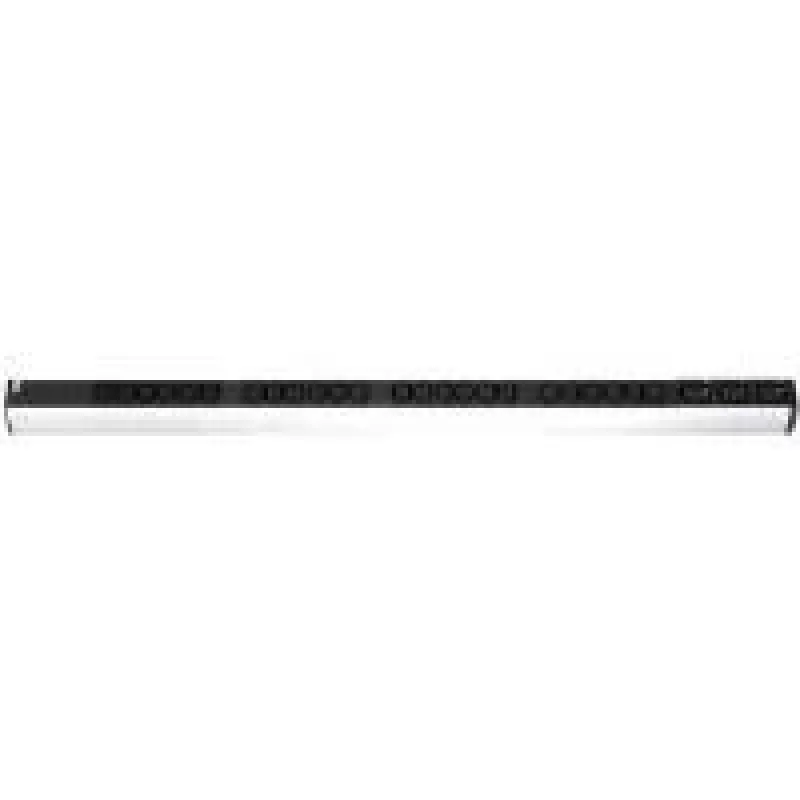

The Bachmann 800.1657 power extension is designed for efficient and future-proof power distribution in data centres, server racks and network racks. It features a compact and robust aluminium profile measuring 44 x 47 mm, a 3 m cable and a total of 27 AC outlets including a mix of C13 and C19 couplers. Rated for 230 V and 16 A, this indoor unit is available in black and white finishes and leaves room for data cabling and ventilation within the rack.

Advantages

The compact aluminium housing provides mechanical robustness while minimising occupied space in the rack. With 27 AC outlets and a 3 m cable, the unit supports high-density equipment setups and flexible placement inside server enclosures. The mix of C13 and C19 couplers accommodates both standard and higher-current IT devices. The 230 V / 16 A rating matches common power distribution requirements for European data centre environments.

Suitable for

• Powering servers and switches in server racks
• Power distribution in data centre cabinets
• Feeding network racks and telecommunication equipment
• High-density rack installations requiring space-efficient PDU solutions

Key specifications

• Manufacturer: Bachmann
• Model / MPN: 800.1657
• EAN: 4016514075072
• Cable length: 3 m
• Number of AC outlets: 27 (including C13 and C19 couplers)
• Rated voltage: 230 V
• Rated current: 16 A
• Profile dimensions (W x H): 44 x 47 mm
• Intended use: Indoor
• Available colours: Black, White

How to use

Mount the power extension inside the rack according to the rack manufacturer’s instructions, ensuring the compact aluminium profile is secured and does not obstruct ventilation. Connect the unit to a suitable 230 V, 16 A supply using the supplied cable. Plug server and network equipment into the appropriate C13 or C19 outlets, taking care to distribute load evenly across the outlets to avoid overloading a single circuit.

Recommendations

Install the Bachmann 800.1657 in a ventilated rack position and route power and data cabling separately where possible. Verify the total connected current does not exceed 16 A and use appropriate circuit protection at the distribution source.
