Regleta de enchufes de mesa Bachmann DESK2 2 tomas AC

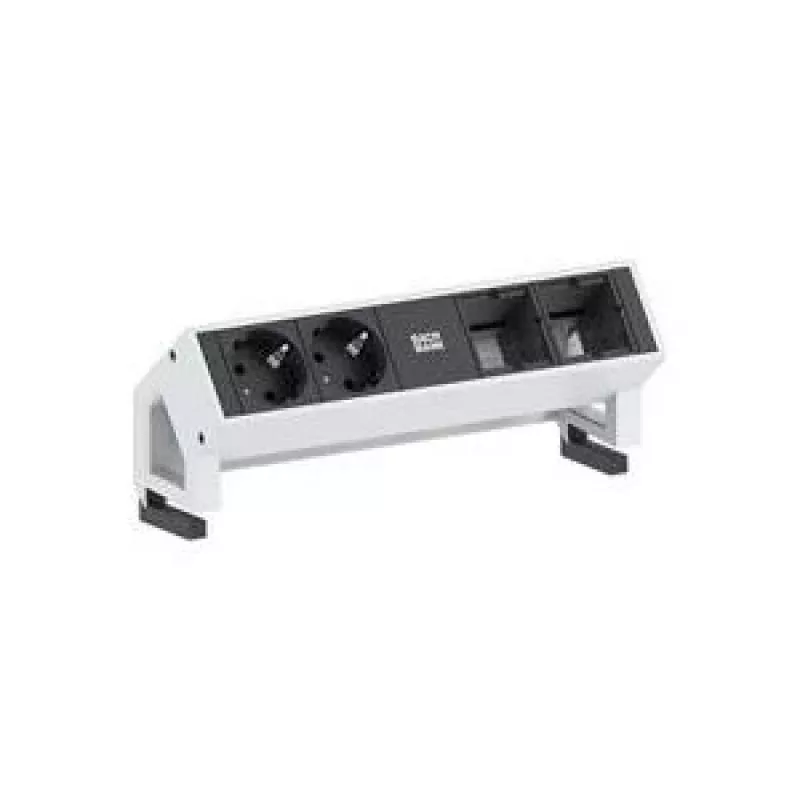

The Bachmann DESK 2 (902.411) is a compact desk-mounted power extension designed to provide two grounded AC outlets and two custom modules in a stainless steel finish. Constructed from aluminium with a painted stainless-steel appearance, the unit mounts to the edge of desks or tables using included aluminium retaining brackets and screws, with cables routed behind screens. The DESK 2 is intended for flexible use in offices, meeting rooms, home offices and desk-sharing environments and features changeable modules that fit standardised module windows.

Advantages

The design combines a durable aluminium profile with a stainless-steel finish for a low-profile, long-lasting installation. Two AC outlets are angled at 35° for convenient cable routing, and the modular design allows replacing or upgrading the communication modules. Installation is quick using the supplied mounting bracket and screws, and cable routing behind screens keeps the desktop neat. The product is certified for office use and has been recognised by multiple design awards.

Suitable for

• Providing additional AC power at desks and workstations
• Meeting rooms and collaborative workspaces
• Home offices and desk-sharing setups

Key specifications

• Length: 239 mm
• Maximum current / voltage: 16 A / 230 V
• Material: aluminium profile with painted stainless-steel finish
• AC outlets: 2x grounded socket outlets, black, set at 35°
• Custom modules: 2x custom module slots
• Power input cable: 0.2 m H05VV-F3G 1.5 mm² with GST18 connector
• Power outlet cable: 0.2 m H05VV-F3G 1.5 mm² with GST18 connector
• Includes mounting bracket and screws

How to use

Mount the Bachmann DESK 2 on the desk edge using the supplied aluminium retaining brackets and screws. Route the power and outlet cables behind the screen as required and connect the GST18 power connector to your power source. Fit required communication or custom modules into the standardised module windows; modules are secured by screwing connections into place. After installation, plug devices into the two grounded AC outlets positioned at a 35° angle for convenient access.

Recommendations

Use this unit indoors only. Ensure the connected load does not exceed the specified 16 A / 230 V rating. For safety, install and service electrical connections according to local regulations and, if necessary, engage a qualified electrician.
