Regleta de enchufes para rack Intellinet 19 pulgadas 8 tomas versión alemana

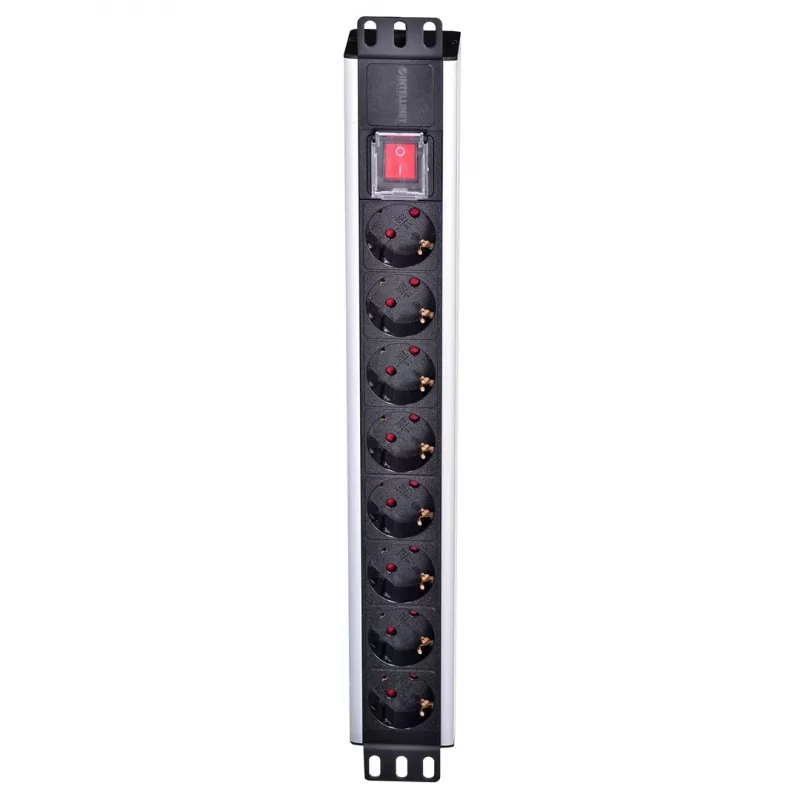

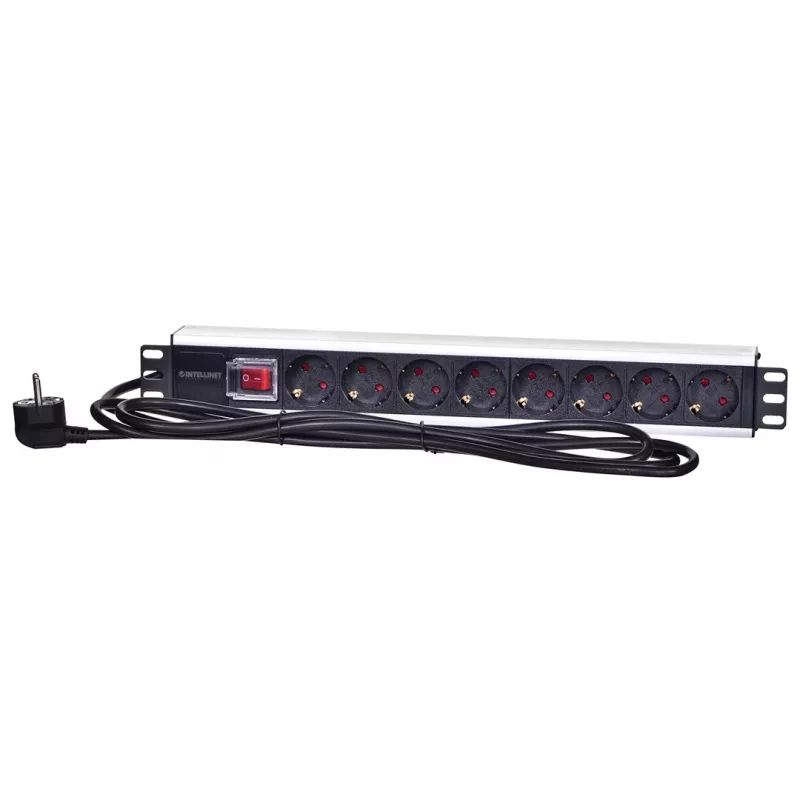

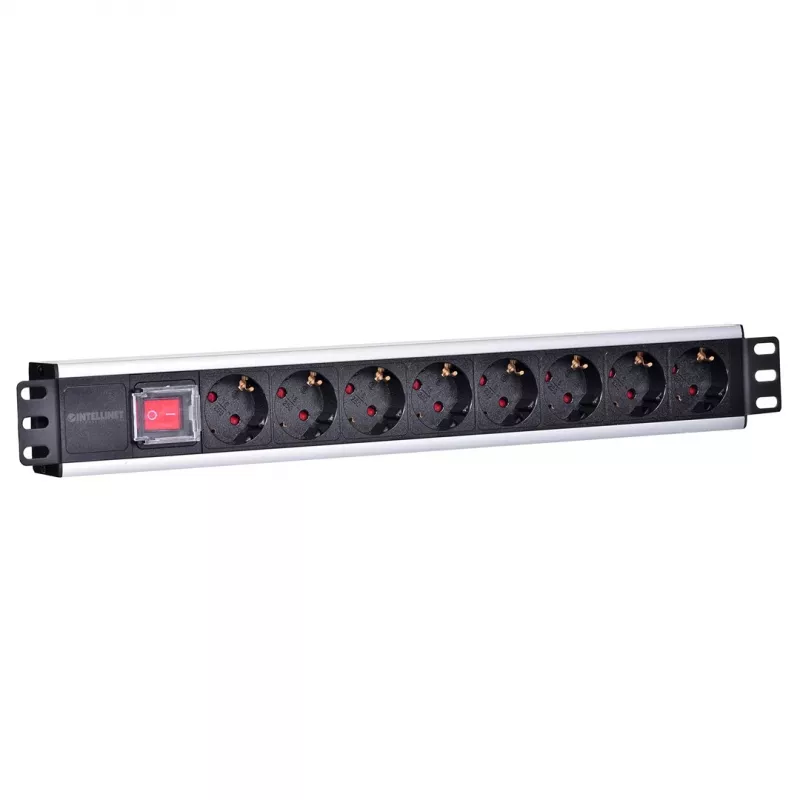

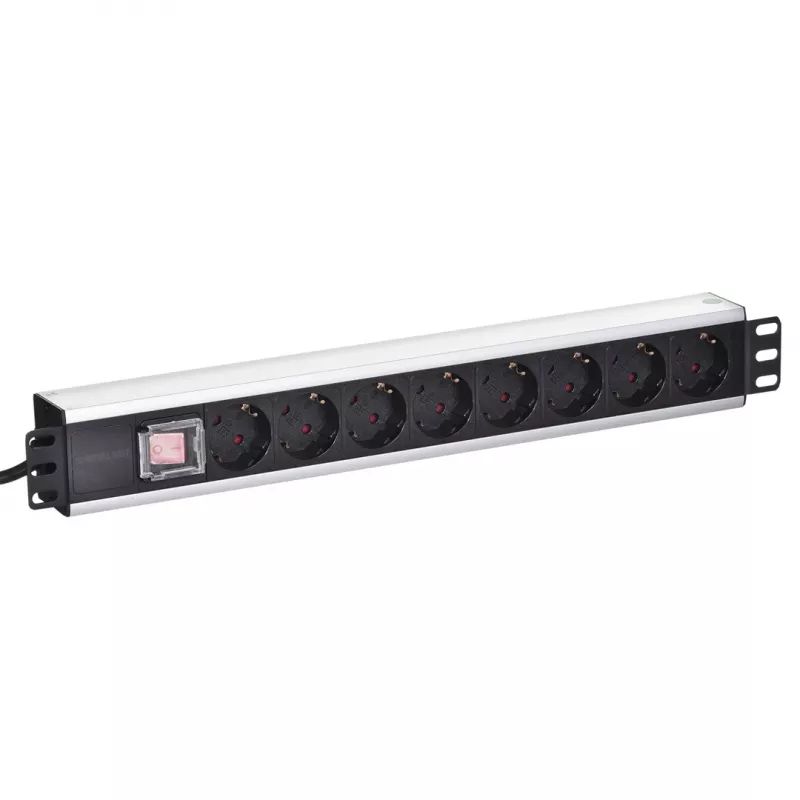

The Intellinet 19" Rackmount 8-Way Power Strip provides reliable rack power distribution with eight IEC60884-compatible outlets and a left-end single IEC power input. Designed for 19-inch racks, the unit combines a black aluminum shell with frontal bracket installation and an integrated switch for local control. It supports a nominal input voltage of 250 V and a maximum current of 16 A, includes a 3 m cable and LED indicators for power status, and weighs 1.4 kg.

Advantages

The rackmount power strip offers eight AC outlets in a compact 19" form factor, a durable black aluminum housing and frontal mounting brackets for secure installation in server cabinets. Its left-end single IEC input and integrated on/off switch simplify connection and local control, while LED indicators provide clear status feedback. The product is UL94-V2 certified and designed for standard IEC60884 plugs.

Suitable for (tasks / use cases)

• Power distribution for 19" server racks and network cabinets
• Feeding multiple rack devices such as switches, routers and servers
• IT closets, data centers and telecommunications cabinets
• Environments requiring a compact 8-outlet PDU with local switch

Key specifications

• Socket/outlet standard: IEC60884
• Outlets: 8-way
• Nominal input voltage: 250 V
• Current rating: 16 A
• Power input style: left-end single IEC input
• Cable length: 3 m
• Bracket installation style: frontal
• Cable plug: IEC60884
• Control functions: with switch
• Protection functions: no surge protection
• Shell color & material: black aluminum
• Weight: 1.4 kg

How to use

Mount the power strip into a 19" rack using the frontal brackets and secure with appropriate screws. Connect the IEC cable to a compatible mains outlet using the IEC60884 plug located at the left end. Plug rack equipment into the eight IEC60884 outlets, then use the integrated switch to supply or cut power. Verify LED indicators to confirm power status before placing connected equipment into operation.

Recommendations

Do not exceed the 16 A current rating; distribute load across outlets to avoid overloading. This unit does not include surge protection, so consider separate surge or UPS protection for sensitive equipment. Ensure proper ventilation around the PDU and follow rack manufacturer guidelines when installing.
