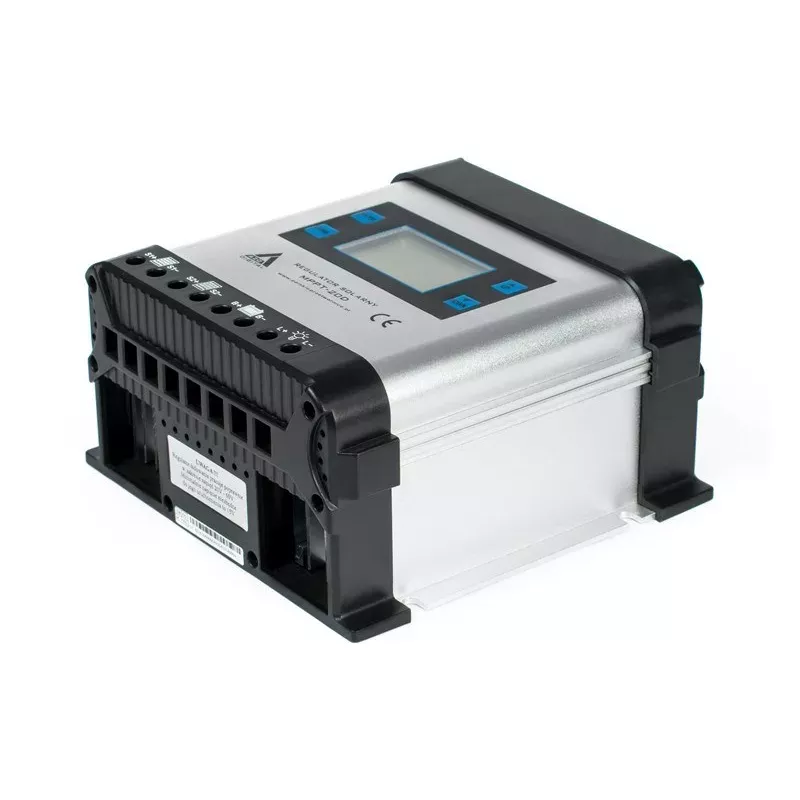

Regulador de carga solar MPPT AZO Digital 12/24V 20A con pantalla LCD

The AZO Digital AZO00D1093 Solar MPPT Charge Controller is a high-efficiency Maximum Power Point Tracking (MPPT) controller designed for 12V and 24V solar systems. With a 20A charge current and advanced LCD display, it optimizes energy harvest from solar panels to charge batteries safely and efficiently. Ideal for off-grid, RV, marine, and backup power applications.

Advantages

MPPT technology delivers up to 30% more energy compared to PWM controllers. Auto-sensing system voltage (12/24V) simplifies setup. Multi-stage charging algorithm (Bulk, Absorption, Float, Equalization) extends battery life. Supports multiple battery types: Sealed, Gel, Flooded, and LiFePO4 (user configurable). Comprehensive protection features safeguard your system.

Suitable for

• Off-grid solar power systems
• RVs, caravans, and boats
• Remote monitoring stations
• Backup power and small-scale solar installations

Key specifications

• Controller Technology: MPPT
• System Voltage: 12V / 24V (Auto-sensing)
• Max Charge Current: 20A
• Max PV Input Voltage: 100V
• Max PV Input Power: 260W (12V) / 520W (24V)
• Battery Compatibility: Sealed, Gel, Flooded, LiFePO4
• Display: LCD
• Load Output Current: 20A
• USB Output: 5V / 2A
• Grounding: Common Negative
• Protection: Overcharge, Over-discharge, Overload, Short Circuit, Reverse Polarity, Over-temperature
• Self-Consumption: <10mA
• Operating Temperature: -20°C to +55°C
• Enclosure Rating: IP30
• Max Wire Size: 6mm² (10 AWG)

Recommendations

For optimal performance, use with solar panels whose Voc does not exceed 100V. Ensure proper wire sizing and fuse protection. Compatible with 12V or 24V battery banks. Ideal for small to medium solar systems.
