Regulador Shelly Plus 0-10V empotrable azul-gris control inalámbrico 110-240V

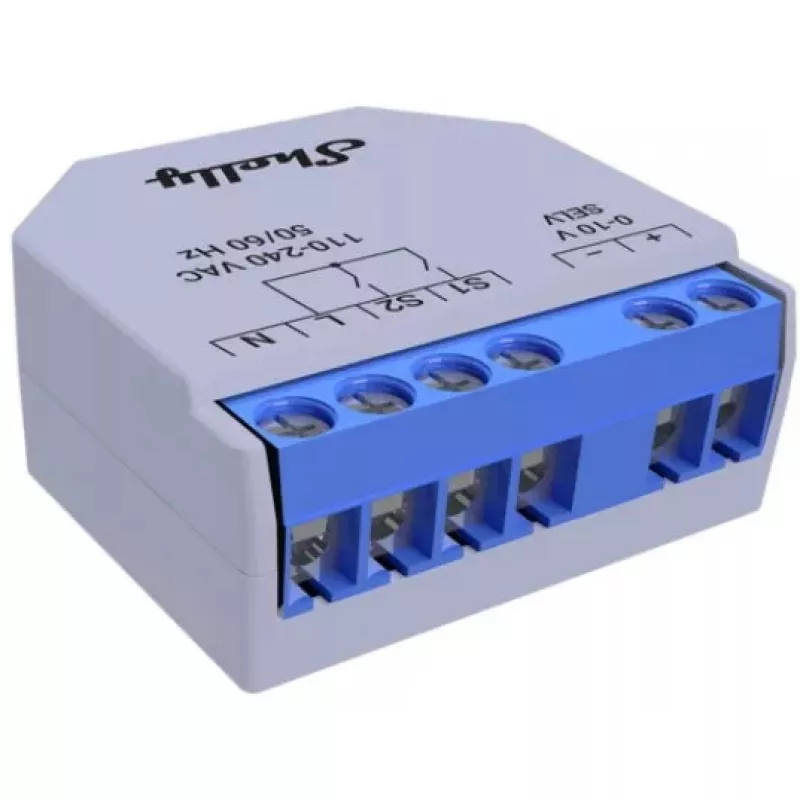

The Shelly Plus 0-10V is a compact built-in dimmer designed to control 0–10V dimming LED drivers and enable precise wired and wireless brightness adjustment. It operates on 110–240V AC, supports Wi‑Fi and Bluetooth for easy inclusion without a hub, and fits behind existing switches so you can keep your preferred switch style while adding dimming capability.

Advantages

The device allows retrofit installation with regular single or dual-button switches and provides remote control via Wi‑Fi or Bluetooth. It supports smart schedules, scenes, sunrise/sunset triggers, scripting for custom local logic and integration with other Shelly devices, as well as voice control through Alexa and Google Home. Brightness limits can be calibrated to the driver's range for accurate dimming, and features such as night mode and smooth fade-off improve comfort and safety.

Suitable for

• Adding dimming control to existing lighting circuits using 0–10V drivers
• Retrofitting homes where replacing visible switches is undesirable
• Smart home setups requiring schedules, scenes and voice control
• Rooms where gradual dimming or night-mode lighting is needed (bedrooms, hallways, children's rooms)

Key specifications

• Brand: Shelly
• Model: Shelly Plus 0-10V (MPN: Shelly_Plus_Dimmer_0)
• Power: 110–240V AC
• Communication: Wi‑Fi (IEEE 802.11) and Bluetooth

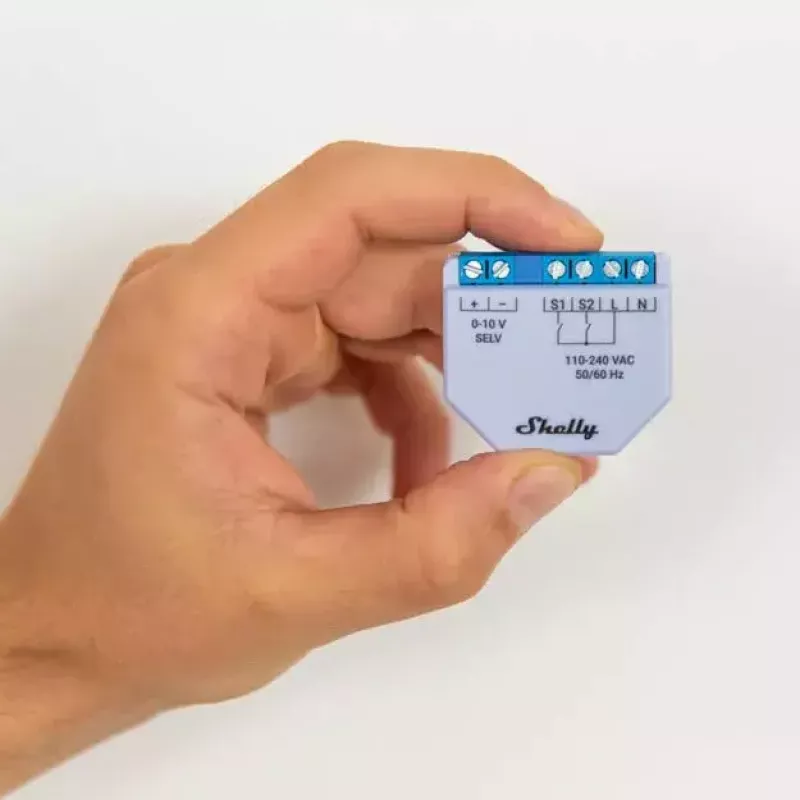

• Mounting: Built-in/behind switch, compact size (approx. 42 mm × 37 mm × 17 mm)
• EAN: 3800235265703
• Max indoor range: approx. 30 m

How to use

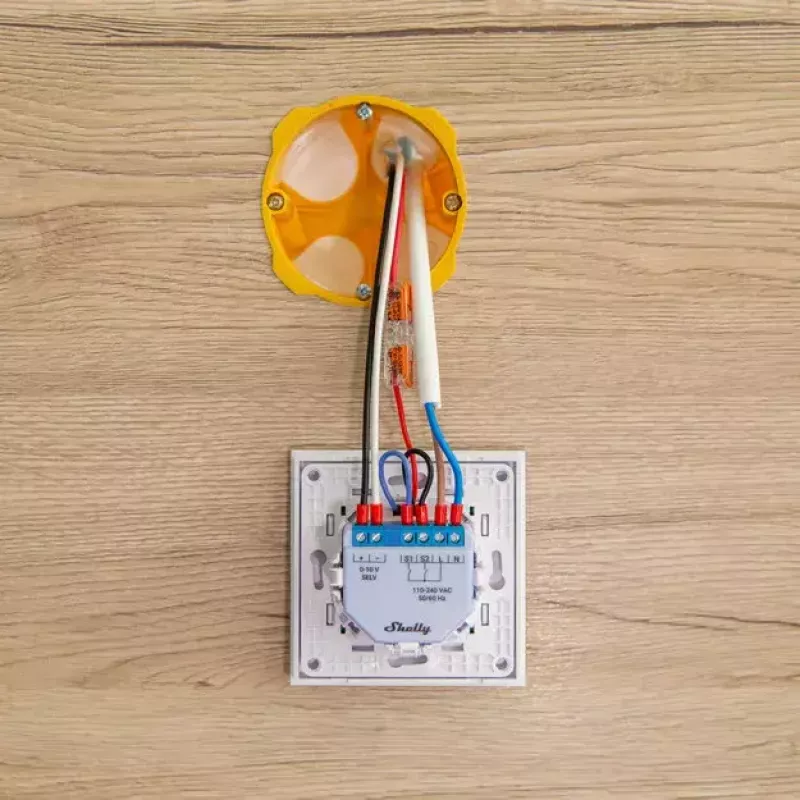

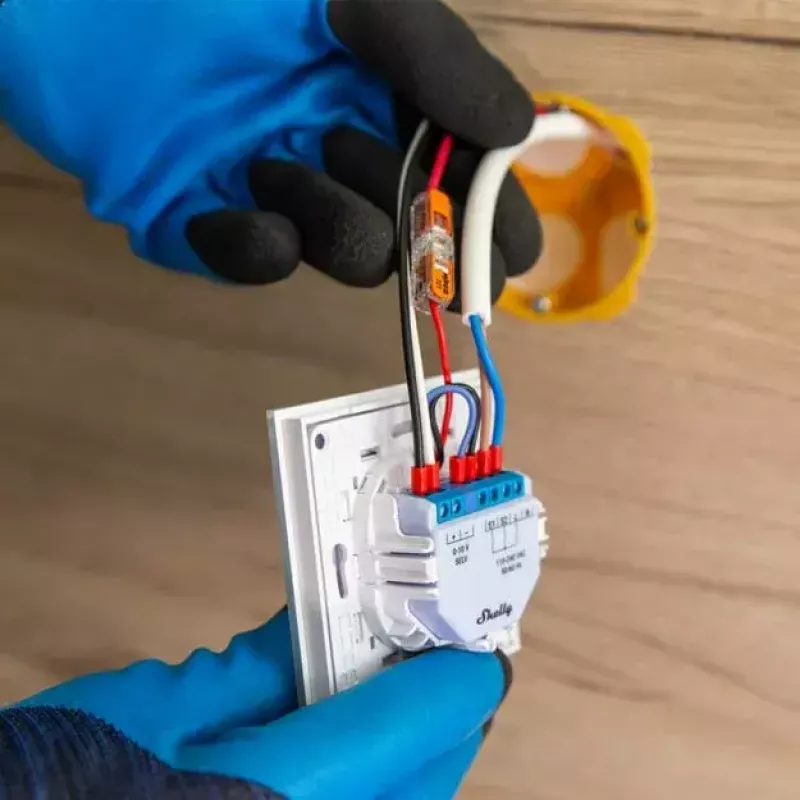

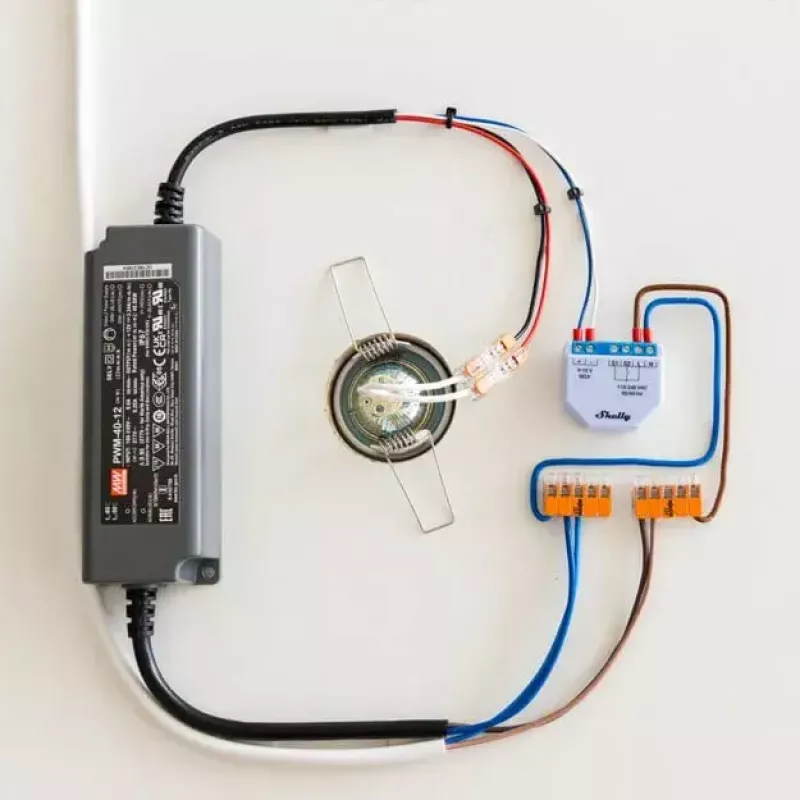

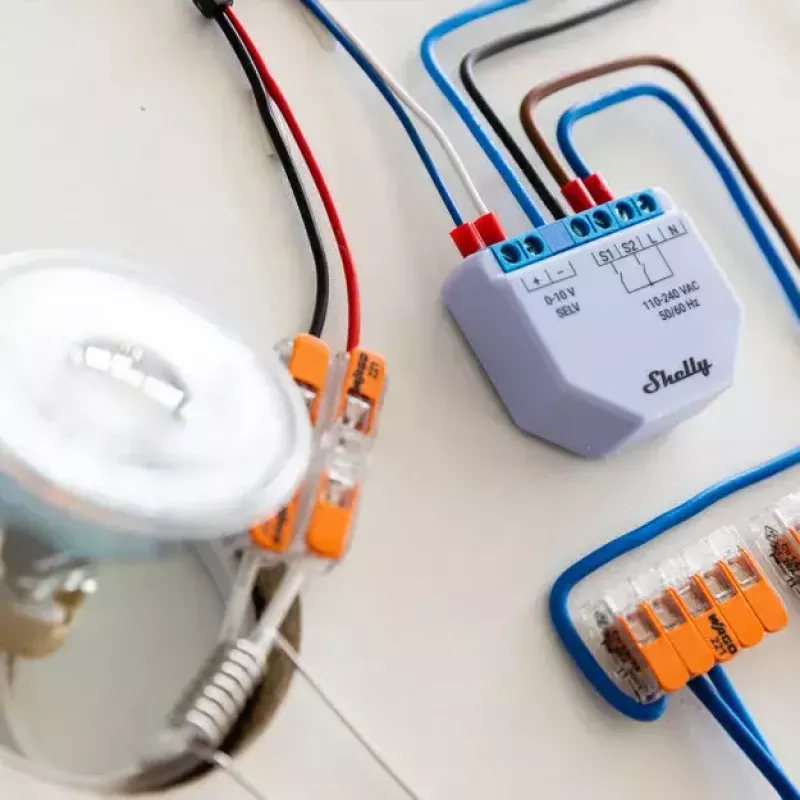

Install the Shelly Plus 0–10V module behind your existing wall switch following electrical safety rules and the manufacturer's wiring diagram. Connect the module to the 0–10V input of the dimmable driver and to mains (110–240V). Add the device to your Wi‑Fi network or pair it via Bluetooth for initial setup, then configure minimum and maximum brightness levels, schedules, scenes and scripting through the Shelly app or compatible home automation platform. Use your existing physical switch for manual control or operate the lights remotely via the app or voice assistant.

Recommendations

For safe and reliable operation, install the unit in dry indoor locations and follow local electrical codes; professional installation is recommended when unsure. Calibrate the dimmer to your specific driver to prevent flicker and to achieve precise brightness ranges. Use night mode and gradual fade-off settings where low or delayed lighting changes improve comfort and safety.
