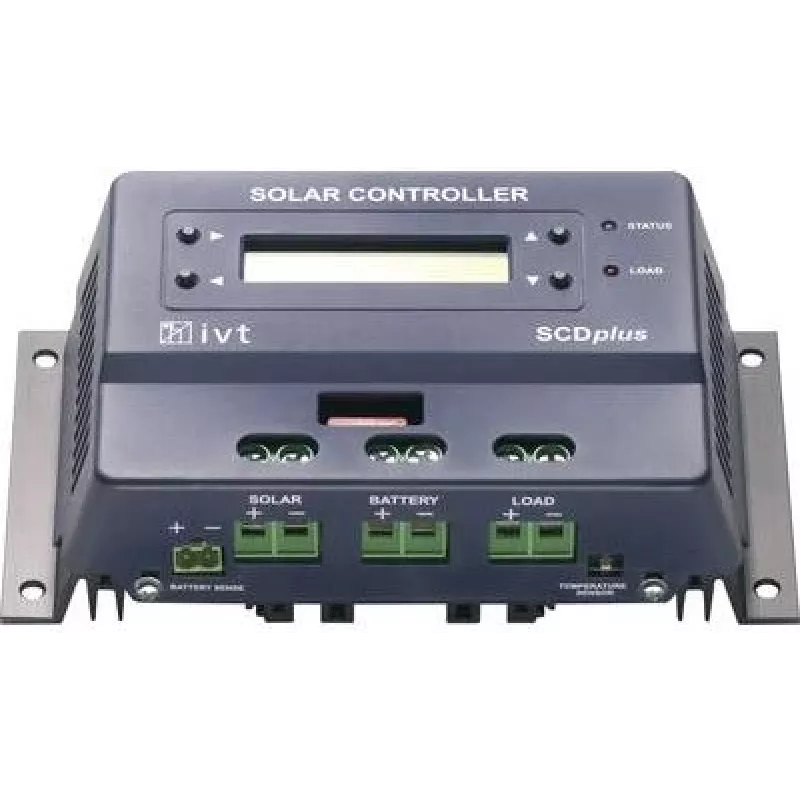

Regulador solar IVT 12V/24V 25A SCDplus 25A 200042

Managing solar power reliably can be a challenge, especially when you need to protect batteries from overcharging and deep discharge. The IVT Solar Charge Controller SCDplus 25A solves this by regulating the charge from your solar panels to your battery bank, ensuring optimal charging and long battery life.

Who is it for

This controller is ideal for off-grid solar systems, caravans, boats, and small cabins where a 12V or 24V battery bank is used. It suits users who need a robust, easy-to-monitor charge controller with support for multiple battery types.

Main features

• PWM charging technology with automatic 12V/24V system voltage detection
• Supports lead-acid (open, gel, AGM) and LiFePO4 batteries
• Maximum charge and load current of 25A
• LCD display for clear status and settings
• Dual USB outputs (5V, 2A) for charging small devices
• Integrated load control with timer function
• Comprehensive protection: overcharge, deep discharge, reverse polarity, short circuit, overvoltage, overtemperature
• Common positive grounding
• Battery voltage compensation for accurate charging
• Low self-consumption (<10mA)

Specifications

• System voltage: 12V / 24V (auto-detection)
• Max charge current: 25A
• Max load current: 25A
• Max PV open circuit voltage: 50V
• USB output: 2x 5V, 2A
• Display: LCD
• Self-consumption: <10mA
• Operating temperature: -20°C to +50°C
• Protection: Overcharge, deep discharge, reverse polarity, short circuit, overvoltage, overtemperature
• Grounding: Common positive
• Max cable cross-section: 16mm²
• Load control: Yes (with timer)
• Battery voltage compensation: Yes

Tips

Ensure your solar panel array's open-circuit voltage does not exceed 50V to avoid damage. For LiFePO4 batteries, select the appropriate battery type in the settings to use the correct charging profile. Mount the controller in a well-ventilated area to prevent overheating.
