Juego de cables 3 m 35 mm² para inversores SW Serie 2000 W IVT

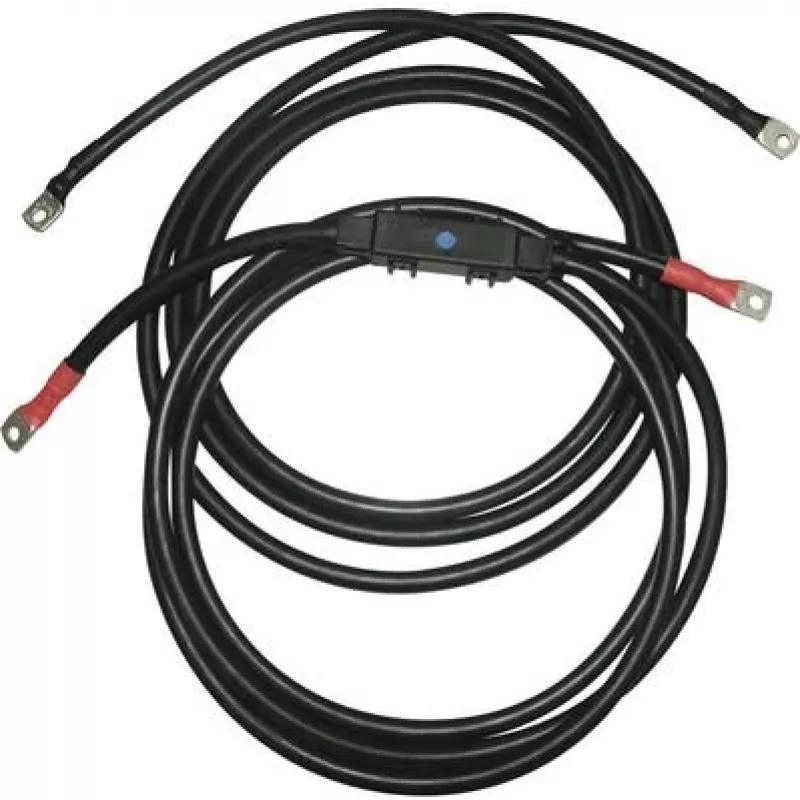

Cable set 3 m 35 mm² for SW Series inverter 2000 W IVT is a dedicated high-current connection kit designed for use with IVT SW Series 2000 W inverters. The set consists of three-meter length heavy-duty cables with a 35 mm² conductor cross-section, sized to carry the current drawn by a 2000 W inverter without excessive voltage drop. It is intended to connect the inverter to batteries, battery banks or power distribution points in solar, backup power and mobile installations where a short, robust connection is required.

Advantages

The cable set provides a low-resistance path for high DC currents thanks to the 35 mm² conductors, reducing voltage drop and heating under load. At 3 meters long, the cables are compact enough for neat installations while long enough to reach typical battery placements near the inverter. The heavy-duty insulation and mechanical construction are suited for repeated handling and installation in residential, RV and small commercial applications.

Suitable for

Key specifications

How to use

Route the cables between the inverter and battery or distribution point while avoiding sharp bends and heat sources. Ensure both inverter and battery are disconnected and isolated before connecting. Strip the conductor ends to the appropriate length for the inverter and battery terminals, insert the conductors and secure them with the recommended torque for the terminal type. Observe correct polarity throughout the installation and fit any required fuse or circuit-breaker close to the battery side as specified by the inverter manufacturer.

Recommendations

Use protective covers on exposed terminals and install a correctly rated fuse or DC circuit breaker on the positive conductor near the battery. Verify torque settings and terminal compatibility before energizing the system. For installations in wet or corrosive environments, ensure additional protection or routing inside conduit to prolong cable life.
