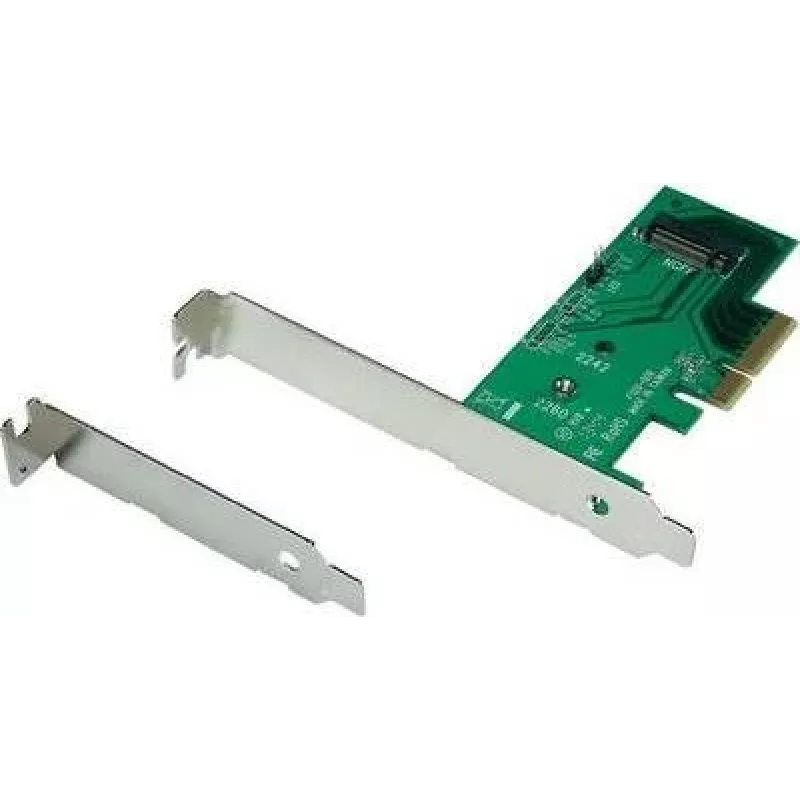

Renkforce RF-2384500 tarjeta adaptadora M.2 PCIe x4 de 1 puerto para SSD M.2 PCIe NVMe y AHCI

The Renkforce RF-2384500 adds a single M.2 slot to any desktop PC via a PCIe x4 slot, supporting both NVMe and AHCI M.2 SSDs. Unlike basic adapters, it accepts five common M.2 lengths (2230, 2242, 2260, 2280, 22110) and delivers up to 32 Gbps over PCIe 3.0 x4, making it suitable for high-speed storage expansion.

Highlights

• 1x M.2 M-Key slot for PCIe NVMe and AHCI SSDs
• Supports M.2 form factors 2230, 2242, 2260, 2280, 22110
• PCIe 3.0 x4 host interface, backward compatible with x8 and x16 slots
• Bootable drive support for Windows, macOS, and Linux
• Plug-and-play installation, powered directly from the PCIe bus

In daily use

Install the card in a free PCIe x4, x8, or x16 slot, mount your M.2 SSD, and secure it with the appropriate standoff. The card is driverless on modern operating systems, so the drive is recognized immediately. LED indicators show power and activity status, helping you monitor drive access at a glance.

Full specifications

• Host interface: PCIe x4 (compatible with x8, x16)
• M.2 interface: M-Key
• Number of M.2 slots: 1
• Supported M.2 SSD types: PCIe NVMe, PCIe AHCI
• Supported M.2 form factors: 2230, 2242, 2260, 2280, 22110
• Maximum data transfer rate: 32 Gbps (PCIe 3.0 x4)
• PCIe generation: 3.0 (backward compatible)
• Bootable drive support: Yes
• Operating system compatibility: Windows, macOS, Linux (driverless)
• Power source: PCIe bus power
• LED indicators: Power, Activity
• Installation: Plug & Play

Final note

Expand your desktop storage with a high-speed M.2 SSD using this straightforward PCIe adapter card.
