Repetidor DisplayPort 1.4 DeLOCK 8K 30 Hz 20 m

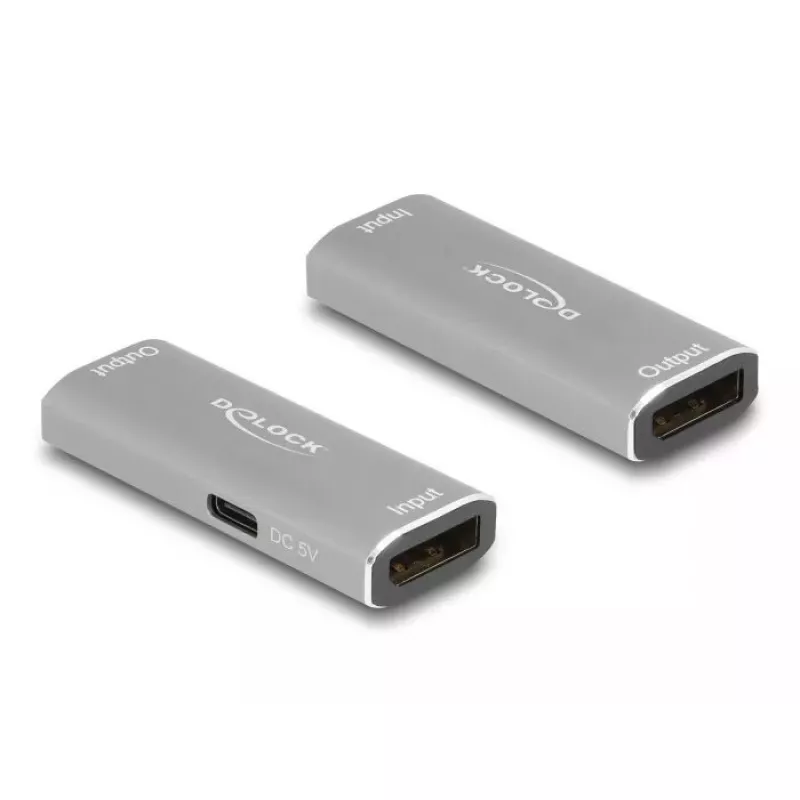

The DeLOCK DisplayPort 1.4 Repeater 8K 30 Hz 20 m is a compact signal repeater designed to extend DisplayPort connections up to a total distance of 20 metres. It allows connection of a DisplayPort cable from a PC or laptop to the repeater input and another cable from the repeater output to a monitor or TV, enabling transmission of high-resolution video without introducing additional active conversion.

Advantages

This DisplayPort repeater supports DisplayPort 1.4 bandwidth and resolutions up to 8K at 30 Hz over a combined cable length of 20 m, preserving signal integrity. Its small black housing (25 x 58 x 11 mm) fits into various installation scenarios and requires no external power source, simplifying integration into existing setups.

Suitable for

• Extending DisplayPort connections between a computer and a monitor or TV up to 20 m
• Setups where a single long DisplayPort cable is not available and two shorter cables are used (each up to 10 m)
• Environments requiring support for high-resolution displays up to 8K @ 30 Hz

Key specifications

• Standard: DisplayPort 1.4
• Maximum resolution: up to 8K at 30 Hz
• Maximum total cable length: 20 m (input cable up to 10 m + output cable up to 10 m)
• Dimensions: 25 mm (W) x 58 mm (D) x 11 mm (H)
• Colour: Black
• Brand: DELOCK, MPN: 11504, EAN: 4043619115044

How to use

Connect a DisplayPort cable from the source device (PC or laptop) to the repeater input. Connect a second DisplayPort cable from the repeater output to the display or TV. Use cables no longer than 10 m on each side to achieve the combined 20 m reach. Ensure connectors are seated firmly; no additional drivers or power supply are required for basic operation.

Recommendations

For optimal performance, use high-quality DisplayPort 1.4-rated cables and avoid cable lengths exceeding 10 m per side. If display issues occur, try shorter cables or check cable integrity and connector seating.
