RF IDeas WAVE ID Nano CCID 13,56MHz CSN Lector USB-C vertical negro

Contactless smart card reader with USB-C interface that reads 13.56 MHz card serial numbers (CSN) and outputs them as keyboard emulation or CCID, ideal for secure authentication in enterprise environments.

Advantages

This reader combines a compact vertical USB-C form factor with driverless CCID compliance, ensuring quick deployment across Windows, macOS, Linux, and Android OTG hosts. It supports a broad range of card technologies including ISO 14443 A/B, ISO 15693, FeliCa, MIFARE Classic, Ultralight, DESFire EV1/EV2/EV3, and NFC Forum Tag Types 1-4, making it versatile for mixed credential environments. The LED indicator provides clear read status, while USB bus power eliminates the need for external power supplies.

Suitable for

• Secure printing and PC/network logon
• Single sign-on (SSO) implementations
• Access control and time & attendance
• Visitor management systems
• Healthcare and government applications requiring contactless authentication

Key specifications

• Operating frequency: 13.56 MHz
• Interface: USB-C (CCID and keyboard emulation)
• Supported standards: ISO 14443 A/B, ISO 15693, FeliCa, MIFARE, NFC Forum Tag Types 1-4
• Read mode: Card Serial Number (CSN) / Unique Identifier (UID)

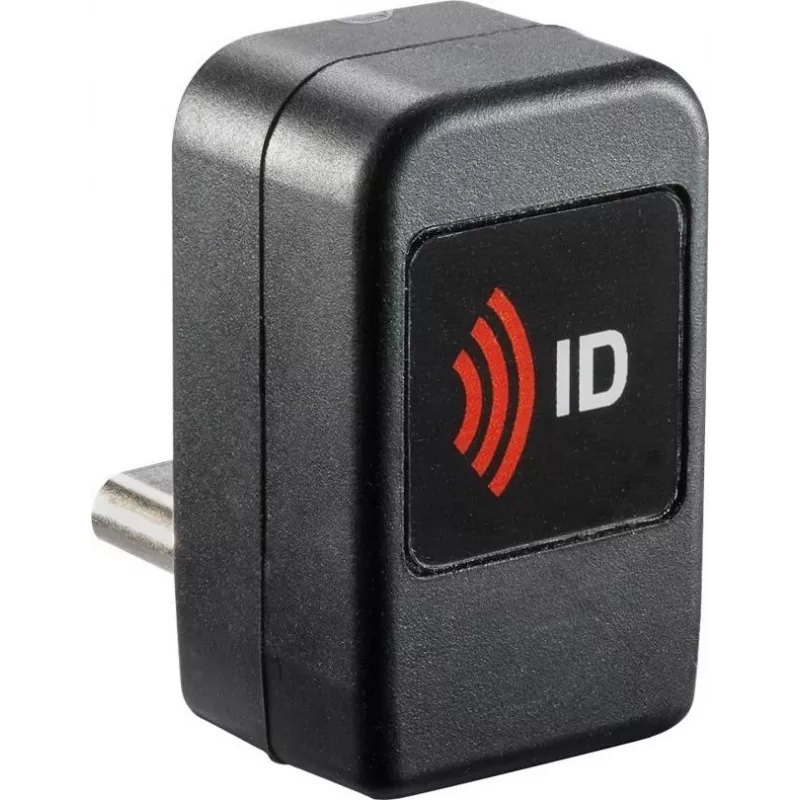

• Form factor: Vertical USB dongle, black
• Power: USB bus powered
• LED indicator: Yes
• Certifications: FCC, CE, RoHS
• Operating temperature: 0°C to 60°C
• Operating humidity: 5% to 95% RH non-condensing
• Housing: ABS plastic

Recommendations

For organizations seeking a reliable, driverless contactless reader that works seamlessly with existing smart card infrastructure, the WAVE ID Nano CCID offers a robust and cost-effective solution. Its compact vertical design saves desk space while maintaining high read performance.
